3 INSTAll ReMoTe SWITch
Skip this step if there is no separate remote switch.
WARNING:
Disconnect electrical power from unit before
beginning switch installation. Failure to do so could
result in personal injury or damage to the electrical
controls.
WARNING:
The remote switch must be located so that it can be
operated without reaching over the cooktop. Failure
to do so may result in ignition of clothing which could
cause serious injury or death.
Determine the location for the remote switch.
• The remote switch should be located so that the
vertical distance from the floor to the remote
switch is less than 48" and more than 15".
• The remote switch harness is 68" long and should
be installed so that it is not pinched and is away
from moving parts.

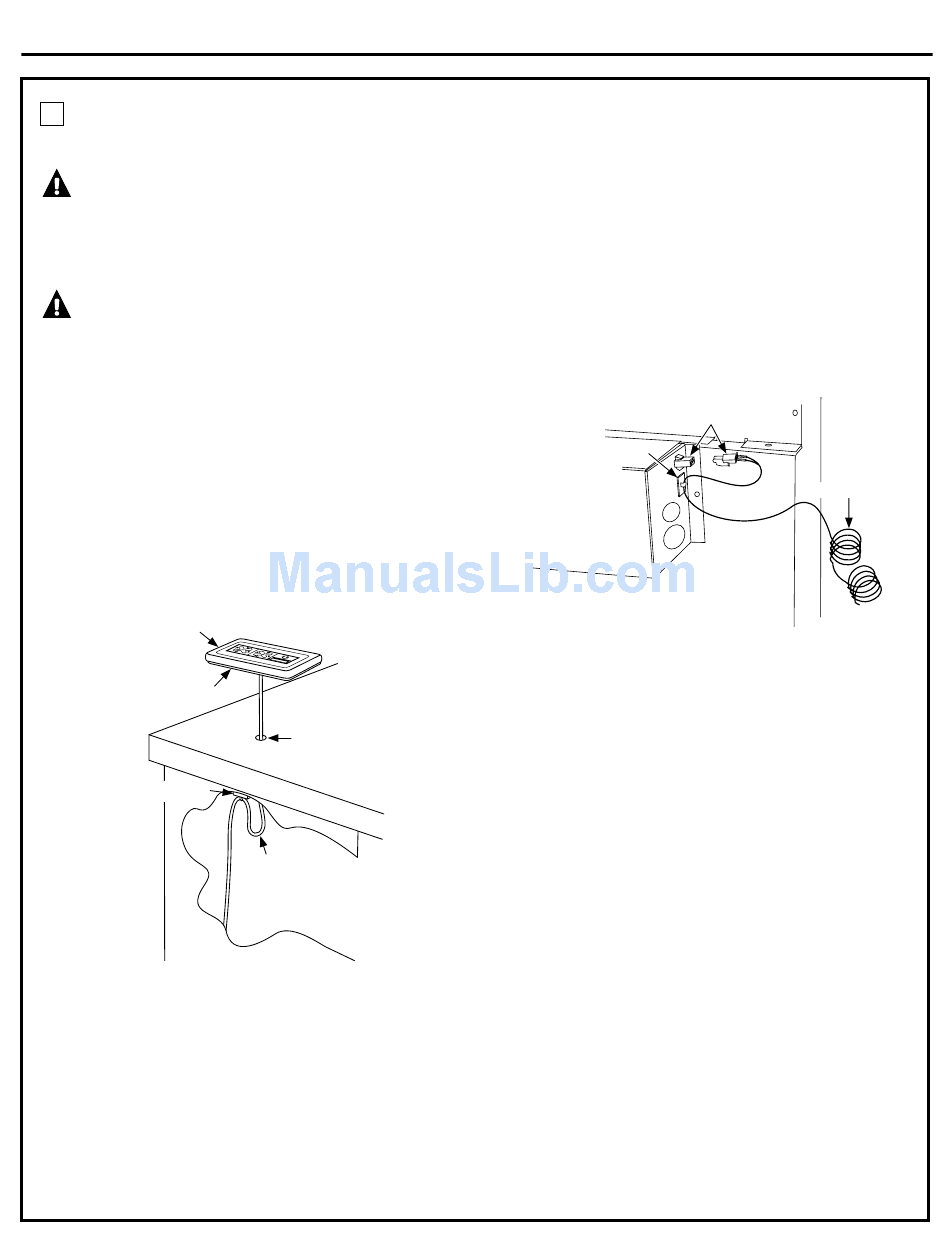

Remote Switch
Foam Piece With
Adhesive Mounting
Surface
Strain Relief
(Adhesive wire clamp
with tie)
• Drill a 1/2"-dia. hole into the desired location. Use
the mounting bracket as a template to locate the
hole accurately. Check for interference between
the switch cover, adjacent objects and cooktop/
vent overlaps.
• If switch is mounted into a tile surface, drill the
hole between tiles. Use locally approved caulking
to cover any gaps.
• If the remote switch is not installed on the coun-
tertop, ensure that it is installed in a location that
meets local codes and is easily accessible.
Installation Instructions
(on some models)
buRN hAZARD
1/2"-Dia.
hole
Remote
harness
connect Remote Switch to Remote harness
• Thread the remote harness through the 1/2"-dia.
hole and attach the harness connector to the
remote connector.
• Remove the paper backing on the remote switch
foam piece and mount the remote switch on the
countertop such that the switch connectors stay
located in the 1/2"-dia. hole.
• Stick adhesive wire clamp near the 1/2"-dia. hole
and attach the loose wire with a wire tie.
Mating Connectors
Strain Relief
(Adhesive wire
clamp with tie)
Control
Box
connect Wire lead to control box
• Connect the mating wire ends.
• Place the adhesive wire clamps (provided) near
the mating connector.
• Keep approximately 3"-long wire and attach
the wire to the clamp with a wire tie. This will act
as a strain relief.
