2.3
Installing the 15" Touch Screen Surface Mount
Enclosure
Version 3.4
LT-996

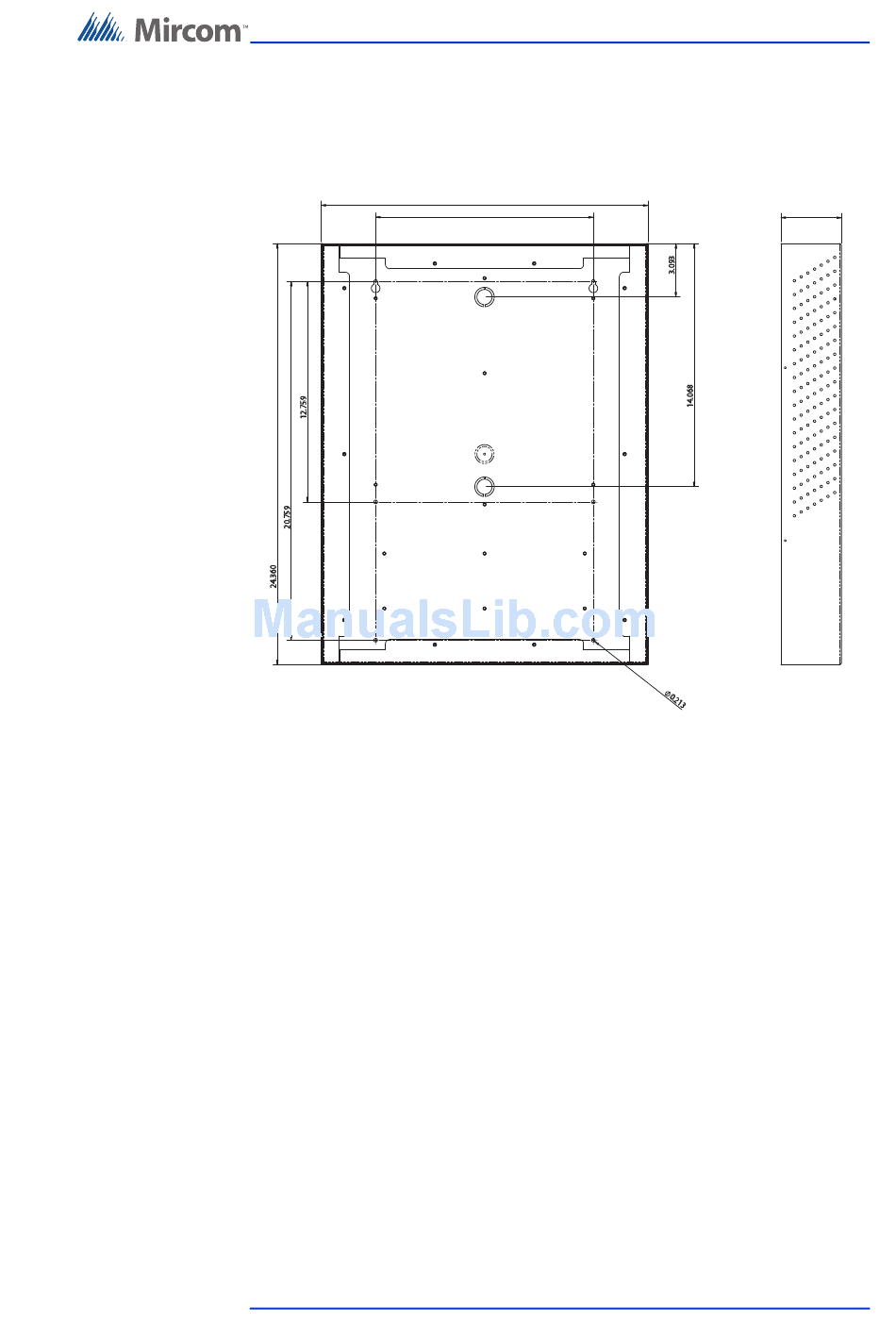

Figure 14. 15" Touch Screen Surface Mount Back
TX3 Touch Screen Installation Manual
Copyright 2015
18.920
18.920
12.600
12.600
Dimensions (inches)
Enclosure Installation
3.500
3.500
25 (93)
