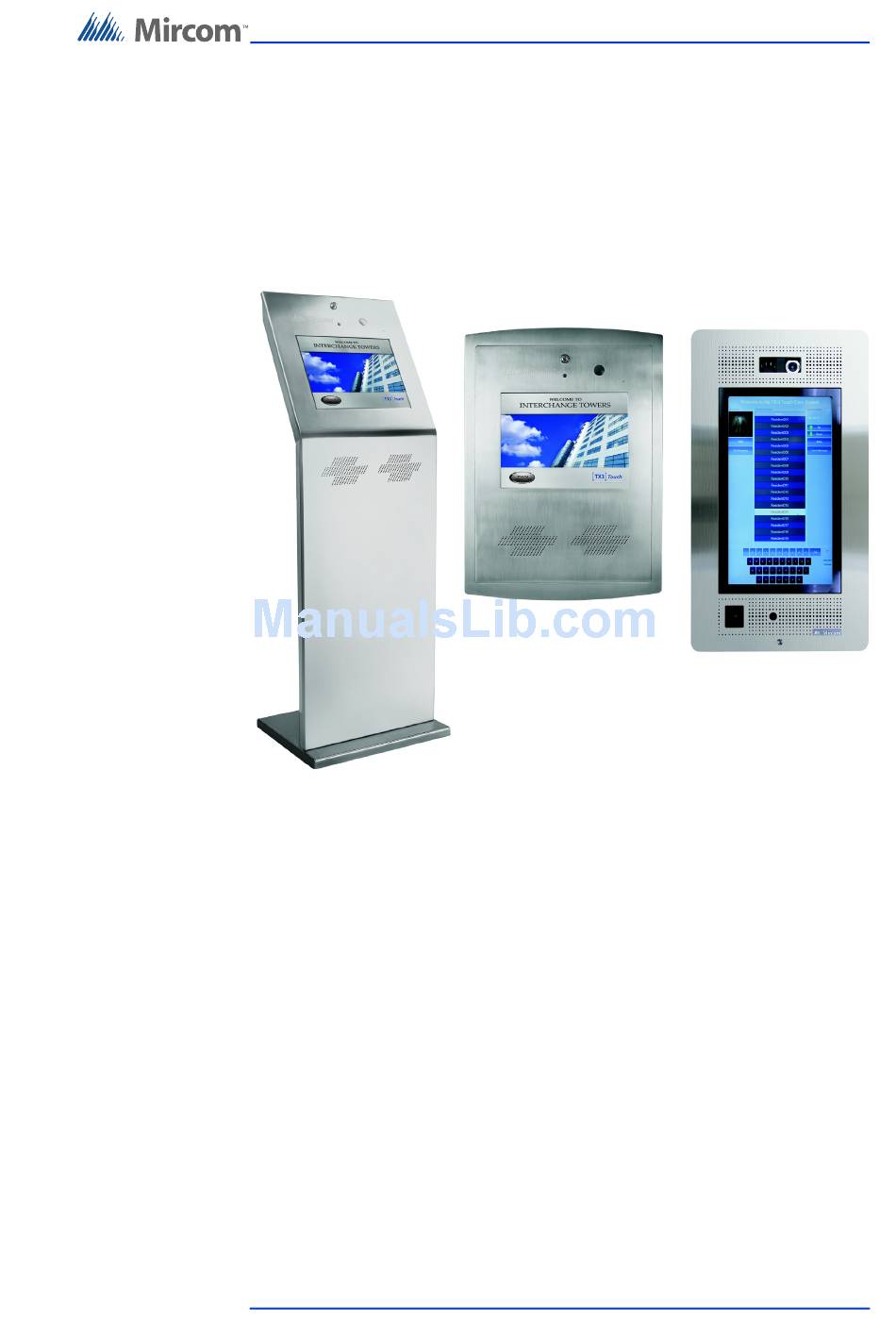

Page 1: Touch Screen
TX3 Series Touch Screen Installation Manual TX3 Touch Screen Installation Manual Version 3.4 1 (93) LT-996 Copyright 2015... - Page 2 TX3 Touch Screen Installation Manual 2 (93) Version 3.4 Copyright 2015 LT-996...
-
Page 3: Table Of Contents
Contents Introduction TX3 Systems Features Touch Screen Sizes and Enclosures Touch Screen Accessories Warranty and Special Notices About This Manual Contact Us Enclosure Installation Installing the Enclosures and Touch Screen Installing the 15” Kiosk Installing the 15” Touch Screen Surface Mount Enclosure Installing the 15”... - Page 4 TX3 Touch Screen Installation Manual 4 (93) Version 3.4 Copyright 2015 LT-996...
- Page 5 List of Figures Figure 1 TX3 devices on an RS-485 network. Figure 2 TX3 devices connected to an ethernet TCP/IP network. Devices connected to an ethernet network are Master Nodes. Figure 3 TX3 devices connected to a combination ethernet TCP/IP network with RS-485 subnetworks.
- Page 6 Figure 32 Attach the 22” Touch Screen to the stand Figure 33 Attach the 22” Touch Screen to the stand Figure 34 Inside the Switching Power Supply Box Figure 35 Power Supply Voltage Selection Switch Figure 36 Touch Screen Power Supply Enclosure Figure 37 Single Touch Screen Figure 38...
-
Page 7: Introduction
Installation must be performed by a qualified technician and must adhere to the standards and special notices set by the local regulatory bodies. Note: Mircom periodically updates panel firmware and Configurator Software to add features and correct any minor inconsistencies. For information about the latest firmware or software visit the Mircom website at www.mircom.com. -
Page 8: Tx3 Systems
1.1.3 Other Controllers Mircom devices, such as the Touch Screen and the Lobby Control Unit, can be networked with the TX3 system through a peer-to-peer RS-485 network, an ethernet TCP/IP network, or a combination of an ethernet network with RS-485 subnetworks. -
Page 9: Figure 1 Tx3 Devices On An Rs-485 Network
Introduction The TX3 Configurator software can connect to any of these network configurations. How you connect to the network (that is, through TCP/IP, USB, a modem, or the COM port) determines what devices you can configure on the system. The different network configurations are explained in the rest of this section. -
Page 10: Figure 2 Tx3 Devices Connected To An Ethernet Tcp/Ip Network. Devices Connected To An Ethernet Network Are Master Nodes
Introduction ethernet TCP/IP network. If you connect directly to one of the Master Nodes using USB, a modem, or a COM port, you will be able to configure that device but not any other device. Touch Screen Unit Elevator Restriction Unit (Master Node) (Master Node) Ethernet Network... -
Page 11: Figure 3 Tx3 Devices Connected To A Combination Ethernet Tcp/Ip Network With Rs-485
Introduction Figure 3 shows a configuration with TX3 devices connected on both an ethernet TCP/IP network and on RS-485 subnetworks. Devices connected to a Master Node’s RS-485 subnetwork are Slave Nodes to the Master Node. Each RS-485 subnetwork can have up to 63 devices connected to it; you can still have more than 63 Master Nodes connected to the ethernet network. -
Page 12: Features
Introduction configure Touch Screen options such as color and themes), the Touch Screen panel must be set as an Master Node even if there is no slave panel connected to it. Features Features of the TX3 series include: • Stainless steel front panel •... -
Page 13: Touch Screen Accessories
TX3-TOUCH-K15-A. 15” Touch Screen kiosk, stainless steel finish Touch Screen with speaker, microswitch for postal lock and a PS-4P transformer plug. Designed for indoor use. The TX3-TOUCH-K15-A can be configured as a Master Node on an ethernet network. TX3-TOUCH-F15-A. 15” Touch Screen flush mount, stainless steel finish Touch Screen with speaker, microswitch for postal lock, flush mounting back box and a PS-4P transformer plug. -
Page 14: Warranty And Special Notices
Introduction Warranty and Special Notices Mircom values your business and always attempts to provide you with the very best service. Please see the Warranty and Special Notices chapter on page 87 for information about the warranty and special notices about equipment use. -
Page 15: Contact Us
TX3 Series Elevator Restriction Accessories Catalogue Number 6532 Contact Us Mircom fosters a collaborative support process and environment in providing early feedback to meet your specific needs. You can contact us from Monday to Friday 8:00 A.M. to 5:00 P.M. E.S.T. -
Page 16: Technical Support
Introduction 1.7.3 Website Visit the Mircom website, at www.mircom.com, to find the product information you are looking for and to learn about troubleshooting, training and technical support options. The website provides avenues for customers to ask questions about new and existing technologies, and receive expert technical support about software and products. -
Page 17: Enclosure Installation
Enclosure Installation Enclosure Installation This chapter provides information on how to install the various enclosures and pre-assembled components. This chapter explains • Installing the 15” Kiosk - page 19 • Installing the 15” Touch Screen Surface Mount Enclosure - page 25 •... -
Page 18: Installing The Enclosures And Touch Screen
Installing the Enclosures and Touch Screen The Touch Screen Kiosk, Surface Mount and Flush Mounts units consist of the following pre-assembled components: Kiosk. The kiosk is a pedestal mounted Touch Screen TX3-TOUCH-K15-A unit and consists of the following components: •... -
Page 19: Installing The 15" Kiosk
Enclosure Installation Installing the 15” Kiosk 17.950 14.187 Figure 4. Kiosk Dimensions (inches) The Kiosk mounts to the floor inside the building near the entrance, close to the power source and telephone infrastructure. Access for the power and communication cables is provided through a cutout in the base plate. To install the Kiosk you must: •... -
Page 20: Figure 5 Reinforcement Bracket With Bolts
Enclosure Installation To install the Touch Screen Kiosk base plate Find a suitable location for the Kiosk next to the building entrance and above the building electrical and communications conduit. Remove the door from the Kiosk. Remove the 4 bolts from the reinforcement bracket, as shown in Figure 5. Figure 5. -
Page 21: Figure 6 Reinforcement Bracket With Nuts
Enclosure Installation Figure 6. Reinforcement Bracket with nuts Remove the remaining 8 bolts that attach the Kiosk to the base plate, as shown in Figure 7. Figure 7. Kiosk Base Plate with bolts The 12 Kiosk mounting holes in the base plate are shown in Figure 8. Figure 8. -
Page 22: Figure 9 Base Plate Mounting Holes
Enclosure Installation Using the Kiosk base plate as a template, trace an opening in the floor for the cutout and mark the 4 base plate mounting hole locations as shown in Figure 9. Ensure that the base plate is aligned with the electrical conduit. Figure 9. -
Page 23: Figure 11 Fitting The Kiosk On The Base Plate
Enclosure Installation To fit the Touch Screen Kiosk on the base plate Fit the back lip of the Kiosk into the notches in the baseplate, and tilt the Kiosk forwards so that it rests on top of the base plate. Figure 11. -
Page 24: Figure 13 Attach The Kiosk To The Base Plate
Enclosure Installation Secure the Kiosk onto the base plate using the 8 of the 12 base plate bolts in the holes shown in Figure 13. Attach the Kiosk to the base plate with bolts in these holes first Figure 13. Attach the Kiosk to the base plate Position the reinforcement bracket over the 6 studs on the inside of the Kiosk, and screw the 6 nuts on to the studs as shown in Figure 6. -
Page 25: Installing The 15" Touch Screen Surface Mount Enclosure
Enclosure Installation Installing the 15” Touch Screen Surface Mount Enclosure 18.920 18.920 12.600 12.600 3.500 3.500 Figure 14. 15” Touch Screen Surface Mount Back Dimensions (inches) TX3 Touch Screen Installation Manual Version 3.4 25 (93) LT-996 Copyright 2015... -
Page 26: Figure 15 15" Touch Screen Surface Mount Front Dimensions (Inches)
Figure 15. 15” Touch Screen Surface Mount Front Dimensions (inches) The surface mount enclosure mounts on the wall. Mount the enclosure right-side up (the Mircom logo on the door is on the bottom). You need: • 6 fasteners appropriate for the wall that you are mounting the enclosure on. -
Page 27: Figure 16 Touch Screen Surface Mount
Enclosure Installation Figure 16. Touch Screen Surface Mount To install the surface mount enclosure Find a suitable location for the enclosure. Using the enclosure as a template, mark the back mounting locations of the two keyholes as shown in Figure 16. Ensure that at least one side is over a wall stud. -
Page 28: Installing The 15" Touch Screen Flush Mount Enclosure
Enclosure Installation Installing the 15” Touch Screen Flush Mount Enclosure 3.500 3.500 18.000 18.000 12.600 12.600 1.400 1.400 Figure 17. 15” Touch Screen Flush Mount Back Dimensions (inches) TX3 Touch Screen Installation Manual 28 (93) Version 3.4 Copyright 2015 LT-996... -
Page 29: Figure 18 15" Touch Screen Flush Mount Front Dimensions (Inches)
Enclosure Installation 3.622 3.622 19.000 19.000 0.120 0.120 1.400 1.400 Figure 18. 15” Touch Screen Flush Mount Front Dimensions (inches) The flush mount enclosure mounts directly inside the wall to the wall stud or supporting structure as shown in Figure 19. Mount the enclosure flush with the wall and right-side up (the knock out is at the bottom). -
Page 30: Figure 19 Flush Mount Enclosure
Enclosure Installation Wall Enclosure Frame Enclosure Front GROUND SCREW LOCATION Side View Figure 19. Flush Mount Enclosure To install the flush mount enclosure Find a suitable location for the enclosure. You can mount the enclosure using the keyholes on the back, or the knockouts on the side, or both. Using the enclosure as a template, trace an opening in the wall for the cutout with one side aligned with the side of the wall stud. - Page 31 Enclosure Installation If you are using the keyholes, remove the enclosure and place 2 fasteners halfway into the wall into the marked keyhole locations. Then place the enclosure onto the top fasteners and lower it so that the fasteners fit in the narrow part of the keyholes.
-
Page 32: Installing The 22" Touch Screens
Installing the Surface Mount Enclosure The surface mount enclosure mounts on the wall. Mount the enclosure right-side up (the Mircom logo on the door is on the bottom). You need: 6 fasteners appropriate for the wall that you are mounting the enclosure on. -
Page 33: Figure 20 Surface Mounting The Enclosure
The flush mount enclosure mounts directly inside the wall to the wall stud or supporting structure. Mount the enclosure flush with the wall and right-side up (the Mircom logo on the door is on the bottom). TX3 Touch Screen Installation Manual Version 3.4... -
Page 34: Figure 21 Flush Mounting The Enclosure
Enclosure Installation You need: 6 fasteners appropriate for the wall that you are mounting the enclosure on. To flush mount the enclosure Find a suitable location for the flush mount enclosure beside a wall stud. Attention: To comply with ADA regulations, the bottom of the enclosure must be no more than 36 inches from the ground. - Page 35 Enclosure Installation Remove the enclosure and place the fasteners halfway into the wall into the marked hole locations. Place the enclosure onto the top fasteners and lower it so that the fasteners fit in the narrow part of the keyholes. Screw the other four fasteners into the four remaining holes.
-
Page 36: Figure 22 22" Touch Screen Flush Mount Dimensions (Inches)
Enclosure Installation Figure 22. 22” Touch Screen Flush Mount Dimensions (inches) TX3 Touch Screen Installation Manual 36 (93) Version 3.4 Copyright 2015 LT-996... -
Page 37: Figure 23 22" Touch Screen Surface Mount Dimensions (Inches)
Enclosure Installation Figure 23 22” Touch Screen Surface Mount Dimensions (inches) TX3 Touch Screen Installation Manual Version 3.4 37 (93) LT-996 Copyright 2015... -
Page 38: Assembling The Tx3-T-Kiosk Stand
Enclosure Installation Assembling the TX3-T-KIOSK Stand 18.00 18.20 15.19 21.23 Figure 24. 22” Touch Screen Dimensions (inches) TX3 Touch Screen Installation Manual 38 (93) Version 3.4 Copyright 2015 LT-996... -
Page 39: Figure 25 15" Touch Screen Dimensions (Inches)
Enclosure Installation 19.00 19.00 18.20 18.20 15.19 15.19 19.42 19.42 Figure 25. 15” Touch Screen Dimensions (inches) The Kiosk mounts to the floor inside the building near the entrance, close to the building power source and telephone infrastructure. Access for the power and communication cables is provided through a cutout in the base plate. -
Page 40: Figure 26 Components Of Tx3-T-Kiosk
Enclosure Installation You will need: • 4 bolts to attach the base plate to the floor. The bolts need to fit holes that are 0.406” in diameter. Nuts (x6) Stand Screw cover (x8) Screw (x8) Screw cover base (x8) Base plate Figure 26. -
Page 41: Figure 27 Base Plate Mounting Holes
Enclosure Installation Using the base plate as a template, trace an opening on the floor for the cutout and mark the 4 base plate mounting hole locations as shown in Figure 27. Figure 27. Base Plate Mounting Holes Figure 28 shows the dimensions of the base plate. 14.244 Figure 28. -
Page 42: Figure 29 Fit The Stand On The Base Plate
Enclosure Installation To fit the TX3-T-KIOSK stand on the base plate Fit the back lip of the stand into the notches in the baseplate, and tilt the stand forwards so that it rests on top of the base plate. Figure 29. Fit the stand on the Base Plate Figure 30. -
Page 43: Figure 31 Attach The Stand To The Base Plate
Enclosure Installation Secure the stand onto the base plate using the screw cover bases, screws, and screw covers as show in Figure 31. Screw cover (x8) Screw (x8) Screw cover base (x8) Base plate Figure 31. Attach the stand to the base plate Attention: The 22”... -
Page 44: Figure 32 Attach The 22" Touch Screen To The Stand
Enclosure Installation Hole for wiring Nuts (x6) Power and ground Figure 32. Attach the 22” Touch Screen to the stand TX3 Touch Screen Installation Manual 44 (93) Version 3.4 Copyright 2015 LT-996... -
Page 45: Figure 33 Attach The 22" Touch Screen To The Stand
Enclosure Installation Power and ground Hole for wiring Nuts (x6) Figure 33. Attach the 22” Touch Screen to the stand Proceed with the wiring installation described in Chapter 3. TX3 Touch Screen Installation Manual Version 3.4 45 (93) LT-996 Copyright 2015... -
Page 46: Installing The Power Supply Enclosure
Enclosure Installation Installing the Power Supply Enclosure The Touch Screen external power supply is an MD-990 156 W, 24 V single output switching power supply encased inside a metal enclosure. A voltage selectable switch is located on the side of the power supply and is factory set to 120V but can be switched to 230V. -
Page 47: Figure 35 Power Supply Voltage Selection Switch
Enclosure Installation Switch the voltage selection switch to the required voltage level. Place a flathead screwdriver in between one of the holes in the chassis to access the switch. By default it is set to 115 Volts. Figure 35. Power Supply Voltage Selection Switch Place the Switching Power Supply back into the box using the metal guides to position it and then replace the screws on both sides of the terminal block to secure it into the box. -
Page 48: Figure 36 Touch Screen Power Supply Enclosure
Enclosure Installation Figure 36. Touch Screen Power Supply Enclosure Dimensions without lid: Height: 7.500”, Width: 9.500”, Depth: 2.300” Overall dimensions: Height: 7.720”, Width: 9.830”, Depth: 2.378” To surface mount the power supply enclosure Find a suitable location for the power supply enclosure, such as over a wall stud. - Page 49 Enclosure Installation Tighten all four screws into place. Note: The enclosure can also be mounted directly onto the drywall using anchors. TX3 Touch Screen Installation Manual Version 3.4 49 (93) LT-996 Copyright 2015...
- Page 50 Enclosure Installation TX3 Touch Screen Installation Manual 50 (93) Version 3.4 Copyright 2015 LT-996...
-
Page 51: Touch Screen System And Setup
Touch Screen System and Setup Touch Screen System and Setup This chapter describes the basic Touch Screen system, main panel, controller board components and provides information about its operation and setup. This chapter explains • Touch Screen System • Touch Screen Panels •... -
Page 52: Touch Screen System
Touch Screen System and Setup Touch Screen System The TX3 Touch Screen may be networked with a combination of Telephone Access and Card Access Units through a peer-to-peer RS-485 connection. Touch Screen is capable of providing ADC or NSL telephone access from a single panel or from a networked system. -
Page 53: Figure 37 Single Touch Screen
Touch Screen System and Setup 3.1.1 Single Touch Screen Figure 37 shows the simplest configuration for an ADC or NSL telephone system. Telephone outlet Central office line Control Unit Line1 Line1 Touch Screen Touch Screen Figure 37. Single Touch Screen TX3 Touch Screen Installation Manual Version 3.4 53 (93) -
Page 54: Figure 38 Single Touch Screen With Adc And Nsl Lines
Touch Screen System and Setup Figure 38 shows a configuration using one Touch Screen connected to one ADC line and four NSL lines. Telephone outlet Central office line Control Control Control Control Unit Unit Unit Unit Line2 Line4 Line3 Line1 Line5 Touch Screen Figure 38. -
Page 55: Touch Screen Panels
Touch Screen System and Setup Touch Screen Panels 3.2.1 15” Touch Screen Main Panel On the Kiosk, the Touch Screen Panel is situated behind the front cover. To access the panel, unlock the Touch Screen and pull open the front cover. The 15”... - Page 56 Touch Screen System and Setup 3.2.2 22” Touch Screen Inside Doors The 22” Touch Screen inside doors contain the following components as shown in Figure 40: • Speakers • Camera • Postal Lock (optional) • Fan (optional) • Microphone • P300 Card Reader TX3 Touch Screen Installation Manual 56 (93)
-
Page 57: Figure 40 22" Touch Screen Inside Door
Touch Screen System and Setup • Keyhole Speakers Camera Microphone Postal Lock P300 Card Reader Keyhole Figure 40. 22” Touch Screen Inside Door TX3 Touch Screen Installation Manual Version 3.4 57 (93) LT-996 Copyright 2015... -
Page 58: Controller Boards
Touch Screen System and Setup Controller Boards 3.3.1 15” Touch Screen Controller Boards The following Touch Screen controller boards are situated on a panel behind the 15” Touch Screen Panel as shown in Figure 41: • Telephone Access Controller • PC Sub Compact Board •... -
Page 59: Figure 42 Controller Board Panel For 22" Touch Screens
Touch Screen System and Setup 3.3.2 22” Touch Screen Controller Boards The 22” Touch Screen Panel contains the following components and controller boards as shown in Figure 42: • On/Off Switch • USB Port • Telephone Access Controller • PC Sub Compact Board •... -
Page 60: Figure 43 Controller Board Connectors - Top
Touch Screen System and Setup Figure 43 shows the connectors at the top of the Telephone Access controller. Line 1 Line 5 General Relay Door Strike Output 4 DC Output 1 Door Strike AC or DC Input Door Line 2 Line 3 Line 4 Strike Supply... -
Page 61: Grounding The 15" Touch Screen
Touch Screen System and Setup Figure 44 shows the connectors at the bottom of the Telephone Access controller. Input 2 Input 3 Input 4 RS-485 OUT - s + LED/LAMP Supply Power Supply for TX3 Microphone Input 1 Input 5 Connection Camera Supply Speaker... -
Page 62: Connecting To The External Power Supply
Touch Screen System and Setup To ground the 22” Touch Screen Attach the bottom right terminal to a suitable grounding wire and connect it to the site ground, as shown in Figure 45. Power Terminals (not polarity sensitive) Ground Ground Screw Screw 16 Gauge Wire... -
Page 63: Figure 46 Md-990 Terminal Block Wiring
Touch Screen System and Setup 3.6.2 Maximum Power Supply Wire Distances The distance from the Touch screen to the power supply is a function of the wire gauge and the resistance generated by the cable by the power draw. Do not exceed the maximum distances from the Touch screen to the power supply as indicated in Table 1. -
Page 64: Installing The Postal Lock
Touch Screen System and Setup Connect the building power supply wires to the MD-990 line terminal screws as shown in Figure 46. Connect the other end of the building power supply wires the line voltage terminals. Turn the power on from the 15” Touch Screen Panel. On the 22” Touch Screen, press the On/Off Switch to turn on the unit. - Page 65 Touch Screen System and Setup Camera. For instructions on installing a Logitech c615 HD Webcam, see 3.13 on page 69. Replacement 22” display. For instructions on installing a replacement 3M Multi-Touch Display, see 3.14 on page 70. Fan. For instructions on installing a fan in the 22” Touch Screen, see LT-6074 Installing the Fan in the 22”...
-
Page 66: Verifying Installed Components
Touch Screen System and Setup There are two additional RS-485 Terminal Connectors that must be added to the FIRST and LAST node of the network. On the FIRST node of the network attach the connector to the RS-484 IN. One the LAST node of the network attach the terminal connector to the RS-485 OUT. -
Page 67: Beginning Configuration
Touch Screen System and Setup For additional information about the Telephone Access Controller Board Connectors see LT-969 TX3-Telephone Access System Installation and Operation Manual: Speaker Connections. Audio speakers to Audio Mixer Board. USB. Telephone Access Controller USB to PC Sub Compact Board USB Power Supply Connectors. -
Page 68: Shutting Down The Touch Screen
Touch Screen System and Setup DIP Switch 8 on SW1 determines how the Telephone Access Controller board gets its IP address (only for for IP-enabled Touch Screen models with the TX3-IP Module installed): • DIP Switch 8 OFF: The IP address is assigned by a DHCP server. •... -
Page 69: Installing A Logitech C615 Hd Webcam On The 22" Touch Screen
Touch Screen System and Setup Do not disconnect the power until the full shut down process has been completed. 3.13 Installing a Logitech c615 HD Webcam on the 22” Touch Screen You can install a Logitech c615 HD Webcam in the 22” Touch Screen. To install the Logitech c615 camera Shut down the Touch Screen and disconnect the power. -
Page 70: Replacing The 3M™ Multi-Touch Display C2167Pw On The 22" Touch Screen
Touch Screen System and Setup 3.14 Replacing the 3M™ Multi-Touch Display C2167PW on the 22” Touch Screen The 22” Touch Screen incorporates a 3M™ Multi-Touch Display C2167PW (ID: 98000342422). If you need to replace it, follow these instructions. To remove the old display Shut down the 22”... -
Page 71: Figure 49 Inside Of Door Showing Position Of The Four #6-32 Nuts
Touch Screen System and Setup Remove the four #6 nuts and keep them. Figure 49. Inside of door showing position of the four #6-32 nuts Remove the display from the four posts. TX3 Touch Screen Installation Manual Version 3.4 71 (93) LT-996 Copyright 2015... -
Page 72: Figure 50 The Two Brackets (Ch-1165) Holding The Display
Touch Screen System and Setup Remove the eight M4x8mm screws and the outside brackets (CH-1165). Keep the brackets and the screws. Figure 50. The two brackets (CH-1165) holding the display To attach the new display Attach the supplied 3M brackets to the display using the supplied M4 screws. -
Page 73: Figure 51 Power Button
Touch Screen System and Setup Slide the display on to the four posts on the door and secure the four #6 nuts on the posts. Note: Make sure to install the display the right way up. The four buttons should be on the bottom. Adjust the screen so that it is flush with the front of the door panel, and then tighten the 8 M4x8mm screws. -
Page 74: Installing The Tx3-P300-Ha Card Reader In The 22" Touch Screen
Touch Screen System and Setup 3.15 Installing the TX3-P300-HA Card Reader in the 22” Touch Screen Open the Touch Screen door. Install the fan in the lower left corner of the door, as shown in Figure 52. TX3-P300-HA Card Reader Figure 52. -
Page 75: Figure 53 The Tx3-P300-Ha Card Reader
Touch Screen System and Setup Attach the card reader to the 2 posts on the bracket with the 2 #4-40 nuts as shown in Figure 53. TX3-P300-HA Bracket Posts(x2) Card Reader Nuts (x2) Figure 53. The TX3-P300-HA Card Reader Slide the bracket on to the 4 posts on the Touch Screen door and secure it with the 4 #8-32 nuts as shown in Figure 54. -
Page 76: Installing A Rb-Md-1093 Two Door Controller Network Board
Touch Screen System and Setup 3.16 Installing a RB-MD-1093 Two Door Controller Network Board Refer to the manual LT-981A that came with the two door controller network board for instructions on how to install it. TX3 Touch Screen Installation Manual 76 (93) Version 3.4 Copyright 2015... -
Page 77: Adding Controllers
Adding Controllers Adding Controllers This chapter provides information about adding additional controllers on the same network as the Touch Screen. This chapter explains • How to add the controller TX3 Touch Screen Installation Manual Version 3.4 77 (93) LT-996 Copyright 2015... -
Page 78: Adding A Controller
Adding Controllers Adding a Controller The TX3 Touch Screen may be integrated with other controllers, such as the Telephone and Card Access systems, through a peer-to-peer connection via the RS-485 bus. Touch has a provision to add the TX3 Card Access controller inside the unit. Note: Ensure that all network devices each have unique ID addresses. -
Page 79: Appendix
Appendix Appendix This chapter contains additional information about the TX3 Touch Screen. This chapter explains • Touch Screen Specifications • Touch Screen Kits TX3 Touch Screen Installation Manual Version 3.4 79 (93) LT-996 Copyright 2015... -
Page 80: Specifications
Mircom door strikes below and its compatible power transformer. • Mircom Model M-10. DC (silent) or AC (buzzing) Door Strike. (Use PS- 3B transformer) Note: The door strike must have its own separate power transformer. Do not tap or use the system power transformers. - Page 81 Appendix 5.1.7 Tamper Switch This switch can be connected to any security or monitoring system to supervise the opening of the panel front door. This microswitch is the same type used for the postal lock. This switch is normally open when the panel front door of the TX3 is closed, 28 Vac or 28 Vdc, 1A.
- Page 82 Appendix TX3 Touch Screen Installation Manual 82 (93) Version 3.4 Copyright 2015 LT-996...
-
Page 83: Resident Operating Instructions
Resident Operating Instructions Resident Operating Instructions This chapter describes the Touch Screen operating instructions for use by the resident. This chapter explains • NSL Resident Operating Instructions • ADC Resident Operating Instructions TX3 Touch Screen Installation Manual Version 3.4 83 (93) LT-996 Copyright 2015... -
Page 84: Nsl Resident Operating Instructions
Resident Operating Instructions NSL Resident Operating Instructions Mircom's state-of-the-art Touch Screen door entry system provides you and your guest with an increased level of confidence and security. Touch Screen operates with your existing telephone. Your guest dials your code number or selects your name by scrolling through the visual directory on the Touch Screen unit, causing your telephone to ring. - Page 85 Resident Operating Instructions 6.1.3 Call Waiting Feature When a guest places a call to you from the Touch Screen while you are engaged in a conversation on your outside telephone line, you will hear a distinct tone. To answer the call Briefly push the call waiting key to answer the call.
-
Page 86: Adc Resident Operating Instructions
Resident Operating Instructions ADC Resident Operating Instructions Mircom's state-of-the-art Touch Screen door entry system provides you and your guest with an increased level of confidence and security. Touch Screen operates with your existing telephone. Your guest dials your code number or selects your name by scrolling through the visual directory on the Touch Screen unit, causing your telephone to ring. -
Page 87: Warranty & Warning Information
During the warranty period, Mircom shall, at its option, repair or replace any defective product upon return of the product to its factory, at no charge for labour and materials. - Page 88 Mircom neither assumes nor authorizes any other person purporting to act on its behalf to modify or to change this warranty, nor to assume for it any other warranty or liability concerning this product.
- Page 89 Products which Mircom determines to be repairable will be repaired and returned. A set fee which Mircom has predetermined and which may be revised from time to time, will be charged for each unit repaired. Products which Mircom determines not to be repairable will be replaced by the nearest equivalent product available at that time.
-
Page 90: Special Notices
Special Notices Product Model Number: TX3 AC REN (U.S.): 0.0B AC REN (CANADA): 0.0 Complies With Federal Communications Commission (FCC): • TIA-968-A Technical requirement for connection of equipment tot he telephone network. • CFR 47, Part 15, Subpart B, Class B •... - Page 91 Repairs to certified equipment should be made by an authorized Canadian maintenance facility designated by the supplier. Any repairs or alteration made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment.
- Page 92 Contact your telephone company if you have any questions about your telephone line. In the event repairs are ever needed on the Communicator, they should be performed by Mircom or an authorized representative of Mircom. For information contact Mircom at the address and telephone numbers in paragraph 1.7.
- Page 93 Equipment Failure If trouble is experienced with the TX3 Telephone/Card Access System, for repair or warranty information, please contact Mircom using the numbers paragraph 1.7. If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved.
