18.00
18.20
15.19
21.23

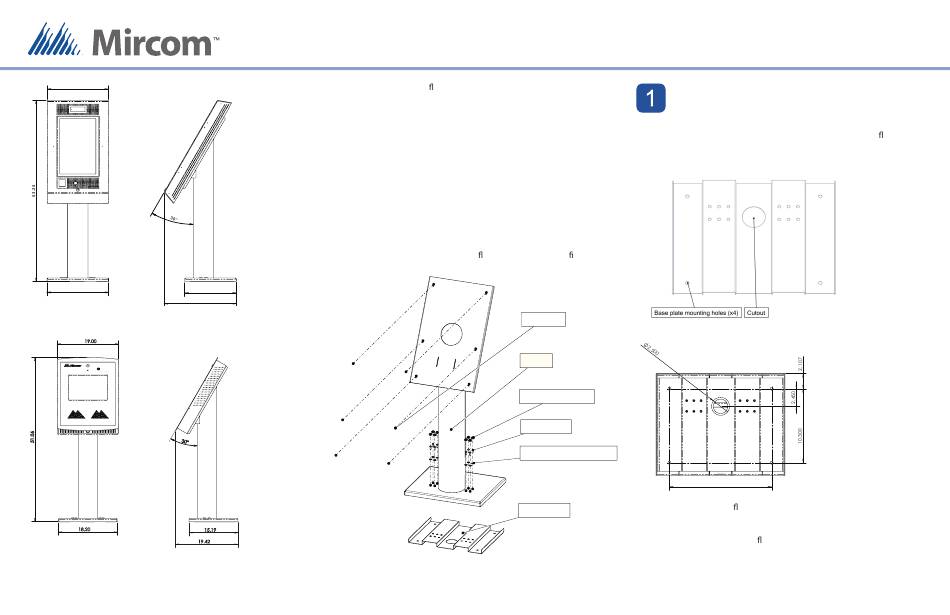

Figure 1: 22" Touch Screen Kiosk Dimensions (inches)
19.00
18.20
15.19
19.42
Figure 2: 15" Touch Screen Kiosk Dimensions (inches)
A complete library of product
information is available at:
www.mircom.com/tx3
The stand mounts to the oor inside the building near the entrance, close
to the building power source and telephone infrastructure. Access for
the power and communication cables is provided through a cutout in the
base plate.
Note: Avoid placing the Touch Screen in direct sunlight.
The kit includes:
1 stand
1 base plate
8 screws for attaching the stand to the base plate
8 screw covers
8 screw cover bases
6 nuts for attaching the Touch Screen to the stand
You will need:
4 bolts to attach the base plate to the oor. The bolts need to t holes that
are 0.406" in diameter.
Figure 3: Components of the Kiosk stand
ASSEMBLING TX3-T-KIOSK
ATTACH THE BASE PLATE TO THE FLOOR
1. Ensure that the base plate is aligned with the electrical conduit.
2. Using the base plate as a template, trace an opening on the oor for
the cutout and mark the 4 base plate mounting hole locations as
shown in Figure 4.
Figure 4: Base plate mounting holes
14.244
Figure 5: Base plate dimensions (inches)
3. Cut an opening in the oor for the electrical and communication
cables.
4. Run the wires through the base plate opening.
5. Secure the base plate to the oor using 4 bolts through the base plate
mounting holes shown in Figure 4. The holes are 0.406" in diameter.
© Mircom 2014
Printed in Canada
Subject to change without prior notice
LT-6097 rev 0
