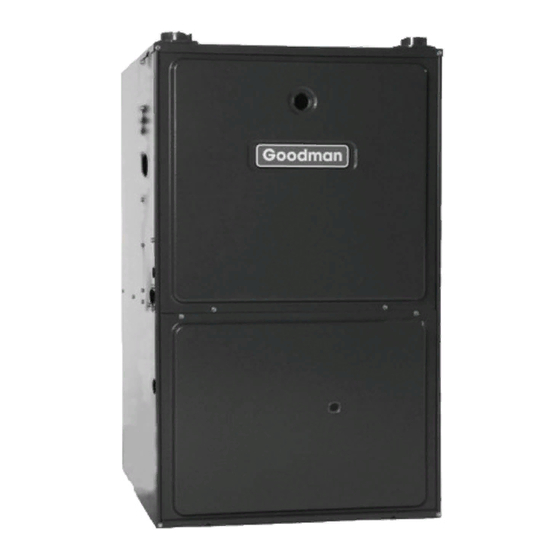

Goodman GMVC950453BX Manual

GMVC95:
up to
GCVC95:
up to
GCVC9:
up to
Standard Features
• Dual-diameter tubular heat exchanger
• Two-stage gas valve operates with two-stage or single-
stage thermostats
• ComfortNet™ Communications System compatible
• Efficient and quiet variable-speed ECM circulator motor
gently ramps up or down according to heating or cooling
demand
• 120V Silicon Nitride igniter designed for long igniter life
• Furnace control board with self-diagnostics, color-coded
low-voltage terminals, and provisions for electronic air
cleaner and 120-volt or 24-volt humidifiers
• Low constant fan allows homeowner to activate very low
speed to efficiently circulate air throughout the home. This
setting costs as little as a 100-watt light bulb to operate.
• Dual-certified for sealed combustion direct vent (2-pipe)
or non-direct vent (1-pipe) applications
• Quiet two-speed induced draft blower
• All models comply with California NOx emissions standards
Cabinet Features
• Fully insulated, heavy-gauge steel cabinet with durable
baked-enamel finish
• Foil-faced insulation lines the heat exchanger
• Easy-to-install top venting is standard; alternate flue/vent
connections on some models
• Designed for multi-position installation -
GMVC95: upflow, horizontal left or right;
GCVC95/9: downflow, horizontal left or right
• Airtight solid bottom for side return applications and easy-cut
tabs for effortless removal in bottom air inlet applications
• Convenient left or right connection for gas/electric service
• Coil and furnace fit flush for most installations
* Complete warranty details available from your local dealer or at www.goodmamfg.com. To receive
the Lifetime Heat Exchanger Limited Warranty (good for as long as you own your home), 10-Year Unit
Replacement Limited Warranty and 10-Year Parts Limited Warranty, online registration must be com-
pleted within 60 days of installation. Online registration is not required in California or Québec.
SS-GMVC95
95% AFuE
95% AFuE
93% AFuE
www.goodmanmfg.com
gmVC95 & gCVC95/9
C
omfort
m -p
ulti
V
ariable
H i :
eatiNg Nput
Contents
Nomenclature ........................................................................... 2
Product Specifications .............................................................. 3
Dimensions ............................................................................... 4
Airflow Data .............................................................................. 6
Wiring Diagrams ..................................................................... 10
Thermostats ........................................................................... 12
Accessories .............................................................................. 12
N -C
™
et ompatible
, t -s
ositioN wo tage
-s g f
peed as urNaCe
46,000-115,000 btu/
H
9/10
Supersedes 8/10
