KOR-1A4H

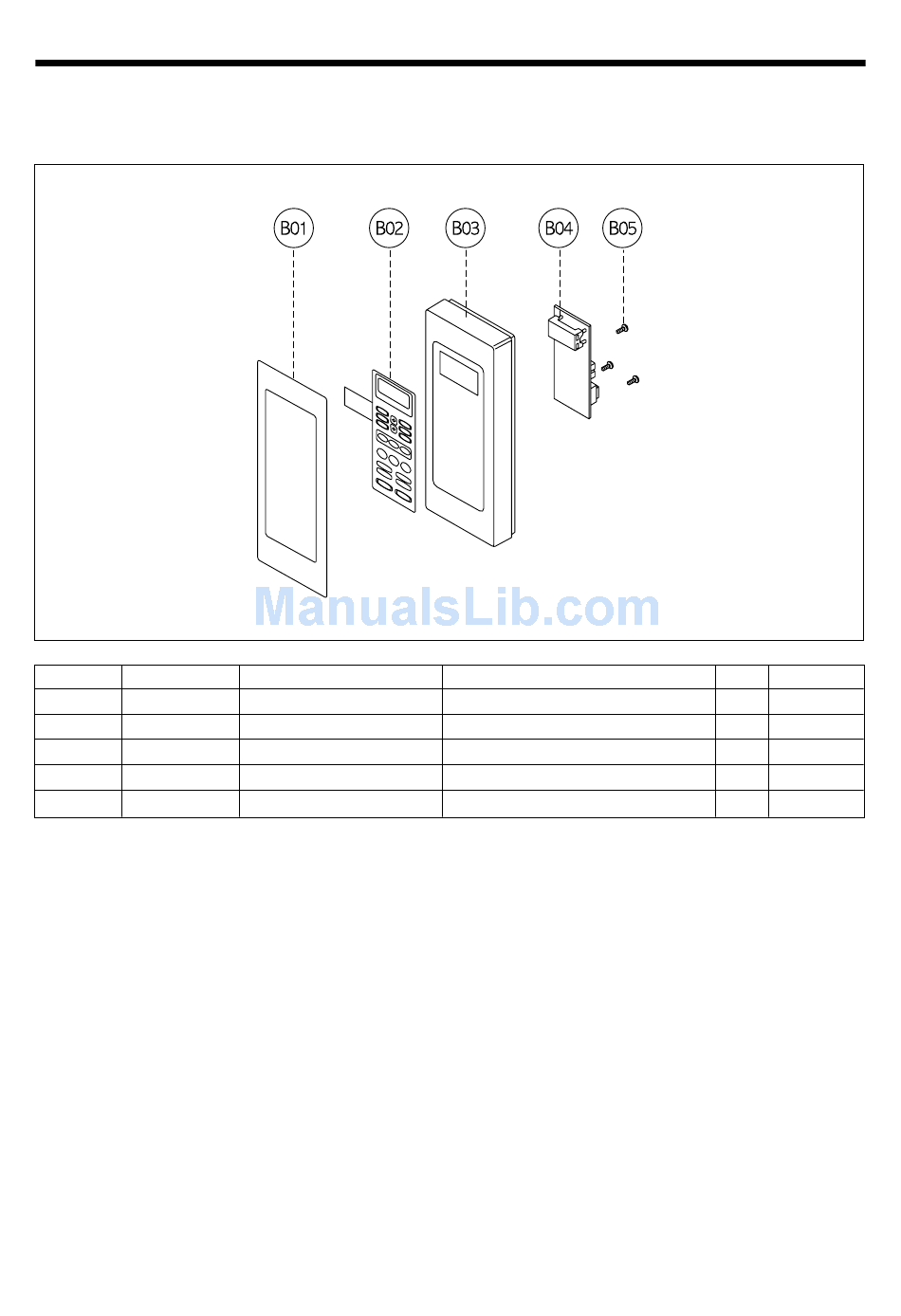

REF NO. PART CODE
B01 3511604800
B02 3518570930
B03 3516722320
B04 PKMPMSXN10
B05 7122401211
(1) Remove the screw which secure the control panel, push up two snap fits and draw forward the control panel
assembly.
(2) Remove four screws which secure the PCB assembly to control panel.
(3) Disconnect membrane tail from the connector of the PCB assembly.
(4) Detach membrane from the control panel.
(5) Reverse the above steps for reassembly.
PART NAME
DECORATOR C-PANEL
SWITCH MEMBRANE
CONTROL-PANEL
PCB AS
SCREW TAPPING
DESCRIPTION
STS304 T0.6
KOR-1A4H0S
ABS SG-175 SG-0760D
KOR-1A0A0C
T2S TRS 4* 12 MFZN
16
Q'TY REMARK
1
1
1
1
3
