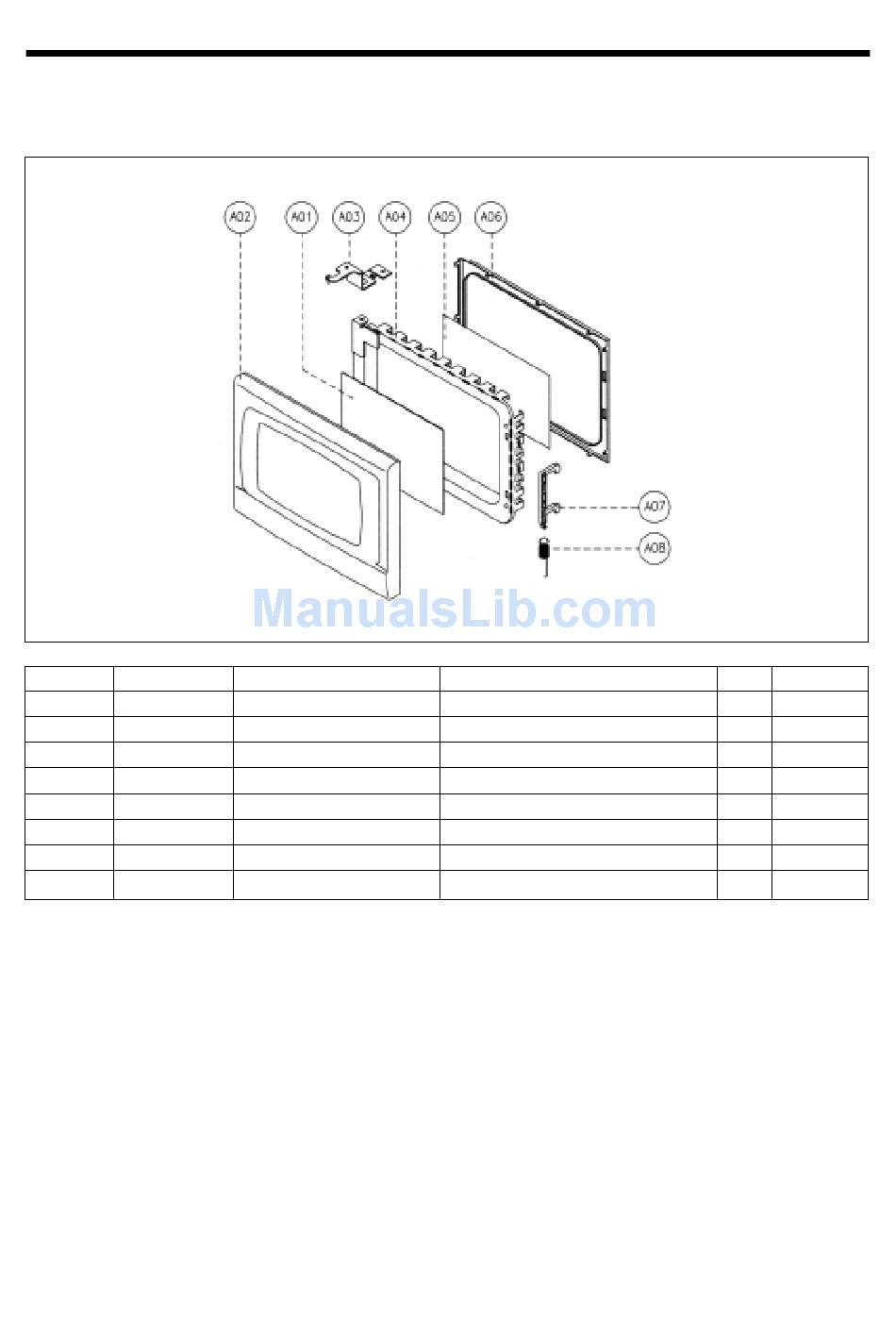

3. To remove door parts.
KOR-1A0A
REF NO. PART CODE
A01 3517005900
A02 3512204330
A03 3515202900
A04 3511711300
A05 3517005800
A06 3512301900
A07 3513100700
A08 3515101300
(1) Remove the gasket door from door plate.
(2) Remove the barrier screen inner from door plate.
(3) Remove the door frame from door plate.
(4) Remove the stopper hinge top from door plate.
(5) Remove the spring and the hook.
(6) Remove the barrier screen outer from door frame.
(7) Reverse the above steps for reassembly.
PART NAME
BARRIER-SCREEN*O
FRAME DOOR
STOPPER HINGE *T AS
DOOR PAINTING AS
BARRIER-SCREEN*I
GASKET DOOR
HOOK
SPRING HOOK
DESCRIPTION
PETP T0.25
ABS XR-401, H-2938
KOR-121M
KOR-1A1G
PETP T0.1
PP
POM
PW1
12
Q'TY REMARK
1
1 KOR-1A0A
1
1
1
1
1
1
