Daewoo KOR-1A0A0C Service Manual page 16

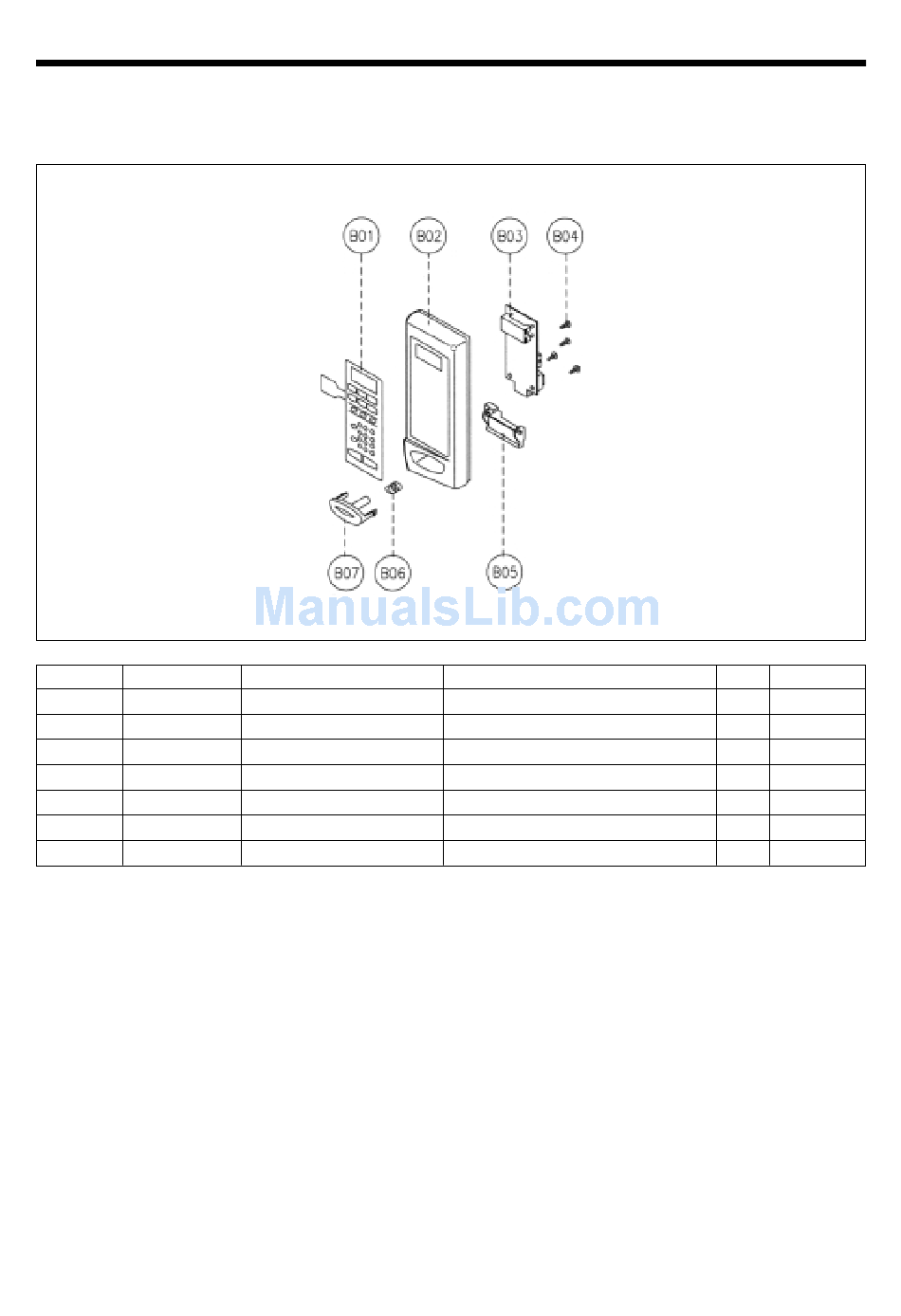

5. To remove control panel parts.
KOR-1A0A
REF NO. PART CODE
B01 3518570920
B02 3516724510
B03 PKMPMSXN10
B04 7122401211
B05 3513702800
B06 441G430171
B07 3516907940
(1) Remove the screw which secure the control panel, push up two snap fits and draw forward the control panel
assembly.
(2) Remove the door open lever from the control panel.
(3) Remove four screws which secure the PCB assembly to control panel.
(4) Disconnect membrane tail from the connector of the PCB assembly.
(5) Detach membrane from the control panel.
(6) Remove door open button and button spring from the control panel.
(7) Reverse the above steps for reassembly.
PART NAME
SWITCH MEMBRANE
CONTROL PANEL
PCB AS
SCREW TAPPING
LEVER DOOR OPEN
BUTTON SPRING
BUTTON DOOR OPEN
DESCRIPTION
KOR-1A0A0S
ABS XR-401, H-2938
KOR-1A0A0C
T2S TRS 4X12 MFZN
PP
SWP DIA 0.7
ABS SG-0760D SG-175
15
Q'TY REMARK
1
1
1
4
1
1
1
