Summary of Contents for Julabo FC1200S

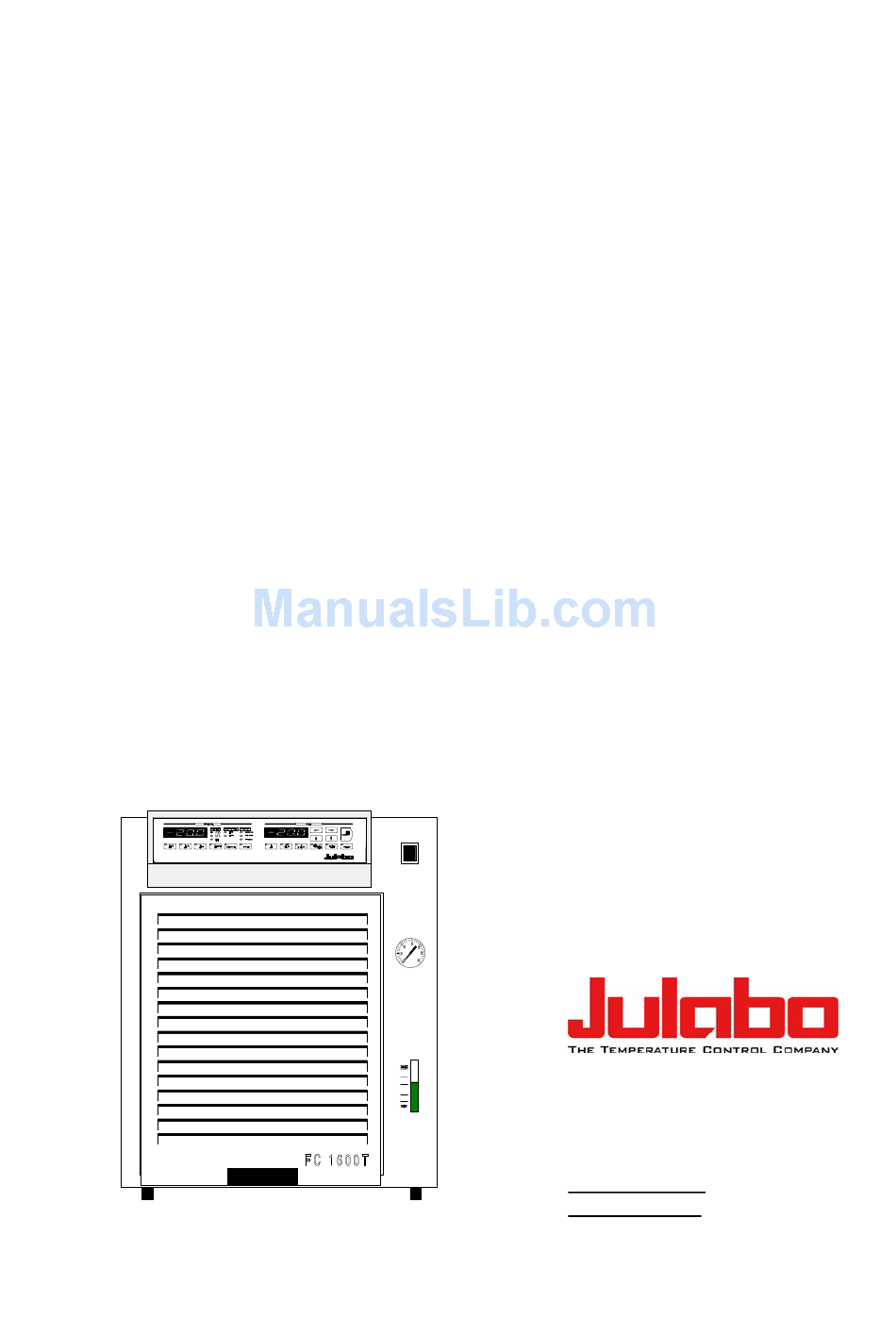

Page 1 English Operating manual Recirculating coolers FC1200S FCW1200S FC1600S FCW1600S FC1200T FCW1200T FC1600T FCW1600T FCW2500T FC600-T FC1200-T FC1600-T JULABO GmbH 77960 Seelbach / Germany Tel. +49 (0) 7823 / 51-0 Fax +49 (0) 7823 / 24 91 info@julabo.de www.julabo.de 1.951.4811-V2 06/13 19514811-V2.doc...
Page 2 Congratulations! You have made an excellent choice. JULABO thanks you for the trust you have placed in us. This operating manual has been designed to help you gain an understanding of the operation and possible applications of our circulators. For optimal utilization of all functions, we recommend that you thoroughly study this manual prior to beginning operation.
Page 3: Table Of Contents
Recirculating coolers Table of Contents Intended use ....................4 1.1. Description ....................4 Operator responsibility – Safety instructions ..........4 2.1. Disposal ...................... 6 2.2. EC Conformity .................... 7 2.3. Warranty conditions ..................7 2.4. Technical specifications ................8 2.5. Cooling water connection .................
Page 4: Intended Use
MULTI-DISPLAY, as well as low liquid level protection. Operator responsibility – Safety instructions The products of JULABO ensure safe operation when installed, operated, and maintained according to common safety regulations. This section explains the potential dangers that may arise when operating the recirculating coolers and also specifies the most important safety...
Page 5 Tel. +49 (0) 7823 / 51-0 info@julabo.de Eisenbahnstraße 45 Fax +49 (0) 7823 / 24 91 www.julabo.de 77960 Seelbach / Germany Safety recommendations for the operator  You received a product conceived for industrial use. Nevertheless, avoid strikes to the housing, vibrations, damages to the keypad foil (keys, display) or contamination.
Page 6: Disposal
Operator responsibility – Safety instructions Observe all warnings for the used materials (bath fluids) and the respective instructions (safety data sheets). Only use the unit in well ventilated areas. The recirculating coolers are not for use in explosive atmosphere When using hazardous materials or materials that could become hazardous, the operator must affix the enclosed safety labels (1 + 2) to the front of the unit so they are highly visible: Warning label W00: Colors: yellow, black...
Page 7: Ec Conformity
24 months, limited to a maximum of 10 000 working hours. To apply for this extended warranty the user must register the unit on the JULABO web site www.julabo.de, indicating the serial no. The extended warranty will apply from the date of JULABO GmbH’s original invoice.
Page 8: Technical Specifications
Operator responsibility – Safety instructions 2.4. Technical specifications (with T-pump) FC1200T FCW1200T Working temperature range °C -10 ... 80 -10 ... 80 Cooling capacity °C (water-glycol) 0.11 0.75 0.15 Refrigerant R134a Heater capacity Pump capacity: Pressure max. Flow rate max. Pump connections M16x1 Noise level, 1 m distance...
Page 9 Dimensions (WxLxH) 46 x 61 x 49 Shipping weight Mains power connection V/Hz 230/60 Total power consumption 2800 (with S-pump) FC1200S FCW1200S Working temperature range °C -15 ... 80 -15 ... 80 Cooling capacity °C (water-glycol) 0.12 0.85 0.65 0.26...
Page 10 Operator responsibility – Safety instructions (with S-pump) FC1600S FCW1600S Working temperature range °C -15 ... 80 -15 ... 80 Cooling capacity °C 20 10 (water-glycol) 1.55 1.15 0.9 0.36 Refrigerant R134a Heater capacity Pump capacity: Pressure max. Flow rate max. l/min 22 / 15 with tubing connections...
Page 11 Recirculating coolers (with Ju-pump) FC1200 -T Working temperature range °C -20 ... 80 Cooling capacity °C (water-glycol) 1.3 0.95 0.75 0.37 Refrigerant R134a Heater capacity Pump capacity: Pressure max. Flow rate max. 20 / 14 with tubing connections mm dia. 13,5/9,5 Pump connections M16x1...
Page 12 Operator responsibility – Safety instructions Temperature selection digital (keypad) Resolution °C MULTI-DISPLAY indications LED + LED Resolution °C Display accuracy Temperature stability °C ±0.2 Temperature control on/off Control ratio for feed/return flow temperature, adjustable % 0 ... 100 Temperature sensor (number) PTC (3) Level indication spy-glass...
Page 13: Cooling Water Connection
Recirculating coolers 2.5. Cooling water connection Only for water cooled models - FCW: Cooling water pressure (IN / OUT ) max. 6 bar Difference pressure (IN - OUT ) 3.5 to 6 bar Cooling water temperature <20 °C Recommended quality of cooling water: 7,5 to 9,0 pH –...
Page 14: Safety Notes For The User
Safety notes for the user Safety notes for the user 3.1. Explanation of safety notes In addition to the safety warnings listed above, warnings are posted throughout the manual. These warnings are designated by an exclamation mark inside an equilateral triangle. “Warning of a dangerous situation (Attention! Please follow the documentation).”...
Page 15 Recirculating coolers  Do not drain the bath fluid while it is hot or cold! Check the temperature of the bath fluid prior to draining (by switching the unit on for a short moment for example).  Use suitable connecting tubing. ...
Page 16: Operating Controls And Functional Elements
Operating controls and functional elements Operating controls and functional elements Mains power switch, illuminated Filling funnel Drain tubing Drain tap Filling level indication Pump pressure gauge MULTI-Display temperature indication (LED 1 + LED 2) Indicator lights Alarm Temp. = Keypad control mode Control Heating = Remote control mode...
Page 17 Recirculating coolers Keys for actual values (LED 1) Key - Indication of feed temperature Key - Indication of return temperature Key - Indication of safety temperature Key - Indication of actual temperature of external sensor The "MENUE" key is not required for normal operating The key "SPEC"...
Page 18 Operating controls and functional elements Rear 12.1 Pump connector: Feed 12.2 Pump connector: Return Overflow port for bath tank Connectors for solenoid valves Mains power cable with plug 16.2 16.1 12.1 12.2 Only for water cooled models: 16.1 Cooling water OUTLET 16.2 Cooling water INLET...
Page 19: Operation
Recirculating coolers Operation 5.1. Preparations  Place the unit in an upright position.  The place of installation should be large enough and provide sufficient air ventilation to ensure the room does not warm up excessively because of the heat the instrument rejects to the environment.
Page 20: Return Flow Safety Device
Operation Notice: Cooling water circuit Risk of oil leaking from the cooling circuit (compressor) of the recirculating cooler into the cooling water in case of a fault in the circuit! Observe the laws and regulations of the water distribution company valid in the location where the unit is operated.
Page 21: Bath Fluids
Bath fluids Caution: No liability for use of other bath liquids! Please contact JULABO before using other than recommended bath fluids. JULABO takes no responsibility for damages caused by the selection of an unsuitable bath fluid Do not use alcohols. Water: The quality of water depends on local conditions.
Page 22: Power Connection
Operation 5.5. Power connection Caution:  Only connect the unit to a power socket with earthing contact (PE – protective earth)! We disclaim all liability for damage caused by incorrect line voltages!  The power supply plug serves as safe disconnecting device from the line and must be always easily accessible.
Page 23: Draining
Recirculating coolers 5.7. Draining Notice:  Do not drain the bath fluid while it is hot or cold! Check the temperature of the bath fluid prior to draining (by switching the unit on for a short moment, for example).  Store and dispose of the used bath fluid according to the environmental protection laws.
Page 24: Connecting An External Sensor
Operation 5.8. Connecting an external sensor Connect an external temperature sensor for measuring and controlling the temperature directly in the external system. (Control mode - see page 42). ACTUAL Connect a Pt100 sensor (Order No. 8 981 003) MA X M+R Adapter with Pt100 sensor MI N (Order No.
Page 25: Manual Operation
Recirculating coolers Manual operation 6.1. Switching on Turn on the mains power switch (1.). An illuminated switch indicates the unit is on. The unit performs a self-test. All segments of the ACTUAL 4-digit MULTI-DISPLAY (LED 1 + LED 2) and all indicator lights will illuminate.
Page 26: Automatic / Non-Automatic Start Mode
6.2.1. Automatic / non-automatic start mode NOTE: The recirculating cooler has been configured and supplied by JULABO according to N.A.M.U.R. recommendations. This means for the start mode, that the unit must enter a safe operating state after a power failure (non-automatic start mode). This safe operating state is indicated by „OFF“...
Page 27: Setting The Setpoint Temperatures
Recirculating coolers 6.3. Setting the setpoint temperatures Set the setpoints before or after starting the unit. Press the setpoint keys (E, F, G, H) to set a value and press the Enter key to store the value. The values will stay in memory when the recirculating cooler is powered down.
Page 28: Setting The Control Ratio For Feed/Return Flow Temperature
Manual operation 6.3.2. Setting the control ratio for feed/return flow temperature In respect to the values for feed and return temperature -0.5°C +0.5°C and the factor set with the key "H" an almost constant temperature value may be maintained in the external system.
Page 29: Setting The Safety Temperatures
Recirculating coolers 6.3.3. Setting the safety temperatures This safety function is independent of the control circuit.  Press the desired setpoint key (F, G). Follow the instructions under section 6.3.1. page 27     Recommendation: Set the high temperature limit at least 5 K above the actual bath temperature.
Page 30: Pid Control Parameters
Manual operation 6.4. PID control parameters For internal and external control two separate parameter sets are available. The PID control parameters can be adapted to the requirements of the controlled member. The values are preserved after switching off the recirculating cooler. ...
Page 31 Recirculating coolers With the parameters HL (High Limit) and LL (Low Limit) the temperature of the internal bath is limited in case of external control. So, especially for big consumers, a great overshoot resp. undershoot of the internal temperature is avoided. Effect of the limitation of the internal bath temperature: Without limitation Limited internal temperature...
Page 32 Manual operation Optimization instructions for the PID control parameters: The heat-up curve reveals inappropriate control settings optimum setting Inappropriate settings may produce the following heat-up curves: Xp too low Tv/Tn too low Tv too high...
Page 33: Trouble Shooting Guide
Recirculating coolers Trouble shooting guide Whenever the microprocessor electronics registers a failure, an alarm is triggered and a complete shutdown is performed.  The alarm light illuminates and an audible signal is triggered. An error message appears on the MULTI- DISPLAY (LED 2).
Page 34: Other Error Messages
Electrical connections 7.1. Other error messages Incorrect/invalid entry. Value too small or too large, or ACTUAL function not available. Under menu item E _ Sb the parameter is set to 1, and the connection between Pin 2 and Pin 3 of the stand- by connector is interrupted (see page 36).
Page 35 Recirculating coolers This potential-free change-over contact is activated in case of an alarm. Pins 2 and 3 are connected under the following conditions: - alarm - status "OFF" and "rOFF" - mains switch "off" Switching capacity max. 30 W / 40 VA Switching voltage max.
Page 36 Electrical connections Stand-by input (L) Pin assignment: Signal not used  5 V / DC Activate the stand-by input: Under menu item E _ Sb, set the parameter to 1  (see page 41). Connect an external contact 'AK' (e.g. for emergency switch-off) or an alarm contact of the superordinated application system.
Page 37: Remote Control
Recirculating coolers Remote control 9.1. Communication with a PC or data system For remote control, under the menu item OP (Operating ACTUAL mode) set the parameter to 1. The message "rOFF" appears on the display. In general, the computer (master) sends commands to the recirculating cooler (slave).
Page 38 Remote control Command Parameter Response of recirculating cooler out_sp_00 xx.x Set working temperature value in_sp_00 Ask for working temperature value in_sp_01 Ask for high temperature value in_sp_02 Ask for low temperature value out_sp_03 Set control ratio for feed/return flow temperature Ask for actual control ratio in_sp_03 out_sp_07...
Page 39: Status Messages
Recirculating coolers 9.3. Status messages Message Description - Recirculating cooler ... 00 MANUAL STOP ... in condition "OFF" (LOCAL) 01 MANUAL START ... in keypad control mode (LOCAL) 02 REMOTE STOP ... in condition "rOFF" (RS 232) 04 REMOTE START ...
Page 40: Menu Functions
Menu functions 10. Menu functions Set the parameters for the recirculating cooler via the configuration or calibration level. 10.1. Selecting/exiting the configuration level Simultaneously press the "MENUE" key (4.2) + 1x the edit key " " to select the configuration level + 1x the edit key "...
Page 41: Adjustable Parameters
Recirculating coolers 10.3. Adjustable parameters Set the parameters for the following menu items in the configuration level: ACTUAL OP - Operating mode = Keypad control = Remote control via RS 232 = Control via programmer input (O) HAnd - Handshake of the serial interface ACTUAL = XOn/XOff, software handshake = RTS/CTS, hardware handshake *...
Page 42: Selecting/Exiting The Calibration Level
Menu functions Attention: The following menu point Cont is only adjustable via the configuration level if the status is „OFF“. On a unit which is switched on this status is reached by switching on/off at the mains switch (1). Cont - Control mode ACTUAL = internal control = external control (with an external...
Page 43 Recirculating coolers Ad ¯ P - Calibration of programmer input: ACTUAL Highest value = 80 °C Ad  P - Calibration of programmer input: ACTUAL Lowest value = -20 °C Calibration procedure:  In the configuration level, set the programmer input ACTUAL type to allow control via an external programmer.
Page 44 Menu functions  Set the external programmer to the lowest temperature value. In the calibration level, select the item Ad  P and set  ACTUAL the lowest temperature value (example: -20 °C).  Press the setpoint key (E). Follow the instructions under section 6.3.1. page 27.
Page 45: Cleaning / Repairing The Unit
The recirculating cooler is designed for continuous operation under normal conditions. Periodic maintenance is not required. The tank should be filled only with a bath fluid recommended by JULABO. To avoid contamination, it is essential to change the bath fluid from time to time.
