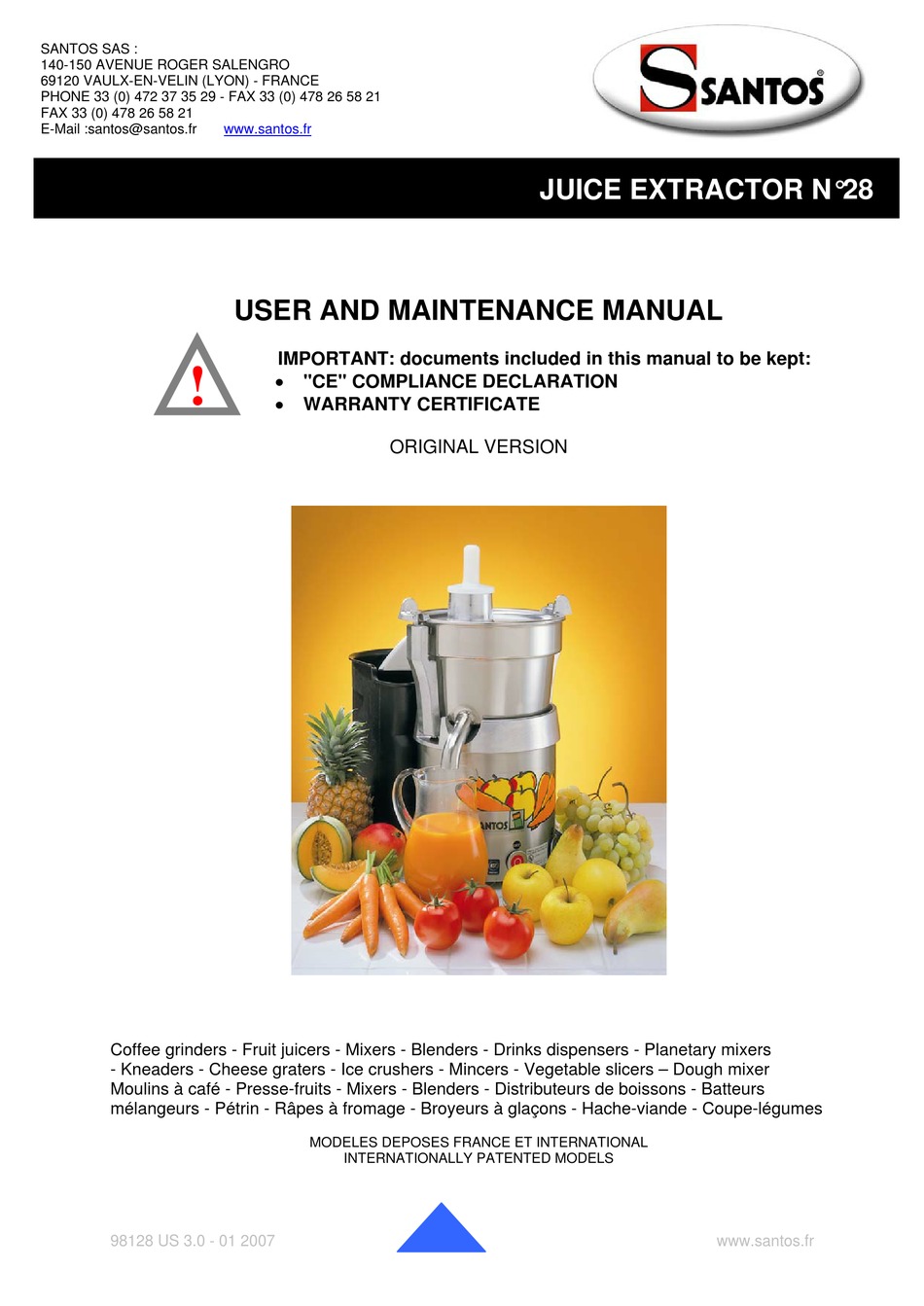

USER AND MAINTENANCE MANUAL
IMPORTANT: documents included in this manual to be kept:
• "CE" COMPLIANCE DECLARATION
• WARRANTY CERTIFICATE
ORIGINAL VERSION
MODELES DEPOSES FRANCE ET INTERNATIONAL
INTERNATIONALLY PATENTED MODELS
JUICE EXTRACTOR N°28
www.santos.fr
Advertisement
Table of Contents
Related Manuals for Santos 28
Summary of Contents for Santos 28
- Page 1 SANTOS SAS : 140-150 AVENUE ROGER SALENGRO 69120 VAULX-EN-VELIN (LYON) - FRANCE SANTOS : Instruction and maintenance manual PHONE 33 (0) 472 37 35 29 - FAX 33 (0) 478 26 58 21 FAX 33 (0) 478 26 58 21 E-Mail :santos@santos.fr...
-
Page 2: Table Of Contents
SANTOS : Instruction and maintenance manual CONTENTS “CE” COMPLIANCE DECLARATION ................3 JUICE EXTRACTOR N°28 ....................4 IMPROPER USE ......................4 RECYCLING THE PRODUCT AT THE END OF ITS SERVICE LIFE......4 ELECTRICAL CONNECTION: ..................4 INSTALLATION AND HANDLING ..................5 USING THE APPLIANCE ....................6 USING FOR THE 1st TIME: ...................6 USING: ...........................6... -
Page 3: Ce" Compliance Declaration
SANTOS : Instruction and maintenance manual “CE” COMPLIANCE DECLARATION THE MANUFACTURER: SANTOS SAS - 140-150, Av. Roger SALENGRO 69120 VAULX-EN-VELIN (LYON) FRANCE HEREBY DECLARES THAT THE MACHINE DESIGNATED ON THE IDENTIFICATION PLATE AFFIXED: • UNDER THE APPLIANCE, • ON THE WARRANTY CERTIFICATE ON THE LAST PAGE OF THIS MANUAL, COMPLIES WITH THE PROVISIONS OF THE "machines"... -
Page 4: Juice Extractor N°28
For more information, please contact your Retailer or the SANTOS. For eliminating or recycling components of equipment, please contact a specialized company or contact SANTOS. -
Page 5: Installation And Handling
SANTOS : Instruction and maintenance manual The appliance is available in with a choice of two voltages for the power supply • 220-240V 50/60 Hz single phase • 110-120V 50/60 Hz single phase Line protection: the appliance should be connected to a standard 2-pole + earth electric socket. -
Page 6: Using The Appliance
• If the power cable (10) is damaged, it should be replaced by a special assembly available from approved SANTOS dealers or from SANTOS. USING FOR THE 1st TIME: 1. Remove the plunger (3). -
Page 7: How To Stop The Machine
SANTOS : Instruction and maintenance manual this is not so, check whether the basket (5) has been positioned correctly on the motor shaft. Fig.11 7. Position the pulp container (6) correctly relative to the outlet of the discharge channel (16). -
Page 8: Safety / Maintenance
Correct the fault, reset the circuit breaker and re-start the machine. If the problem persists, switch off the power supply to the machine (unplug the cord from the mains socket (10)) and call in the maintenance service or contact a SANTOS approved dealer. -
Page 9: Maintenance
(13). The appearance of an electric arc shows that the capacitor has discharged. Fig.14 Spare Parts : IMPORTANT: Use of spare parts other than certified original SANTOS parts is prohibited. This machine requires no particular maintenance because the bearings are lubricated for life. -
Page 10: Fault Finding
SANTOS : Instruction and maintenance manual FAULT FINDING First identify exactly why the machine stopped. The machine will not start: • Check: the mains power supply and the condition of the power supply cord, • Check: the position of the juice bowl (4) on the bowl centering device (7), the position of the cover (2) on the juice bowl, and the locking of the clamping handle (1). -
Page 11: Reference To Standards
SANTOS : Instruction and maintenance manual REFERENCE TO STANDARDS The juice extractor No. 28 complies with the following European standards: • CE (Europe) • GS (Germany) checked by the LNE National Test Laboratory. • UL (USA) and cUL (Canada). • NSF (USA). -
Page 12: Electrical Wiring Diagrams
SANTOS : Instruction and maintenance manual ELECTRICAL WIRING DIAGRAMS Electrical wiring diagram 110 - 120V 50/60Hz Brown White Brown Black Blue White Starter relay U > Black Black Capacitor White Black White White Bowl White tightening White safety device Black... -
Page 13: Electrical Wiring Diagram 220-240V 50/60Hz
SANTOS : Instruction and maintenance manual Electrical wiring diagram 220-240V 50/60Hz White White Yellow / White Red / White Capacitor Blue / White Blue Starter relay Black White Violet White Bowl White tightening safety White device White White White Black... - Page 14 SANTOS : Instruction and maintenance manual TABLEAU DE TRADUCTION DES ELEMENTS DE LA MACHINE 1 Clamping handle Poignée de serrage 2 Cover Couvercle 3 Plunger Poussoir 4 Bowl Cuve 5 Centrifugation basket Panier centrifugation 6 Pulp container Conteneur à pulpe...
-
Page 15: Figures
SANTOS : Instruction and maintenance manual FIGURES Figure 2 Figure 1 Figure 3 Figure 5 Figure 4 Figure 6 Figure 7 Figure 8 Figure 9 98128 US 3.0 - 01 2007 www.santos.fr... - Page 16 SANTOS : Instruction and maintenance manual Figure 11 Figure 10 Figure 12 Figure 13 Figure 14 98128 US 3.0 - 01 2007 www.santos.fr...
- Page 17 SANTOS : Instruction and maintenance manual 98128 US 3.0 - 01 2007 www.santos.fr...
-
Page 18: Warranty Certificate
SANTOS : Instruction and maintenance manual WARRANTY CERTIFICATE WARRANTY This appliance is guaranteed for twelve months from the date of manufacture appearing on the identification plate. The guarantee is strictly limited to the free replacement of any original part acknowledged by us as being defective as a result of a fault or a manufacturing defect and identified as belonging to the appliance in question.
