SANTOS SAS :
140-150 AVENUE ROGER SALENGRO
69120 VAULX-EN-VELIN (LYON) - FRANCE
SANTOS : Instruction and maintenance manual
PHONE 33 (0) 472 37 35 29 - FAX 33 (0) 478 26 58 21
E-Mail :santos@santos.fr
!
Model # 28
Coffee grinders - Fruit juicers - Mixers - Blenders - Drinks dispensers - Planetary mixers
- Kneaders - Cheese graters - Ice crushers - Mincers - Vegetable slicers – Dough mixer
Moulins à café - Presse-fruits - Mixers - Blenders - Distributeurs de boissons - Batteurs
mélangeurs - Pétrin - Râpes à fromage - Broyeurs à glaçons - Hache-viande - Coupe-légumes
98168 US 1.0 - 12 2013
www.santos.fr

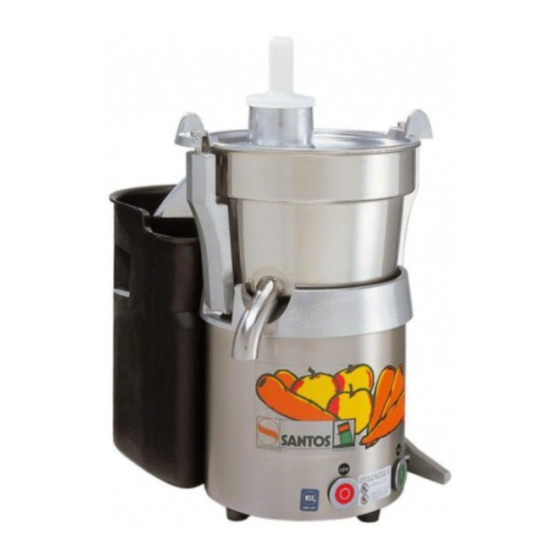

JUICE EXTRACTOR Model # 28 & # 68
USER AND MAINTENANCE MANUAL
IMPORTANT: documents included in this manual to be kept:
"CE" COMPLIANCE DECLARATION
WARRANTY CERTIFICATE
Translation of the original version
MODELES DEPOSES FRANCE ET INTERNATIONAL
INTERNATIONALLY PATENTED MODELS
Model # 68
www.santos.fr
Advertisement
Table of Contents
Related Manuals for Santos 28
Summary of Contents for Santos 28
- Page 1 PHONE 33 (0) 472 37 35 29 - FAX 33 (0) 478 26 58 21 E-Mail :santos@santos.fr www.santos.fr JUICE EXTRACTOR Model # 28 & # 68 USER AND MAINTENANCE MANUAL IMPORTANT: documents included in this manual to be kept: "CE" COMPLIANCE DECLARATION ...
-
Page 2: Table Of Contents
TECHNICAL SPECIFICATIONS ..................12 ELECTRICAL WIRING DIAGRAMS ................13 Electrical wiring diagram 110 - 120V 50/60Hz # 28 ............. 13 Electrical wiring diagram 110 - 120V 50/60Hz # 68 ............. 14 Electrical wiring diagram 220-240V 50/60Hz # 28 ............15 Electrical wiring diagram 220-240V 50/60Hz # 68 ............ -
Page 3: Ce" Compliance Declaration
SANTOS : Instruction and maintenance manual “CE” COMPLIANCE DECLARATION THE MANUFACTURER: SANTOS - 140-150, Av. Roger SALENGRO 69120 VAULX-EN-VELIN (LYON) FRANCE declares that the appliance intended for the professional market described below: Description: Juice extractor Type number: 28, 68 complies with: ... -
Page 4: Important Safeguards
10. Use of spare parts other than certified original SANTOS parts is prohibited. 11. Do not use the appliance if the power supply cord is damaged. It must be replaced by either a SANTOS approved dealer or a person with similar qualifications to avoid any danger. -
Page 5: Electrical Connection
USING FOR THE 1st TIME: 1. Remove the plunger (3). 2. Model # 28: Rotate the clamping handle (1) by one half turn to release the cover (2), Fig.2. Model # 68: Rotate the clamping handle (1) by one quarter turn to release the cover (2), Fig.2. -
Page 6: Recycling The Product At The End Of Its Service Life
For more information, please contact your Retailer or the SANTOS. For eliminating or recycling components of equipment, please contact a specialized company or contact SANTOS. -
Page 7: Juice Extractor Model # 28 & # 68
(7) Fig.8 2. Model # 28: Place the basket assembly (5) in the bowl (4), making sure it is correctly located on the motor shaft (8). The drive pin (19) needs to be in the grooves in the basket assembly (5). -
Page 8: How To Stop The Machine
SANTOS : Instruction and maintenance manual Using: 1. Start the machine by operating the On button (11). 2. Place the recipient under the bowl spout (4) 3. Introduce the fruits or vegetables into the cover feed channel (2) and push them onto the rotating grater with the fruit plunger (3). -
Page 9: Cover And Bowl Presence Safety Device
Correct the fault, reset the circuit breaker and re-start the machine. If the problem persists, switch off the power supply to the machine (unplug the cord from the mains socket (10)) and call in the maintenance service or contact a SANTOS approved dealer. -
Page 10: Maintenance
(13). The appearance of an electric arc shows that the capacitor has discharged. Fig.16 Spare Parts : IMPORTANT: Use of spare parts other than certified original SANTOS parts is prohibited. This machine requires no particular maintenance because the bearings are lubricated for life. -
Page 11: Fault Finding
SANTOS : Instruction and maintenance manual FAULT FINDING First identify exactly why the machine stopped. The machine will not start: Check: the mains power supply and the condition of the power supply cord, Check: the position of the juice bowl (4) on the bowl centering device (7), the position of the cover (2) on the juice bowl, and the locking of the clamping handle (1). -
Page 12: Reference To Standards
Measured at 3000 rpm 75 / 70 75 / 70 ref 20 LAeq, dB, µ Dimensions and weight Height (mm) Model #28 / Model #68 510 / 603 Width (mm) 465 / 490 Depth (mm) Net weight (kg) 24 / 25.6 Packaged weight (kg) 26.7 / 28.3... -
Page 13: Electrical Wiring Diagrams
SANTOS : Instruction and maintenance manual ELECTRICAL WIRING DIAGRAMS Electrical wiring diagram 110 - 120V 50/60Hz N°28 Brown White Brown Black Blue White Starter relay U > Black Black Capacitor White Black White White Bowl White tightening White safety device... -
Page 14: Electrical Wiring Diagram 110 - 120V 50/60Hz # 68
SANTOS : Instruction and maintenance manual Electrical wiring diagram 110 - 120V 50/60Hz N°68 White White Blue Brown Starter Black relay Blue Capacitor Black White Green Green Yellow Yellow White Bowl tightening safery White Black device Black White White White... -
Page 15: Electrical Wiring Diagram 220-240V 50/60Hz # 28
SANTOS : Instruction and maintenance manual Electrical wiring diagram 220-240V 50/60Hz N°28 White White Yellow / White Red / White Capacitor Blue / White Blue Starter relay Black White Violet White Bowl White tightening safety White device White White White... -
Page 16: Electrical Wiring Diagram 220-240V 50/60Hz # 68
SANTOS : Instruction and maintenance manual Electrical wiring diagram 220-240V 50/60Hz N°68 Capacitor White White Yellow / white Red / white Blue / white Blue Starter relay Black Black Green Green White White Bowl Yellow tightening safety device White White... - Page 17 SANTOS : Instruction and maintenance manual TABLEAU DE TRADUCTION DES ELEMENTS DE LA MACHINE Clamping handle Poignée de serrage Cover Couvercle Plunger Poussoir Bowl Cuve Centrifugation basket Panier centrifugation Pulp container Conteneur à pulpe Bowl centering device Centreur de cuve...
-
Page 18: Figures
SANTOS : Instruction and maintenance manual FIGURES 98168 US 1.0 - 12 2013 www.santos.fr... - Page 19 SANTOS : Instruction and maintenance manual Figure 2 Figure 3 Figure 4 Figure 5 Figure 6 Figure 9 Figure 8 Figure 7 98168 US 1.0 - 12 2013 www.santos.fr...
- Page 20 SANTOS : Instruction and maintenance manual Figure 10 Figure 11 Figure 12 Figure 13 Figure 14 Figure 15 Figure 16 Figure 17 98168 US 1.0 - 12 2013 www.santos.fr...
-
Page 21: Warranty Certificate
In case of revelation of an imperfection during the warranty period, the Distributor has to, unless a different written agreement of SANTOS, indicate to his customer to stop any use of the defective product. Such a use would release SANTOS of any responsibility.
