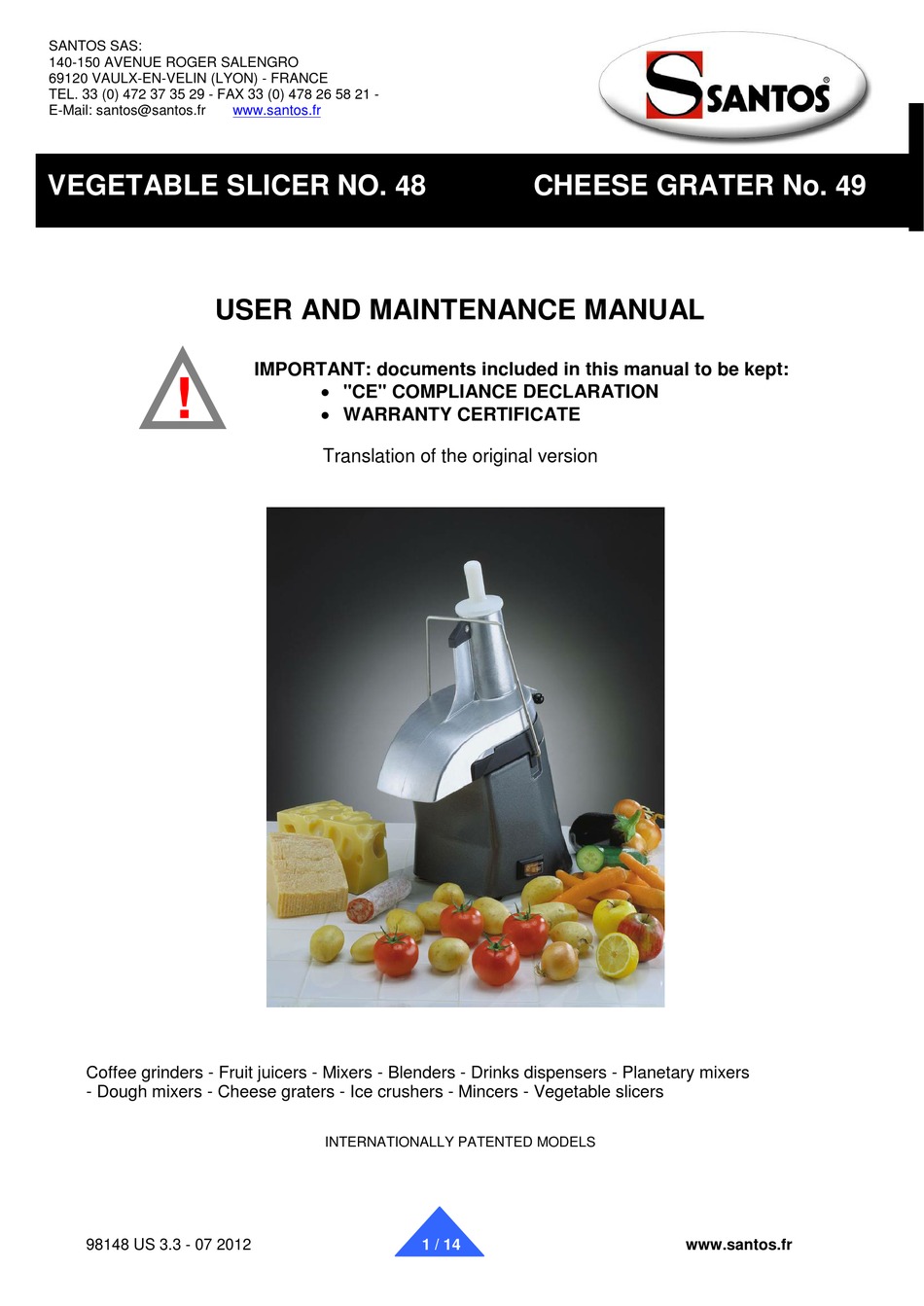

SANTOS: User and maintenance manual
VEGETABLE SLICER NO. 48
USER AND MAINTENANCE MANUAL
!
Coffee grinders - Fruit juicers - Mixers - Blenders - Drinks dispensers - Planetary mixers
- Dough mixers - Cheese graters - Ice crushers - Mincers - Vegetable slicers
98148 US 3.3 - 07 2012
www.santos.fr
IMPORTANT: documents included in this manual to be kept:
• "CE" COMPLIANCE DECLARATION
• WARRANTY CERTIFICATE
Translation of the original version
INTERNATIONALLY PATENTED MODELS
CHEESE GRATER No. 49
1 / 14
www.santos.fr
Advertisement
Table of Contents
Related Manuals for Santos 48
Summary of Contents for Santos 48
- Page 1 69120 VAULX-EN-VELIN (LYON) - FRANCE TEL. 33 (0) 472 37 35 29 - FAX 33 (0) 478 26 58 21 - E-Mail: santos@santos.fr www.santos.fr SANTOS: User and maintenance manual VEGETABLE SLICER NO. 48 CHEESE GRATER No. 49 USER AND MAINTENANCE MANUAL IMPORTANT: documents included in this manual to be kept: •...
-
Page 2: Table Of Contents
SANTOS: User and maintenance manual CONTENTS “CE” COMPLIANCE DECLARATION .................. 3 VEGETABLE SLICER No. 48 / CHEESE GRATER No. 49 ..........4 EQUIPMENT AND ACCESSORIES ................4 Rams ..........................4 Disks ..........................4 Disk storage ......................... 5 RECYCLING THE PRODUCT AT THE END OF ITS SERVICE LIFE ......5 WARNING: ................ -
Page 3: Ce" Compliance Declaration
SANTOS: User and maintenance manual “CE” COMPLIANCE DECLARATION THE MANUFACTURER: SANTOS - 140-150, Av. Roger SALENGRO 69120 VAULX-EN-VELIN (LYON) FRANCE declares that the appliance intended for the professional market described below: Description: VEGETABLE SLICER, CHEESE GRATER Type number: 48, 49 complies with: •... -
Page 4: Vegetable Slicer No. 48 / Cheese Grater No. 49
SANTOS: User and maintenance manual VEGETABLE SLICER No. 48 / CHEESE GRATER No. 49 The No. 48 vegetable slicer is of sturdy construction (component parts in cast aluminum, rubber and food-quality plastic) and is particularly suitable for cutting, slicing, thinly slicing, grating and stripping in preparations made by professionals in: Restaurants, Pizzerias, Snack bars, Catering points, sandwich bars, theme restaurants, etc. -
Page 5: Disk Storage
IMPROPER USE 1. The appliance No. 48-49 is not designed to be used with knives of a cut of 10 mm or more 2. The appliance should neither be cleaned in a jet of water nor with a high pressure spray. -
Page 6: Electrical Connection
• The electric power supply for the machine is available in 2 single-phase voltages: 110-120 V 50/60 Hz: model 48V1 and 49V1 220-240 V 50/60 Hz: model 48 and 49 Line protection: the machine should be connected to a standard 2-pole + earth electric socket. -
Page 7: Using The Machine
SANTOS: User and maintenance manual USING THE MACHINE USING FOR THE 1 TIME: 1. Unclip the locking loop (3) 2. Open the guide channel (2) 3. Remove the ejector (12) from the motor spindle (18) and wash it in fresh water. -
Page 8: Maintenance
SANTOS: User and maintenance manual MAINTENANCE: • Put the appliance to the "Off" position with the On/Off button (11) and unplug the power supply lead plug (10). • Remove the large diameter ram (5) or the reducer (6) and the small diameter ram (7). -
Page 9: Safety Device, Motor Overheating
SANTOS: User and maintenance manual If the motor is jammed (17) (foreign body, too hard body, too much pressure on the processed products, etc.) the switch (11) automatically goes to the 0 position. Rectify the problem and then press the switch (11) to position 1. -
Page 10: Standard References
SANTOS: User and maintenance manual STANDARD REFERENCES • CE (Europe) • GS (Germany) controlled by the LNE National Test Laboratory. • UL (USA) and cUL (Canada). • NSF (USA). MACHINE TECHNICAL SPECIFICATIONS ELECTRICAL SPECIFICATIONS (1) Model no. 48 Single phase Power supply voltage .(V) -
Page 11: 110-120 V 50/60 Hz Electrical Wiring Diagram
SANTOS: User and maintenance manual 110-120 V 50/60 Hz electrical wiring diagram Brown Black 20 μF capacitor White Black On / Off U< Black Brown Black Black Brown Guide channel safety device Green 98148 US 3.3 - 07 2012 11 / 14... -
Page 12: 220-240 V 50/60 Hz Electrical Wiring Diagram
SANTOS: User and maintenance manual 220-240 V 50/60 Hz electrical wiring diagram Black Brown 10 μF capacitor White Black On / Off U< Orange Black Brown Orange Guide channel safety device Green / Yellow 98148 US 3.3 - 07 2012 12 / 14 www.santos.fr... - Page 13 SANTOS: User and maintenance manual REF Description Base Guide channel Locking loop Figures Clip Large diameter ram Reducer Small diameter ram Guide channel hinge pin Dirt tray Power supply lead On/Off switch Ejector Grater disk Slicer disk Drive pin Identification plate...
-
Page 14: Warranty Certificate
In case of revelation of an imperfection during the warranty period, the Distributor has to, unless a different written agreement of SANTOS, indicate to his customer to stop any use of the defective product. Such a use would release SANTOS of any responsibility.
