SANTOS SAS
140-150 AVENUE ROGER SALENGRO
69120 VAULX-EN-VELIN (LYON) - FRANCE

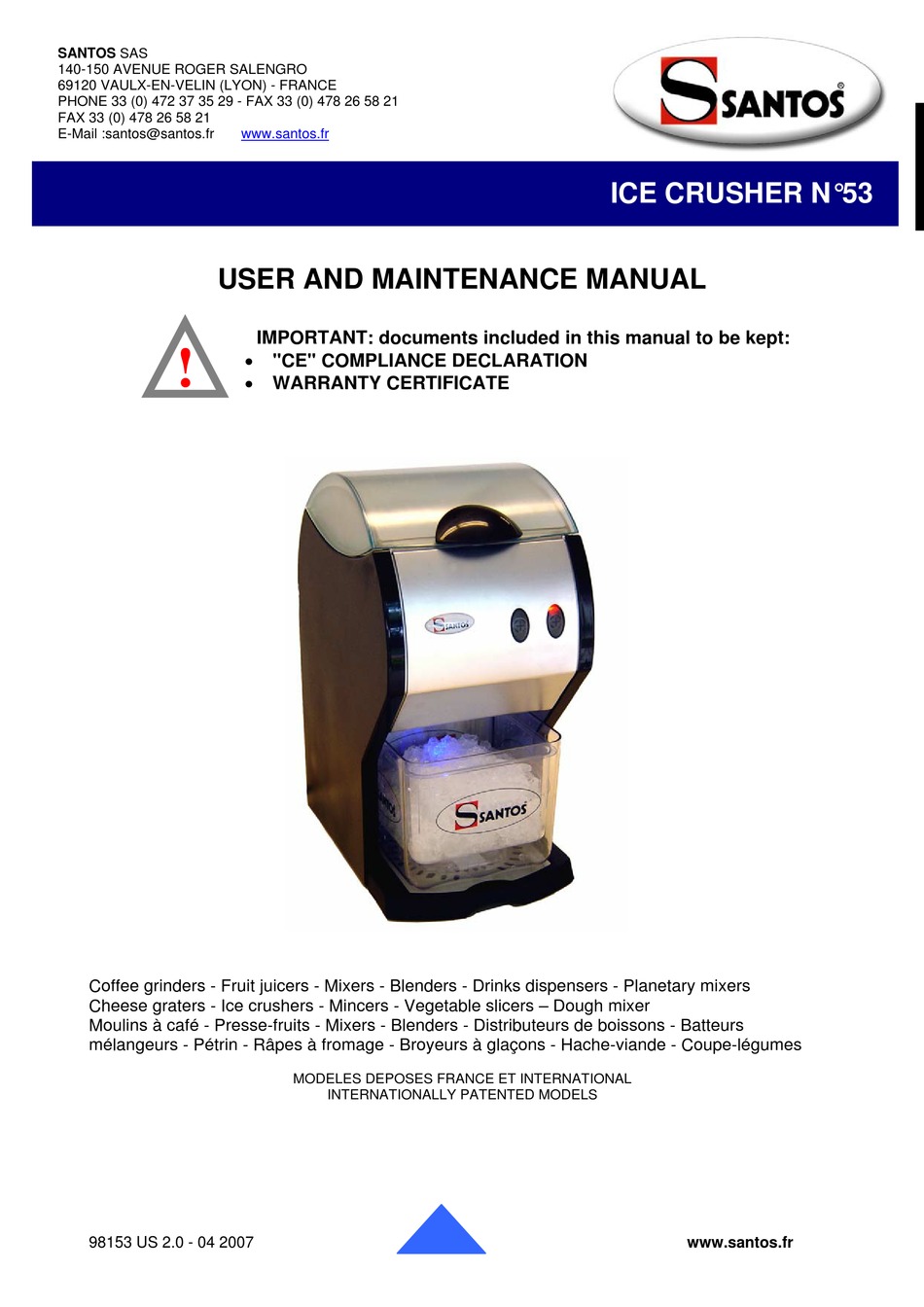

SANTOS : Instruction and maintenance manual
PHONE 33 (0) 472 37 35 29 - FAX 33 (0) 478 26 58 21
FAX 33 (0) 478 26 58 21
E-Mail :santos@santos.fr
USER AND MAINTENANCE MANUAL
!
Coffee grinders - Fruit juicers - Mixers - Blenders - Drinks dispensers - Planetary mixers
Cheese graters - Ice crushers - Mincers - Vegetable slicers – Dough mixer
Moulins à café - Presse-fruits - Mixers - Blenders - Distributeurs de boissons - Batteurs
mélangeurs - Pétrin - Râpes à fromage - Broyeurs à glaçons - Hache-viande - Coupe-légumes
98153 US 2.0 - 04 2007
www.santos.fr
IMPORTANT: documents included in this manual to be kept:
• "CE" COMPLIANCE DECLARATION
• WARRANTY CERTIFICATE
MODELES DEPOSES FRANCE ET INTERNATIONAL
INTERNATIONALLY PATENTED MODELS
1 / 18
ICE CRUSHER N°53
www.santos.fr
Advertisement
Table of Contents
Related Manuals for Santos 53
Summary of Contents for Santos 53
-
Page 1: Warranty Certificate
SANTOS SAS 140-150 AVENUE ROGER SALENGRO 69120 VAULX-EN-VELIN (LYON) - FRANCE SANTOS : Instruction and maintenance manual PHONE 33 (0) 472 37 35 29 - FAX 33 (0) 478 26 58 21 FAX 33 (0) 478 26 58 21 E-Mail :santos@santos.fr www.santos.fr... -
Page 2: Table Of Contents
SANTOS : Instruction and maintenance manual CONTENTS “CE” COMPLIANCE DECLARATION ..................4 FOR THE ICE CRUSHER N° 53 ....................5 RECYCLING THE PRODUCT AT THE END OF ITS SERVICE LIFE..........5 WARNING............................5 INSTALLATION AND HANDLING....................6 ELECTRICAL CONNECTION ......................6 USING THE APPLIANCE .........................7 USING FOR THE 1st TIME ......................7 START-UP: ............................7... - Page 3 SANTOS : Instruction and maintenance manual Figures...............................16 WARRANTY CERTIFICATE.....................18 APPLIANCE IDENTIFICATION PLATE................18 98153 US 2.0 - 04 2007 3 / 18 www.santos.fr...
-
Page 4: Ce" Compliance Declaration
SANTOS : Instruction and maintenance manual “CE” COMPLIANCE DECLARATION THE MANUFACTURER: SANTOS SAS - 140-150, Av. Roger SALENGRO 69120 VAULX-EN-VELIN (LYON) FRANCE HEREBY DECLARES THAT THE MACHINE DESIGNATED ON THE IDENTIFICATION PLATE AFFIXED: • UNDER THE APPLIANCE, • ON THE WARRANTY CERTIFICATE ON THE LAST PAGE OF THIS MANUAL, COMPLIES WITH THE PROVISIONS OF THE "machines"... -
Page 5: For The Ice Crusher N° 53
SANTOS : Instruction and maintenance manual FOR THE ICE CRUSHER N° 53 • Ice crusher N° 53 is designed especially for bars, cafés, hotels, restaurants and nightclubs. • The appliance comprises a plastic crushing unit fitted with stainless steel blades, a 1.3 kg see-through plastic hopper and a standard ice bucket. -
Page 6: Installation And Handling
• If the power cable (10) is damaged, it should be replaced by a special assembly available from approved SANTOS dealers or from SANTOS. 98153 US 2.0 - 04 2007 6 / 18 www.santos.fr... -
Page 7: Using The Appliance
SANTOS : Instruction and maintenance manual USING THE APPLIANCE USING FOR THE 1st TIME Carefully clean the parts of the machine in contact with the ice cubes (fig. A). • Grip the handle of the cover (2) to unlock it, then lift it up to gain access to the ice cube hopper (3). -
Page 8: Using The Manual Or Automatic Mode
SANTOS : Instruction and maintenance manual USING THE MANUAL OR AUTOMATIC MODE Manual mode Prolonged pressing of one of the buttons (4 or 5) starts up the manual mode. The motor runs for as long as the push button is pressed then stops as soon as it is released. -
Page 9: Safety / Maintenance
(hold the 2 push buttons (4) and (5) down for 2 seconds). If the problem persists, switch off the power supply to the machine (unplug the power cord (10) from the mains socket) and call in the maintenance service or contact a SANTOS approved dealer. -
Page 10: Maintenance
Before carrying out any work on the appliance, it is essential to unplug it from the mains and to discharge the motor starting capacitor: Spare parts IMPORTANT: Use of spare parts other than certified original SANTOS parts is prohibited. This machine requires no particular maintenance because the bearings are lubricated for life. -
Page 11: Fault Finding
SANTOS : Instruction and maintenance manual FAULT FINDING Carefully determine the reason for the appliance stopping. In all circumstances, if the problem persists, switch off the appliance (unplug the mains power cord plug (10)) and call on someone from the maintenance department or contact an approved SANTOS dealer. -
Page 12: The Crushed Ice Does Not Drop Into The Ice Bucket
SANTOS : Instruction and maintenance manual The crushed ice does not drop into the ice bucket The appliance is designed to crush the whole capacity of a standard ice cube tray in one go. If too many ice cubes are loaded into the hopper or if an ice bucket which is too small is used, the crushed ice level gradually builds up to the outlet opening. -
Page 13: Technical Specifications
SANTOS : Instruction and maintenance manual TECHNICAL SPECIFICATIONS Model 53 Single phase Supply voltage (V~) 220-240 100-120 Frequency (Hz) 50/60 50/60 Motor: Rating Power input Motor speed: (rpm) 1450 to 50Hz 1700 to 60Hz Blade speed: (rpm) 75 to 50Hz... -
Page 14: Electrical Wiring Diagram 100-120V~ 50/60Hz And 220-240V~ 50/60Hz
SANTOS : Instruction and maintenance manual Electrical wiring diagram 100-120V~ 50/60Hz and 220-240V~ 50/60Hz Green / Yellow Brown Black Brown White Blue Brown Electronic module Brown Yellow White Cover Safety device Black Yellow Black Capacitor Yellow White Blue 98153 US 2.0 - 04 2007 14 / 18 www.santos.fr... -
Page 15: Element Cross-Reference Table
SANTOS : Instruction and maintenance manual Element cross-reference table ITEM Description Ice cube hopper cover Locking handle Ice cube hopper "Big size" button "Small size" button Ice bucket Drip tray holder Drip tray Crushing unit Power cable plug Capacitor Identification plate 98153 US 2.0 - 04 2007... - Page 16 SANTOS : Instruction and maintenance manual Figures Fig. A Fig. B Fig. C 98153 US 2.0 - 04 2007 16 / 18 www.santos.fr...
- Page 17 SANTOS : Instruction and maintenance manual Fig. D Fig. F Fig. E 98153 US 2.0 - 04 2007 17 / 18 www.santos.fr...
-
Page 18: The Appliance
SANTOS : Instruction and maintenance manual WARRANTY CERTIFICATE WARRANTY This appliance is guaranteed for twelve months from the date of manufacture appearing on the identification plate. The guarantee is strictly limited to the free replacement of any original part acknowledged by us as being defective as a result of a fault or a manufacturing defect and identified as belonging to the appliance in question.
