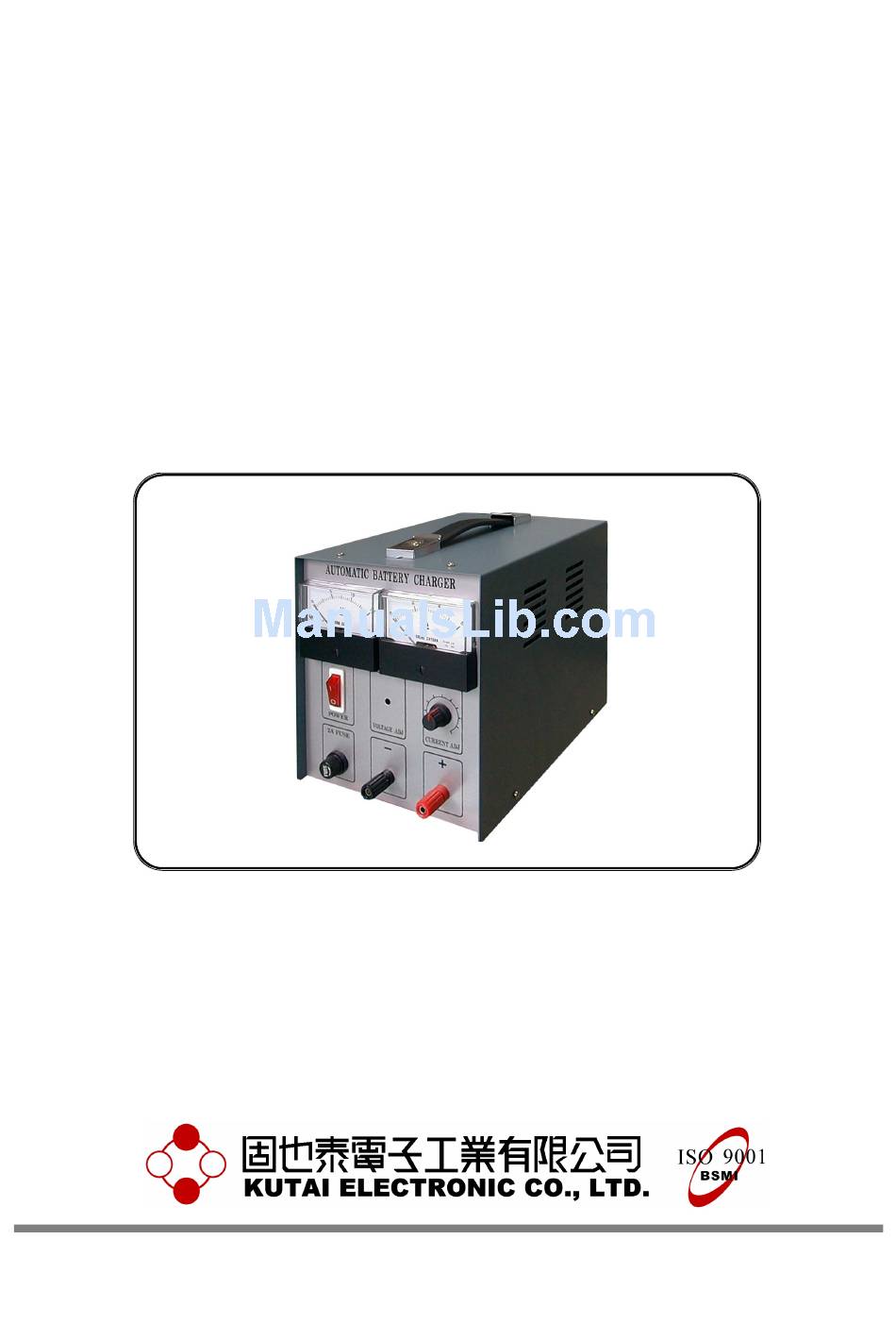

- Page 1 CH10 CH11 CH20 CH21 Automatic Battery Charger User’s Guide Kaohsiung : No.3, Lane 201, Chien Fu ST., Chyan Jenn Dist., Kaohsiung, TAIWAN Tel : + 886-7-8121771 Fax : + 886-7-8121775 URL : http://www.kutai.com.tw Email : service@mail.kutai.com.tw...
-
Page 2: Specifications
1. SPECIFICATIONS 1.1 Type Input Voltage Output Voltage Available Output Fuse Power Weight Model Battery Current Max. Consumption (AC) (DCV) (KG) CH1012E 13.8 CH1112E 1Ø 110V 50/60HZ CH1024E 27.6 CH1124E CH2012E 13.8 CH2112E 1Ø 220V 50/60HZ CH2024E 27.6 CH2124E 1.2 Arge mode : Floating Charge. 2.5 Power on then charging is starting, the more charge current the less time needed, current is 1.3 Unit Power Dissipation : Max. - Page 3 3. NOTICES 3.1 Avoid to place the charger in the environment such as high temperature, humidity, acid & alkali, Prevent from insolation, drench and caustic. 3.2 AC input voltage should fit the charger type. We suggest to install a protection device (such as MCCB) inter AC power and charger.
-
Page 4: Troubleshooting
4. OUTLINE (1) Voltage Meter. (2) Current Meter. (3) Voltage Adjustment VR (inside-mounted). (4) Current Adjustment Button. (5) Output terminal (Red). (6) Output terminal (Black). (7) Fuse. (8) Power Switch & Lamp. (9) Handle. 5. TROUBLESHOOTING 1. Check AC Power. 2.
