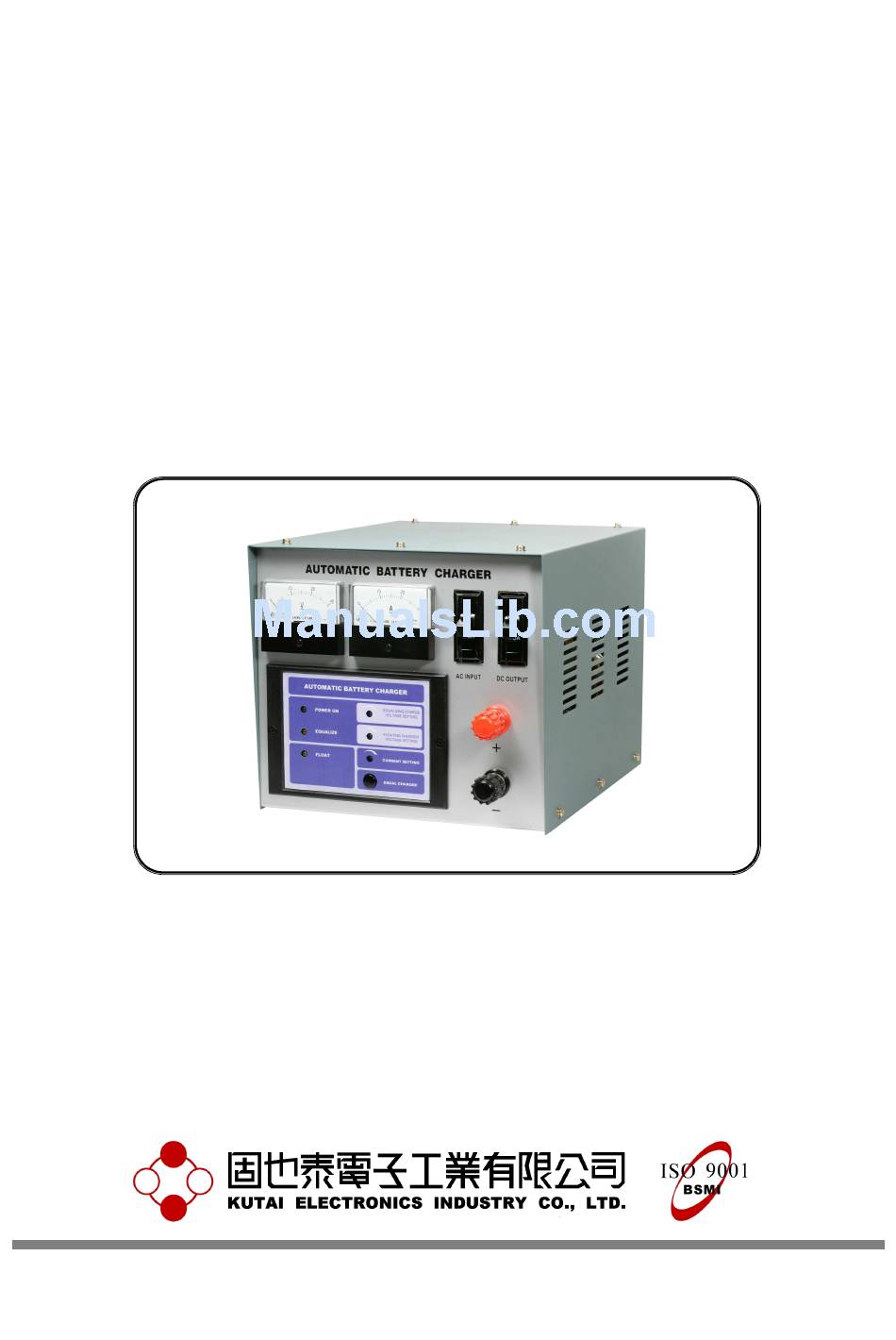

- Page 1 CH1812 CH1824 Automatic Battery Charger User’s Guide Headquarters : No.3, Lane 201, Chien Fu ST., Chyan Jenn Dist., Kaohsiung, TAIWAN Tel : + 886-7-8121771 Fax : + 886-7-8121775 URL : http://www.kutai.com.tw...
-
Page 2: General Description
1. INTRODUCTION AC Input Voltage Charge Mode 100 / 220 VAC ±10% Single Phase Voltage Equalize Charge Mode & Float Charge Mode (Adjustable) DC Voltage Regulation 50 / 60Hz ± 5% Frequency < ± 1% Equalize Charge Voltage Efficiency 80% @ Full Load 14.5VDC @ 12 VDC Charging Voltage 28.8VDC @ 24 VDC Charging Voltage ±3%... -
Page 3: Installation Place
6. WIRING AND ADJUSTMENT 6.5 Factory default setting voltage are. 6.1 Ensure the output of the battery charger is ● CH1812 Equalize charge mode is 14.5VDC. accords with the voltage of battery. Float charge mode is 13.8VDC. 6.2 Ensure the wiring of the battery charger is ●... -
Page 4: Troubleshooting
6.8 The timer of equalize charge mode is able to changed. Remove the metal cover of this enclosure and jump the wire proper position can change the timer. 6.9 When measuring the output voltage in an open Figure 2 circuit, user need to parallel a 4.7KΩ~10KΩ (1W) resistor.
