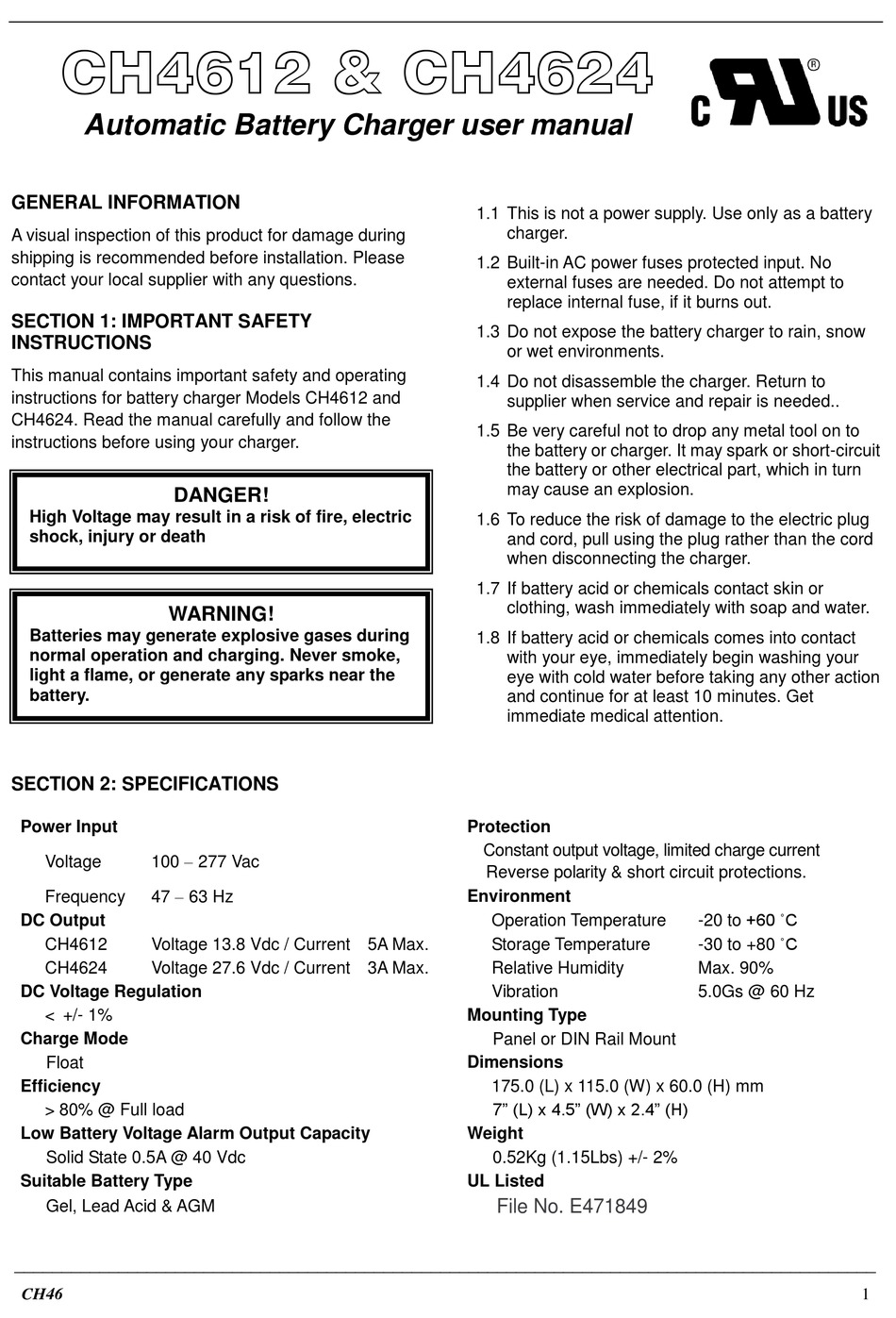

CH4612 & CH4624
Automatic Battery Charger user manual

GENERAL INFORMATION

A visual inspection of this product for damage during
shipping is recommended before installation. Please
contact your local supplier with any questions.
SECTION 1: IMPORTANT SAFETY
INSTRUCTIONS
This manual contains important safety and operating
instructions for battery charger Models CH4612 and
CH4624. Read the manual carefully and follow the
instructions before using your charger.
DANGER!
High Voltage may result in a risk of fire, electric
shock, injury or death
WARNING!
Batteries may generate explosive gases during
normal operation and charging. Never smoke,
light a flame, or generate any sparks near the
battery.
SECTION 2: SPECIFICATIONS
Power Input
100  277 Vac
Voltage
47  63 Hz
Frequency
DC Output
CH4612 Voltage 13.8 Vdc / Current 5A Max.
CH4624 Voltage 27.6 Vdc / Current 3A Max.
DC Voltage Regulation
< +/- 1%
Charge Mode
Float
Efficiency
> 80% @ Full load
Low Battery Voltage Alarm Output Capacity
Solid State 0.5A @ 40 Vdc
Suitable Battery Type
Gel, Lead Acid & AGM
___________________________________________________________________________________________
CH46
1.1 This is not a power supply. Use only as a battery
charger.
1.2 Built-in AC power fuses protected input. No
external fuses are needed. Do not attempt to
replace internal fuse, if it burns out.
1.3 Do not expose the battery charger to rain, snow
or wet environments.
1.4 Do not disassemble the charger. Return to
supplier when service and repair is needed..
1.5 Be very careful not to drop any metal tool on to
the battery or charger. It may spark or short-circuit
the battery or other electrical part, which in turn
may cause an explosion.
1.6 To reduce the risk of damage to the electric plug
and cord, pull using the plug rather than the cord
when disconnecting the charger.
1.7 If battery acid or chemicals contact skin or
clothing, wash immediately with soap and water.
1.8 If battery acid or chemicals comes into contact
with your eye, immediately begin washing your
eye with cold water before taking any other action
and continue for at least 10 minutes. Get
immediate medical attention.
Protection
Constant output voltage, limited charge current
Reverse polarity & short circuit protections.
Environment
Operation Temperature
Storage Temperature
Relative Humidity
Vibration
Mounting Type
Panel or DIN Rail Mount
Dimensions
175.0 (L) x 115.0 (W) x 60.0 (H) mm
7" (L) x 4.5" (W) x 2.4" (H)
Weight
0.52Kg (1.15Lbs) +/- 2%
UL Listed
File No. E471849
-20 to +60 ˚C
-30 to +80 ˚C
Max. 90%
5.0Gs @ 60 Hz
