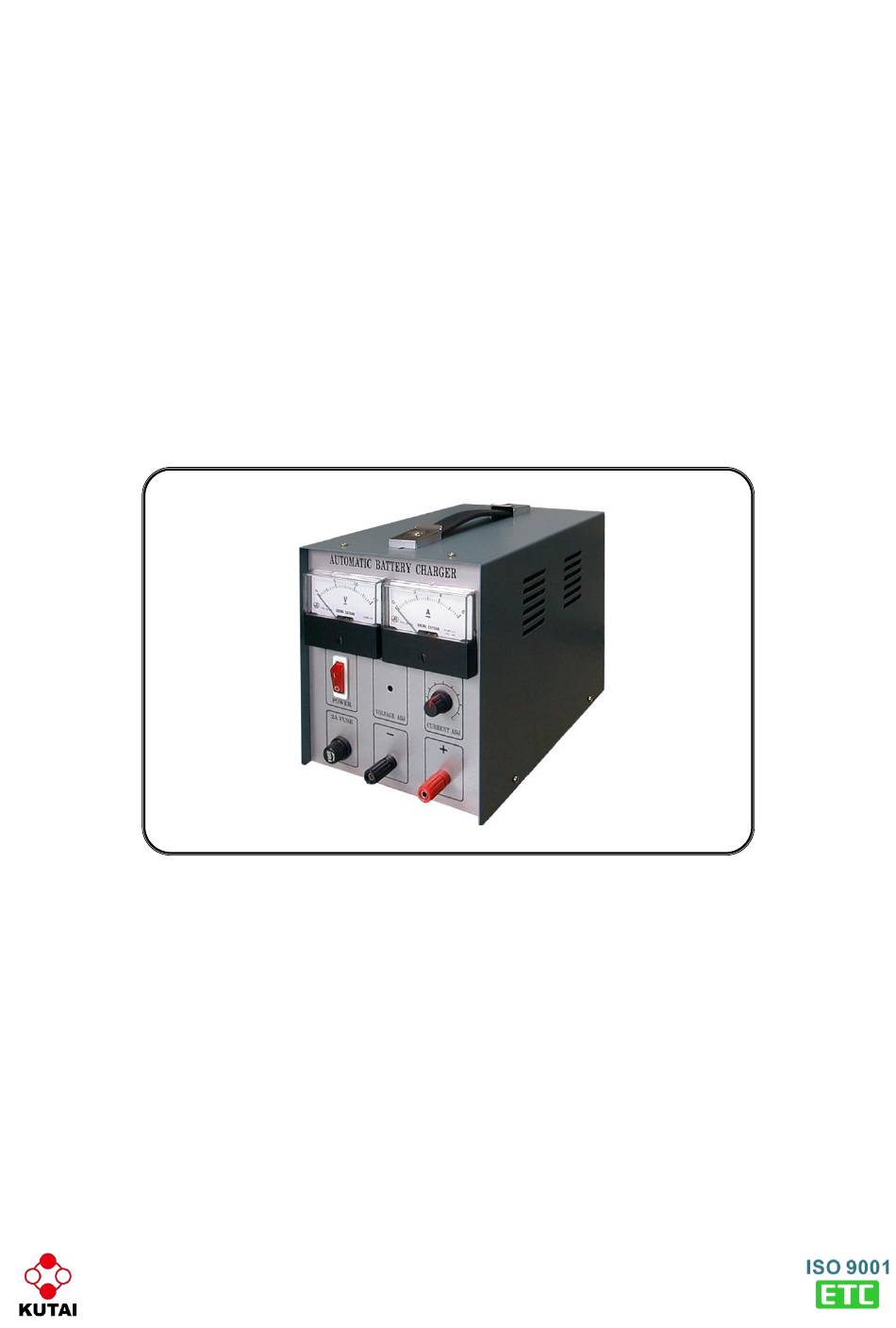

- Page 1 CH1112/CH1124/CH2112/CH2124 Automatic Battery Charger User Manual KUTAI ELECTRONICS INDUSTRY CO., LTD. TEL : +886-7-8121771 FAX : +886-7-8121775 Website : www.kutai.com.tw Headquarters : No.3, Ln. 201, Qianfu St., Qianzhen Dist., Kaohsiung City 80664, Taiwan...
- Page 2 Fu Fuse Power Weight Model Voltage Voltage Battery Current Max. Spec. Consumption (AC) (DCV) (kg +/- 2%) 1 Phase CH1112E 13.8 110V CH1124E 27.6 50/60 Hz 1 Phase CH2112E 13.8 220V CH2124E 27.6 50/60 Hz Charge mode : Floating Charge.
- Page 3 SECTION 3 : NOTICES Avoid to place the charger in the environment such as high temperature, humidity, acid & alkali, Prevent from insolation, drench and caustic. AC input voltage should fit the charger type. We suggest to install a protection device (such as MCCB) inter AC power and charger.

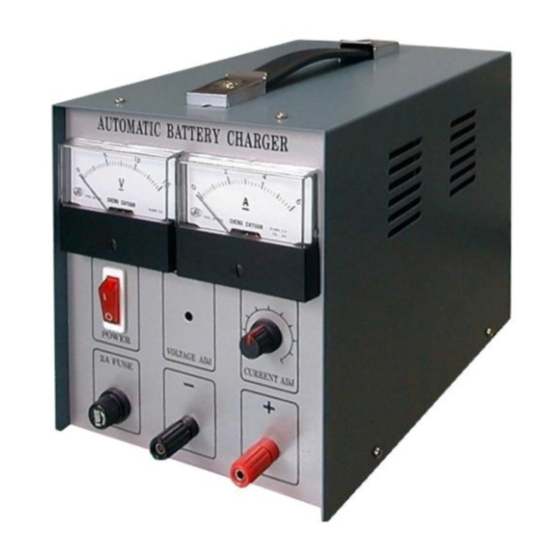

- Page 4 SECTION 4 : OUTLINE (1) Voltage Meter. (2) Current Meter. (3) Voltage Adjustment VR (inside-mounted). (4) Current Adjustment Button. (5) Output terminal (Red). (6) Output terminal (Black). (7) Fuse. (8) Power Switch & Lamp. (9) Handle. SECTION 5 : TROUBLESHOOTING SYMPTOM POSSIBLE CAUSES 1.
