Elation E-LOADER III User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
E-LOADER III
User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the E-LOADER III and is the answer not in the manual?

Questions and answers

Related Manuals for Elation E-LOADER III

Summary of Contents for Elation E-LOADER III

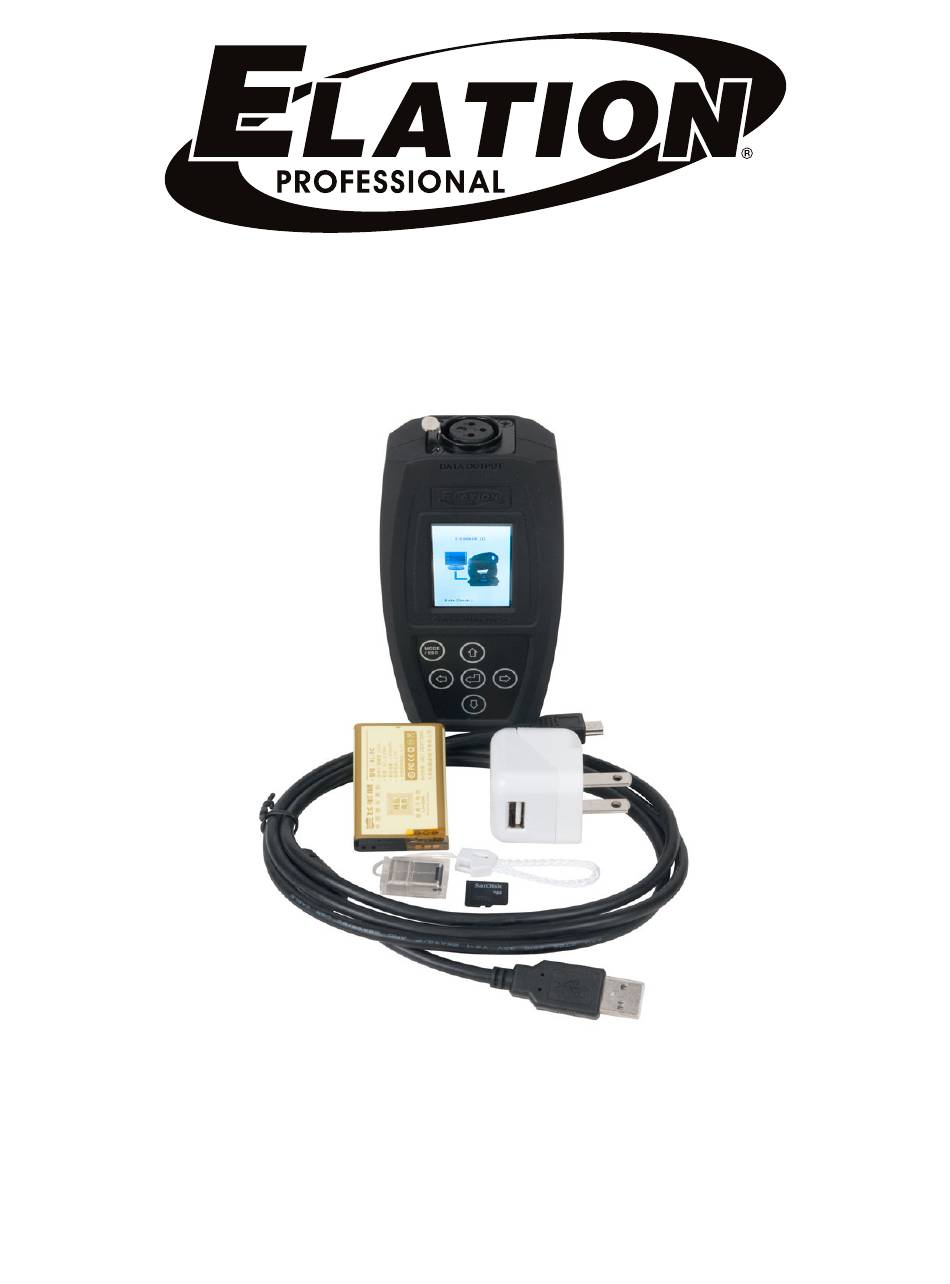

  • Page 1 E-LOADER III User Manual...
  • Page 2 Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, The Netherlands +31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu Elation Professional Mexico | AV Santa Ana 30 | Parque Industrial Lerma, Lerma, Mexico 52000 +52 (728) 282-7070 ELATION CUSTOMER SUPPORT Contact ELATION Service for any product related service and support needs.

  • Page 3: Table Of Contents

    CONTENTS General Information | FCC Statement Limited Warranty (USA Only) Safety Guidelines Overview Operation Recharging Battery Specifications Optional Components & Accessories...

  • Page 4: General Information | Fcc Statement

    GENERAL INFORMATION INTRODUCTION Please read and understand the instructions in this manual carefully and thoroughly before attempting to operate this device. These instructions contain important safety and use information. UNPACKING Every device has been thoroughly tested and has been shipped in perfect operating condition. Care- fully check the shipping carton for damage that may have occurred during shipping.

  • Page 5: Limited Warranty (Usa Only)

    The sole responsibility of Elation Professional under this warranty shall be limited to the repair of the product, or replacement thereof, including parts, at the sole discretion of Elation Professional. All products covered by this warranty were manufactured after January 1, 1990, and bare identifying marks to that effect.

  • Page 6: Safety Guidelines

    SAFETY GUIDELINES This device is a sophisticated piece of electronic equipment. To guarantee smooth operation, it is important to follow all instructions and guidelines in this manual. The manufacturer of this device is not responsible for injury and/or damages resulting from the misuse of this device due to the dis- regard of the information printed in this manual.

  • Page 7: Overview

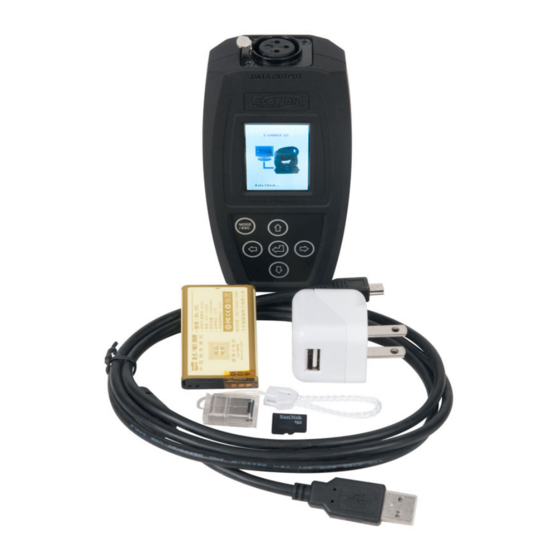

    Easily upload a software update to an Elation lighting fixture by connect- ing the E-LOADER III to the fixture using a 3pin DMX cable. Elation software updates (not included) are stored on a MICRO SD card (included) and inserted into the uploader. E-LOADER III features an LCD display, 6 button control panel, a MICRO SD card slot, a 3pin XLR DMX OUT, USB cable, and a blank MICRO SD card.

  • Page 8: Operation

    Error!” at the bottom of the up the fixture. E-Loader III. 5. Press MODE/ESC to enter SD card menu, then press LEFT or RIGHT to scroll through Browser, Op- tion, or Soft Info (screens...
  • Page 9 OPERATION BROWSER Note that out of the box, the MicroSD card is blank. Make sure the MicroSD is inserted, then select Browser and press ENTER. The message “Empty Folder!” will be displayed. In the Browser menus, select the fixture folder to be updated and Press ENTER. Please note that all non-fixture files displayed here are harmless corrupted files and will not affect the software upload.
  • Page 10 OPERATION With the password entered (by default, this is 000000), select the checkmark and Press ENTER. (To delete a number that has been entered incorrectly, simply select the arrow and enter). The screen should now display a PROGRESS window, showing an empty progress bar and the message, “Preparing…”.

  • Page 11: Recharging Battery

    DISPOSE OF BATTERY PROPERLY ACCORDING TO LOCAL, STATE, AND COUN- TRY REGULATIONS! DO NOT OPERATE THE DEVICE IF YOU ARE NOT QUALIFIED TO DO SO! Recharge battery when indicator is low by plugging in the included power supply. Only use the battery specified by Elation Lighting.

  • Page 12: Specifications

    SPECIFICATIONS Control / Connections: 6 Button Touch Control Panel LCD Menu Display 3pin DMX Out Micro SD Card Slot Mini USB Input With Wired Digital Communications Network Size / Weight: Length: 5.0” (126.7mm) Width: 2.6” (66.9mm) Vertical Height: 1.2” (30mm) Weight: 0.3lbs.

  • Page 13: Optional Components & Accessories

    OPTIONAL COMPONENTS & ACCESSORIES Model (SKU) Description AC3PM5PFM 1 ft. (0.3m) 3pin Male to 5pin Female DMX Cable AC3PDMX5PRO 5 ft. (1.5m) 3pin PRO DMX Cable AC5PDMX5PRO 5 ft. (1.5m) 5pin PRO DMX Cable Additional cable lengths available...
