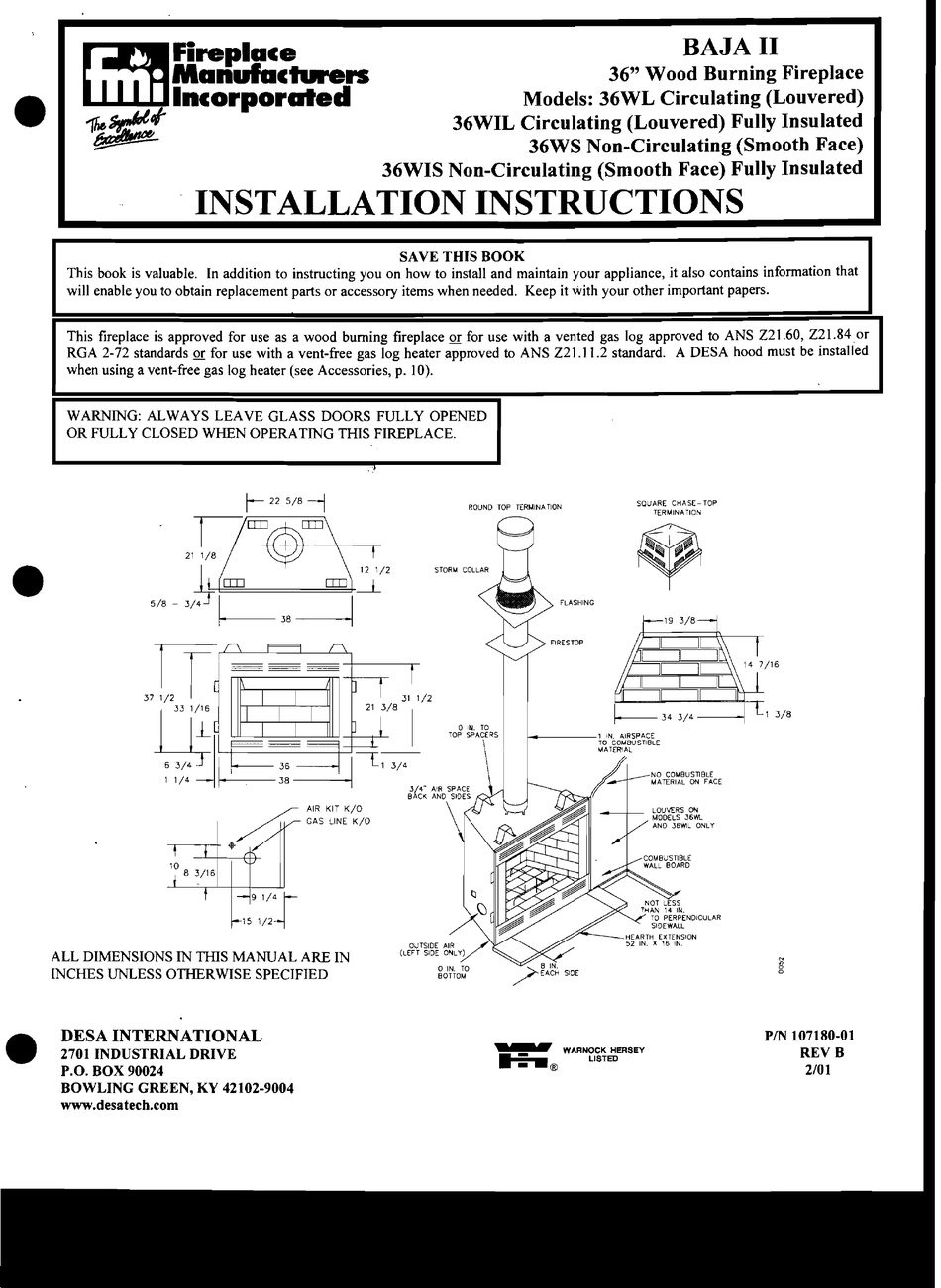

FMI Baja II Installation Instructions Manual

BAJA II
FirePlace
•
Manufacturers
36" Wood Burning Fireplace
Incorporated
Models: 36WL Circulating (Louvered)
~~fI/
36WIL Circulating (Louvered) Fully Insulated
~
~
36WS Non-Circulating (Smooth Face)
36WIS Non-Circulating (Smooth Face) Fully Insulated
INSTALLATION INSTRUCTIONS
SAVE THIS BOOK
This book is valuable. In addition to instructing you on how to install and maintain your appliance, it also contains information that
will enable you to obtain replacement parts or accessory items when needed. Keep it with your other important papers.
This fireplace is approved for use as a wood burning fireplace or for use with a vented gas log approved to ANS Z21.60, Z21.84or
RGA 2-72 standards or for use with a vent-free gas log heater approved to ANS Z21.11.2 standard. A DESA hood must be installed
when using a vent-free gas log heater (see Accessories, p. 10).
WARNING: ALWAYS LEAVE GLASS DOORS FULLY OPENED
OR FULLY CLOSED WHEN OPERATING THIS FIREPLACE.
SQUARE CHASE- TOP
ROUND TOP TERMINA nON
TERMINATION
•
~
o
o
1 - - - - - - - 1 IN. AIRSPACE
TO COMBUSTIBLE
MATERIAL
LOUVERS ON
MODELS 36WL
AND 36'ML ONLY
NO COMBUSTIBLE
MATERIAL ON FACE
AIR KIT K/O
GAS LINE K/O
9 1/4
r
15 1/2--1
ALL DIMENSIONS IN THIS MANUAL ARE IN
INCHES UNLESS OTHERWISE SPECIFIED
