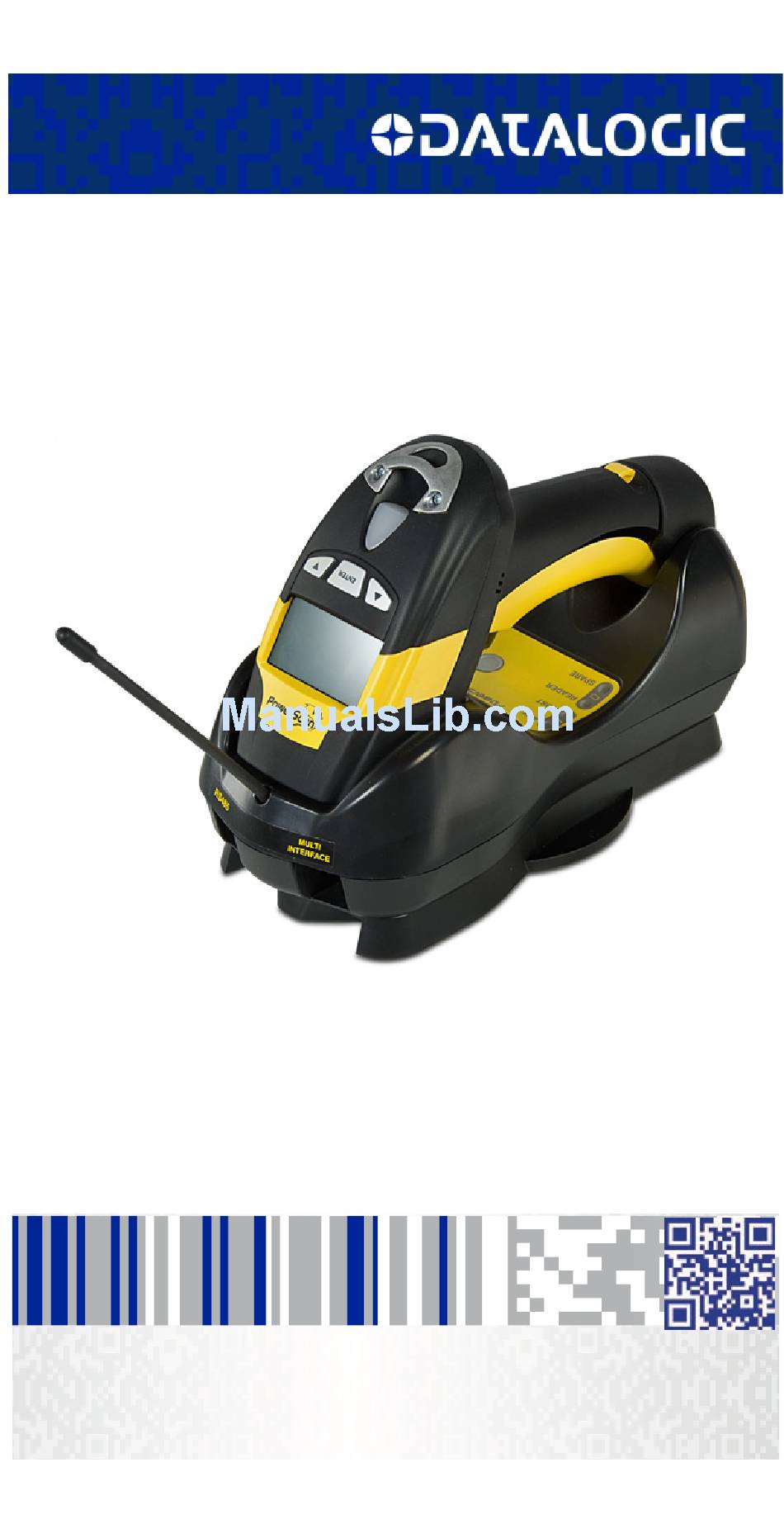

- Page 1 BC-80X0 Cradle Quick Reference Guide...
- Page 2 An Unpublished Work - All rights reserved. No part of the contents of this docu- mentation or the procedures described therein may be reproduced or transmitted in any form or by any means without prior written permission of Datalogic ADC, Inc. or its subsidiaries or affiliates ("Datalogic" or “Datalogic ADC”). Owners of Data-...
- Page 3 BC-80X0 USING THE BC-80X0 RADIO CRADLE The BC-80X0 cradle, paired with one or more Powerscan™ M8300 readers, builds a Cordless Reading System for the collection, decoding and transmission of barcoded data. It can be connected to a Host PC through an RS-232, USB, Wedge or Pen cable and is suited for single-cradle point-to-point layouts.
-
Page 4: Installation
DATALOGIC To set up your BC-80X0 cradle you must: Physically install the cradle. Make all system connections. Configure the BC-80X0 cradle. INSTALLATION MOUNTING THE BC-80X0 CRADLE The cradle package contains the following items: BC-80X0 1 horizontal base BC-80X0 Quick Reference Guide... -
Page 5: Desktop Mounting
BC-80X0 Desktop mounting For desktop usage, you can mount the cradle either on the horizontal base, for reduced overall dimensions, or on the inclined base for a more ergonomic taking out and insertion of the reader onto the cradle. Horizontal base Rubber Foot Seat (4) Mounting... - Page 6 Remove the protective plastic from the rubber feet and stick them onto the bottom surface of the base. If mounting the BC-80X0 cradle, insert the antenna in the appropriate hole on the body of the cradle and screw it clockwise until tight.
-
Page 7: Wall Mounting
Remove the plastic from the other side of the strips and affix the base to the table. If mounting the BC-80X0 cradle, insert the antenna in the appropriate hole on the body of the cradle and screw it clockwise until tight. - Page 8 DATALOGIC Position the cables to be connected to the BC-80X0 cradle along the dedicated channels (see figures at page 4). If using the adhesive strips: If using the mounting screws: Carefully clean the adhesive strip Using the mounting holes on the...
-
Page 9: System Connections
Reference Manual for the configuration procedure. SYSTEM CONNECTIONS Connections should always be made with power off! CAUTION The BC-80X0 cradle provides two interface connectors and a power supply connector as shown in the figure on the next page: Power Supply MULTI-INTERFACE RS-232, USB, Wedge,... -
Page 10: Interface Cable
DATALOGIC CONNECTING DISCONNECTING BC-80X0 INTERFACE CABLE The BC-80X0 can be connected to a Host by means of an RS-232, USB, Wedge or Pen cable, which must be simply plugged into the Host connector, visible on the front panel of the cradle. - Page 11 BC-80X0 WEDGE C-BOX Powerscan™ M JOIN Scanner C-BOX BIND BC-80X0 System cables to Host...
-
Page 12: Restore Default
DATALOGIC ALADDIN™ Datalogic Aladdin™ is a multi-platform utility program providing a quick and user-friendly configuration method via the RS-232/USB-COM interface. It also allows upgrading the software of the connected device (see the Datalogic Aladdin™ Help On-Line for more details). SERIAL CONFIGURATION By connecting the BC-80X0 to a PC through an RS-232 or USB-COM interface cable it is possible to send configuration strings from the PC to BC-80X0. -
Page 13: Interface Selection
USB-IBM-Hand Held Ì$+UA01$-.Î USB-IBM Table top Ì$+UA00$-(Î USB KBD-APPLE * When configuring USB-COM, the relevant files and drivers must be installed from the USB Device Installation Software, which can be downloaded from the web site http://www.scanning.datalogic.com. PEN EMULATION INTERFACE SELECTION Ì$+CP6$-BÎ... - Page 14 DATALOGIC INTERFACE SELECTION Select one of the interface codes according to your application. RS-232 INTERFACE SELECTION RS-232 Standard Ì$+CP0$-$Î Nixdorf Mode A Ì$+CM2EC0$->Î Fujitsu Ì$+CM1$-ÈÎ ICL Mode Ì$+CM0$-ÃÎ WEDGE INTERFACE SELECTION Wedge IBM AT or PS/2 PCs Ì$+CP500$-aÎ PC Notebook Ì$+CP505$-ÈÎ...
-
Page 15: Keyboard Nationality
BC-80X0 KEYBOARD NATIONALITY USB-KBD and Wedge users should select one of the following wedge keyboard nationality codes according to your keyboard. Belge Ì$+FJ7$-8Î Deutsch Ì$+FJ3$-$Î English Ì$+FJ4$-)Î Español Ì$+FJ6$-3Î Français Ì$+FJ2$-ÊÎ Italiano Ì$+FJ1$-ÅÎ Svenskt Ì$+FJ5$-.Î USA (Default) Ì$+FJ0$-|Î... - Page 16 DATALOGIC The following Keyboard Nationality selections are only valid for IBM AT compatible PCs: Japanese Ì$+FJ8$-=Î Russian (Latin) Ì$+FJ9$-BÎ Russian (Cyrillic) Ì$+FJA$-jÎ Hungarian Ì$+FJB$-oÎ Slovenian, Croatian, Serbian (Latin) Ì$+FJC$-tÎ Romanian Ì$+FJD$-yÎ Czech Republic Ì$+FJE$-~Î...
-
Page 17: Data Format Terminators
BC-80X0 DATA FORMAT TERMINATORS For your convenience, some common Terminators are given below. For other Header/Terminators selections, Data Format and Advanced Data Format parameters see the Powerscan™ D8330/M8300 Reference Manual. CR-LF Ì$+EA120D0A$-ÃÎ Enter Ì$+EA1183$-0Î Ì$+EA1184$-8Î None Ì$+EA10$-dÎ... - Page 18 DATALOGIC BC-80X0 DEFAULT CONFIGURATION USB-KBD DEFAULT SETTINGS USA keyboard, FIFO enabled, inter-character and inter-code delays disabled, USB keyboard speed normal. : code identifier disabled, code length not transmitted, character DATA FORMAT replacement disabled, reader and cradle address stamping disabled, reader and cradle address delimiter disabled, time stamping disabled, time stamping delimiter disabled, no header, terminator = ENTER.
-
Page 19: Operating Test
BC-80X0 OPERATING TEST Read the TEST codes below. EAN-8 1 2 3 4 5 6 7 0 EAN-13 1 2 3 4 5 6 7 0 0 0 9 9 2 Code 39 (Normal) Code 39 (Normal) Code 128 Interleaved 2 of 5 0 1 2 3 4 5 6 7 8 4 YOUR SYSTEM IS NOW READY TO READ CODES AND TO SEND THE DATA TO THE HOST. -
Page 20: Technical Features
DATALOGIC TECHNICAL FEATURES BC-80X0 Electrical Features Supply Voltage External Power 10..30 VDC Host Power 5 VDC ±10% Power Consumption External Power max. 10 W (charging) * Host Power max. 500 mA (charging) Ext. Power/Data yellow LED Indicators Host Power/Data yellow LED Reader batt. -
Page 21: Datalogic Adc Limited Factory Warranty
Datalogic has no obligation to modify or update products once sold. If Datalogic determines that a product has defects in material or workmanship, Datalogic shall, at its sole option repair or replace the product without additional charge for parts and labor, or credit or refund the defective products duly returned to Datalogic. - Page 22 Failure to follow the applicable RMA policy, may result in a processing fee. Customer shall be responsible for return shipment expenses for products which Datalogic, at its sole discretion, determines are not defective or eligible for warranty repair.
-
Page 23: Service And Support
NOTICE OF THE POSSIBILITY OF SUCH DAMAGES. Risk of Loss Customer shall bear risk of loss or damage for product in transit to Datalogic. Datalogic shall assume risk of loss or damage for product in Datalogic’s possession. In the absence of specific written instructions for the return of product to Customer, Datalogic will select the carrier, but Datalogic shall not thereby assume any liability in connection with the return shipment. -
Page 24: Power Supply
FCC COMPLIANCE Modifications or changes to this equipment without the expressed written approval of Datalogic could void the authority to use the equipment. This device complies with PART 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference which may cause undesired operation. - Page 25 BC-80X0 COFETEL MEXICO STATEMENTS Cofetel Mexico Update Este producto es usable en México Certificado Nr. RCPDAST08-0269 (COFETEL). Cofetel Mexico Update Este producto es usable en México Certificado Nr. RCPDAST09-0861 (COFETEL). BRAZILIAN CERTIFICATION STATEMENT (01)07898916345048 “Este equipamento opera em caráter secundário, isto é, não tem direito a proteção contra interferência prejudicial, mesmo de estações do...
- Page 26 DATALOGIC...
-
Page 27: Weee Compliance
Waste Electrical and Electronic Equipment (WEEE) Statement English For information about the disposal of Waste Electrical and Electronic Equipment (WEEE), please refer to the website at www.datalogic.com. Italian Per informazioni sullo smaltimento delle apparecchiature elettriche ed elettroniche consultare il sito Web www.datalogic.com. - Page 28 DATALOGIC NOTES...
- Page 29 BC-80X0 NOTES...
- Page 30 DATALOGIC NOTES...
-
Page 31: Declaration Of Conformity
Lippo di Calderara di Reno (BO) 40012 Italy Pag.: 1 di 1 La presente dichiarazione di conformità è rilasciata sotto la responsabilità esclusiva di Datalogic ADC Srl per: This Declaration of Conformity is issued under the sole responsibility of Datalogic ADC Srl for: Cette déclaration de conformité... - Page 32 ©2007-2014 Datalogic, Inc. • All rights reserved. Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries, including the U.S.A. and the E.U. Datalogic ADC, Inc. 959 Terry Street Eugene |OR 97402 Telephone: (1) 541-683-5700...
