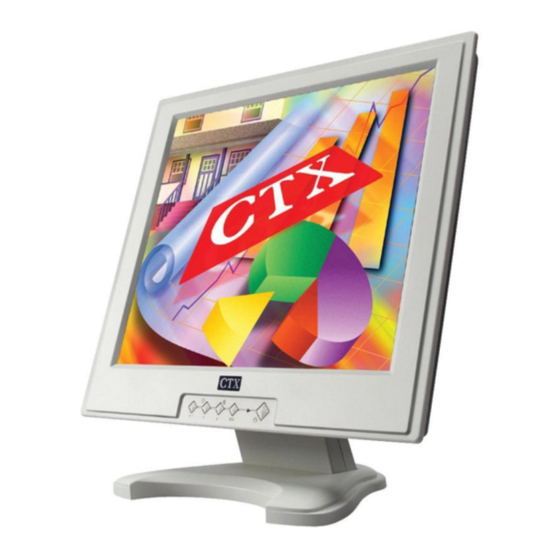

CTX S500B User Manual
  1. Manuals
  2. Brands
  3. CTX Manuals
  4. Monitor
  5. S500B
  6. User manual

CTX S500B User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

S500/500B User's Manual
U s e r ' s
M a n u a l
S 5 0 0 / 5 0 0 B
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S500B and is the answer not in the manual?

Questions and answers

Related Manuals for CTX S500B

Summary of Contents for CTX S500B

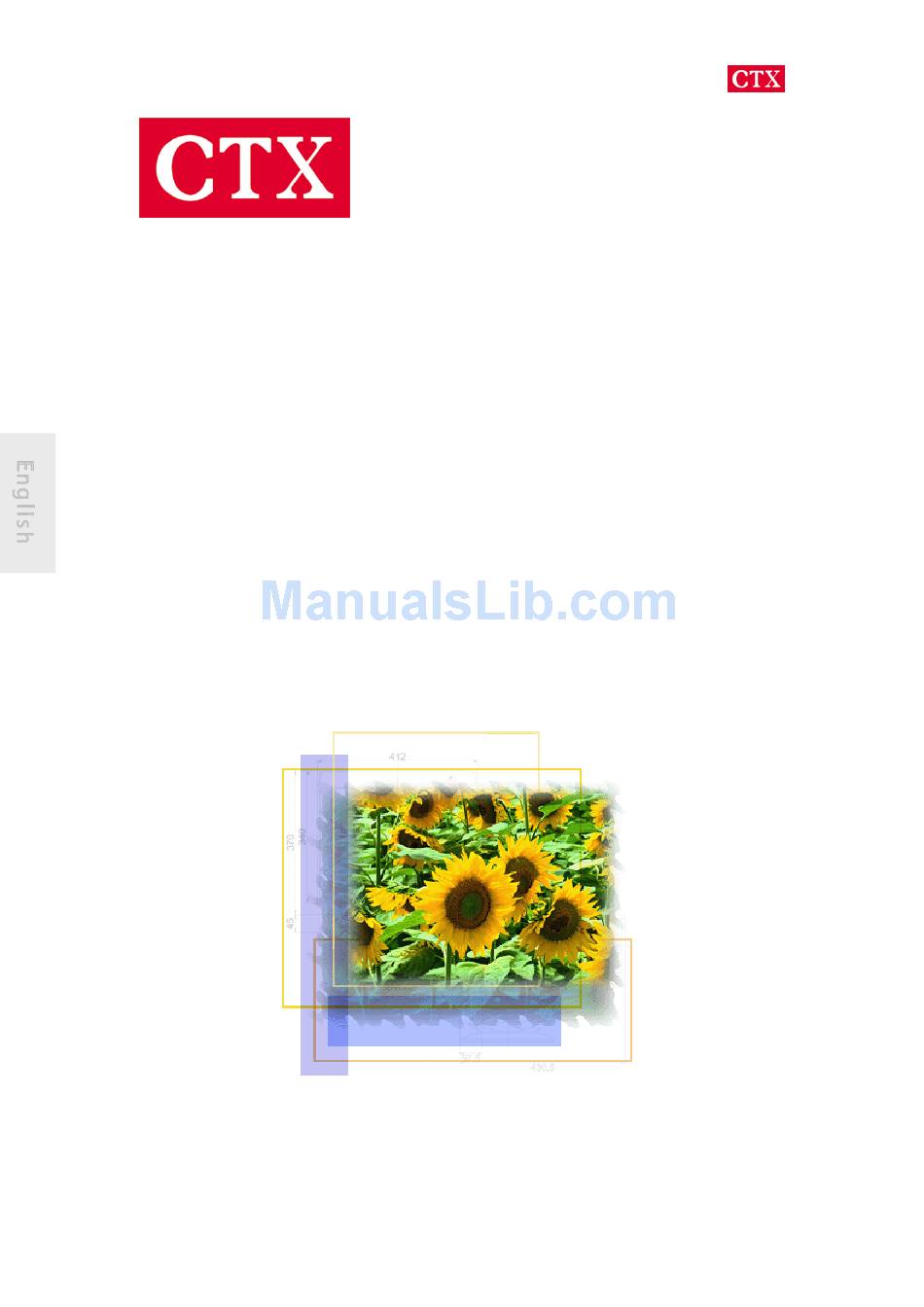

  • Page 1 S500/500B User’s Manual U s e r ’ s M a n u a l S 5 0 0 / 5 0 0 B...

  • Page 2: Table Of Contents

    S500/500B User’s Manual Table of Contents 1. Important Safety Instructions 2. Introduction 3. Recommended Use of the Monitor 4. Controls and Adjustments 5. Energy Declaration 6. Trouble Shooting 7. Technical Information 8. Product Overview Specifications...

  • Page 3: Important Safety Instructions

    S500/500B User’s Manual Important Safety Instructions FCC Statement his equipment has been tested to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 4 S500/500B User’s Manual encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during their manufacture.
  • Page 5 S500/500B User’s Manual Fax: +46 8 782 92 07 Email (Internet): development@tco.se Current information regarding TCO'99 approved and labelled products may also be obtained via the Internet, using the address: http://www.tco-info.com/ Environmental requirements Flame retardants Flame retardants are present in printed circuit boards, cables, wires, casings and housings.

  • Page 6: Safety Precautions

    S500/500B User’s Manual used for washing printed circuit boards. CFCs break down ozone and thereby damage the ozone layer in the stratosphere, causing increased reception on earth of ultraviolet light with e.g. increased risks of skin cancer (malignant melanoma) as a consequence.
  • Page 7 S500/500B User’s Manual 7. If any of the following occurs immediately unplug your Monitor and call an authorized technician. • The power or Monitor-to-PC signal cord is frayed or damaged. • Liquid has been spilled into the Monitor, or it has been exposed to rain. •...

  • Page 8: Introduction

    S500/500B User’s Manual Introduction Product Description ongratulations on purchasing this new generation monitor. Your LCD monitor incorporates high quality display into a small lightweight module. It has power- saving capabilities and emits no X-ray radiation. he features are: • 15" TFT Liquid Crystal Display •...
  • Page 9 S500/500B User’s Manual Power Cord Power Adapter CAUTION Keep the shipping carton in case the need arises to store or transport the unit. Let the LCD lie on its face when you put it into the carton. Installation Monitor Arm * The Monitor Arm is an optional item.

  • Page 10: Recommended Use Of The Monitor

    S500/500B User’s Manual Recommended Use of the Monitor Power Use the type of power indicated on the marking label. Plugs Do not remove any of the prongs of the monitor's three-pronged power plug. Disconnect the power plug from the AC outlet if you are not going to use it for an indefinite period of time.

  • Page 11: Controls And Adjustments

    And lead you through the various functions of the user controls and explain how to adjust the monitor to your personal preference. Front User Controls S500 S500B (1) Enter " " button To display the OSD manual and select functions.
  • Page 12 S500/500B User’s Manual On Screen Display (OSD) Main menu 1. Press " " to open the OSD main menu. 2. Use the " " and " " arrows to move through the displayed functions. 3. Press " " to confirm your selected function. Brightness Press the "...
  • Page 13 S500/500B User’s Manual adjustment. It will adjust the VGA input level and video quality to optimize. • For the adjustment, please execute the program, then processing the "Auto Tune" function in the OSD menu. 2. Color You can choose either the 6500°K, 9300°K colour temperature mode or User mode to store your user defined color settings.
  • Page 14 S500/500B User’s Manual Clock: Press the " " or " " button to adjust the width of the screen to a maximum. • Phase: Press the " " or " " button to reduce the noise on the screen. • Dither: Press the "...
  • Page 15 S500/500B User’s Manual 5. Language Press the " " or " " button to select between English, French, Italian, Spanish or German languages. 6. Recall Press the " " or " " button to select "Yes" or "No". Choosing Recall to callback all the settings for the current Input Signal mode to factory preset.

  • Page 16: Energy Declaration

    S500/500B User’s Manual Energy Declaration his monitor is equipped with a function for saving energy, which supports the VESA Display Power Management Signaling (DPMS) standard. This means that the monitor must be connected to a computer, which also supports the VESA DPMS standard to fulfill the requirements of the NUTEK specification 803299/94/96.

  • Page 17: Trouble Shooting

    S500/500B User’s Manual Trouble Shooting f you are experiencing trouble with the LCD display refer to the following. If the problem persists please contact your local dealer or our service center. The monitor does not Check if the monitor is turned on. respond after you turn Turn off the power and check the monitor power cord and on the system.
  • Page 18 S500/500B User’s Manual Image has horizontal Use "Phase" to make an adjustment. flickering lines IF input signals are 720x350 and 640x400, into OSD Control Text/ Graphics item switch to other mode. Signal out of Range When the input signal is outside the normal specifications the screen will display an "Signal Out of Range "...

  • Page 19: Technical Information

    S500/500B User’s Manual Technical Information Compatibility his LCD monitor supports multiple operating platforms such as IBM compatible computers. This section provides you with detailed information on pin assignment of the D-Sub connector and the preset timing chart of the prevailing video standards. Pin Assignments Male Mini D-15 Connector Signal...

  • Page 20: Video Modes

    S500/500B User’s Manual Video Modes Horizontal Refresh Rate Resolution VCLK(MHz) Standard Frequency (KHz) (Hz) 640*350 25.175 31.469 70.000 IBM VGA 720*400 28.322 31.469 70.000 IBM VGA 640*480 25.175 31.469 59.940 IBM VGA 640*480 31.500 37.861 72.809 VESA 640*480 31.500 37.500 75.000 VESA 800*600...

  • Page 21: Product Overview

    S500/500B User’s Manual Product Overview Front View (unit: mm) Side View (unit: mm)
  • Page 22 S500/500B User’s Manual For viewing clarity, you can tilt the LCD panel forward (up to 5 degrees) or backward (up to 20 degrees) Rear View (unit: mm)

  • Page 23: Specifications

    S500/500B User’s Manual Specifications LCD Panel 15" TFT LCD module with wide-viewing angle, 0.297(H) x 0.297 (V)mm pixel [ Monitor ] Effective display size 15" (38.1cm diagonal) Resolution (max.) XGA 1024x768 Displayable colours up to 16M colors Brightness 200 Cd/m2 (typical) Contrast ratio 300:1 (typical) Response time...
  • Page 24 S500/500B User’s Manual Humidity 10% ~ 90% (non-condensing) Altitude 40,000ft Note: Specifications are subject to change without notice...
