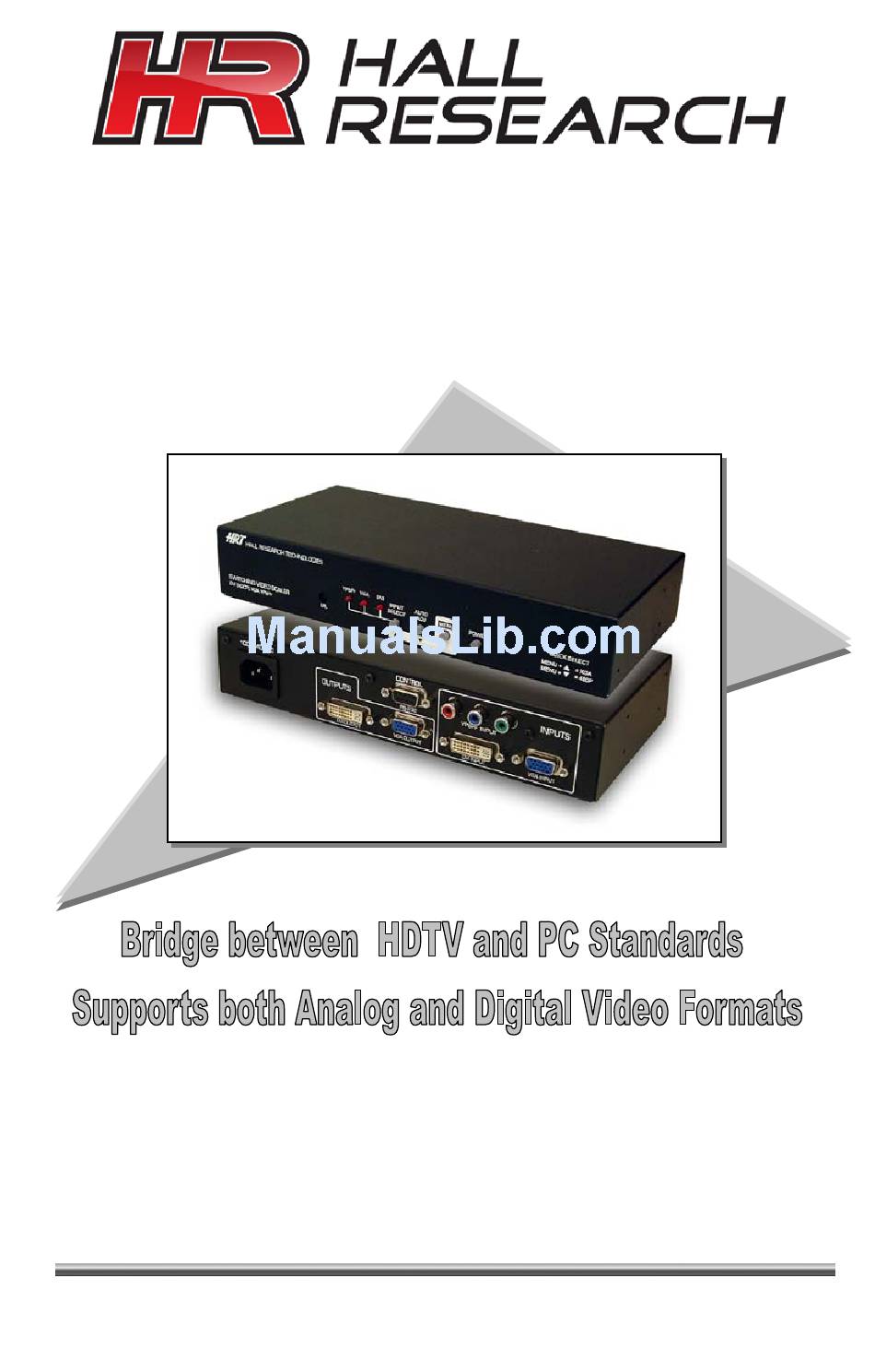

- Page 1 SC-1080D Multi-format PC/HD Video Scaler For technical support, Call 714-641-6607 or fax 714-641-6698 SUPPORT & Order by phone: toll-free in the U.S. 800-959-6439 ORDERING Web site: www.hallresearch.com INFORMATION Hall Research, 1163 Warner Ave. Tustin, CA 92780 UMA1154 Rev. E...
- Page 3 Model SC-1080D TRADEMARKS USED IN THIS MANUAL Hall Research, HR, and its logo are trademarks of Hall Research Inc. Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners. FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT...
-
Page 4: Table Of Contents
Multi-format PC/HD Video Scaler Contents 1. Introduction ...................... 3 1.1 General ....................... 3 1.2 Features ...................... 4 2. Installation ....................... 5 2.1 Connecting the Video Inputs and Outputs ..........5 2.2 Other Connections ..................7 3. Configuration and Operation ................8 3.1 Front Panel .................... -
Page 5: Introduction
1. Introduction 1.1 General The SC-1080D is a member of Hall Research’s powerful video processor and scaling product line. It combines the functions of many products in one compact and versatile unit. It has both high definition analog as well as digital inputs. -
Page 6: Features
Multi-format PC/HD Video Scaler The DVI input is HDCP compliant. This allows the unit to be used as an HDMI™ Video Scaler (HDMI™ audio is not passed through). When the digital input has HDCP encryption, the DVI output must be connected to a HDCP compatible LCD (by definition all displays with HDMI™... -
Page 7: Installation
Model SC-1080D 2. Installation 2.1 Connecting the Video Inputs and Outputs The video scaler can accept a VGA (analog RGBHV from PC), DVI (digital video from PC or HDMI™ source), and Component Video (Y Pb Pr) from any source. When the source is from an HDMI™ output, an HDMI to DVI cable or adapter is required. -
Page 8: Video Inputs
TV or HDTV as long as the TV has either HDMI™ or component inputs. Since the SC-1080D uses state of the art video scaling, often you will achieve a sharper image on your LCD even if it has a VGA input! DVI: This is the digital input to the Scaler. -
Page 9: Other Connections
HDMI™ compatible connector input using the appropriate cable. 2.2 Other Connections RS232: This 9-pin D-sub connector is for connecting to your PC or other serial control device for remote control of the SC-1080D. Scaler Interconnect Cable DB9 M/F Remote Controller... -
Page 10: Configuration And Operation
Multi-format PC/HD Video Scaler 3. Configuration and Operation 3.1 Front Panel Figure 5 – Front Panel Power: Press this button to turn ON or turn OFF (standby) the power to the unit. Menu/Enter: This button serves two purposes. A. Pressing the button will bring up the OSD main menu as shown in the "OSD Menus"... - Page 11 If you are not getting any image on your display, it could be that the output resolution setting of the SC-1080D is not supported by your LCD. Using serial commands or the IR remote, one can quickly switch between various output resolutions.
-
Page 12: Osd Menus
Multi-format PC/HD Video Scaler 3.2 OSD Menus Pressing the "MENU" button brings up the On-Screen Display (OSD) main menu as shown below: OSD Menu System Color Output Video Info Contrast User H. Position Version Brightness Normal SVGA V. Position Input Warm Timeout Output... - Page 13 Model SC-1080D completed; press the MENU button to leave that parameter. Move the highlight bar to EXIT, and then press the MENU button to exit. Note: The "H-position" and "V-position" are only available when the component or PC (VGA) input is selected...
-
Page 14: Infra-Red Remote Control (Ir Remote)
Output: Shows the currently selected output resolution. For Example: 720p. Version: Shows the firmware version. 3.3 Infra-Red Remote control (IR Remote) Power: Press the button once to power on the SC-1080D. Press again to enter standby mode. Input: Press the button repeatedly to toggle through the various input sources HD: Press the button to select the component input. -
Page 15: Ir Codes
SC-1080D. 4. Serial Control The video input selection and signal parameter settings for the SC-1080D can be controlled via an external control system by using the RS232 port on the unit. Use a straight thru M/F DB9 serial cable to connect the unit to the PC. Only the TX, RX and GND pins are implemented in the connector. -
Page 16: Key Commands
Multi-format PC/HD Video Scaler 4.2 Key Commands Command (Terminate with <CR>) Response Description K POWER > POWER PRESS POWER BUTTON K MENU > MENU PRESS MENU BUTTON K UP > UP PRESS UP BUTTON K DOWN > DOWN PRESS DOWN BUTTON An invalid command will respond with “K-[??]”<CR>... -
Page 17: Troubleshooting
LCD. If you are having trouble displaying a picture from an HDMI™ source, ensure that the display device connected to the SC-1080D is HDCP compliant. For HDMI™ compliance, when the DVI input is selected, and HDCP content protection is detected on the signal, the HD15 analog output is blanked. The front panel input LED will blink when this condition is detected. -
Page 18: Specifications
Multi-format PC/HD Video Scaler 6. Specifications Supported Input Formats: Resolution DVI / HDMI™ VGA (PC) YPbPr 480i/576i 480p/576p 720p@(60/50) 1080i@(60/50) 1080p@(60/50) VGA@(60/72/75/85) SVGA@(56/60/72/75/85) ... - Page 20 © Copyright 2011. Hall Research Inc. All rights reserved. 1163 Warner Ave., Tustin, CA 92780 Ph: (714)641-6607, Fax: (714)641-6698...
