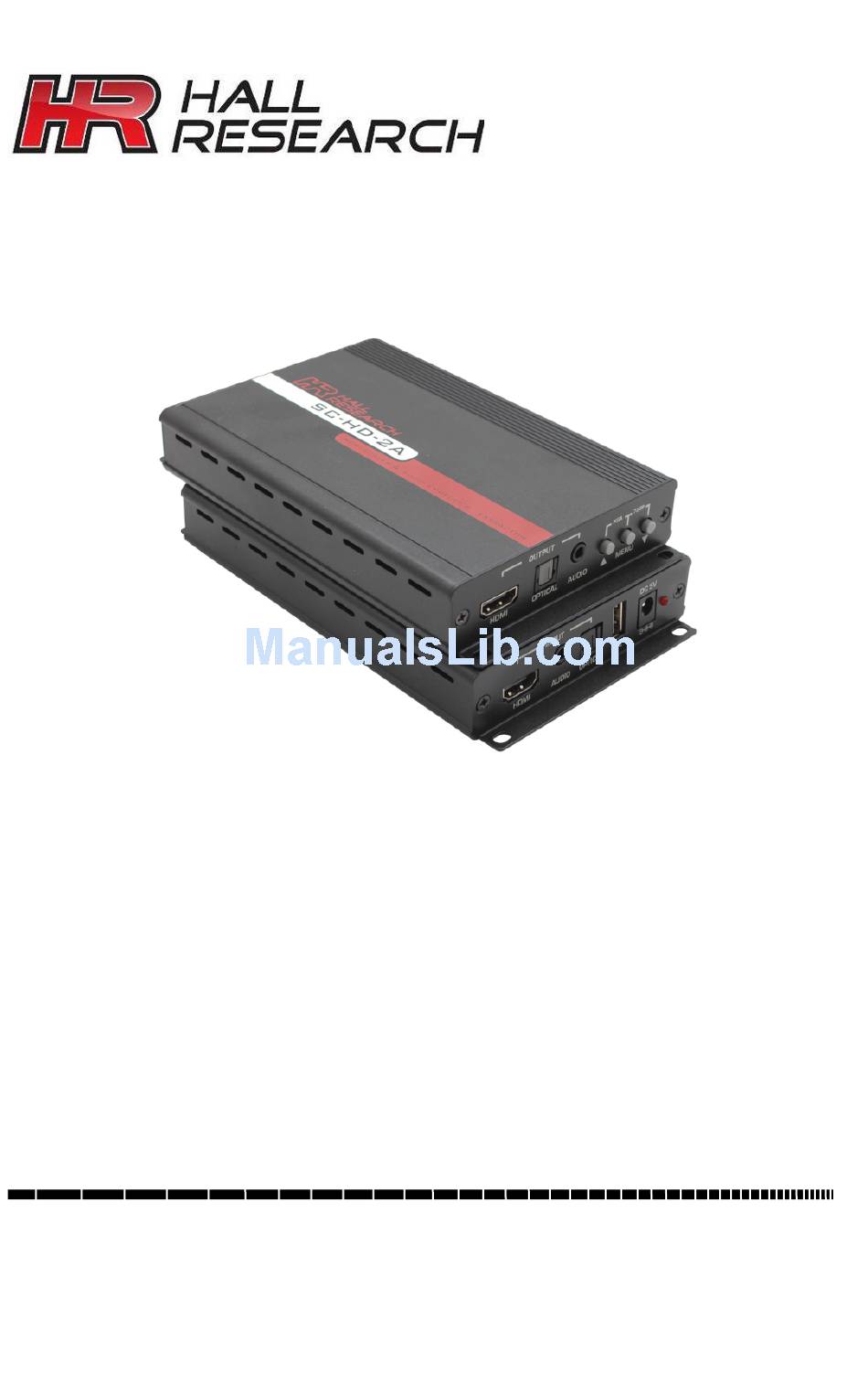

HDMI Scaler & Audio Embedder / Extractor
Embed Digital or Analog Audio into HDMI output
Extract (De-embed) Digital and Analog Audio from HDMI input
CUSTOMER
SUPPORT
INFORMATION
SC-HD-2A
Scale HDMI or DVI video
Order toll-free in the U.S. 800-959-6439
FREE technical support, Call 714-641-6607 or fax 714-641-6698
Mail order: Hall Research, 1163 Warner Ave. Tustin, CA 92780
Web site: www.hallresearch.com E-mail: info@hallresearch.com
User's Manual
UMA1246 Rev n/c
Advertisement
Table of Contents
Related Manuals for HR SC-HD-2A
Summary of Contents for HR SC-HD-2A
- Page 1 User’s Manual SC-HD-2A HDMI Scaler & Audio Embedder / Extractor Scale HDMI or DVI video Embed Digital or Analog Audio into HDMI output Extract (De-embed) Digital and Analog Audio from HDMI input UMA1246 Rev n/c CUSTOMER Order toll-free in the U.S. 800-959-6439...
-
Page 3: Table Of Contents
HDMI Scaler & Audio Embedder / Extractor TRADEMARKS USED IN THIS MANUAL Hall Research and its logo are trademarks of Hall Research. Any other trademarks mentioned in this manual are acknowledged as the property of the trademark owners. FCC RADIO FREQUENCY INTERFERENCE STATEMENT This device complies with part 15 of the FCC Rules. -
Page 4: Introduction
The audio embedded in the HDMI output can be selected from 3 sources: HDMI input, analog L/R input, or digital optical input. The SC-HD-2A has the ability to output a wide range of resolutions regardless of the input timing and resolution. The output resolution can... -
Page 5: Installation
HDMI Scaler & Audio Embedder / Extractor 2. Installation 2.1 Connections The SC-HD-2A accepts HDMI or DVI inputs and outputs. Video cables are not provided, and for use with DVI equipment, adapter or HDMI to DVI cable would be required. -
Page 6: Configuration & Operation
SC-HD-2A 3. Configuration & Operation 3.1 Inputs and Outputs 3.2 OSD Menu Pressing the Menu button will bring up the OSD menu controls on the screen. Use the up and down arrows to your desired item, then press MENU to select and enter into sub menu. Select EXIT from a submenu to go back to the main menu or from the main menu to exit the OSD. - Page 7 * The NATIVE output setting causes the scaler to select an output resolution that matches the native resolution of the connected display. In this mode, if the native resolution of the connected display is not a supported output format of the SC-HD-2A, then the scaler will output a 720p signal.
-
Page 8: Troubleshooting
Use arrows to scroll thru the available resolutions listed. See Section 6 below for a list of all available resolutions. Default output resolution after a factory reset of the SC-HD-2A is “Native”. 4. Troubleshooting There are no field serviceable parts or circuits in the device. If you think the device is malfunctioning (or you have no picture output), please try to use the methods described in Section 3.3 to obtain a picture first. -
Page 9: Specifications
HDMI Scaler & Audio Embedder / Extractor 5. Specifications Video Bandwidth 225 MHz/6.75 Gbps Input Ports 1 x HDMI, 1 x 3.5mm audio, 1 x Optical , 1 x USB (Service only) Output Ports 1 x HDMI, 1 x Optical, 1 x 3.5mm audio Power Supply 5 VDC @ 2.6A DC (US/EU Standard, CE/FCC/UL Certified) -
Page 10: Supported Input And Output Resolutions
SC-HD-2A 6. Supported Input and Output Resolutions Supported @ Input Available @ Output Resolutions & Refresh Rate SD/HD SD/HD 640x480 (VGA) @60/72/75/85 @60 800x600 (SVGA)@56/60/72/75/85 @60 1024x768 (XGA)@60/70/75/85 @60 1280x800 (WXGA)@60 @60 1440x900 (WXGA+)@60 @60 ... - Page 12 © Copyright 2016. Hall Research, Inc. All rights reserved. 1163 Warner Ave., Tustin, CA 92780 Ph: (714)641-6607...
