VGA/Component Video Processor
CUSTOMER
SUPPORT
INFORMATION
TVB-250
Composite & S-Video
Order toll-free in the U.S. 800-959-6439
FREE technical support, Call 714-641-6607 or fax 714-641-6698
Mail order: Hall Research, 1163 Warner Ave. Tustin, CA 92780
Web site: www.hallresearch.com E-mail: info@hallresearch.com
To
UMA1174 Rev. NC
Advertisement
Table of Contents
Related Manuals for HR TVB-250
Summary of Contents for HR TVB-250

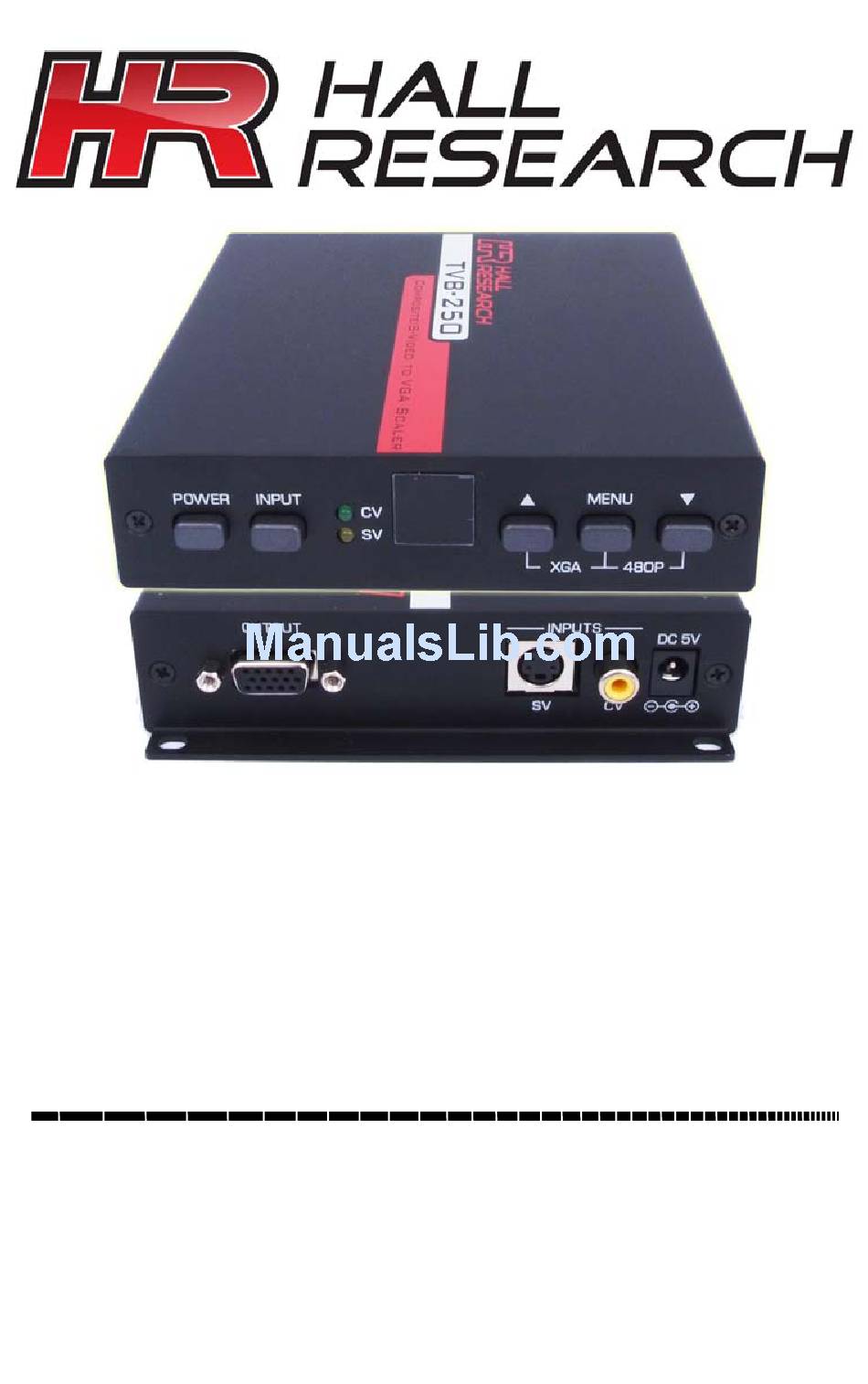

- Page 1 TVB-250 Composite & S-Video VGA/Component Video Processor UMA1174 Rev. NC CUSTOMER Order toll-free in the U.S. 800-959-6439 FREE technical support, Call 714-641-6607 or fax 714-641-6698 SUPPORT Mail order: Hall Research, 1163 Warner Ave. Tustin, CA 92780 INFORMATION Web site: www.hallresearch.com E-mail: info@hallresearch.com...
- Page 3 Composite & S-Video to VGA/YPbPr Video Processor TRADEMARKS USED IN THIS MANUAL Hall Research and its logo are trademarks of Hall Research. Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners. FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT This equipment generates, uses, and can radiate radio...
-
Page 4: Table Of Contents
Model TVB-250 Contents 1. Introduction..........3 1.1 General..............3 1.2 Features .............. 3 2. Installation..........4 2.1 Connections............4 2.2 Connection Block Diagram ........4 2.3 IR Remote Control ..........5 3. Configuration & Operation...... 6 3.1 Input and Output..........6 3.2 Menus and Adjustments ........ -
Page 5: Introduction
Composite & S-Video to VGA/YPbPr Video Processor 1. Introduction 1.1 General The TVB-250 has the ability to scale the analog video signal from both NTSC and PAL Composite and S-Video sources into a analog VGA output with a wide range of HDTV and PC resolutions;... -
Page 6: Installation
Model TVB-250 2. Installation 2.1 Connections Connect the video source to the “CV” (Composite) and/or “SV” (S-VIDEO) INPUT connectors. Connect the display device to the “OUTPUT” Connector. Connect the power supply to the DC 5V Connector. 2.2 Connection Block Diagram... -
Page 7: Ir Remote Control
Composite & S-Video to VGA/YPbPr Video Processor 2.3 IR Remote Control The infra-red remote control included with the TVB-250 outputs the following information when the specified IR button is pressed. Custom Code 866B Code DISPLAY POWER SVGA WXGA SXGA UXGA... -
Page 8: Configuration & Operation
Model TVB-250 3. Configuration & Operation 3.1 Input and Output Figure 2 - Rear Figure 3 - Front 3.2 Menus and Adjustments Pressing the Menu button will bring up the OSD menu controls on the screen. Use the up and down arrows to select the desired item, and then press MENU to select and enter into that items sub menu. -
Page 9: Troubleshooting
(1024x768 60Hz). Pressing the “MENU” and “DOWN ARROW” Buttons simultaneously will set the output resolution to 480P. 4.1 Contacting Hall Research If you determine that your TVB-250 is malfunctioning, do not attempt to repair the unit. Contact the Hall Research Technical Support department at 714-641-6607. -
Page 10: Specifications
Model TVB-250 5. Specifications 5.1 General Input ports (1) RCA (CV) (1) S-VIDEO Input Levels 1vPP (CV) 75 Ohm 1vPP (Y) 75 Ohm 1vPP (C) 75 Ohm Output ports (1) VGA/YPbPr Output Output Levels RGB @ 0.7vPP, H & V @ 3vPP Y@1vPP, Pb &... - Page 12 © Copyright 2010. Hall Research, Inc. All rights reserved. CUSTOMER Order toll-free in the U.S. 800-959-6439 FREE technical support, Call 714-641-6607 or fax 714-641-6698 SUPPORT Mail order: Hall Research, 1163 Warner Ave. Tustin, CA 92780 INFORMATION Web site: www.hallresearch.com E-mail: info@hallresearch.com...
