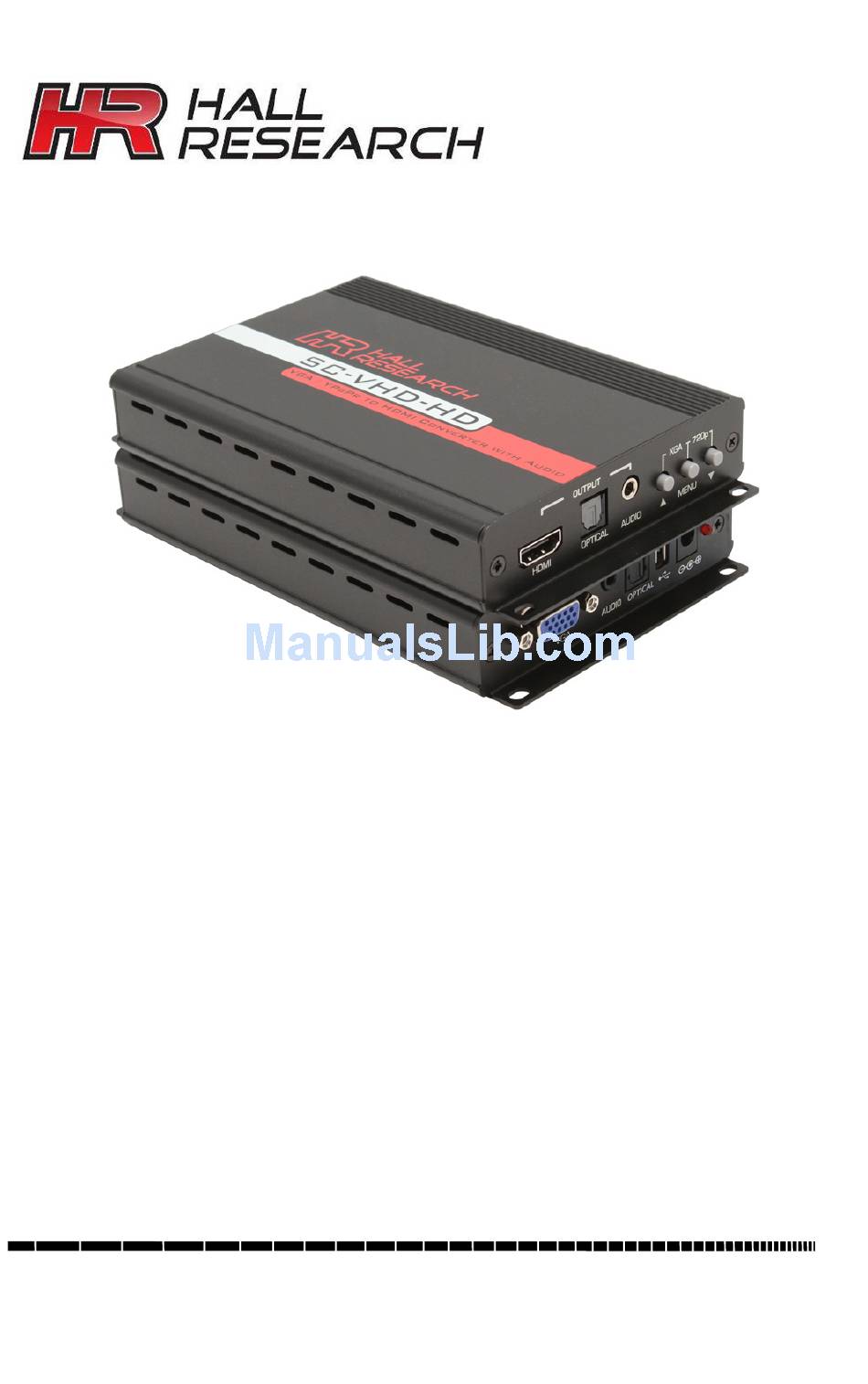

VGA / YPbPr to HDMI™ Converter with Audio
Convert and Scale VGA video from PC or YPbPr from DVD to HDMI
CUSTOMER
SUPPORT
INFORMATION
SC-VHD-HD
Order toll-free in the U.S. 800-959-6439
FREE technical support, Call 714-641-6607 or fax 714-641-6698
Mail order: Hall Research, 1163 Warner Ave. Tustin, CA 92780
Web site: www.hallresearch.com E-mail: info@hallresearch.com
User's Manual
UMA1240 Rev 1
Advertisement
Table of Contents
Related Manuals for HR SC-VHD-HD
Summary of Contents for HR SC-VHD-HD
- Page 1 User’s Manual SC-VHD-HD VGA / YPbPr to HDMI™ Converter with Audio Convert and Scale VGA video from PC or YPbPr from DVD to HDMI UMA1240 Rev 1 CUSTOMER Order toll-free in the U.S. 800-959-6439 FREE technical support, Call 714-641-6607 or fax 714-641-6698 SUPPORT Mail order: Hall Research, 1163 Warner Ave.
-
Page 3: Table Of Contents
VGA to HDMI Converter / Scaler with Audio TRADEMARKS USED IN THIS MANUAL Hall Research and its logo are trademarks of Hall Research. Any other trademarks mentioned in this manual are acknowledged as the property of the trademark owners. FCC RADIO FREQUENCY INTERFERENCE STATEMENT This device complies with part 15 of the FCC Rules. -
Page 4: Introduction
For convenience, both stereo analog and optical digital audio inputs and outputs are provided. The SC-VHD-HD has the ability to output a wide range of resolutions and refresh rates regardless of the input timing and resolution. The output... -
Page 5: Installation
VGA to HDMI Converter / Scaler with Audio 2. Installation 2.1 Connections The SC-VHD-HD accepts either analog PC or component YPbPr inputs. The output is HDMI™, but can also connect to DVI monitors using HDMI-to-DVI cable (not included). For YPbPr sources, use a 3-RCA to DB15 cable (included). -
Page 6: Configuration & Operation
SC-VHD-HD 3. Configuration & Operation 3.1 Input and Output 3.2 OSD Menu Pressing the Menu button will bring up the OSD menu controls on the screen. Use the up and down arrows to your desired item, then press MENU to select and enter into sub menu. Select EXIT from a submenu to go back to the main menu or from the main menu to exit the OSD. - Page 7 SOURCE (Input Interface) INPUT ( Input Resolution) INFORMATION OUTPUT (Output Resolution) VERSION (Firmware Version) MODEL SC-VHD-HD EXIT EXIT OSD * The NATIVE output setting causes the scaler output to be the best matched to the native resolution of the connected display.
-
Page 8: Troubleshooting
Use arrows to scroll thru the available resolutions listed. See Section 6 below for a list of all available resolutions. The default output resolution after a factory reset of the SC-VHD-HD is “Native”. If connected to an HDTV via HDMI input, then use the highest resolution your display supports from among 480p, 720p50/60 or 1080i/p. -
Page 9: Specifications
VGA to HDMI Converter / Scaler with Audio 5. Specifications Video Bandwidth 225 MHz/6.75 Gbps Input Ports 1x HD15 (supports both VGA or YPbPr), 1x 3.5mm audio, 1x optical audio, 1x USB (Service only) Output Ports 1x HDMI, 1x optical audio, 1x 3.5mm audio Power Supply 5 VDC @ 2.6A DC (US/EU Standard, CE/FCC/UL Certified) -
Page 10: Supported Input And Output Resolutions
SC-VHD-HD 6. Supported Input and Output Resolutions Input Resolutions Supported Output Resolutions SD/HD SD/HD 640x480 (VGA) @60/72/75/85 @60 800x600 (SVGA)@56/60/7275/85 @60 1024x768 (XGA)@60/70/75/85 @60 1280x800 (WXGA)@60 @60 1440x900 (WXGA+)@60 1600X900@60 1280x1024 (SXGA)@60/75/85 @60... - Page 12 © Copyright 2015. Hall Research, Inc. All rights reserved. 1163 Warner Ave., Tustin, CA 92780 Ph: (714)641-6607...
