Tach Programming - Code Alarm Professional ca5054 Installation Manual

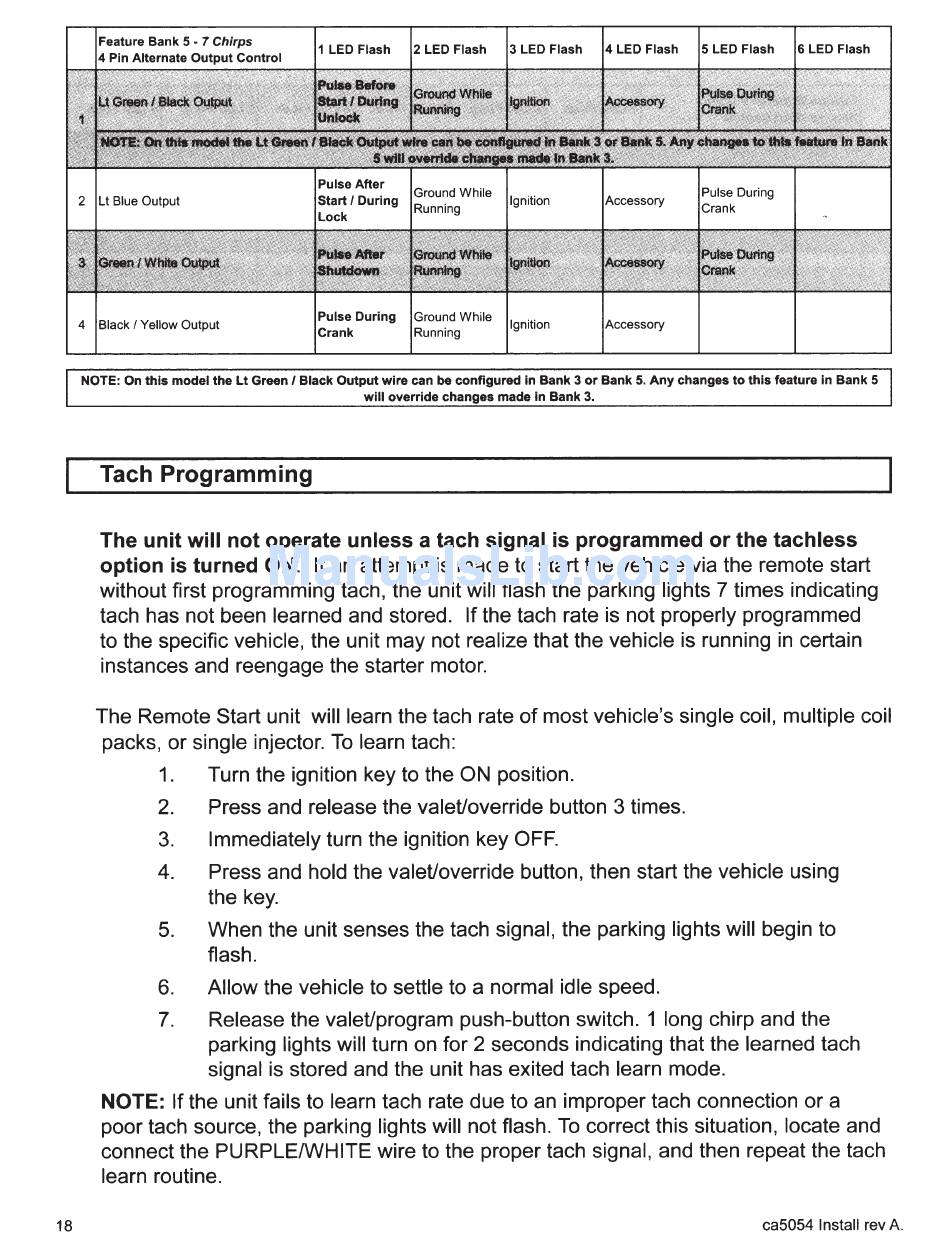

18
Feature Bank 5 - 7 Chirps
4 Pin Alternate Output Control
4
Black I Yellow Output
Pulse During Ground While
1
T
Crank Running gm
10
n
NOTE: On this model the Lt Green I Black Output wire can be configured in Bank 3 or Bank 5. Any changes to this feature in Bank 5
will override changes made In Bank 3.
Tach Programming
The unit will not operate unless a tach signal is programmed or the tach less
option is turned ON. If an attempt is made to start the vehicle via the remote start
without first programming tach, the unit will flash the parking lights 7 times indicating
tach has not been learned and stored. If the tach rate is not properly programmed
to the specific vehicle, the unit may not realize that the vehicle is running in certain
instances and reengage the starter motor.
The Remote Start unit will learn the tach rate of most vehicle's single coil, multiple coil
packs, or single injector. To learn tach:
1. Turn the ignition key to the ON position.
2. Press and release the valeUoverride button 3 times.
3. Immediately turn the ignition key OFF.
4. Press and hold the valeUoverride button, then start the vehicle using
the key.
5. When the unit senses the tach signal, the parking lights will begin to
flash.
6. Allow the vehicle to settle to a normal idle speed.
7. Release the valeUprogram push-button switch. 1 long chirp and the
parking lights will turn on for 2 seconds indicating that the learned tach
signal is stored and the unit has exited tach learn mode.
NOTE: If the unit fails to learn tach rate due to an improper tach connection or a
poor tach source, the parking lights will not flash. To correct this situation, locate and
connect the PURPLE/WHITE wire to the proper tach signal, and then repeat the tach
learn routine.
ca5054 Install rev A.
