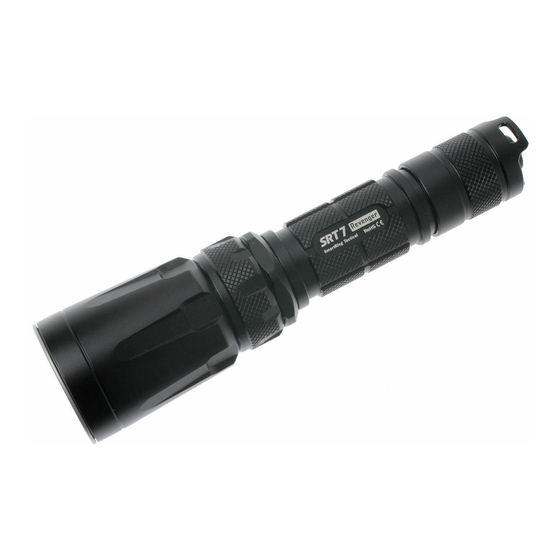

ALL-ROUND Flashlight Expert
Features
Purpose-designed for law enforcement, hunting and tactical
·
applications.
The world’s first line of flashlights to feature third generation SSR
·
(smart selector ring) technology
Smoothly and rapidly select brightness levels and function by rotating a
·
smart selector ring
Utilizes the latest CREE XM-L (XM-L2 T6) LED for a maximum output of
·
up to 960 lumens
Second generation of ‘Crystal Coating Technology’ along with ‘Precision
·
Digital Optics Technology’ provide extreme reflector performance
Boasts a peak beam intensity of 23,256cd and a throw distance of up to
·
308 meters (ANSI FL1)
High efficiency circuit board provides up to 200 hours runtime on lowest
·
output level
Equipped with unique multi-colored (red, green and blue) tactical /
·
signaling lights
Infinite brightness adjustment from 0 to 960 lumens
·
Six rapidly switchable functions to select from
·
Multi-functional power indicator light displays low battery status
·
Patented spring-loaded impact absorption mechanism with reverse
·
polarity protection
Stainless steel titanium-plated two-way clip
·
Stainless steel retaining ring protects core components from damage
·
Toughened ultra-clear mineral glass with anti-reflective coating
·
Constructed from aero grade aluminum alloy
·
Robust HAIII military grade hard-anodized
·
Waterproof in accordance with IPX-8 (two meters submersible)
·
Impact resistant to 1.5 meters
·
Tail stand capability
·
Dimensions
Length: 158mm
Head diameter: 40 mm
Tube diameter: 25.4mm
Weight: 173g (without battery)
Accessories
Quality holster, removable clip, tactical ring, lanyard, spare tail cap button
and spare O-ring
Battery Options
SIZE
Compatible
Nominal voltage
Primary Lithium battery
CR123
3V
Y (Recommended)
18650 Rechargeable Li-ion battery
18650
3.7V
Y (Recommended)
Rechargeable Li-ion battery
RCR123
3.7V
Y
Output & Runtime
NOTICE
TURBO
LOWER
The above data has been measured in
960*
0.1*
accordance with the international
LUMENS
LUMENS
flashlight testing standards
ANSI/NEMA FL1 using one x 3.7V
1
45
200
h
min
h
2600mAh Nitecore 18650 battery and
2 x 3V 1550mAh Nitecore CR123
1
15
120
h
min
h
batteries under laboratory conditions.
The data may vary slightly during
real-world use due to battery type,
308m
(Beam Distance)
individual usage habits and
environmental factors.
23256cd
(Peak Beam Intensity)
*
Infinite brightness adjustment varies
from 0.1 to 960 lumens and is
1.5m
(Impact Resistant)
manually adjusted by rotation of the
Smart Selector Ring. Subsequently,
IPX-8, 2m
(Waterproof
runtimes will vary anywhere from 105
AND Submersible)
minutes to 200 hours depending on
chosen level of output.
User Manual
NITECORE (SYSMAX) is a member of PLATO, participating in and
helping to develop the ANSI/NEMA FL1 standard of measurement.
Product testing data is in accordance with these internationally
recognized scientific standards.

Battery Installation

Insert one 18650 battery or two CR123 batteries with the positive pole
pointing forward (toward the light head).
NOTE:
1. Ensure batteries are inserted with the positive (+) end pointing to the
head. The SRT7 will not operate with incorrectly inserted batteries.
2. Please do NOT light directly to the eyes, which will hurt the eyes.
Switching ON/OFF
To switch ON: Press the button on the tailcap until a “click” is heard.
To switch OFF: Press the button on the tailcap a second time until a
“click” is heard.
Momentary Illumination
Momentary illumination can be achieved by switching the flashlight off
and then half pressing and holding the tail switch. Release switch to turn
the light off.
Adjusting Output
With the light turned on, slowly rotate the Smart Selector Ring (adjacent
to the bezel) in a counter-clockwise direction to cycle through the
following brightness levels: beacon -> police warning signal -> blue mode
-> green mode -> red mode -> standby mode -> infinite brightness modes
-> turbo mode -> strobe mode. These modes may be cycled through in
reverse by rotating the Smart Selector Ring in a clockwise direction.
