Installation Manual
RLP204 / RLP254 / RLP304

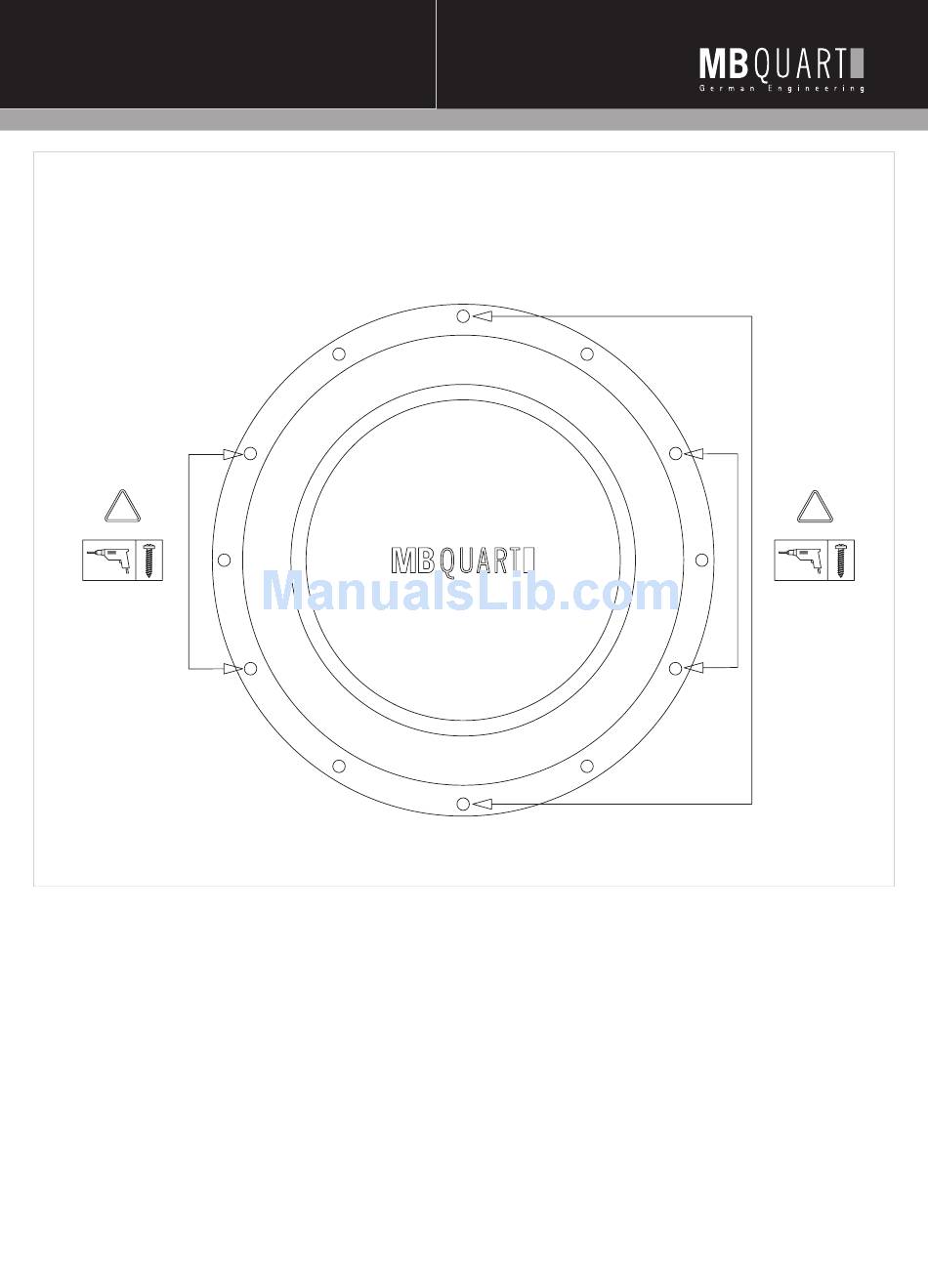

The diagram below shows a screw pattern for mounting your subwoofer. It is very important
that you follow this pattern as indicated or your cosmetic trim ring will not fit properly.
