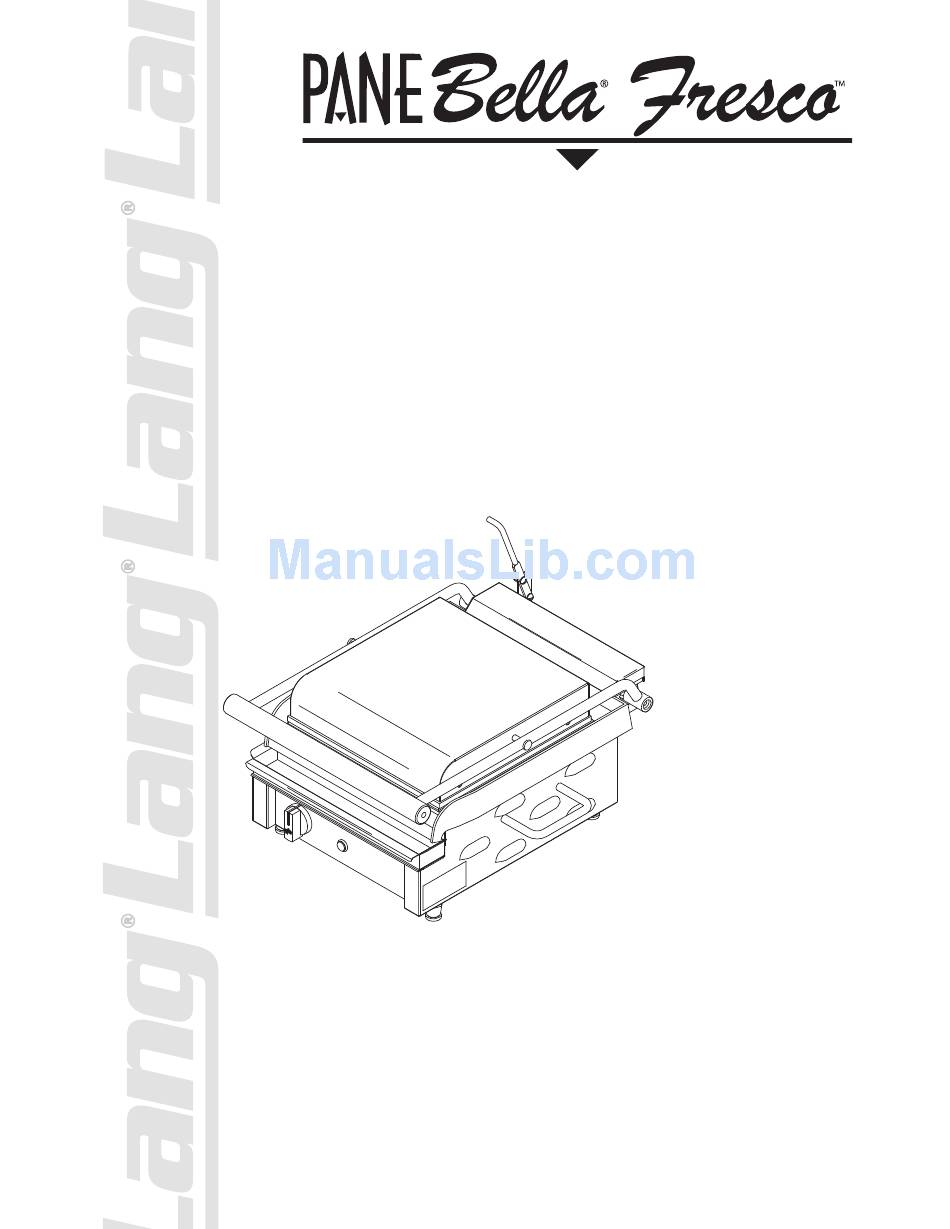

- Page 1 TWO SIDED GRILLS MODEL PBF12G, PBF12S PBF14G, PBF14S PBF24G, PBF24S, PBF24SG Installation and Operation Instructions 2M-W1448 Rev. A 12/15/10 PBF12G...
- Page 2 REPAIRS SHOULD BE DONE BY AUTHORIZED SERVICE PERSONNEL ONLY. NOTICE Using any part other than genuine Lang factory supplied parts relieves the manufacturer of all liability. Star reserves the right to change speci cations and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.
-
Page 3: Table Of Contents
PROBLEMS, QUESTIONS or CONCERNS Before you proceed consult you authorized Lang service agent directory Call the Lang Technical Service & Parts Department at 1-800-438-5264. TABLE OF CONTENTS Installation General Installation Data . . . . . . . . . . . . . . . . . . . . . 4 Ventilation & Clearence . . . . . . . . . . . . . . . . . . . . . . 4... -
Page 4: General Installation Data
GENERAL INSTALLATION DATA This equipment is designed and sold for commercial use only by personnel trained and experienced in its operation and is not sold for consumer use in and around the home nor for use directly by the general public in food service locations . CAUTION All shipping containers should be checked for freight damage both visible and concealed . This unit has been tested and carefully packaged to insure delivery of your unit in perfect condition . If equipment is received in damaged condition, either apparent or concealed, a claim must be made with the delivering carrier . Concealed damage or loss - if damage or loss is not apparent until after equipment is unpacked, a request for inspection of concealed damage must be made with carrier within 15 days . Be certain to retain all contents plus external and internal packaging materials for inspection . The carrier will make an inspection and will supply necessary claim forms . VENTILATION AND CLEARANCES The installation of any components such as a vent hood, grease extractors, and/or fire extinguishing systems, must conform to their applicable nationally recognized installation standards and/or local building codes . -
Page 5: Specifications
ELECTRICAL SPECIFICATIONS Model Voltage Rated Wattage Amps Cord Length Plug Type 120V/1-Ph 1400W 11.6 72” NEMA 5-15P PBF12(G,S) 208/240V 1-Ph 1320 / 1800 6.35 / 7.5 70” NEMA 6-15P 120V/1-Ph 1800W 72” NEMA 5-15P (5-20P*) PBF14(G,S) 208/240V 1-Ph 2100 / 2800 10.1 / 11.67 70”... -
Page 6: Seasoning The Cooking Surface
SEASONING THE COOKING SURFACES The cooking surfaces must be "seasoned" in order to reduce product sticking . To season, bring grill to 300°F, until completed . Brush upper and lower cooking surfaces with a a salt free liquid vegitable oil. If using an aerosol agent, first apply into a cup and then brush onto cooking surface. Let sit for 20 minutes, and then wipe clean using a warm damp cloth . Repeat if required . SETTING THE TEMPERATURE The thermostat control knob is used to set the temperature to your requirements . The maximum set point is 450°F (232°C), the minimum set point is 175°F (79°C) . DAILY OPERATION Check the power cord to insure that it is plugged into a proper outlet . -
Page 7: Cleaning
CLEANING While holding top lid with one hand, apply only cleaners which are safe for aluminum and iron surfaces . Wipe with clean sponge or towel until unit is clean . 1 . If particles adhere to the cooking surface during the day, scrape them off with a spatula or stiff nylon brush . NOTE: It is best not to let food cook on to the grill, as build up of food on the grill will increase sticking and smoking. In addition, carbon may build up on the grill surface and reduce the cooking efficiency. 2 . At the end of the day, wipe down all surfaces with a warm, damp cloth, use a mild detergent on all non-cooking areas and then dry entire unit . 3 . Remove and empty to clean grease catcher cup as required using mild detergent and water . CLEANING CARBON BUILDUP 1 . When carbon build up occurs, use a carbon removal agent to clean cooking surface . When this process is completed, you must re-season the grill (See Seasoning Grill) . - Page 8 TOP ELEMENT 15 AMP PLUG NEMA 5-15P ON ALL 120V UNITS. NEMA 6-15P ON 240V, 1,800 WATT UNITS. 20 AMP PLUG NEMA 6-20P ON 240V, 3,600 WATT UNITS. GREEN IEC 320 POWER INLET, 16 AMP RATING SEE SEPERATE SKETCH, 230V UNITS. BLACK WHITE TERMINAL...
- Page 9 TOP ELEMENT TOP ELEMENT 20 AMP PLUG NEMA 6-20P ON 240V, 3,600 WATT UNITS. IEC 320 POWER INLET, 16 AMP RATING SEE SEPERATE SKETCH, 230V UNITS. GREEN BLACK WHITE TERMINAL BLOCK BOTTOM ELEMENT INDICATOR LIGHT THERMOSTAT SOME ITEMS ARE INCLUDED FOR FOR REFERENCE ILLUSTRATIVE PURPOSES ONLY AND IN WIRING DIAGRAM IS SHOWN AS UNIT IS ASSEMBLED...
- Page 10 SOME ITEMS ARE INCLUDED FOR ILLUSTRATIVE PURPOSES ONLY AND IN CERTAIN INSTANCES MAY NOT BE AVAILABLE This drawing contains information confidential to Lang Manufacturing, Inc. No reproduction or disclosure of its contents is permitted. MODEL PBF12, PBF14, PBF24 SERIES SK2427 Rev.
-
Page 11: Parts List
PARTS LIST December 15, 2010, Rev B MODEL: PBF12G & PBF12S PanaBella Toasters Fig No Part No Description Application D9-GR0239 TOP HOUSING & CONDUIT - 10 2C-Z2054 CLAMP, THERMISTOR 2C-Z2893 NUT 10-24 Hex STL ZP D9-GR0228 TOP INS. PLATE ASSY -10” D9-Z2908 INSULATION, 10” 2A-Z6604 SPACER, INSULATION PLATE D9-Z7646... - Page 12 PARTS LIST December 15, 2010, Rev B MODEL: PBF14G & PBF14S PanaBella Toasters Fig No Part No Description Application D9-GR0239 TOP HOUSING & CONDUIT - 10 2C-Z2054 CLAMP, THERMISTOR 2C-Z2893 NUT 10-24 Hex STL ZP D9-GR0228 TOP INS. PLATE ASSY -10” D9-Z2908 INSULATION, 10” 2A-Z6604 SPACER, INSULATION PLATE D9-Z7646...
- Page 13 PARTS LIST December 15, 2010, Rev B MODEL: PBF24G & PBF24S PanaBella Toasters Fig No Part No Description Application D9-GR0239 TOP HOUSING & CONDUIT - 10 2C-Z2054 CLAMP, THERMISTOR 2C-Z2893 NUT 10-24 Hex STL ZP D9-GR0228 TOP INS. PLATE ASSY -10” D9-Z2908 INSULATION, 10” 2A-Z6604 SPACER, INSULATION PLATE D9-Z7646...
- Page 14 STAR INTERNATIONAL HOLDINGS INC. COMPANY Star - Holman - Lang - Wells - Bloomfield - Toastmaster 10 Sunnen Drive, St. Louis, MO 63143 U.S.A. (314) 781-2777 www.star-mfg.com...
