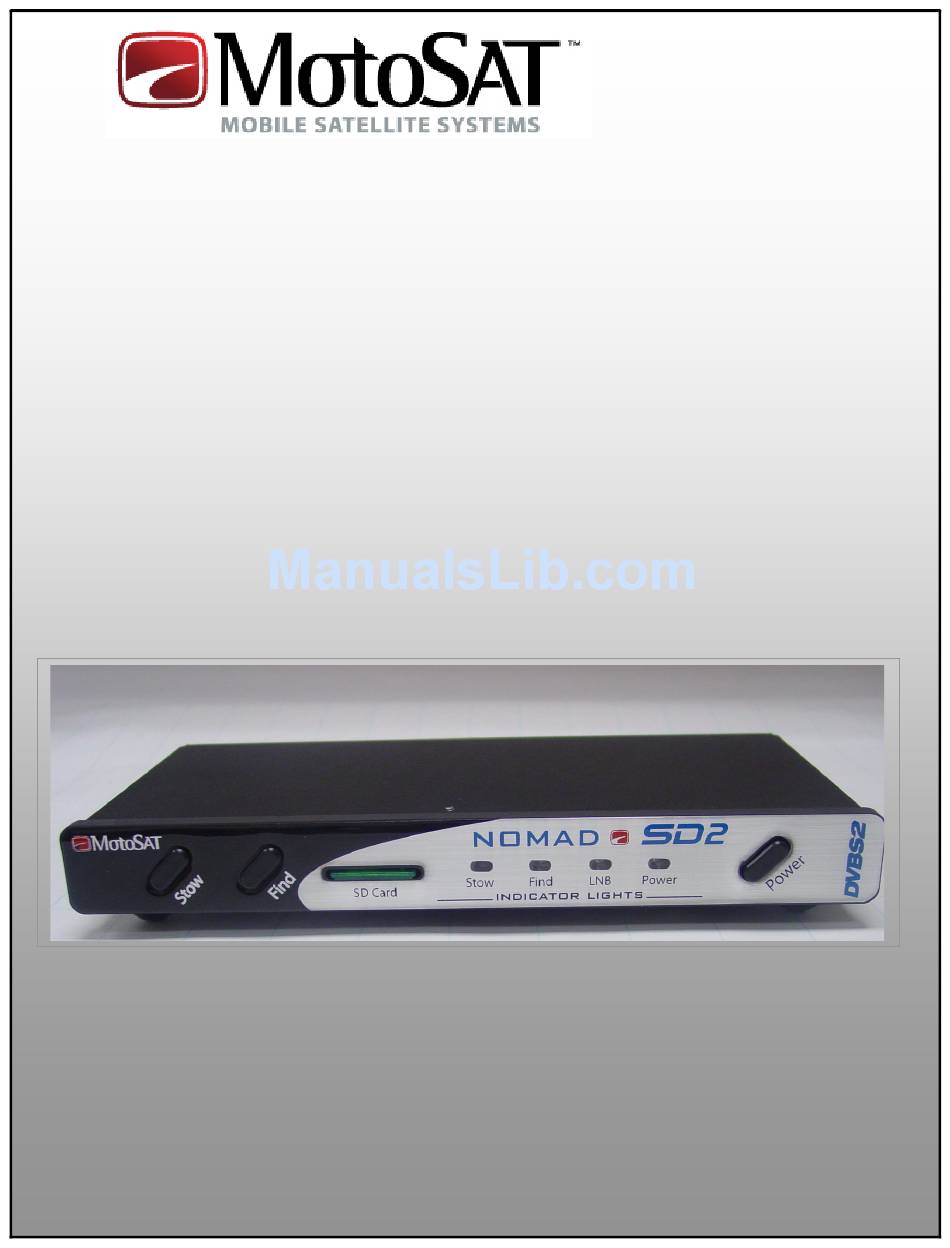

- Page 1 Satellite TV Nomad SD/SD2 USER GUIDE Software Version 116 or higher Rev 20 Dec ‘10 ALL RIGHTS RESERVED 901-Nomad SD2 Manual...
-
Page 2: Table Of Contents
Log Files Error Message Definition ERROR CODES PROGRAMMING (Configuration) Using the Front Panel Entering into Configuration Mode SETTING SERVICE AND MOUNT TYPE SHOW MODE SETTINGS ROOT DIRECTORY EXPLANATION MOUNT DEFINITIONS SENSORS WIRE SCHEMATIC MOUNT CLEARANCE LIMITED WARRANTY NOTES MOTOSAT TECHNICAL SUPPORT... -
Page 3: Definitions
Scotch Locks – The devices used to splice electrical wires within the mount assembly BLUE LIGHT – The illumination of the dish face that signifies MotoSAT quality and excellence LED – The lights on the front panel of the Nomad SD2 that indicates system status Software –... -
Page 4: Features
The Nomad SD and SD2 Controller have many features that make finding satellites simple and fast. All of the satellite pointing and identification is taken care of by the Nomad SD and SD2 Antenna and Controller. After your controller has been installed and configured, push the “POWER”... -
Page 5: Front View
POWER: This button turns the power to the Nomad SD/SD2 ON and OFF. LED’s STOW: When the Nomad SD/SD2 Controllers are in Test Dish mode or in the process of stowing the dish, this LED indicator blinks. It is on continuously when a dish is properly stowed. -
Page 6: Rear View
The Rear Panel consists of a MAIN POWER and CONTROL CABLE connector, TO RECEIVER and TO MOUNT F-Connectors. The Nomad SD Controller differs from the Nomad SD2 in that the SD Memory Card Slot is located in the rear of the unit between the Control Connector (9 pin) and the “To Receiver”... -
Page 7: Operation
FIND LED. The number of blinks will indicate the type of error encountered. See ERROR CODES in this manual. Two minutes after the completion of a “Test Dish” operation if there is no other activity, the Nomad SD/SD2 will shut itself down (turn the POWER OFF automatically.) FINDING Satellite Turn the POWER ON and wait for the controller to power up. -
Page 8: Stowing The Dish
STEPS TO PERFORM A FIRMWARE UPGRADE 1. Stow the dish before beginning this upgrade procedure. 2. The Nomad SD/SD2 Controller(s) can be upgraded manually by copying the latest firmware upgrade from the MotoSAT WEB site www.motosat.com into the Root Directory. See EXPLANATION of SD Card Root Directory in this manual. Be sure to copy the file into the card’s “root directory"... -
Page 9: Log Files
The system can not function after experiencing a critical error. The unit will have to be shut OFF and restarted (see Test Dish.) The Nomad SD/SD2 will also record a text message indicating the error into the Log File if a memory card was installed at the time of the error. -
Page 10: Error Codes
ERROR CODES Indicated by sequential flashing of the “FIND” LED (Factory action required) Code Description Critical Error = Probable cause NO ERROR MOTOR, MOVING Normal Operation INVALID MODE 1 Check Configuration INVALID MODE 2 Check Configuration MOTOR, TIMEOUT EL MOTOR, TIMEOUT AZ Check sensors or Wiring MOTOR, TIMEOUT SK LIMIT ERROR, EL... -
Page 11: Programming (Configuration)
Failure to do so will cause your stored Configuration data to be overwritten by this data thus preventing any programming that you may do through the front panel. The Nomad SD/SD2 Controller can be programmed in the steps listed below. The STOW, FIND and the POWER buttons will allow you to configure your controller. -
Page 12: Setting Service And Mount Type
SETTING SERVICE AND MOUNT TYPE To SET SERVICE TYPE after you are in the programming mode. (Note: Pressing the FIND BUTTON will toggle through SERVICE TYPE.) • The FIND LED indicates the Network ID (or SERVICE TYPE) selected. It will blink the number of the current settings, pause, and the repeat the pattern according to the following table: MOUNT TYPES... -
Page 13: Show Mode Settings
Using the SD Memory Card Note: This configuration process is limited to Microsoft’s Operating system. Sorry, no Mac’s at this time. To use your computer to configure your Nomad SD/SD2, format the SD card to FAT32 and: 1. Select “START”, “ALL PROGRAMS”, “ACCESSORIES” and “Note Pad” on your computer. -
Page 14: Root Directory Explanation
Nomad SD/SD2 memory. After the Nomad SD2 is first configured, it is not necessary to have the software file in the root directory. It may be moved into the MotoSAT files folder or a folder of your choice. - Page 15 Sample of SD Card with no files in the Root Directory There are no files in the “Root Directory”. There is only a MotoSAT file folder.
-
Page 16: Mount Definitions
MOUNT DEFINITION Motors and Sensors Mounting Plate (Azimuth, Elevation) Elevation Sensor Azimuth Sensor Mount (HD) Skew Motor and Sensor Skew Sensor LNB Arm (HD) When replacing a motor, improper handling can result in this…... Tape the motor gear housing together to prevent separation. -
Page 17: Sensors
SENSORS All Sensors for the television mounts utilize the same sensor. It can be used in the Azimuth, Elevation or Skew motor assemblies. Depth into the gearbox assembly is important. The lock nuts are in place to keep the sensor at the proper predetermined depth. -
Page 20: Limited Warranty
90-DAY SERVICE AND FREIGHT WARRANTY GUIDELINES 90 DAY SERVICE • MotoSAT will cover in the first 90 days from date of installation pre-approved dealer piece rates for removal, reinstallation and alignments of any defective component manufactured by MotoSAT. • Conditions of the warranty: o Customer agrees to take his vehicle to an approved MotoSAT service center or agrees to pay the travel time for the approved MotoSAT Service Technician. - Page 21 Hughes.Net, Prodelin, UnaSat, IDirect, etc. • MotoSAT shall in no event be liable for damage to or loss of any equipment or consequential damages. Including not limited to damages to other equipment resulting from the installation or operation of the MotoSAT components.
- Page 22 - You agree to provide MotoSAT with a valid credit card to guarantee return shipping of the original item. If the item is not returned to MotoSAT within 10 business working days beginning with the day it is received.
- Page 23 [Customers unwilling to agree to theses terms will be directed to follow the RA designation.] MISREPRESENTATIONS • MotoSAT has not authorized anyone to make representations or warranties other than the warranties contained herein. • This warranty gives the purchases specific legal rights which may vary from state to state. Some states do not allow exclusion of limitations of incidental or consequential damages or allow limitations on the duration of an implied warranty.
-
Page 24: Notes
Notes Date of Purchase________________ DD / MM / YY Installing Dealer __________________________________ Telephone Number ______/_____/_________ System Model Number ________________________ Serial Numbers ____________ ________________ Repairs ________________________________________ _________________________________________ _________________________________________ _________________________________________ Version of Software Date ___________ Rev. No. ________ Date ___________ Rev. No. ________ Date ___________ Rev. -
Page 25: Motosat Technical Support
For additional information at this time contact MotoSAT Technical Support @ 800-247-7486 The MotoSAT Technician will ask you What is your of Mount “Type” (Skewable or Non-Skewable) What “Service” do you subscribe to 3. If you feel that it is a Warranty problem then be sure that you have your system registered before you call else it will be treated as a non- warranty situation.
