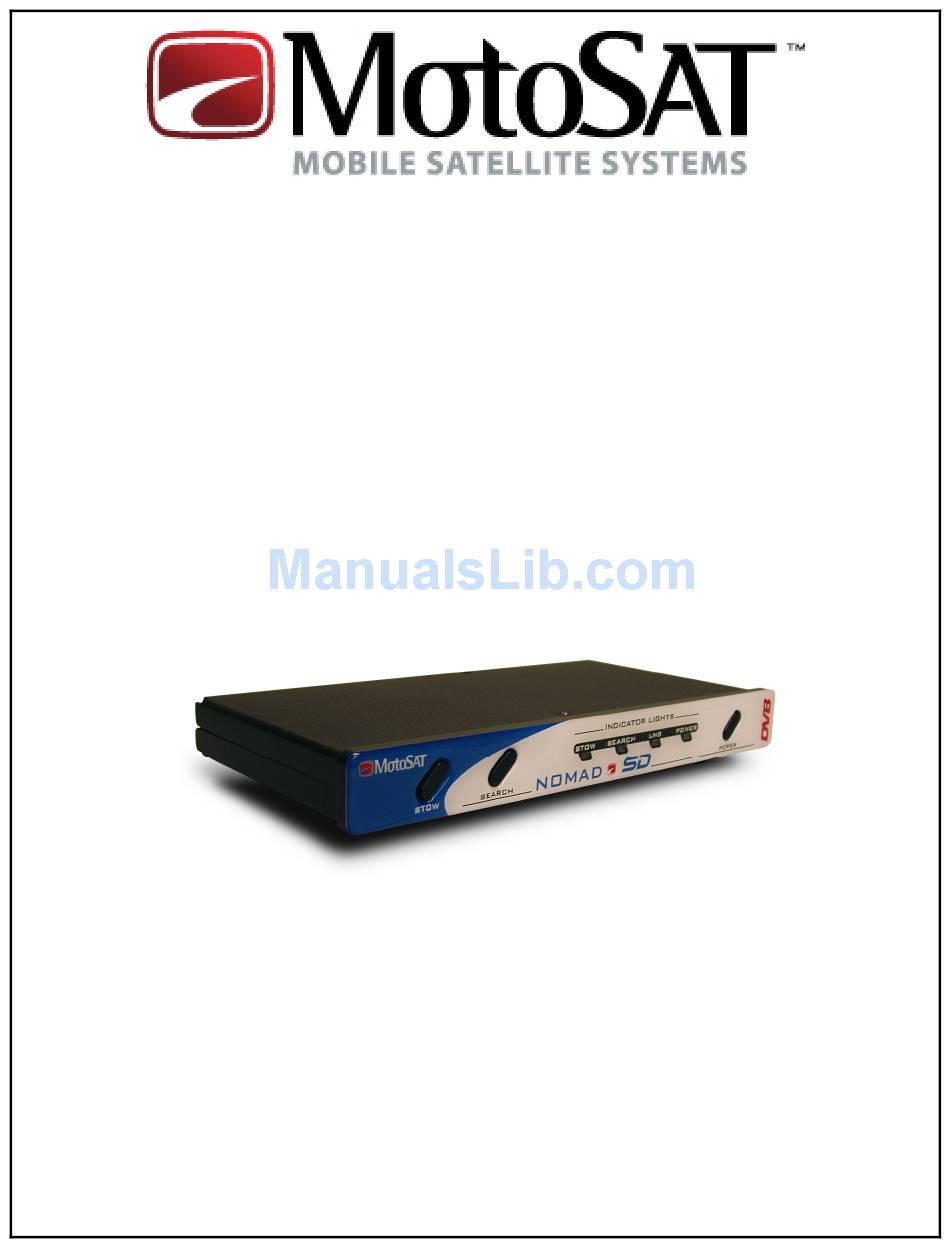

- Page 1 Satellite TV Nomad SD USER GUIDE v.1 / MotoSAT Rev 12 Mar. 2009 ALL RIGHTS RESERVED...
-
Page 3: Table Of Contents
INDEX Front Panel description Rear Panel description OPERATION Memory Card Firmware Upgrade Network Configuration (definition) 8 Log Files Error Messages Error Codes Programming Network Configuration MotoSAT Technical Support... -
Page 4: Front View
POWER: This button turns the power to the Nomad SD On and Off. LED’s Stow: When the Nomad SD is in Test Dish mode or in process of stowing the dish, this LED indicator blinks. It is on continuously when a dish is properly stowed. -
Page 5: Rear View
Disk Busy LED: This LED indicator lets the user know that the memory card is being used by the Nomad SD and that the card should not be removed until the LED is Off. SD Card Slot: This card slot receives a Multimedia Card (MMC) or a Secure Digital Card (SD). -
Page 6: Operation
OPERATION The following is a basic operation of the Nomad SD Controller and is meant to get the operator up and running in a short period of time. POWER UP After making all the proper connections of the Nomad SD to the system, simply turn on the power using the POWER button. -
Page 7: Memory Card
3. Power OFF the controller then insert the SD memory card into the card slot on the rear of the unit. 3. Power ON the controller. The Nomad SD Controller will detect the upgrade and automatically install the new upgrade code. -
Page 8: Log Files
SD card and turn on the power to the Nomad SD and press FIND. The system will produce a log file onto the SD card which can captured information can be sent to the MotoSAT Technical Support Department to be analyzed. -
Page 9: Error Codes
ERROR CODES Error Error Critical Code Description Error = (Corrective action required) NO ERROR MOTOR, MOVING INVALID MODE 1 INVALID MODE 2 MOTOR, TIMEOUT EL MOTOR, TIMEOUT AZ MOTOR, TIMEOUT SK LIMIT ERROR, EL LIMIT ERROR, AZ LIMIT ERROR SK TUNER FAILURE AGC, NO LOCK MAIN SAT FOUND ONLY... -
Page 10: Network Configuration
NETWORK CONFIGURATION Note: This configuration process is limited to Microsoft PC’s. Sorry, no Mac’s. To use your computer to program your Nomad SD Card simply format the SD card to FAT32 and: 1. Select “START”, “ALL PROGRAMS”, “ACCESSORIES” and “Note Pad”... -
Page 11: Motosat Technical Support
Be prepared to tell him the code that you have in your Network Configuration File which will be found in your “MotoSAT Configuration File” folder on your SD Card. It will appear as a file labeled “NomadSD.dat”. Open this file and it will be the first 3 digits on the first line.
