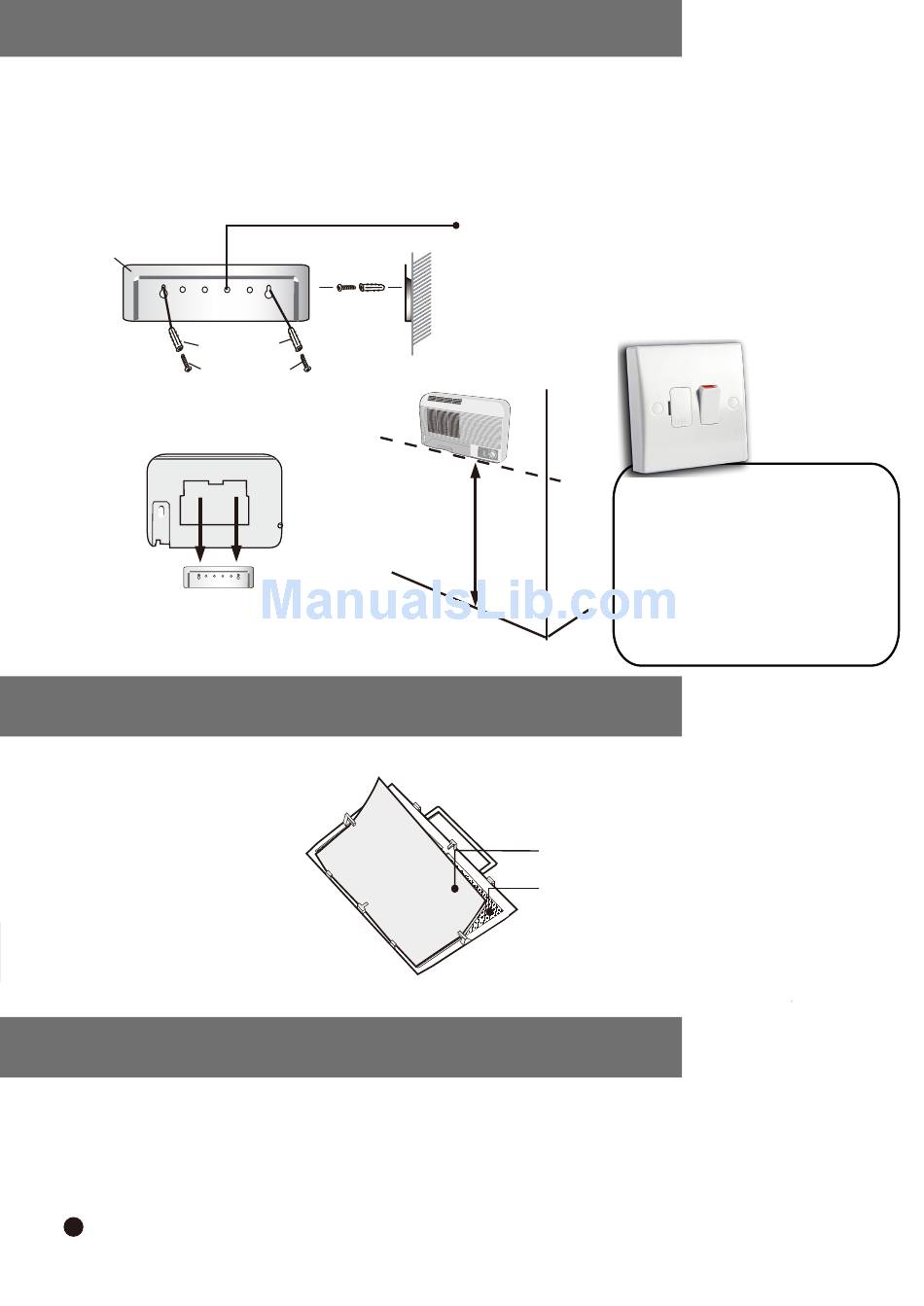

WALL-MOUNTING INSTRUCTION

This dehumidifier can be hung on a wall
or stand on a flat surface. It is
suggested to hang it on the wall with
more than 150cm above ground, so that
children do not interfere with it.
Fit this plate
on the wall
wall
plug x2
screw x2
Fit on the wall horizontally
back
Hang the machine

CHARCOAL FILTER

The activated charcoal filter
comes with the unit (packed with
the user manual). First pull out
the filter frame on the unit
(refer to page 7).
Unpack the charcoal filter,
insert the charcoal filter into
the filter frame and refit into the unit.
FIT THE TANK
The tank must be fitted properly.
When the tank is full or is not in place,
the " FULL" lights indicator will illuminate.
5
Drill two holes 20mm deep, 6mm
diameter for wall plugs (the distance
must same as the plate), then fit the
plate with screws in horizontally.
Be sure to fix it firmly. You can also use
other screws or nails to fix into the additional holes
in the plate. Fix them firmly to avoid loosing, falling
and causing injury.
wall
above 150cm
If you need a continuous drain, follow the
instructions on page 6.
IMPORTANT
When installing in a bathroom
or toilet the plug must be removed
and the connection made by
ELECTRICAL SPUR.
This must be performed by a
qualified electrician to avoid
personal injury.
Insert and fix charcoal filter
Nylon filter frame removed
from the machine
