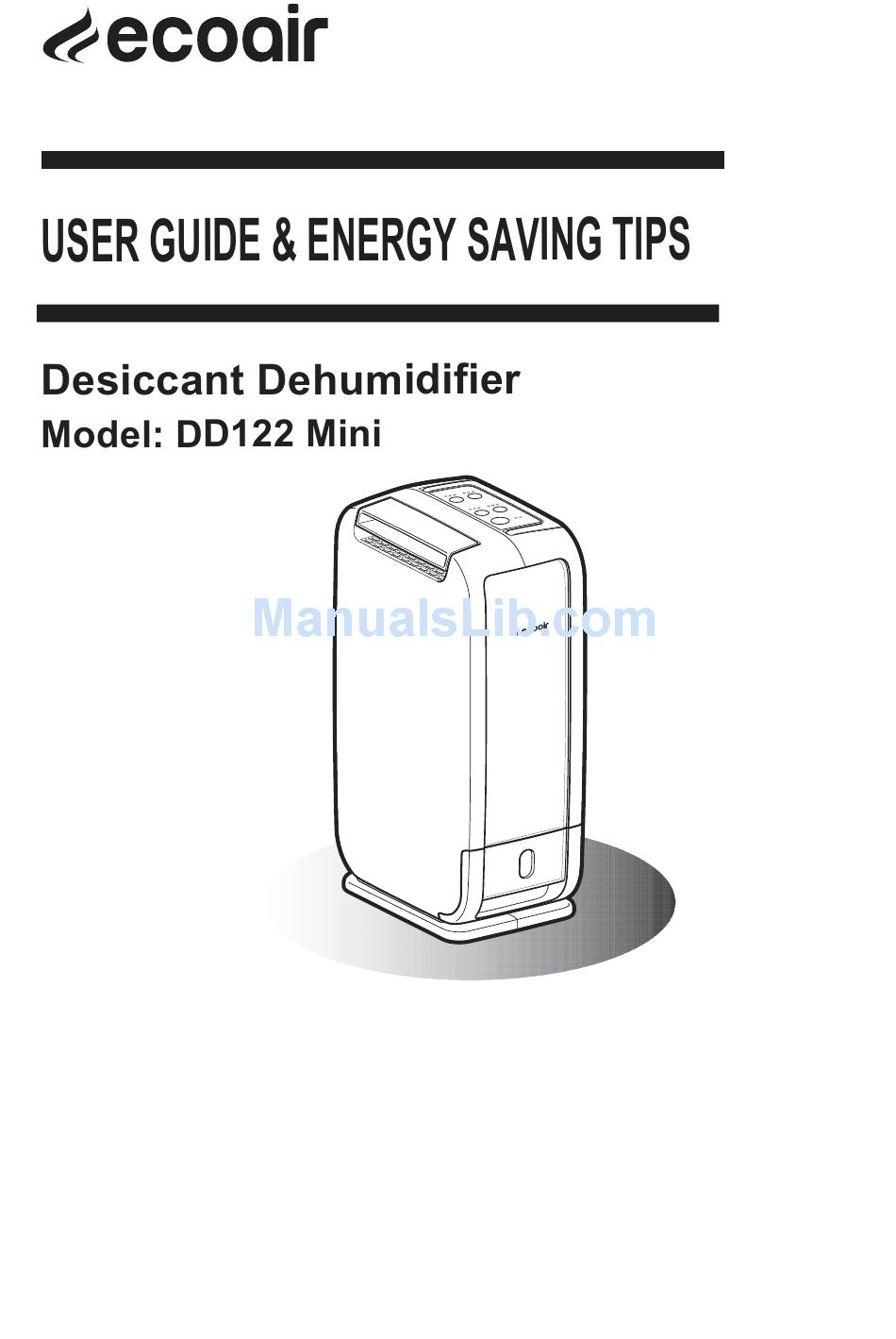

Ecoair DD122 Mini User Manual

Ecoair DD122 Mini User Manual

Desiccant dehumidifier
Hide thumbs Also See for DD122 Mini:

Advertisement

Read This Guide
Inside you will find many helpful hints on how
to use and maintain your dehumidifier correctly.
Just a little preventative care can save you
money and prolong the life of your unit.
Thank you for choosing DD122 Mini.
ECOAIR TECHNICAL SUPPORT
ECOAIR TECHNICAL SUPPORT
UK TEL: 0845 388 0007
UK TEL: +44 208 459 2458
EMAIL: technical@ecoair.org
EMAIL: technical@ecoair.org

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DD122 Mini and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ecoair DD122 Mini

  • Page 1 Just a little preventative care can save you money and prolong the life of your unit. Thank you for choosing DD122 Mini. ECOAIR TECHNICAL SUPPORT ECOAIR TECHNICAL SUPPORT UK TEL: 0845 388 0007 UK TEL: +44 208 459 2458 EMAIL: technical@ecoair.org...
  • Page 2 IMPORTANT SAFETY INSTRUCTIONS PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE OPERATING. WARNING - This appliance is intended for use in a domestic environment and light office use only. Any other use is not recommended by the manufacturer and may cause fire, electrical shocks or other injury to person or property.
  • Page 3 HOW TO USE YOUR DEHUMIDIFIER DD122 Mini Timer The unit switches off after the selected timer (2, 4 or 8 hours). Swing Select swing for Wide, Front or Up as desired. To hold the swing, press Swing until LED is off.
  • Page 4 Dry Mode Hi – Dries the air to approximately 45%RH and stops dehumidifying at this point but runs on fan only mode to sample the air for its humidity level. If the relative humidity rises, it dehumidifies again. Tip: Use this to control a very damp room in the first couple of days and then switch to economy to save energy.
  • Page 5 UNIT SETUP Place the unit in an upright position on a stable, flat surface. Please ensure the unit is a safe distance away min 60cm from a wall or furniture (see the right graphic). Air outlet Please keep clothes at a safe distance of 60 cm from air outlet of the unit.
  • Page 6: Cleaning The Filter

    MAINTENANCE Cleaning the filter Tip: Clean your filter every 2 weeks to keep your air clean and prolong the life of your dehumidifier. How to Clean 1. Turn off the unit and remove the filter from the unit. 2. Clean the nano-silver filter only with a vacuum cleaner. (Washing will weaken the germicidal effect of the filter) 3.
  • Page 7 SPECIFICATIONS Model: DD122 Mini Operating Temperature Range: 1ºC - 40ºC Dehumidification: 6 litres / day (20ºC / 60%RH) Water Tank Capacity: 1.8 Litres Power Consumption (H/L): 442W / 270W Voltage: 230V~50Hz Net Weight: 5.1 Kg Gross Weight: 6.1 Kg Net Dimension (WxHxD): 269mm x 445mm x 174mm...
  • Page 8 This limited guarantee only applies in the United Kingdom. Where the product has been taken from the country it was purchased, the guarantee may be invalidated. However, we will always do our best to assist you in your new country of residence. EcoAir authorises no person to change or add www.ecoair.org C181 ©...
