GRAUPNER MICRO MAGIC RTR HoTT Operating Instructions Manual

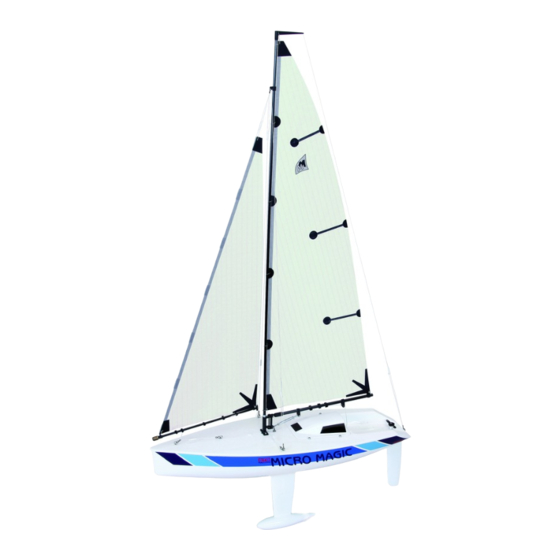

Operating instructions for the MICRO MAGIC RTR HoTT model boat,
Order No.: 2014.HoTT
Brief description of the model
•
Ready-made model (ARTR)
•
The MICRO MAGIC RTR was developed to reflect advances in the MICRO MAGIC regatta scene, and
represents a factory-assembled version of the boat for the ambitious skipper to enter in racing events
•
The hull, deck, canopy and keel / mast socket are supplied as CNC-machined vacuum-moulded ABS parts,
and are already installed and glued in place
•
All RC components are installed in the hull at the factory
•
GR-12 HoTT 2.4 GHz receiver already installed
•
The model can quickly and easily be bound to any Graupner HoTT transmitter
•
The rig is largely pre-assembled, so that it can be set up very quickly
•
The sails are packed separately to protect them from creasing, and therefore have to be installed by the
operator
•
The keel fin and rudder are injection-moulded in glass fibre reinforced plastic to ensure very high rigidity
•
Drag is lower due to the slightly reduced area and narrow profiles used for the fin and rudder
•
Ready-made sail suit with sewn seams, consisting of lightweight white water-repellent sail fabric
•
Stiff, lightweight rig consisting of CFRP tubing. A one-piece mast is employed to ensure a sufficiently rigid
rig without a spreader
•
The rig consists of newly developed high-quality plastic fittings which are also used in the kit version
•
Factory-fitted jib trim servo, enabling the skipper to fine-tune the sail trim while the boat is on the water
•
Reduced overall friction in the whole sail setting system thanks to the double-ended output lever with two
return pulleys
•
The model can be completed ready for the water in a very short time thanks to the high level of pre-
fabrication
•
Pre-painted hull, keel fin and rudder with decals already applied
•
Set contents: vacuum-moulded ABS parts for hull, deck, canopy and two-part keel / mast socket, factory-
fitted laser-cut wooden internal parts, boatstand, rudder and keel fin moulded in glass fibre reinforced
plastic, cast keel ballast attached to the keel fin, various injection-moulded plastic parts, carbon fibre tubing
for mast and booms, ready-made sail suit, polyester cord, small items, decal sheet, GR-12 HoTT 2.4 GHz
receiver (Order No. 33506), building instructions in German, English and French.
Specification
Overall length approx.
Beam approx.
Overall height approx.
All-up weight approx.
Sail area approx.
Manufacturer's declaration from Graupner GmbH & Co. KG
Content of the manufacturer's declaration
If material defects or manufacturing faults should arise in a product distributed by us in the Federal Republic of
Germany and purchased by a consumer (§ 13 BGB), we, Graupner GmbH & Co. KG, D-73230 Kirchheim/Teck,
Germany, acknowledge the obligation to correct those defects within the limitations described below.
The consumer is not entitled to exploit this manufacturer's declaration if the failure in the usability of the product
is due to natural wear, use under competition conditions, incompetent or improper use (including incorrect
installation) or external influences.
This manufacturer's declaration does not affect the consumer's legal or contractual rights regarding defects
arising from the purchase contract between the consumer and the vendor (dealer).
GRAUPNER GmbH & Co. KG D-73230 KIRCHHEIM/TECK GERMANY
No liability for printing errors. Technical modifications reserved.
535 mm
180 mm
980 mm
850 g
1450 cm²
1
09/2011
