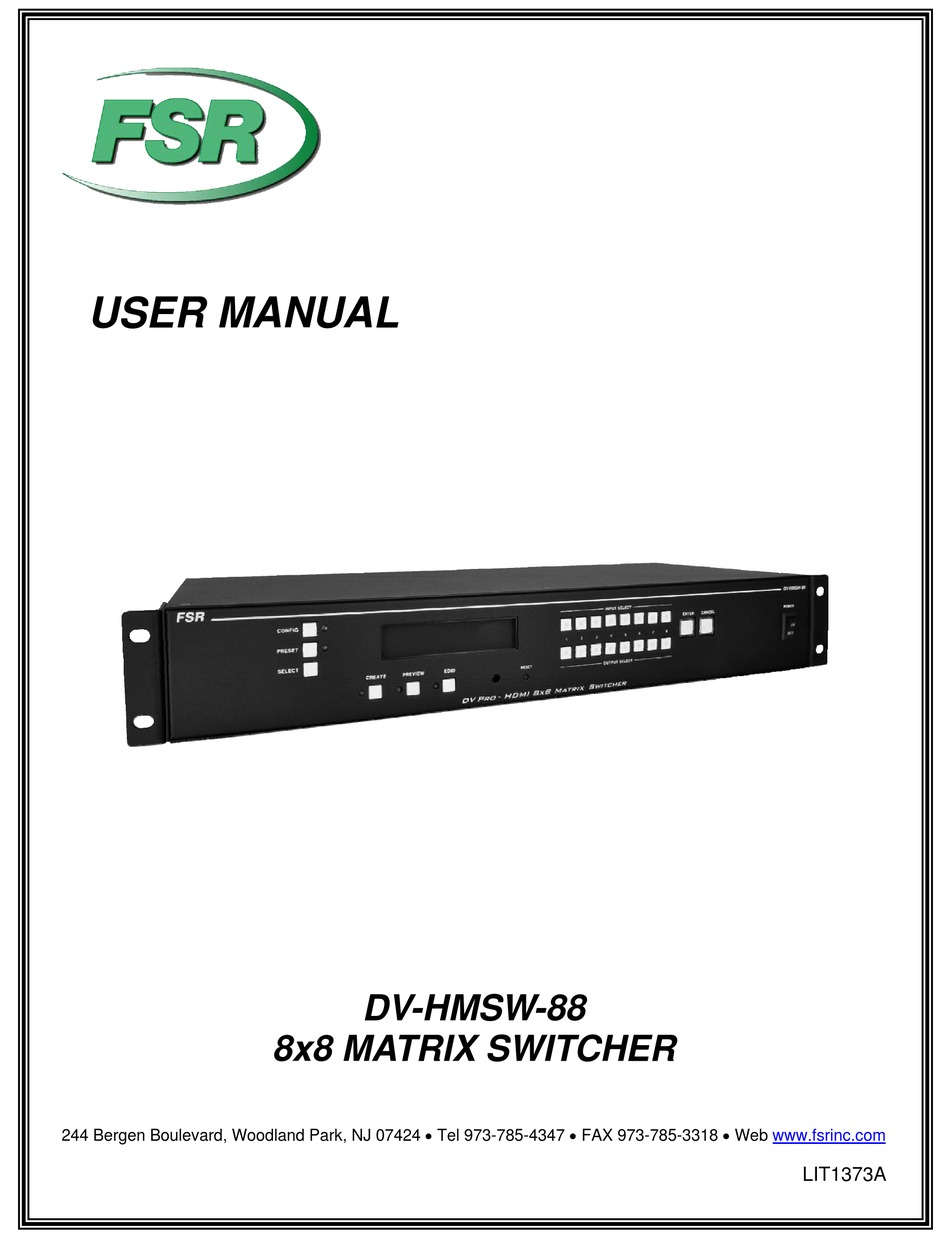

- Page 1 USER MANUAL DV-HMSW-88 8x8 MATRIX SWITCHER 244 Bergen Boulevard, Woodland Park, NJ 07424 Tel 973-785-4347 FAX 973-785-3318 Web www.fsrinc.com LIT1373A...
-
Page 2: Proprietary Information
1 Proprietary Information All information in this manual is proprietary to and the property of FSR Inc. This publication is protected by the Federal Copyright Law, with all rights reserved. No part of this document may be reproduced, transcribed, or transmitted, in any form or by any means, without prior explicit written permission from FSR Inc. -
Page 3: Table Of Contents
PRODUCT ID SETTINGS.......................... 9 INITIALIZATION ............................9 OPERATION BY FRONT PANEL BUTTONS ..................10 SETTING UP IP ADDRESS VIA THE DV-HMSW-88 FRONT PANEL ........... 11 SETTING THE BAUD RATE VIA THE DV-HMSW-88 FRONT PANEL ..........11 IR REMOTE CONTROL UNIT......................... 12 RS-232 PROTOCOL ............................ -
Page 4: Safety
1.2 SAFETY All the safety and user manual should be read before the appliance is operated. The safety and operating instructions should be retained for future reference. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. -
Page 5: Features
1.3 FEATURES The HDMI Matrix Router supports the highest quality of HDMI version 1.3 and full matrix routing functions. It is possible to transmit high definition A/V signals from any of up to 8 sources to any of 8 displays, while maintaining HDCP (High-bandwidth Digital Content Protection) compliance. -
Page 6: Front Panel
FRONT PANEL Main power switch: matrix power on/off Config key: product ID set from 1 to 8 Preset key: save preset (up to 16 presets) Select key: select number Input key: select channel from 1 to 8 ... -
Page 7: Environmental
2 Environmental For installation, we recommend the following environments. Below 85 F (30°C) of ambient temperature (Best condition) Install and operate below 60% of ambient humidity (Best condition) Free of vibrations and dusts with good ventilation condition ... -
Page 8: Specifications
3.2 Specifications Type of signals: TMDS signals, digital R.G.B. & Audio Data transmission band: up to 2.25 Gbps (Single Link) Resolutions: 480p,720p,1080i, 1080p@60Hz,1080i/720p@120Hz, 2k, (NOTE: If customer’s display supports specific resolutions such as VESA standard or projectors, the EDID data should be saved to matrix first.) ... -
Page 9: Operation
4 OPERATION 4.1 Product ID settings (1) When using the Configure key on front panel Push configure the (Config) key on front panel -> push the Select (Select) key until the LCD shows the number you want (Rotating number) (2) When using the Dip switch on the back panel ... -
Page 10: Operation By Front Panel Buttons
(The power cable of set-top box should be unplugged (not sw. off)) 3) Connect HDMI Matrix output to display directly (projector, DVI monitor or AV Receiver), 4) Power on both of DV-HMSW-88 and Display (If you connect AV Receiver, disconnected display from the Receiver) 5) Push “EDID”... -
Page 11: Setting Up Ip Address Via The Dv-Hmsw-88 Front Panel
4.4 Setting up IP address via the DV-HMSW-88 Front Panel 1) Press the “Config” button 2) Press select to cycle through to the IP setting options; “Gateway”, “Local IP” and “Subnet Mask. 3) One of the settings above will appear on the display and the input/output buttons will light up on the front panel. -
Page 12: Ir Remote Control Unit
4.6 IR Remote Control unit Push “Create” button -> Push “IN” button ->Select # (ex: 1) -> Push “OUT” button -> Select # (ex: 1, 2, 3, 4) -> Push “Enter” button... -
Page 13: Rs-232 Protocol
This document describes the protocol for interfacing with the DV-HMSW-88. 5.3 Request/Response Format All requests and responses will be entirely in ASCII. This will make the DV-HMSW-88 easy to use. commands and input parameters are in upper case only. All requests are terminated with a carriage return (0Dh), which will be referred to in this document as <cr>. -
Page 14: Acknowledging Receipt Of Commands
5.6 Error Response It is perhaps inevitable that errors occur in the requests sent to the DV-HMSW-88 . If an invalid command or text otherwise not representing a command is sent to the DV-HMSW-88 , the unit will respond with the message “ERR: unknown command“. -
Page 15: Command List
All commands are terminated with a carriage return (0Dhex) represented by <cr> The default baud rate is 38400 bps. 6.1 Set CON Command Tells the DV-HMSW-88 which outputs to connect to which input CON id input “(“ output “,” output “,” ……”)”[“;” input”(“output,,,,”)”] <cr> WHERE:... -
Page 16: Reset Dv-Hmsw-88
6.3 Reset DV-HMSW-88 DV-HMSW-88 Resets the RST id<cr> Reset command name 2 byte unit ID Carriage Return (0Dhex) Example Reset unit 1. RST 01<cr> 6.4 Get Universal Status Command Gets the status of the unit STAT id type<cr> 2 byte unit ID... -
Page 17: Rs232 Settings
6.6 RS232 Settings Gets the RS232 settings of the port STAT id RS<cr> 2 byte unit ID Example: Get Unit 01 RS232 settings. STAT 01 RS<cr> Response: STAT B115200, D8, None 6.7 LAN Settings Gets the settings of the LAN STAT id LN<cr>... -
Page 18: Lan (Tcp/Ip) Communication Setting
7 LAN (TCP/IP) communication setting In order to control the matrix through LAN, internet IP address should be set first. Set up as follows: Execute MultiTerm.exe or hyper terminal program Communication setting After setting as above, please connect communication cable via RS232 and then turn on power switch Press ‘C’... - Page 19 Set up IP Address D key displays existing matrix network address. G key is input gateway IP address. S key is input subnet mask I Key is input matrix IP address H key is input hardware address If all inputs are completed, then exit the configuration by press E key. Connect matrix to your network via LAN If you open internet explorer and type IP address, the following Lan Control screen will show up.
-
Page 21: Connector Pin Assignment
8 Connector Pin Assignment Power Input Part No. Pin No. Description Remarks VCC( DC12V) Power Jack (4P) VCC(DC12V) RS-232C Input Part No. Pin No. Description Remarks Not used Rx D 3&2 crossed Tx D 2&3 crossed Not used D-SUB 9Pin Connector Not used Not used Not used... -
Page 23: Limited Warranty
FSR factory or Authorized Repair Stations. This warranty shall be cancelable by FSR at its sole discretion if the unit has been subjected to physical abuse or has been modified in any way without written authorization from FSR. FSR’s liability under this warranty is limited to repair or replacement of the defective unit.
