Summary of Contents for FSR DV-HMSW4K-44

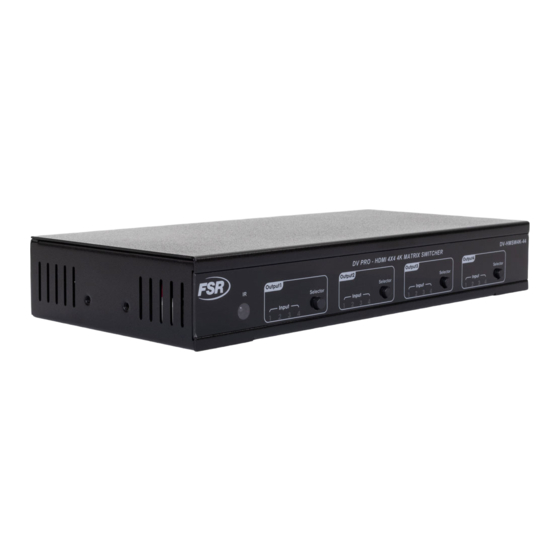

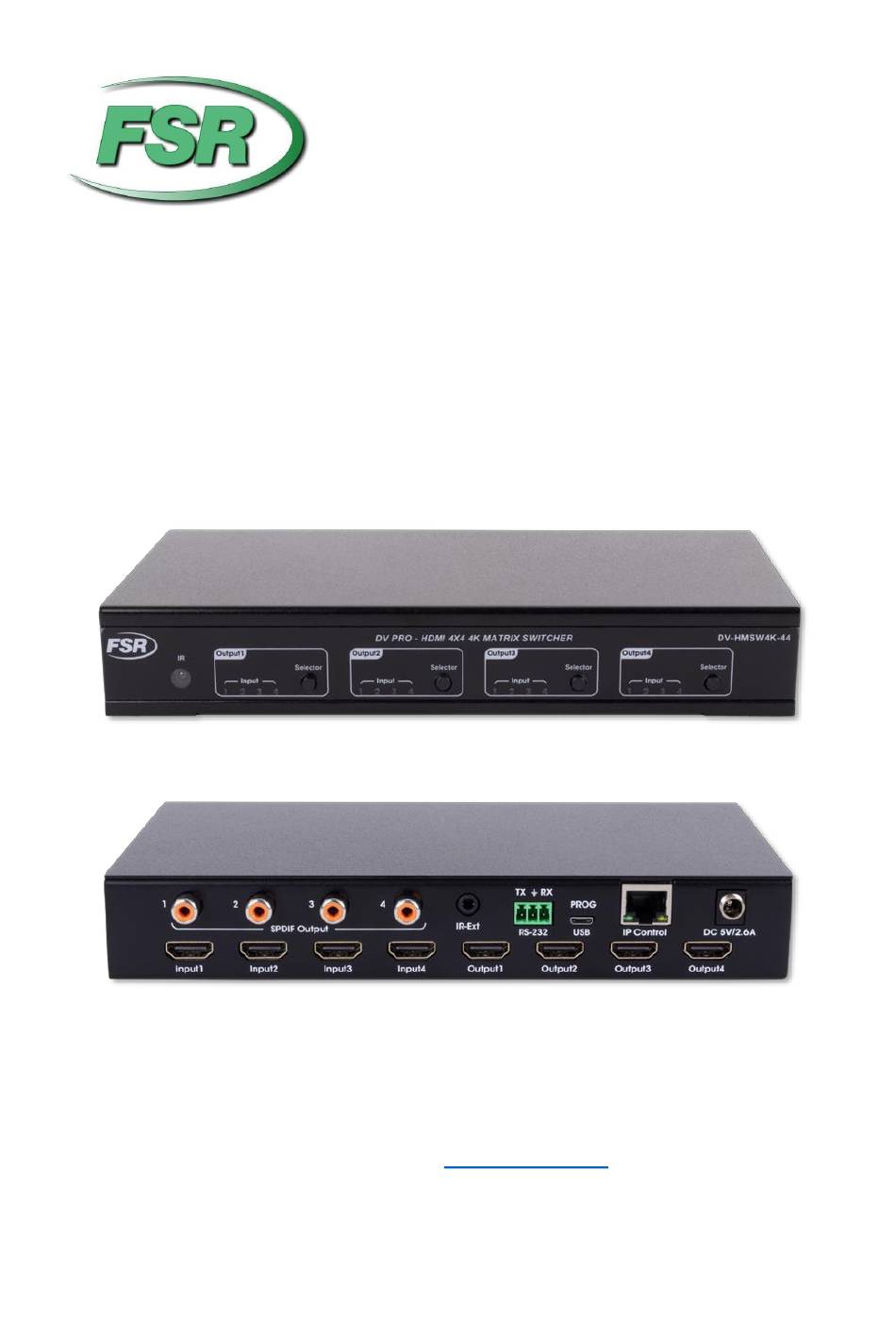

- Page 1 DV-HMSW4K-44 4x4 MATRIX USER MANUAL 244 Bergen Blvd Woodland Park NJ 07424 973-785-4347 www.fsrinc.com 43395 LIT1789...
- Page 2 SURGE PROTECTION DEVICE RECOMMENDED This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc. Use of surge protection systems is highly recommended in order to protect and extend the life of your equipment. POWER SUPPLY VOLTAGE WARNING This unit is equipped with a 5 volt power supply.
-
Page 3: Table Of Contents
Table of Contents Features ............................4 What’s in the box ..........................4 Specifications ........................... 5 Panel Descriptions ........................... 6 Connecting and Operating ....................... 7 Application Diagram ......................... 7 Remote Control Description ......................8 RS232 Pin Assignment ........................8 RS232 Control ..........................9 Web GUI Control .......................... -
Page 4: Features
Features HDMI 2.0 and HDCP 2.2 compliant device supports up to 4K @60Hz YUV 4:4:4 HDR Bandwidth up to 18Gbps HDR supports high dynamic range 10bit (HDR10) HDCP2.2 input ,HDCP2.2 output HDCP1.4 input, HDCP1.4 output 4xHDMI Input, 4xHDMI output with 4xSPDIF Audio ... -
Page 5: Specifications
Specifications Operating Temperature 23°F to 113°F (-5°C to 45°C) Storage Temperature -4°F to 140°F (-20°C to 60°C) 480p@60hz,576P@50hz,720P@60hz, 1080P@24hz,1080P@50hz,1080P@60hz,4K@24hz,4K@3 Resolution 0hz, 4K@60hz YUV4:2:0, 4K@ 60hz YUV4:4:4 HDR (HDR10) HDCP2.2 and HDCP1.4 HDCP Compliant Output Video HDMI2.0 and HDMI 1.4 PCM, Dolby5.1/7.1, DTS5.1/7.1 digital audio, Dolby Atmos Audio Format Supported RS-232 serial port 3PIN terminal block connectors... -
Page 6: Panel Descriptions
Panel Descriptions IR receive window. ① Output button OUT1~4: choose the desired output port from input ports 1~4. ② Note: 1) Turn on/off DHCP function: press the selector of output 1 and output 2 for 3 seconds. 2) Restore factory settings: when all outputs select input 1, press the selector of output 3 and output 4 for 3 seconds. -
Page 7: Connecting And Operating
Connecting and Operating 1. Connect source devices to input ports of the matrix 2. Connect HDMI output ports to TV or other HDMI display devices. 3. Optional: connect RS232 cable from PC RS232 port. 4. Optional: connect an Ethernet cable from the TCP/IP port on the matrix to a local area network. -
Page 8: Remote Control Description
Remote Control Description ① Standby Mode button ② OUTPUT-x select INPUT-y: Press OUTPUT-x (x means 1 to 4 of outputs) Press INPUT-Y (y means 1 to 4 of inputs) ③ All outputs button select INPUT-y: Press ALL button in zone OUTPUT Press INPUT-Y button (y means 1 to 4 of inputs), then INPUT-y switched to ALL OUTPUTS. -
Page 9: Rs232 Control
RS232 Control Software control Connect the 4x4 Matrix to PC with a RS232 cable and open the DV-HMSW4K-44 Remote application available on the FSR website (www.fsrinc.com). In the COM Setting window, select the COM port according to your PC and click Connect to connect to the unit. - Page 10 The EDID tab is used to Read and Configure EDID for each input, such as HDR, 3D, Data rates and Audio channel. Picture 2: EDID Setting The IP configure tab is used to read and configure the IP address and MAC of the Matrix. Click DHCP if you want the router to assign an automatic IP for the Matrix.
- Page 11 Click “Net config” → “Connect” → “Search Device” → “Sel Device Number” →“Connect” to see the device name. This indicates a successful connection. Picture 4: Net Config You can also click “IE” and click to enter into web. Picture 5: Net Config...
- Page 12 The last tab is System Config, which allows power ON/OFF or reset, default the Matrix. Picture 6: System config Command Control 1). Open CommUart Assistant. 2). Comport setting: 115200 bps Baud Rate: NOTE: Parity: None Serial over Ethernet setting is IP port: 5000 8 bit Data Bits: 1 bit...
- Page 13 Note: All commands and responses are in ASCII. Commands and are white space insensitive and are terminated with #. 4). General Commands: Command Function Note Allows all outputs to be switched to the specified @W 04 00 01 02 03 # PTP Function inputs in a single command.
- Page 14 7). EDID Setting Command: Format: @W II AA BB #: Parameter Description: II = Input Number to configure Value Input # Input1 Input2 Input3 Input4 AA = EDID File to use as indicated below 00= 1080P 01= 4K2K_30 02=4K2K_60(YC420) 03=4K2K_60(YC444) 04=Copy from display 1 05=Copy from display 2 06=Copy from display 3...
- Page 15 8). Matrix Status Inquiry: Format: @R YY #: Parameter Description: YY = Output/Input to query as indicated below: Description Output1 Output2 Output3 Output4 All Output Input Status Unit responds with: @R YY II AA BB #: Parameter Description: YY = status being reported: Command Description Output1 Output2 Output3 Output4 All Outputs...
- Page 16 Example Status Request: @R 30 #: (Get Status of Output 1) Response: @R 30 01 04 XX # Output 1 is connected to input2, Input2 EDID is set to “copy from display 1”, EDID video/audio data is not valid. AA = Selected EDID file as defined in EDID setting command above BB = EDID file parameters as defined in EDID setting command above Note: All “copy from display”...
-
Page 17: Web Gui Control
Web GUI Control Static IP Address: The default IP Address of HDMI Matrix is 192.168.1.168. Change the IP address of your PC. . Connect the HDMI Matrix and PC to the LAN. . Configure your PC as follows: Click Start > Control Panel > Network and Sharing Center. Click Change Adapter Settings. - Page 18 . Highlight Internet Protocol Version 4 (TCP/IPv4) by clicking on the item. . Click Properties. Picture 9 1). Select Use the following IP Address for static IP addressing and fill in the details. For TCP/IP you can use any IP address in the range 192.168.1.2 to 192.168.1.254 (excluding 192.168.1.168).
-
Page 19: Controlling The Matrix Via The Web Gui
Controlling the Matrix via the WEB GUI Open the Web browser and enter the IP address of the HDMI Matrix:192.168.1.168, then you can set the function as shown below: Picture 11: Port Setting Page Picture 12: EDID Setting Page... - Page 20 Picture 13: IP Configuration Page DHCP You can also choose “DHCP” for HDMI Matrix (refer to 9.1 picture3) 1). Connect the HDMI Matrix and PC to the LAN. 2). Open the PC tool (included in the CD). 3). Search the IP address of HDMI Matrix, please refer to 9.1 picture 4 & picture 5. 4).
- Page 21 Picture 15: EDID Setting Page Picture 16: IP Configuration Page...
-
Page 22: Online Upgrading Firmware
Online upgrading firmware. 1). Connect to the DV-HMSW4K-44 via the RS-232 port. 2). Open the DV-HMSW4K-44 UPGRADE software available on the FSR website. 3). Click “Search” choose the port, then “connect”, then you should see “S3RLE”, click “Load FW File” to upload the firmware, click “update”, the firmware upgrades in about a minute. -
Page 23: Limited Warranty
The DV-HMSW4K-44 is warranted against failures due to defective parts or faulty workmanship for a period of three years after delivery to the original owner. During this period, FSR will make any necessary repairs or replace the unit without charge for parts or labor. Shipping charges to the factory or repair station must be prepaid by the owner, return-shipping charges (via UPS Ground) will be paid by FSR.
