Summary of Contents for Conrad Powerline Adapter PL85D

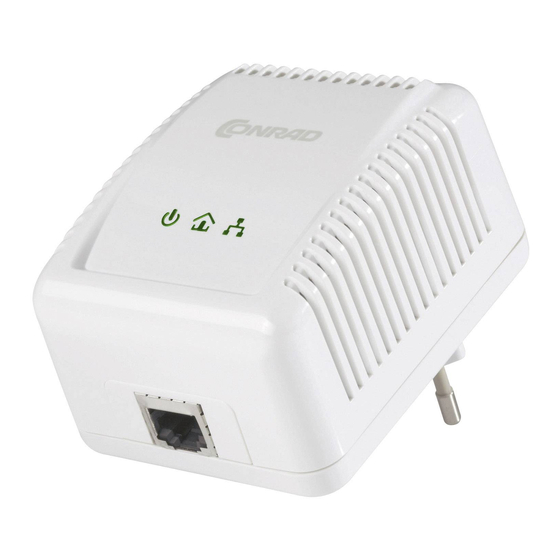

- Page 1 Conrad Powerline Adapter PL85D...
- Page 2 While the information in this manual has been compiled with great care, it may not be deemed an assurance of product characteristics. The manufacturer shall be liable only to the degree specified in the terms of sale and delivery. The reproduction and distribution of the documentation and software supplied with this product and the use of its contents is subject to written authorization from the manufacturer.
-
Page 3: Table Of Contents
Powerline Adapter PL85D........4... -
Page 4: Introduction
• Connect the adapter via the network cable to the computer or the respective network device. • Connect the adapter to the electrical wiring • As an option: install the configuration software on your computer for indivi- dual password allocation • That's it! Conrad Powerline Adapter PL85D... -
Page 5: Practical Examples
Introduction 5 Practical examples 1.2.1 Internet solution for single users with Internet connection via a modem (network port) modem 1.2.2 Internet solution for multi-users with Internet connection via a modem router modem router Conrad Powerline Adapter PL85D... -
Page 6: Installation
Installation This chapter describes the connection and display elements of the adapter and how to connect it. Package contents • Powerline Adapter PL85D • Network cable • Printed installation leaflet • CD containing online documentation and configuration software The manufacturer reserves the right to change the package contents without prior notice. -
Page 7: Connecting The Adapter
Plug the adapter into a free electrical outlet. In order to connect multiple HomePlug devices into a self-contained, secure network, now continue with the installation of the configuration. For more information, refer to the chapter 'Configuring the HomePlug network'. Conrad Powerline Adapter PL85D... -
Page 8: Configuring The Homeplug Network
The factory default password is "HomePlug". For security reasons, we re- commend overwriting it and assigning a password of your own. • Add further adapters Connect each adapter, which is to be added to your network, to your com- puter and assign it a password. Conrad Powerline Adapter PL85D... -
Page 9: Appendix
Rated frequency: 50 Hz Environment Humidity (non-condensing): 10-90% Storage: -25°C – 70°C Operation: 0°C – 40°C System requirements Ethernet interface Windows XP (32 bit), Windows Vista or any other opera- ting system with network support Warranty 2 years Conrad Powerline Adapter PL85D... -
Page 10: Important Safety Instructions
• the device does not work, even though the operating instructions • have been followed properly. the device’s case is damaged. • • Class A products may cause interference when used in residential environ- ments. Conrad Powerline Adapter PL85D... -
Page 11: Warranty Conditions
Conrad Powerline Adapter PL85D... - Page 12 The law of the Federal Republic of Germany is applicable. The UN commercial law does not apply to dealings between the manufacturer and the purchaser. Conrad Powerline Adapter PL85D...
