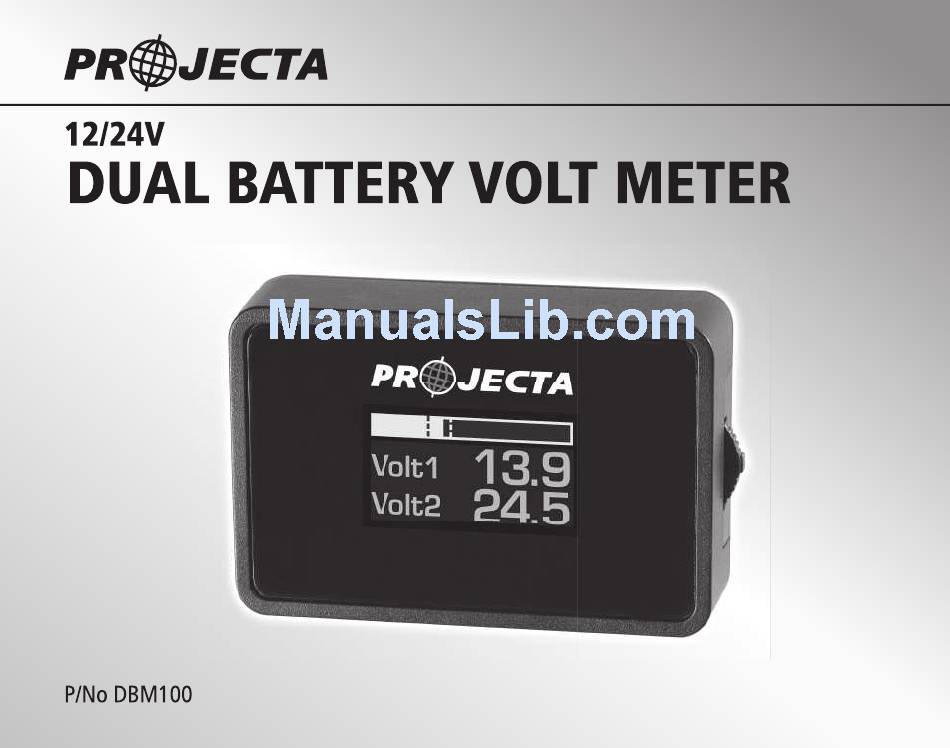

Summary of Contents for Projecta DBM100
-
Page 2: Battery Monitoring
Sharp and crisp coloured LED display allows you to monitor the condition of your batteries. HIGH/LOW VOLTAGE ALARM The DBM100 alerts you with a buzzer and visual display indicating high or low battery voltage warning allowing you to maintain your batteries in peak condition and get the most from your dual battery system. -
Page 3: Installation
2. Connect the 5 wires as per the WIRING DIAGRAMS. 3. Reconnect the negative (-) battery cables to battery 1 & battery 2. 4. Turn on the engine and check that the DBM100 is working. 5. Clean the surface of the location where you intend to attach the meter. -
Page 4: Operations & Settings
Note: Fuses not included with unit, it is recommended fuses are installed where shown on the above wiring diagram. OPERATIONS & SETTINGS GETTING STARTED The DBM100 allows you to customise the display and settings to best suit your batteries and application. - Page 5 Step 1 To begin the set up mode press “ENTER” and hold down for 2 seconds. Step 2 Adjust the settings by scrolling “UP/DOWN” until the desired value is reached. Step 3 Press “ENTER” to confirm the settings and move into next stage. The following diagrams illustrate each of the 6 stages that can be customised in the order they appear.
-
Page 6: Display Mode
To change between the display options, scroll “UP” or “DOWN” repeatedly until desired display is showing. HIGH/LOW VOLTAGE ALARM The DBM100 will alert you if either of your batteries reach the high or low voltage level (see “Getting Started” stages 2–3 & 5–6), allowing you to correct the problem and prevent permanent battery damage. -
Page 7: Calibration Mode
CALIBRATION MODE (For Advanced Users Only) Note: The DBM100 is ready for use and has been calibrated using certified equipment. Advanced users wishing to calibrate the voltage settings to meet specific requirements can do so by following the steps below. -
Page 8: Specifications
CONTENTS DBM100 Dual voltage meter Double-sided tape Instruction manual SPECIFICATIONS P/No: DBM100 Current Draw (Ignition ON): 16mA 18mA Current draw (Ignition Off) Operating & Display Range 0–36V Battery 1 & 2 At least one of the two batteries needs to be above 5.0V for the display to operate. -
Page 9: Warranty
WARRANTY Applicable only to product sold in Australia Brown & Watson International Pty Ltd of 1500 Ferntree Gully Road, Knoxfield,Vic., telephone (03) 9730 6000, fax (03) 9730 6050, warrants that all products described in its current catalogue (save and except for all bulbs and lenses whether made of glass or some other substance) will under normal use and service be free of failures in material and workmanship for a period of one (1) year (unless this period has been extended as indicated elsewhere) from the date of the original purchase by the consumer as marked on the invoice.This warranty does not cover ordinary wear and tear, abuse, alteration of products or... - Page 10 Distributed by AUSTRALIA Brown & Watson International Pty Ltd Knoxfield, Victoria 3180 Telephone (03) 9730 6000 Facsimile (03) 9730 6050 National Toll Free 1800 113 443 NEW ZEALAND Narva New Zealand Ltd 22–24 Olive Road PO Box 12556 Penrose Auckland, New Zealand Telephone (09) 525 4575 IS132...
