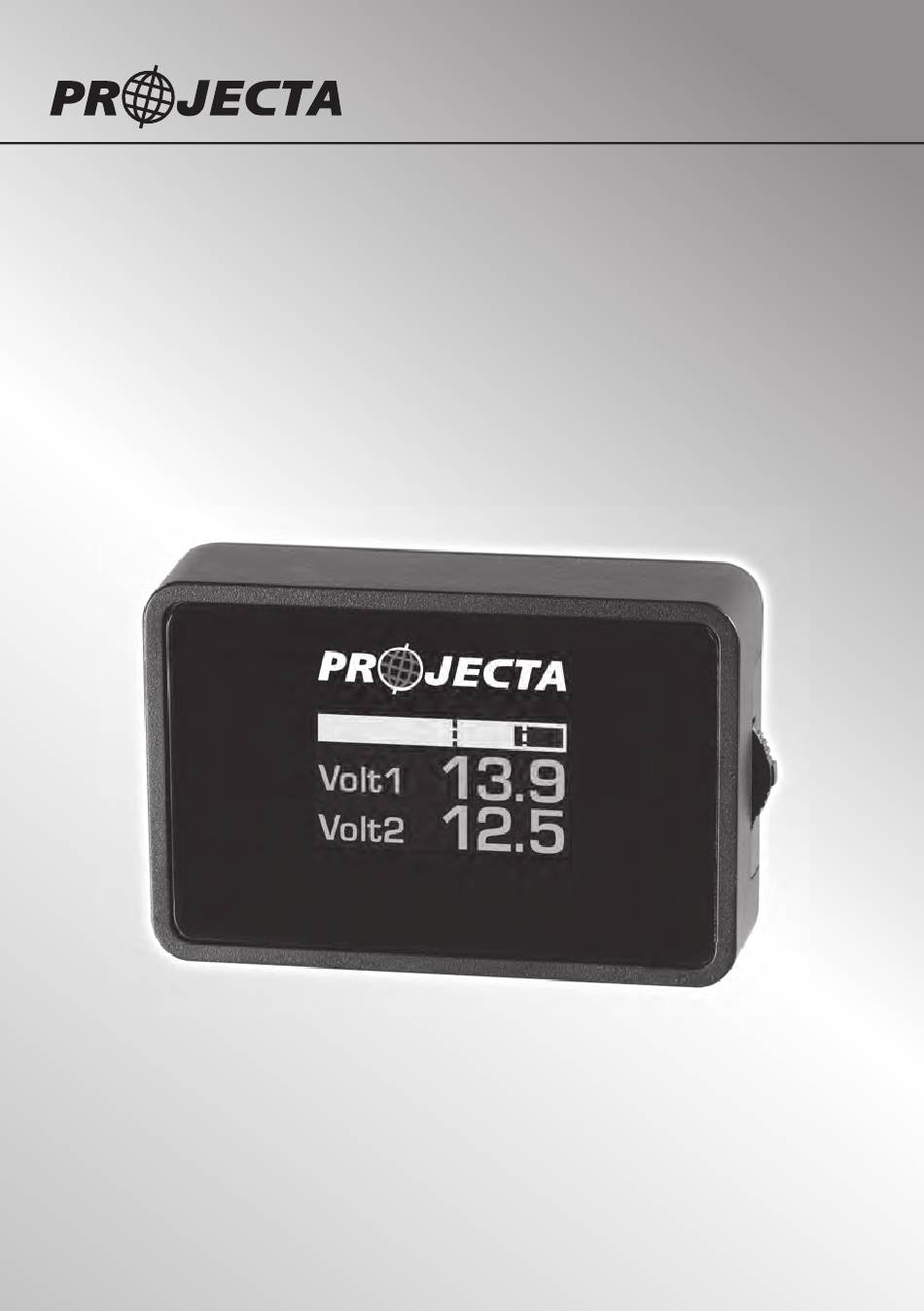

- Page 1 12 VOLT DUAL BATTERY VOLT METER P/No DBM100...
- Page 2 Sharp and crisp coloured LED display allows you to monitor the condition of your batteries. HIGH/LOW VOLTAGE WARNING The DBM100 alerts you to high or low battery voltage allowing you to maintain your batteries in peak condition and get the most from your dual battery system.
- Page 3 2. 3. Reconnect the negative (-) battery cables to battery 1 & battery 2. 4. Turn on the engine and check that the DBM100 is working. 5. Clean the surface of the location where Volt 1 13.2 Volt 2 10.6...
- Page 4 OPERATIONS & SETTINGS GETTING STARTED The DBM100 allows you to customise the display and settings to best suit your batteries and application. : Scroll Up to show PEAK information consecutively Switch ENTER : Press and hold for 2 seconds to start set-up mode Volt 1 13.2...
- Page 5 12.9 HIGH/LOW VOLTAGE WARNING The DBM100 will alert you if either of your batteries reach the high or low voltage level (see “Getting Started” stages 1–2 & 4–5), allowing you to correct the problem and prevent permanent battery damage. When a high or low voltage is reached, the screen will flash and the voltage in question will be highlighted.
- Page 6 CALIBRATION MODE (For Advanced Users Only) Note: The DBM100 is ready for use and has been calibrated using certified equipment. Advanced users wishing to calibrate the voltage settings to meet specific requirements can do so by following the steps below.
- Page 7 CONTENTS DBM100 Dual voltage meter Double-sided tape Instruction manual SPECIFICATIONS P/No: DBM100 Current Draw (Ignition ON): Battery 1 – 26.4mA Battery 2 – 1.0mA Ignition – 0.5mA Current Draw (Ignition OFF): Battery 1 – 9.4mA Battery 2 – 1.0mA Ignition – 0mA Operating Range: Battery 1: 5V–18V...
- Page 8 Distributed by AUSTRALIA Brown & Watson International Pty Ltd Knoxfield, Victoria 3180 Telephone (03) 9730 6000 Facsimile (03) 9730 6050 National Toll Free 1800 113 443 NEW ZEALAND Narva New Zealand Ltd 22–24 Olive Road PO Box 12556 Penrose Auckland, New Zealand Telephone (09) 525 4575 IS132...
