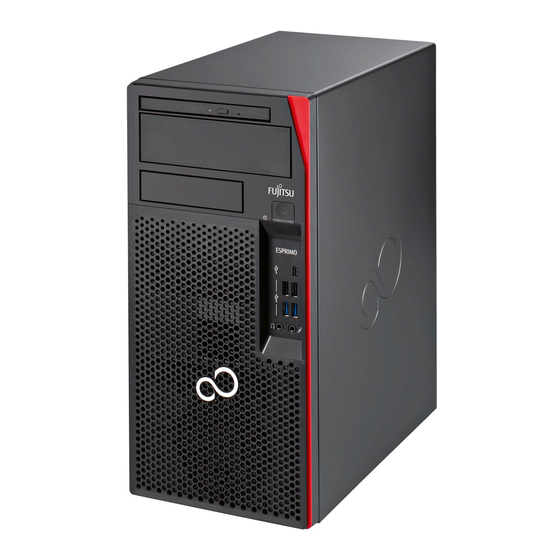

- Page 1 System Operating Manual ESPRIMO C7xx / C9xx...
- Page 2 Thank you for buying an innovative product from Fujitsu. Latest information about our products, useful tips, updates etc. is available on our website: "http://www.fujitsu.com/fts/" You can find driver updates at: "http://support.ts.fujitsu.com/download" Should you have any technical questions, please contact: •...
- Page 4 Published by / Contact address in the EU Fujitsu Technology Solutions GmbH Mies-van-der-Rohe-Straße 8 80807 Munich, Germany "http://www.fujitsu.com/fts/" Copyright © Fujitsu Technology Solutions GmbH 2013. All rights reserved. Publication Date 07/2013 Order No.: A26361-K1014-Z320-2-7619, edition 3...
- Page 5 ESPRIMO C7xx / C9xx Operating Manual Your ESPRIMO Important notes Getting started Operation Troubleshooting and tips System expansions Technical data Index...
- Page 6 Trademarks Fujitsu, the Fujitsu logo and ESPRIMO are registered trademarks of Fujitsu Limited or its subsidiaries in the United States of America and other countries. PS/2 is a registered trademark of International Business Machines, Inc.
-
Page 7: Table Of Contents
Monitor remains blank ............. . . 29 Fujitsu... - Page 8 Index ................. . 54 Fujitsu...
-
Page 9: Your Esprimo
DVD. You can of course also print out a copy of the manual if you prefer. Validity of the Reference Manual This Reference Manual is valid for the following systems: • ESPRIMO C700 • ESPRIMO C710 • ESPRIMO C720 • ESPRIMO C910-L Fujitsu... -
Page 10: Notational Conventions
"Safety information" • cross-references to an external source, e.g. a web address: For more information, go to "http://www.fujitsu.com/fts" • Names of CDs, DVDs and titles or designations for other materials, e.g.: "CD/DVD Drivers & Utilities" or "Safety/Regulations" manual indicates a key on the keyboard, e.g:... -
Page 11: Important Notes
If the device is brought from a cold environment into the room where it will be used, condensation may occur. Before operating the device, wait until it is absolutely dry and has reached approximately the same temperature as the installation site. Fujitsu... -
Page 12: Cleaning The Device
Use disinfectant wipes to clean the keyboard and the mouse. Energy saving, disposal and recycling Disposal Energysaving Recycling Drivers& UtilitiesDVD User DocumentationDVD You can find information on these subjects on the "Drivers & Utilities" DVD or on our website ("http://www.fujitsu.com/fts/about/fts/environment-care/"). Fujitsu... -
Page 13: Ce Marking
Explanation: CE nnnn (!); nnnn defines the type of CE marking and the exclamation mark indicates a device with radio components. You can find more information and declarations of conformity on the Internet at: "http://globalsp.ts.fujitsu.com/sites/certificates". This equipment can be used in the following countries: Belgium... -
Page 14: Fcc Compliance Statement
Fujitsu is not responsible for any radio or television interference caused by unauthorized modifications of this equipment or the substitution or attachment of connecting cables and equipment other than those specified by Fujitsu. The correction of interferences caused by such unauthorized modification, substitution or attachment will be the responsibility of the user. -
Page 15: Getting Started
Drives and boards If you have received drives or boards with your device, please do not install them until after first-time setup. How to install drives and boards is described in the "System expansions", Page 32 chapter. Fujitsu... -
Page 16: Setting Up The Device
Do not stack several devices on top of each other. Do not expose the device to extreme ambient conditions (see "Technical data", Page section "Ambient conditions"). Protect the device against dust, humidity and heat. Fujitsu... -
Page 17: Vertical Operating Position (Optional)
► Stick the rubber/plastic feet to the underside of the casing. In order to ensure a that the unit is stable, the rubber/plastic feet should be located in approximately the positions shown in the illustration. ► Place the device vertically on the rubber/plastic feet. ► If necessary, reconnect any cables that were previously disconnected. Fujitsu... -
Page 18: Horizontal Operating Position With Rubber/Plastic Feet
► To ensure a that the device is stable, the rubber/plastic feet should be fixed in similar positions to the ones shown in the illustration. ► Place the device on the rubber/plastic feet. ► If necessary, reconnect any cables that were previously disconnected. Fujitsu... -
Page 19: Connecting The Device To The Mains Voltage
► Plug the power plug into a properly grounded mains outlet. The device is fitted with a wide voltage range power supply. This means you do not need to set the nominal voltage manually for these devices. Therefore there is no switch available for the voltage setting. Fujitsu... -
Page 20: Connecting External Devices
► Switch off all affected devices. Cable, ► Remove all power plugs from the grounded mains outlets. ► Unplug all data communication cables from the appropriate sockets. ► Disconnect all of the cables from the device and from the external devices. Fujitsu... -
Page 21: Ports On The Device
► Plug the data cable into the monitor port on the device. Depending on the configuration level of your device and your monitor, you can connect the data cable either to the DVI interface or to the DisplayPort. ► Plug the monitor power cable into a grounded mains outlet. Fujitsu... -
Page 22: Connecting The Mouse
► Plug the rectangular connector of the keyboard cable into the rectangular socket on the underside or on the rear of the keyboard. ► Plug the round plug of the keyboard cable into the keyboard port on the device. Keyboard, ► Switch your device on again. Fujitsu... -
Page 23: Connecting External Devices To The Parallel (Optional) Or Serial Port
To ensure the transmission capacity of USB 2.0, the cable from the external USB device to the USB port of your device must not be longer than 3 m / 118.11 in. Fujitsu... -
Page 24: Switching On For The First Time: Installing The Software
► Switch on the monitor (see operating instructions for the monitor). ► Press the on/off button on the front of the machine. The operational display will light up and the machine will start. Fujitsu... -
Page 25: Installing The Software
Help in your operating system. You will find more information on the system, as well as drivers, utilities and updates on the "Drivers & Utilities" DVD and on the Internet at "http://www.fujitsu.com/fts/support". You can find information and help on the Windows operating system functions on the Internet at "http://windows.microsoft.com". -
Page 26: Operation
The ON/OFF switch does not fully disconnect the TV from the mains voltage. To completely disconnect the mains voltage, remove the power plug from the power socket. ► If necessary, switch the monitor off (see the operating manual for the monitor). Fujitsu... -
Page 27: Indicators On The Device
The indicator lights up when the DVD drive in the device is being accessed. Never remove the DVD while the indicator is illuminated. SmartCard reader The indicator is lit if a SmartCard reader is installed. indicator (optional) The indicator flashes when data is being exchanged. Fujitsu... -
Page 28: Keyboard
With some keyboards the ON/OFF switch can only be used with an ACPI (Advanced Configuration and Power Management Interface). Otherwise the key is inoperative. The mainboard must support this function. Keys, Keys, Keys, Enter key confirms the highlighted selection. The Enter key is also referred to as the "Return" key. Fujitsu... -
Page 29: Settings In Bios Setup
In BIOS Setup, you can set the system functions and the hardware configuration of the device. When the PC is delivered, the default entries are valid (see "BIOS Setup" manual or manual for the mainboard). You can customise these settings to your requirements in the BIOS Setup. Fujitsu... -
Page 30: Property And Data Protection
Protecting the device from being switched on by an external device You can also combine these functions. You will find a detailed description of the Security menus and how to assign passwords in the manual for the mainboard or in the "BIOS Setup" manual. Fujitsu... -
Page 31: Access Authorization Via Smartcard (Optional)
Operation Access authorization via SmartCard (optional) Securityfunctions, Accesspermission,SmartCard In systems equipped with a SmartCard reader, access can be restricted to those users who have a corresponding SmartCard. Fujitsu... -
Page 32: Troubleshooting And Tips
► For further clarification of the problem, contact the Service Desk for your country (see the Service Desk list or visit the Internet at "http://support.ts.fujitsu.com/contact/servicedesk"). When you do this, please have ready the identity number and serial number of your system. -
Page 33: The Device Cannot Be Switched Off With The On/Off Switch
► Restart the system. Incorrect setting for the monitor ► Press while the system is booting. ► Start the system in Safe Mode. ► Set up the monitor as described in the documentation for your operating system and monitor. Fujitsu... -
Page 34: No Mouse Pointer Displayed On The Screen
Restoring the hard disk contents You will find the instructions for restoring the contents of the hard disk in the "Recovery Guide" manual. Fujitsu... -
Page 35: Tips
Troubleshooting and tips Tips Topic Out of system resources ► Close unnecessary applications. ► Run the applications in a different order. Other manuals Further manuals are provided as PDF files on the "Drivers & Utilities" DVD. Fujitsu... -
Page 36: System Expansions
An update of the BIOS may be required for a system expansion or hardware upgrade. Further information can be found in the BIOS help section or if necessary in the Technical Manual for the mainboard. Fujitsu... -
Page 37: Information About Boards
The equipment and tools you use must be free of static charges. • Only touch or hold the boards by the edge or, if present, at the areas marked green (Touch Points). • Never touch pins or conductors on boards fitted with ESDs. Fujitsu... -
Page 38: Opening The Casing
► Push the casing top cover as far as it will go (approximately 20 mm/0.79") in the direction of the arrow (1) and lift it off at an angle in the direction of the arrow (2). Fujitsu... -
Page 39: Closing The Casing
3 inch drive as well as a compact flash module (optional) "Accessible drives" are e.g. DVD or CD ROM drives, into which a data medium can be inserted from outside. "Non-accessible drives" are for example hard disk drives. Fujitsu... -
Page 40: Installing And Removing Plastic Drive Covers
► Lay the casing cover within easy reach on a non-slip surface. ► Gently press the latches of the relevant plastic drive covers forwards and, working from the outside, pull the plastic drive covers out of the front cover. Fujitsu... -
Page 41: Installing The Plastic Drive Cover
► Fold up the drive cage at an angle (1). ► If a drive is present, disconnect the connector of the data and power supply cables from the drive (2). ► Take out the drive cage from the casing mounts. Fujitsu... -
Page 42: Installing The Drive Cage
Page 38). ► If you do not want to install a new drive, you must refit the plastic drive cover again (see "Installing the plastic drive cover", Page 37). ► Close the casing (see "Closing the casing", Page 35). Fujitsu... -
Page 43: Installing An Accessible Drive
► Connect the connector for the data and power cables to the drive. ► Close the casing (see "Closing the casing", Page 35). It may be necessary to modify the entry for the drive in the BIOS Setup accordingly. Fujitsu... -
Page 44: Installing And Removing The Hard Disk Drive
► Fold up the hard disk cage (2). ► Pull the data and power supply cable off the hard disk (3). ► Press the two ends of the EasyChange rails together (1) and pull out the hard disk drive (2). Fujitsu... -
Page 45: Installing The Hard Disk Drive
EasyChange rails or can be screwed directly into the drive cage. ► Open the casing (see "Opening the casing", Page 34). ► Attach the EasyChange rails to the hard disk. ► Fold up the hard disk cage. Fujitsu... - Page 46 ► Fold the hard disk cage downwards (2). ► Fold down the drive cage (3). ► Close the casing (see "Closing the casing", Page 35). It may be necessary to modify the entry for the drive in the BIOS Setup. Fujitsu...
-
Page 47: Installing And Removing A Compact Flash Module (Optional)
EasyChange rails into its bay until the carrier noticeably engages (1). ► Connect the connector for the data and power cables to the Compact Flash module. ► Fold down the drive cage. ► Close the casing (see "Closing the casing", Page 35). Fujitsu... -
Page 48: Removing The Compact Flash Module
(1) and pull out the hard disk drive (2). ► Loosen the screws (1). ► Remove the Compact Flash module from its bay. ► Fold down the hard disk cage (2). ► Close the casing (see "Closing the casing", Page 35). Fujitsu... -
Page 49: Installing/Removing A Smartcard Reader (Optional)
► Loosen the screws (1). ► Pull the SmartCard reader out of the bay (2). ► Install the drive cage again (see "Installing the drive cage", Page 38 ► Close the casing (see "Closing the casing", Page 35). Fujitsu... -
Page 50: Installing And Removing A Wlan Module (Optional)
► Install the drive cage again (see "Installing the drive cage", Page 38). ► Close the casing (see "Closing the casing", Page 35). Details on using Wireless LAN can be found in the online help system included with the Wireless LAN software. Fujitsu... -
Page 51: Removing The Wlan Module
You can only install low-profile boards. To install a board please follow the steps below. • Opening the retaining clip for the board • Installing a board • Closing the retaining clip You will learn more about the individual steps in the following sections. Fujitsu... -
Page 52: Installing A Board
► Make the required settings on the board. ► Guide the board into the slot recess (1). Ensure that it engages. ► If necessary, connect the cables to the module. ► Close the casing (see "Closing the casing", Page 35). Fujitsu... -
Page 53: Removing Boards
► Close the casing (see "Closing the casing", Page 35). If you have installed or removed a PCI board, check the relevant PCI slot settings in the BIOS Setup. Change the settings as required. Further information is provided in the PCI board documentation. Fujitsu... -
Page 54: Installing And Removing Heat Sinks
► Insert the heat sink into the casing. To do this, correctly align the screw holes on the heat sink with the screw holes on the mainboard. ► Tighten the screws on the heat sink in a crosswise fashion. ► For processors > 65 W: Connect the fan cables to the mainboard. Fujitsu... -
Page 55: Mainboard Expansions
► Open the casing and remove the drive hard disk cage (see "Opening the casing", Page 34). Processor,replacing ► Replace the processor as described in the manual for the mainboard. ► Re-install the drive and hard disk cage and close the casing (see "Closing the casing", Page 35). Fujitsu... -
Page 56: Replacing The Lithium Battery
► Press the catch in the direction of the arrow (1). The battery jumps out of the holder slightly. ► Remove the battery (2). ► Push the new lithium battery of the identical type into the holder (3) and press it down until it engages. Fujitsu... -
Page 57: Technical Data
Clearance required to ensure adequate ventilation: without air vents min. 10 mm / 0.39 inch with air vents min. 200 mm / 7.87 inch The data sheet for this device provides further technical data. The data sheet can be found on our website "http://www.fujitsu.com/fts". Fujitsu... -
