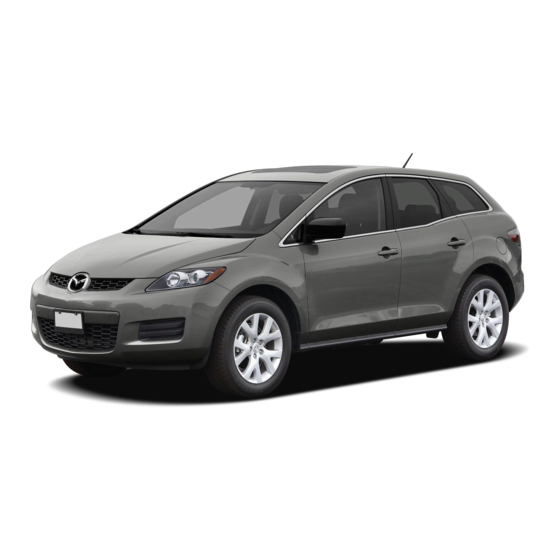

Mazda CX-7 2007 Installation Instructions Manual
Remote start system
Hide thumbs
Also See for CX-7 2007:
- Workshop manual (1772 pages) ,
- Owner's manual (406 pages) ,
- Bodyshop manual (138 pages)
Table of Contents
Advertisement
Quick Links
PART NUMBER (s):
0000-8F-M40
NOTE: BOTH VEHICLE IGNITION KEYS ARE REQUIRED AT TIME OF
INSTALLATION. DO NOT BEGIN INSTALLATION WITHOUT BOTH
KEYS.
HOOD SAFETY SWITCH KIT CONTENTS
P/N: 0000-8F-H03
Hood Safety
Switch
(QTY 1)
Locking
Washer
(QTY 2)
Wire Tie
IDC Wire Tap
(QTY 2)
(QTY 2)
IMMOBILIZER INTERFACE KIT CONTENTS
P/N: 0000-8F-H05A
Immobilizer Interface
Adhesive Primer
Module and Harness
(QTY-1)
(QTY-1)
TOOLS REQUIRED
SAFETY GLASSES
ELECTRICAL TAPE
WIRE CUTTERS
PLIERS
ALCOHOL or GLASS CLEANER
#2 PHILLIPS SCREWDRIVER
POWER DRILL
9/32" DRILL BIT
FIBER STICK
10 mm SOCKET AND RATCHET
1/4" SOCKET AND DRIVE
3/8" DRIVE TORQUE WRENCH
3/8" DRIVE 10mm SOCKET
HI-TEMPERATURE SILICONE
GENUINE ACCESSORIES
INSTALLATION INSTRUCTIONS
REMOTE START SYSTEM
1/4" Self
Remote Start
Drilling Screws
Control Module
(QTY 2)
(QTY-1)
P/N: 0000-8F-Z01
MAZDA
GENUINE ACCESSORIES
Vehicle Remote Start System
Owner's Manual
Featuring PowerCode Technology
TM
TM
For the Ultimate in Comfort, Convenience and Security
Owners
Manual
(QTY 1)
2- Sided Tape
(QTY-1)
0
VEHICLE PREPARATION
1. CLEAN HANDS
2. OPEN DRIVER'S DOOR WINDOW
3. RECORD RADIO STATION PRESETS
4. SET PARKING BRAKE
5. ENSURE VEHICLE WILL START UTILIZING THE IGNITION KNOB & VALET
KEY (SMART-KEY EQUIPPED VEHICLES ONLY)
6. DISCONNECT AND ISOLATE NEGATIVE BATTERY TERMINAL
7. VEHICLE MUST BE AT ROOM TEMPERATURE
KIT CONTENTS
DNA Card
Remote Start
(QTY-1)
Transmitters
(QTY-2)
P/N: 0000-8F-M21
P/N: 0000-8F-Z02
WARNING: / AVERTISSEMENT
This vehicle is equipped with a remote controlled engine starter.
To reduce the risk of serious Injury or death, switch engine starter
system into service mode and disconnect the vehicle battery
before performing any service on the vehicle.
Ce véhicule est doté d'un démarreur à distance. Pour réduire les
risques de blessures graves ou mortelles, mettre le démarreur à
distance en mode service et débrancher la batterie du véhicule
2 sec.
avant d'effectuer des travaux d'entretien sur celui-ci.
5X
2 sec.
30
sec.
Underhood
Wallet
Sticker
Card
(QTY 1)
(QTY 1)
P/N: 0000-8F-Z12
Programming
Button
(QTY 1)
P/N: 0000-8F-Z03
PARTS BAG CONTENTS
Wire Tie
(QTY-10)
1
®
APPLICABLE MODELS
2007-UP > MAZDA CX-7
ALL MODELS
Dipole Antenna
(QTY-1)
P/N: 0000-8F-Z10
(QTY - (1) 5 AMP)
(QTY - (7) 15 AMP)
Long Wire
Tie
(QTY 4)
PVC Foam
IDC Wire Tap
Tape
(QTY-8)
(QTY 1)
P/N: 0000-8F-Z13
4280246 Rev. B 11/10
Remote Start
Wire Harness
(QTY-1)
P/N: 0000-8F-M41
Mini Fuses
Advertisement
Table of Contents
Related Manuals for Mazda CX-7 2007
Summary of Contents for Mazda CX-7 2007
-
Page 1: Kit Contents
GENUINE ACCESSORIES INSTALLATION INSTRUCTIONS PART NUMBER (s): REMOTE START SYSTEM APPLICABLE MODELS 0000-8F-M40 2007-UP > MAZDA CX-7 ALL MODELS NOTE: BOTH VEHICLE IGNITION KEYS ARE REQUIRED AT TIME OF INSTALLATION. DO NOT BEGIN INSTALLATION WITHOUT BOTH KEYS. KIT CONTENTS HOOD SAFETY SWITCH KIT CONTENTS P/N: 0000-8F-H03 1/4”... - Page 2 ELECTRICAL SYSTEM GENERAL PROCEDURES W ire color code C onnector diagrams Two-color wires are indicated by a two-letter Connector diagrams show connectors on the harness symbol.The first indicates the base color of the side. The terminal indicates the view from the harness wire, the second the color of the stripe.
- Page 3 VEHICLE PREPARATION 1. Disconnect and Remove Battery a. Disconnect and isolate the negative and positive battery terminals. (FIGURE A) 10 mm b. Remove battery hold-down bracket assembly by loosen- Socket ing both 10 mm nuts and pivoting lower retainers toward vehicle dashwall.
- Page 4 REMOTE START CONTROL MODULE PREPARATION 1. Insert the supplied fuses into the remote start control module as shown below. (FIGURE F) The fuses fit tightly, so use the flat tip of a fiber stick to push them in place, if necessary. 2.
- Page 5 FIGURE J DIPOLE ANTENNA MOUNTING A-PILLAR UPPER TRIM 1. Driver’s A-Pillar Trim Removal/Installation a. Partially peel back the rubber weatherstip away from the A-pillar trim. b. Pull the A-pillar trim, then disengage clips A. (FIGURE K) CLIP B CLIP A c.
- Page 6 HOOD SAFETY SWITCH MOUNTING 1. Using (2) supplied 1/4” self drilling screws and (2) supplied lock washers, secure the hood safety switch to the drivers side of the vehicle’s hood 62 mm above the top of the hood mounting bracket and 62 mm from the side edge of the hood.
- Page 7 HOOD SAFETY SWITCH MOUNTING, continued 4. Using fish wire, pull the hood safety switch wiring and tach wire through the main wire harness grommet: a. From inside of the vehicle, bend approximately three (3) inches of tach wire at wire end. b.
- Page 8 HOOD SAFETY SWITCH WIRE CONNECTIONS 1. Locate the BLACK/ORANGE and GRAY/RED wires from the remote start system harness. 2. Using the (2) supplied IDC wire taps (in hood safety switch parts bag), connect the wires listed below together and crimp the IDC wire taps in place using pliers. Ensure that a complete and secure connection is made.
- Page 9 IMMOBILIZER INTERFACE RIBBON CABLE MOUNTING 1. Route the immobilizer interface ribbon cable to the ignition switch. 2. Following the instructions on the supplied adhesive primer stick, apply a thin coating to the entire immobilizer antenna coil (black plastic ring around ignition switch and to the ribbon cable. (FIGURE W) 3.
- Page 10 WIRE HARNESS CONNECTIONS - STEERING COLUMN IGNITION SWITCH CONNECTOR 1. Route the remote start ignition harness with 6-pin male and fe- male ignition connectors over the factory harness, along the left side of the steering column. Do not secure harness at this time.
- Page 11 WIRE HARNESS CONNECTIONS - STEERING COLUMN, continued KEY-IN-SENSE & PUSH WIRE ROUTING 1. Route the remote start harness Red/Black and White/Green wires Yellow Shielded along with the immobilizer interface ribbon cable between the Harness vehicle’s yellow shielded harness and steering column harness Wire Tie to protect the wires from any potential damage from the steering Wire Tie...
- Page 12 WIRE HARNESS CONNECTIONS - STEERING COLUMN, continued PUSH-WIRE CONNECTION (Smart-Key equipped vehicles only) NOTE: If performing the installation on a Retractable Key equipped vehicle, tape off the Remote Start Harness White/Green wire (This wire is not used on this vehicle). FIGURE JJ 1.
- Page 13 WIRE HARNESS CONNECTIONS - BRAKE SWITCH BRAKE SWITCH CONNECTION 1. Locate the 4-pin WHITE brake switch connector at the top of the brake pedal. (FIGURE MM) 2. Using a razor knife carefully cut back 1”-2” of the electrical tape to expose the wiring.
- Page 14 WIRE HARNESS CONNECTIONS - DRIVER’S KICK PANEL, continued DOOR UNLOCK CONNECTION 1. Locate the 30-pin WHITE connector at the Body Control Mod- ule mounted in the left kick panel area. (FIGURE QQ) 2. Using a razor knife carefully cut back 1”-2” of the electrical tape to expose the wiring.
- Page 15 WIRE HARNESS CONNECTIONS - ENGINE COMPARTMENT TACHOMETER CONNECTION 1. Locate the lower 60-pin WHITE connector at the Powertrain Control Module mounted to the backside of the driver’s side strut tower in the engine compartment. (FIGURE UU) 2. Using a razor knife carefully cut back 1”-2” of the electrical tape to expose the wiring.
- Page 16 RE-ASSEMBLY 1. Re-install the following components: a. Plug the ignition key light back into the lower steering column cover (Retractable Key equipped vehicles only) and carefully snap the steering column cover halves back together. (FIGURE XX) b. Re-install the (3) phillips head screws. Verify operation of the tilt steering wheel.
- Page 17 SYSTEM POWER-UP 1. Verify that all connections are secure as per installation instructions. 2. Ensure 15 amp Room fuse is properly installed in dash fuse panel. 3. Turn the ignition key to the RUN position. 4. Reconnect the negative battery terminal. 5.
- Page 18 IMMOBILIZER INTERFACE PROGRAMMING NOTE: IF YOU DID NOT PROGRAM THE TACHOMETER SIGNAL AS INSTRUCTED IN SECTION 17, THEN THE VEHICLE WILL NOT ATTEMPT TO START. INSTEAD, YOU WILL GET FOUR ADDITIONAL BEEPS FROM THE HORN. THE TACHOMETER SIGNAL MUST BE PROGRAMMED TO THE DNA CARD FOR THE REMOTE ENGINE START FUNCTION TO OPERATE.
- Page 19 FUNCTION TEST Car Find 1. Press and hold START button - Horn should beep six times and parking lights should flash six times. Remote Engine Start Functions 1. REMOTE ENGINE START - Make sure the key is removed from the ignition switch and the engine hood is closed.
- Page 20 TROUBLESHOOTING GUIDE 1. Horn honks 4 times & vehicle does not remote start - No tachometer signal learned to DNA card. a. Ensure good connection and correct vehicle wire at PCM in engine compartment (See Section 12). b. Re-program tachometer signal (See Section 17). 2.
- Page 21 FINALIZING THE INSTALLATION 1. NOTE: After reassembling the vehicle parts, check for any dirt. Clean any dirty parts. 2. NOTE: After completing the installation, refer to the vehicle Owner’s Manual for instructions on how to reset the clock and preset radio stations. CAUTION: Disconnecting the battery causes the DSC indicator light to become inoperable.
- Page 22 Hood Safety Switch Kit Service Part 0000-8F-H05A Mazda Immobilizer Interface Service Part 0000-8F-M21 Mazda CX-7 DNA Card Software Service Part 0000-8F-M41 Mazda CX-7 Remote Start Wire Harness Service Part 0000-8F-Z01 Remote Start Control Module Service Part 0000-8F-Z02 Mazda 1-Button Remote Start Transmitter Service Part 0000-8F-Z03...
- Page 23 4280246 Rev. B 11/10...
