MiniGuard IID
TM

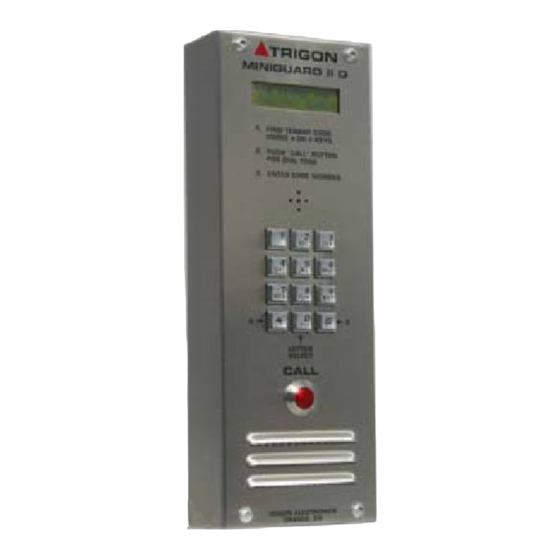

Multi-Number Handsfree Telephone Entry System
INSTALLATION
and
PROGRAMMING INSTRUCTIONS
255 Glider Circle • Corona, CA 92880
(951) 371-1730• Facsimile (951) 371-2592
www.TrigonElectronics.com
October 28, 2004

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MiniGuard IID and is the answer not in the manual?

Questions and answers

STEVE SOBHRAJ
February 27, 2025

Good morning Tech Support . How do i add a resident code to the icm system , the icm system lost the few resident code .

User image 67c07c9a46f9e

Subscribe to Our Youtube Channel

Summary of Contents for Trigon Electronics MiniGuard IID

  • Page 1 MiniGuard IID Multi-Number Handsfree Telephone Entry System INSTALLATION PROGRAMMING INSTRUCTIONS 255 Glider Circle • Corona, CA 92880 (951) 371-1730• Facsimile (951) 371-2592 www.TrigonElectronics.com October 28, 2004...
  • Page 2: Table Of Contents

    Miniguard IID TABLE OF CONTENTS TABLE OF CONTENTS TABLE OF CONTENTS TABLE OF CONTENTS TABLE OF CONTENTS INTRODUCTION ..................PRODUCT OVERVIEW ................MOUNTING ....................WIRING ..................... WIRING DIAGRAM ................PROGRAMMING Enter Program Mode Locally ..............Enter program Mode Remotely ...............
  • Page 3: Introduction

    Voice Gr ade 24 to 48V 18AWG up to 250' 22 AWG; Shielded The Miniguard IID has a capacity of up to 400 telephone 16AWG up to 500' or Twisted,2 Conductor numbers and up to 400 personal entry codes, and is Analog Port compatible.
  • Page 4: Mounting

    Miniguard IID MOUNTING MOUNTING MOUNTING MOUNTING MOUNTING Arrangements must be made for the installation of a standard voice-grade telephone line (touch-tone or 4.04" rotary, telco or Analog Port), as close to the unit mounting location as possible. The telephone company may require the following information.
  • Page 5: Wiring Diagram

    5 Amp MAX Keypad KEYPAD CONNECTION DB-9 RS-232 Printer Computer ALARM SHUNT 1/4 Amp RELAY; Busy CARD READER MICROPROCESSOR MICROPHONE (Miniguard IID) MEMORY SPEAKER (Miniguard IID) AUDIO MOUTH Microphone SPEAKER Sensitivity PRIMARY EARPHONE Adjustment RELAY VOLUME 5 Amp MAX EARTH GROUND...
  • Page 6: Enter Program Mode Locally

    Note: Adding TWO to the Dial Mode selection allows 2. Enter "#, 0". This tells the unit that you want to the keypad of the Miniguard IID to remain active for run SETUP. No beeps will be heard. use with voice-mail/automated attendant systems, after (D) Enter Resident Code Length: the initial call is placed and answered.
  • Page 7: Programming After Set-Up

    You will hear two beeps, indicating the number has been (B) Adding Telephone Numbers: recorded in the Miniguard IID’s memory. 1. Unit must be in Program Mode (see section A). Repeat steps 2 and 3 until you are finished.
  • Page 8: Entering Access Cards

    Identification Code makes it possible for the party possible for the user to use an access card at the unit and receiving a call from a Miniguard IID to identify which gain entry. Each card entered is converted to a standard “gate”...
  • Page 9: Programming Output Relay #1 "On" Time

    Note: Day entries must be 2 digits (start and end day). This procedure allows selective or complete deletion of all data in the Miniguard IID’s memory. Also, it is Note: To program the relay to operate only one day a possible to reset the Miniguard IID back to its factory week, enter the digit for that day twice (“6 6”...
  • Page 10: Editing The Electronic Display

    Editing the Electronic Display Editing the Electronic Display Editing the Electronic Display Editing the Electronic Display (O) Editing the Miniguard IID from the units keypad. Character Table For remote editing, see Remote Editing of Display on page 11. Space 11 All telephone numbers and entrance codes must be &...
  • Page 11: Remote Editing Of Display

    REMOTE EDITING OF DISPLAY General: Character Table These instructions cover the steps necessary to remotely program and edit the directory of the Miniguard IID. The process follows the instructions outlined earlier in the PROGRAMMING Section, with a few exceptions as stated below.
  • Page 12: Operation

    Refer to the SETUP section in this manual. To latch (hold close) a relay, place a Latch secondary device (camera etc.) telephone call to the Miniguard IID. The Miniguard Unlatch secondary IID will auto-answer and you will hear a brief tone in device (camera etc.) the speaker.
  • Page 13: Remote Operation Time-Out

    Printer Operation: (Optional) If you call the unit to operate it remotely, you have 30 The Miniguard IID can support an audit log output to a seconds until auto-termination. Any tone instruction remote serial printer up to 300 feet away.
  • Page 14: Trouble Shooting

    Miniguard IID TROUBLE SHOOTING GUIDE TROUBLE SHOOTING GUIDE TROUBLE SHOOTING GUIDE TROUBLE SHOOTING GUIDE TROUBLE SHOOTING GUIDE NO DIAL TONE LOSES MEMORY 1. Check (check fuse) input power at unit. Should be 1. Electrical noise on power line. Install EMI/RFI 12 VAC.
  • Page 15 Miniguard IID Program Phone Number(s): [ 6] Verify Tamper Code (rrrr ) ( = not Press [{rrrr nnn nnnn #}] set) [ 7] Verify Program Access Code (pppp ) Add Entry Code: [ 8] Verify Site ID Code (iiii ,...
  • Page 16: Specifications

    Miniguard IID Specifications Design- Hands free speaker telephone with inter- nal auto dial capability and remote control of relays. Capacity - 24, 50, 125, or 200 residents. Capac- ity includes 1 to 4 digit directory code, 4 digit direct entry code, 16 character name, and up to 12 digit telephone number for each resident.
  • Page 17 Miniguard IID Page 17...
