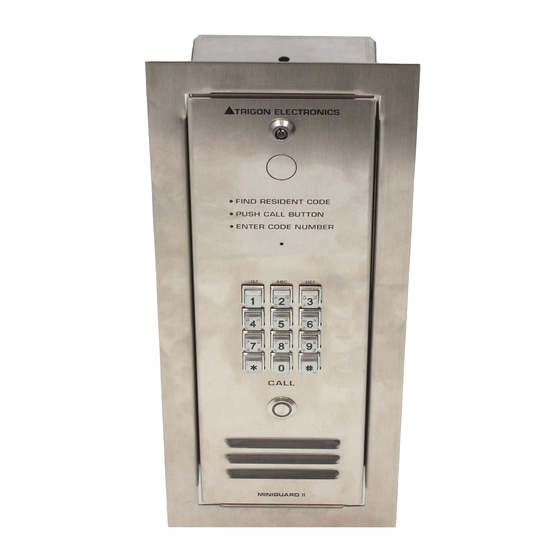

- Page 1 Uni-2010 Quickstart Keypad Programming Guide July 2010 Revision 1.1 Miniguard II Miniguard IID Miniguard 4D Miniguard 100B Miniguard 100BD Minipak Minipak WG Minipak 2000 Minipak Pro www.TrigonElectronics.com 100% Made in Corona, CA...
-
Page 2: Table Of Contents
Page 2 Table of Contents To Access Programming Mode— — — — — — — — — — — — - Page 2 Changing Program access code— — — — — — — — — — - Page 2 Operational Enable TED on/off— — — — — — — — — — Page 3 Dialer mode—... -
Page 3: Operational Enable Ted On/Off
Page 3 Trigon Electronic Doorman (T.E.D.) The Trigon Electronic Doorman (patent pending) is a telephone entry unit that allows the resident to determine the name or business of the visitor without actually talking to the visitor. The door unit, through a sophisticated combina- tion of microprocessors and voice processors becomes a virtual doorman intermediary between the visitor and the resident as follows: ... -
Page 4: Dialer Mode
Page 4 Options are: n=0 Push Button Mode, No Dial Looping, No TED n=1 Handset Mode, No Dial Looping, No TED n=2 Push Button Mode, Yes Dial Looping, No TED n=3 Handset Mode, Yes Dial Looping, No TED n=4 Push Button Mode, No Dial Looping, Yes TED n=5 Handset Mode, No Dial Looping,... -
Page 5: New Resident With Phone Number
Page 5 Creating a New Resident with a Phone Number Assignment Format: #0 123*5551212# (Beep-Beep) Programming Number Separator Programming terminator Resident telephone number Resident Code Where: #0 is the command to Create or Modify a Resident's data. 123 defines the Resident's Code. (This is the Code a Visitor dials to call a Resident) The * key separates the Resident Code from their Home Phone Number. -
Page 6: Basic Text Editing
Page 6 Basic Text Editing This page describes the method for Entering Text, such as people's names, into the units database for Directory, Visitor Greeting or Custom Prompts. Note: For those that have programmed previous Trigon Products, this new method replaces the old method of entering text information! The "*"... -
Page 7: Creating Entry Codes
Page 7 Entry Codes assigned to Specific Residents New! Entry Codes are now mixed variable length of 1 to 6 digits per. Enter: #1 123**2468# Assigns Resident 123's 1st Blank Position with Entry Code of 2468. Programming number Separators Programming Terminator Entry Code Resident Code New! Multiple Entry Codes and Card Codes are allowed per Resident on special request. -
Page 8: Programming System Clock
Page 8 Detail Programming System Clock This unit employs an accurate digital clock that includes Year, Month, Date and Day of the week. As per ISO-8601 standards, the 1st day of the week is Monday. This plays a key roll if you have time zone restrictions enabled, as one can then restrict ac- cess based on the day of the week. -
Page 9: Reset Tone Functions
Page 9 Detail Programming Tone Functions This unit has a new feature that allows you to decide what touch tones are used to perform different functions. For example, all our previous units granted access using tone zero "0" issued from the resident or security desk when they received a call from the unit. -
Page 10: Default Door Settings For Resident
Page 10 Why disable a function? Some folks have Caller ID and may see the source phone number of the line the unit is attached to. They may call the unit. They may latch a gate open. So put a Seven everywhere that you want a function disabled. A better option is to specify that the line attached to the unit has "Caller Id Blocked"... -
Page 11: Wiring Instructions
Page 11... -
Page 12: Complete Programming Overview
Page 12 Complete List of Program Codes and Manual Page Numbers Play recorded message n where n = 1 to 8. (Page-30) Record message n where n = 1 to 8. Max = 14 seconds per message. (Page-30) Delete message n where n = 1 to 8. (Page-30) 1nnnn Set site ID code.
Need help?
Do you have a question about the Miniguard IID and is the answer not in the manual?
Questions and answers
Tenant says her buzzer no longer works. No simular complaints. Troubleshooting steps?
If the Trigon Electronics Miniguard IID buzzer is not working, follow these troubleshooting steps:
1. Check Phone Line Voltage: Verify voltages across terminals—should be 48–52 VDC (on hook) and 6–12 VDC (off hook).
2. Check Phone Number Dialing: Make sure the tenant is pressing the correct number on their phone.
3. Wiring Issues: Ensure the strike or gate operator is wired correctly.
4. Power Supply: Confirm there is correct and sufficient power to the strike or gate operator.
5. Wire Size: If the system is current starved, increase the wire size.
6. Tone Duration: The tone may be too brief, especially with cordless phones.
7. Volume Adjustment: Check and adjust the volume setting on the PC board.
8. Handset Connections: Verify proper connections between the handset and the PCB.
9. Clean Contacts: Ensure all contacts and wires are clean and tightly connected.
