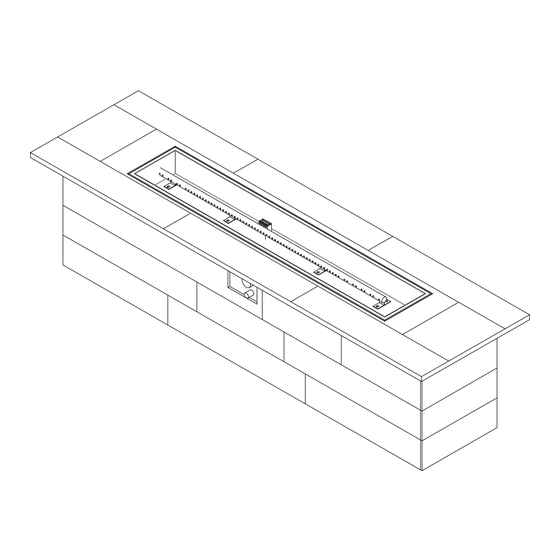

BOND MANUFACTURING BH7001-4 Owner's Manual
Hide thumbs Also See for BH7001-4:

Advertisement

READ BEFORE USE!
USE PROPANE GAS ONLY!
-Do not store or use gasoline or other
flammable vapors in the vicinity of this or any other
appliance.
- Service must be performed by a qualified installer, service
agency or the gas supplier.

WARNING

For use with cylinders marked PROPANE only. DO NOT
connect to a remote gas supply.
If the fire table is stored indoors, detach and leave
propane cylinder outdoors.
Design certified under ANSI Z21.97 • CSA 2.41-(2012)
Requirements for Outdoor Gas Fireplaces
OWNER'S MANUAL
Factory No.: BH70 0 1-4
1
WARNING
For Outdoor Use Only! Use Propane Gas Only !
Propane cylinders sold separately.
WARNING
Improper installation, adjustment, alteration, service
or maintenance can cause injury or property damage.
Read the owner's manual thoroughly before installing
or servicing this equipment. If the information in this
manual is not followed exactly, a fire or explosion
may result causing property damage, personal injury
or loss of life.
WARNING
The propane cylinder must be disconnected when
this fire table is not use.
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the appliance and
immediately call your gas supplier or fire department.
WARNING
This fire table must be attended at all times!
WARNING
An LP-cylinder not connected for use shall not be stored
in the vicinity of this or any other appliance.
Item No.:66696

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BH7001-4 and is the answer not in the manual?

Questions and answers

Summary of Contents for BOND MANUFACTURING BH7001-4

  • Page 1 OWNER'S MANUAL Factory No.: BH70 0 1-4 Item No.:66696 READ BEFORE USE! WARNING For Outdoor Use Only! Use Propane Gas Only ! Propane cylinders sold separately. WARNING Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Read the owner's manual thoroughly before installing or servicing this equipment.
  • Page 2 DANGER Failure to follow the Dangers, Warnings and Cautions contained in this Owner’s Manual may result in serious bodily injury or death, or in a fire or an explosion causing damage to property. WARNING *Do not use this fire table for cooking. *Remove the PVC cover from the fire table before opening the appliance.
  • Page 3 • The LP-gas supply cylinder must be disconnected when this appliance is not in use. • Only cylinder marked “propane” shall be used. Caution: Only use the pressure regulator and hose assembly supplied with this fire table. Replacement pressure regulator and hose assemblies must be specified or supplied by BOND MANUFACTURING CO.
  • Page 4 Inspect the hose before each use of the appliance. If the hose shows signs of cracks, abrasions, cuts or damage of any kind, do not operate the appliance. Fix or replace the hose as required before using the appliance. For assistance with repair or replacement of the hose, call Bond Manufacturing at 1-866-771-2663. Use only replacement parts from the manufacturer. WARNING ! * Do not light or use gas unit if pumice stone are wet.
  • Page 5 ITEM SPECIFICATION ITEM SPECIFICATION M6X8 screws Body M6 nuts Tank seat Ø12 washer Burner Adjustable foot Fire bowl Pilot Ignition pin Thermocouple Corrugated pipe Injector Gas valve Control knob Pulse ignition Regulator Guard Grounding wire...
  • Page 6 ASSEMBLY INSTRUCTIONS * Please keep these owner's manual for future reference. *If you have opened the carton and removed all packages, please disregard the STEP 1 and 2. See the STEP 3 directly. STEP 1. (1) Open the carton and turn it upside down, make sure the 4 STEP 2.
  • Page 7 See WARNING and Figures: WARNING This screen must be clear and free of obstructions at all times to insure proper operation. Perform leak test in a well-ventilated area outside and where no source of spark can occur. Remove battery from igniter. Open tank valve fully (counter-clockwise). Turn the on/off valve at the unit to the “OFF” position to pressurize the hose assembly.
  • Page 8 PLEASE CALL BOND TOLL FREE # 1-866-771-BOND(2663) OR TO BETTER EXPEDITE YOUR REQUEST FEEL FREE TO EMAIL US customer.service@bondmfg.com OR LOG IN TO OUR WEBSITE UNDER CUSTOMER SERVICE SUPPORT www.bondmfg.com BOND MANUFACTURING CO. 1700 West 4th Street Antioch, CA 94509 USA...
