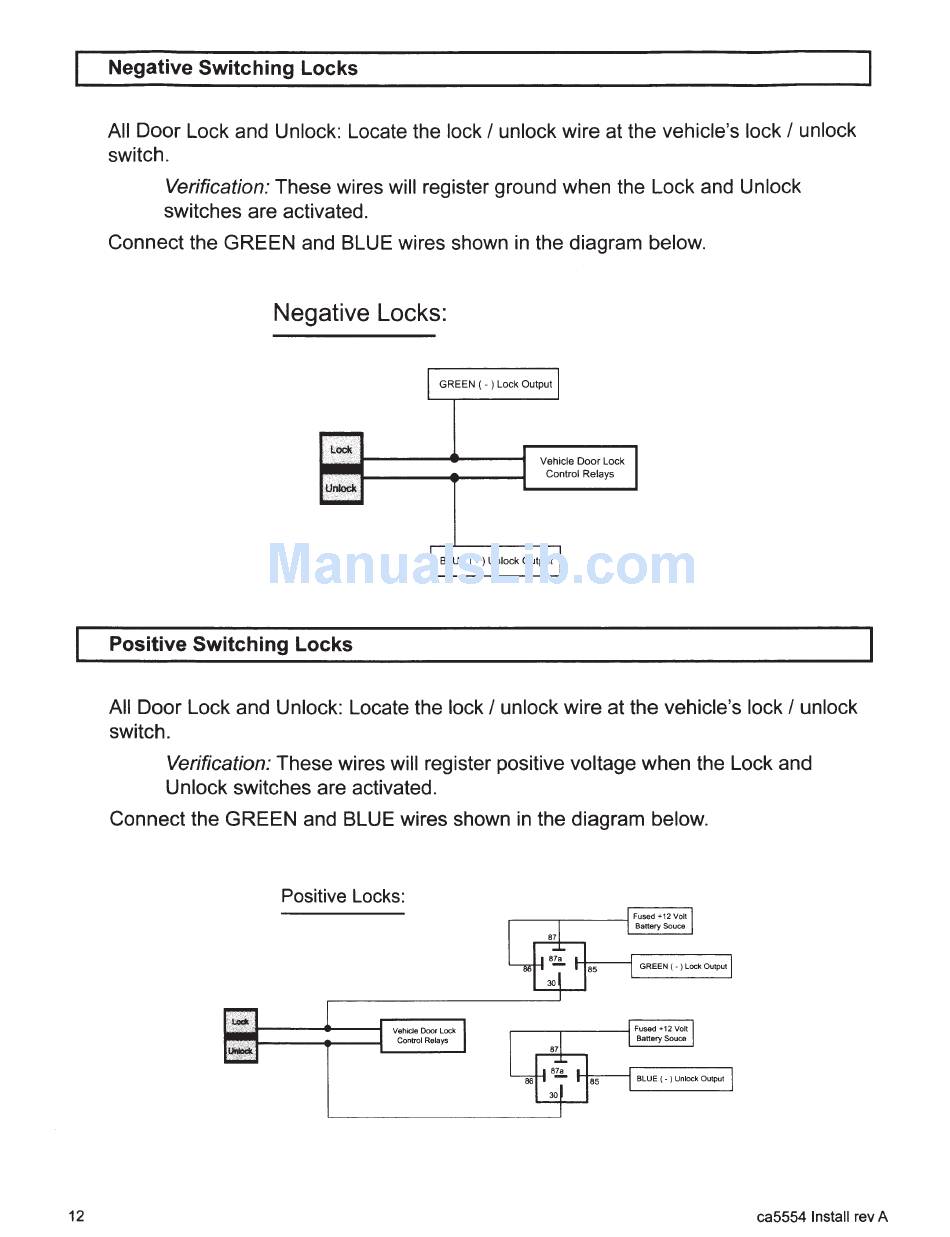

Negative Switching Locks

All Door Lock and Unlock: Locate the lock I unlock wire at the vehicle's lock I unlock

switch.

Verification: These wires will register ground when the Lock and Unlock

switches are activated.

Connect the GREEN and BLUE wires shown in the diagram below.

Negative Locks:

Positive Switching Locks

GREEN ( - ) Lock Output

Vehicle Door Lock

Control Relays

BLUE ( - ) Unlock Output

All Door Lock and Unlock: Locate the lock I unlock wire at the vehicle's lock I unlock

switch.

Verification: These wires will register positive voltage when the Lock and

Unlock switches are activated.

Connect the GREEN and BLUE wires shown in the diagram below.

Positive Locks:

ca5554 Install rev A
