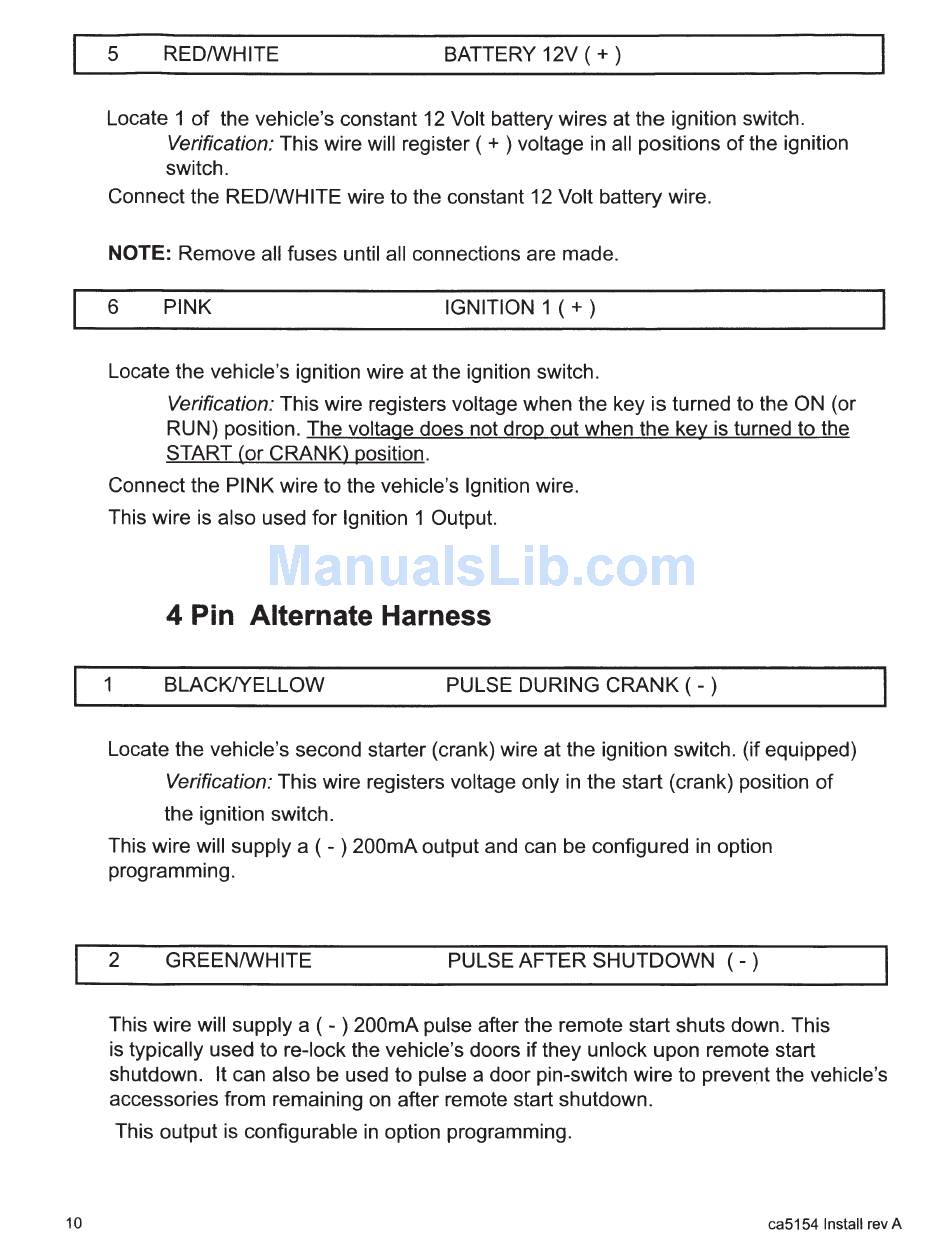

10
5
RED/WHITE BATTERY 12V ( +)
Locate 1 of the vehicle's constant 12 Volt battery wires at the ignition switch.
Verification: This wire will register (
+ )
voltage in all positions of the ignition
switch.
Connect the RED/WHITE wire to the constant 12 Volt battery wire.
NOTE: Remove all fuses until all connections are made.
6 PINK
IGNITION 1 (
+ )
Locate the vehicle's ignition wire at the ignition switch.
Verification: This wire registers voltage when the key is turned to the ON (or
RUN) position. The voltage does not drop out when the key is turned to the
START (or CRANK) position.
Connect the PINK wire to the vehicle's Ignition wire.
This wire is also used for Ignition 1 Output.
4 Pin Alternate Harness
1 BLACK/YELLOW PULSE DURING CRANK ( - )
Locate the vehicle's second starter (crank) wire at the ignition switch. (if equipped)
Verification: This wire registers voltage only in the start (crank) position of
the ignition switch.
This wire will supply a ( - ) 200mA output and can be configured in option
programming.
2 GREEN/WHITE PULSE AFTER SHUTDOWN ( - )
This wire will supply a ( - ) 200mA pulse after the remote start shuts down. This
is typically used to re-lock the vehicle's doors if they unlock upon remote start
shutdown. It can also be used to pulse a door pin-switch wire to prevent the vehicle's
accessories from remaining on after remote start shutdown.
This output is configurable in option programming.
ca5154 Install rev A
