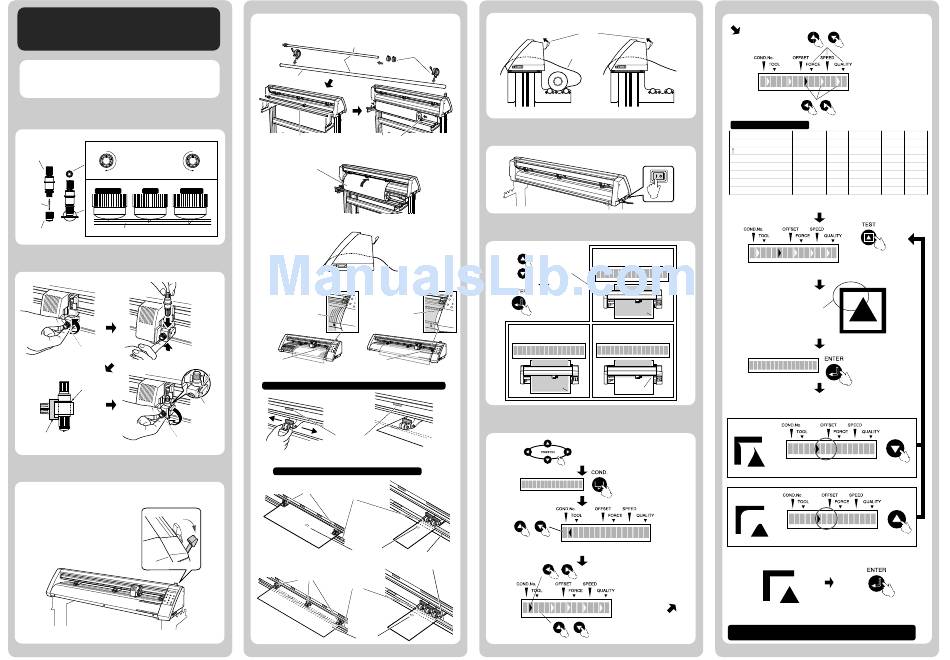

CE5000 SERIES
OPERATION MANUAL
Caution
To avoid bodily injury, always handle
the cutter blade with caution.
1
Preparing the cutter blade and the
cutter pen plunger
Adjusting the cutter blade length
Cutter pen plunger
Extend the blade
Extract the blade
Guide of the cutter blade length
Too short
Right
Too long
Cutter blade
the media with backing sheet
Insert the cutter blade
2
Mounting the cutter pen plunger
Mount
Loosen
Flange
Pen bracket
Pen bracket
Tighten
3
Loading the media
1. Lower the set lever
2. Setting the roll media stand
for CE5000-60
Stock shaft
for CE5000-120
Insert the stoppers into both end of the core.
Set the shaft
3-1. Pull out the roll media and pass through the CE5000
(in case of roll media)
Pull out the roll media
3-2. Pass the sheet media through the CE5000
(in case of sheet media)
4. Align the media with the CE5000
CE5000-120
CE5000-60
Align the media
Align the media to
to the scale
the guide line
Media sensor
Media sensor
Flange
5. Adjust the push roller position
Adjust the position of the push rollers to the push roller position guide mark
Push roller position
guide mark
The media cannot be fed if the
Move the push rollers while
push roller position is not
the lever is in the low position.
adjusted to the mark.
Make sure to position the media so it covers the media sensor.
CE5000-60
Push roller
Grit roller
Media sensor
CE5000-120
Push roller
Grit roller
Media sensor
6. Adjusting the media
Provide slack
Stopper
in the media
Fit in
Roll media
4
Turn on the cutting plotter
5
Select the media mode
Select media mode
using arrow keys.
Press the ENTER key
to start media size
detection.
When using a roll media and
setting the origin point to the top
of media.
R L L
O
1 P R E S S E N T R
Origin point
6
Setting the cutting conditions
1 P E N
2 1
0 3 2
Select the setting
condition number.
2 0 9 U
If you wish to use the 09U as a standard accessory, the default setting condition is
saved in the condition number 2.
If loading narrow media,
position both push rollers
above the longest grit roller.
1 0 9 U
0
Raise
Sheet media
A rough guide of the setting
Material
Outdoor vinyl
(for small size character cutting)
Press the "|"
side of its power
Film for decoration
switch
Transparent/translucent film
Reflection film
Fluorescent film
Fluorescent film
Adjust the cutting force so that the cutting trace lightly appears on the
media liner.
1 0 9 U
When using a sheet media.
Caution: Be sure to keep your hands, hair, and face away from
S E H E T P R E S S E N T R
the moving parts.
Check the corners of the triangle.
Origin point
When using a roll media and
setting the origin point to the
current setting position.
R L L
O
2 P R E S S E N T R
Origin point
Move the cursor to adjust the offset value, repeat the adjustment
until the result becomes proper.
Too much
Move the cutter pen to the position where you
wish to initiate the test.
Press the COND. key.
Too little
0
4 1
0 3 2
Proper
Move the cursor
4 1
0 3 2
Corners are cut properly.
Select a blade
If the ENTER key is pressed, then the setting conditions are stored
into the memory.
Set FORCE, SPEED and
1 0 9 U
0
4 1
0 3 2
QUALITY with reference to
the table below.
Move the cursor
Thickness(mm) Blade
Cutting force
Speed
Quality
0.05 to 0.08 CB09UA
10-14
1-30
2
0.05 to 0.08 CB15UB
10-14
1-20
1
0.08 to 0.1
CB09UA
14-17
1-30
2
0.08 to 0.1
CB09UA
14-20
1-30
2
0.08 to 0.1
CB09UA
14-20
1-30
2
0.20 to 0.25 CB09UA
20-21
1-20
1
0.20 to 0.25
CB15U
20-21
1-20
1
0 3 2
0
4 1
Press the TEST key
P R
E
S S E
N T
E
R K E Y
Press the ENTER key
1 0 9 U
-
1
0 3 2
4 1
In this case, increase the offset value.
1 0 9 U
0 3 2
+
1
4 1
In this case, increase the offset value.
Press the ENTER key to finish.
