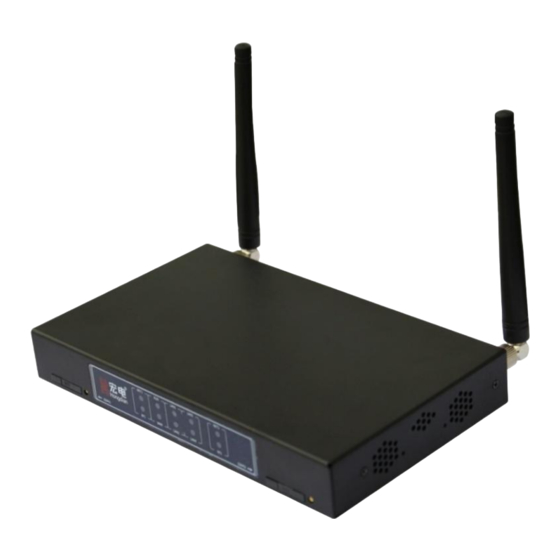

Shenzhen Hongdian Technologies H8922 User Manual

Lte router
Hide thumbs Also See for H8922:
Table of Contents

Advertisement

Quick Links

See also: User Manual

User Manual

H8922 LTE Router

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H8922 and is the answer not in the manual?

Questions and answers

Related Manuals for Shenzhen Hongdian Technologies H8922

Summary of Contents for Shenzhen Hongdian Technologies H8922

  • Page 1: User Manual

    User Manual H8922 LTE Router...
  • Page 3 Trademarks and Permissions and DTU are the trademarks and logos of Shenzhen Hongdian Technologies Corporation. Other trademarks and logos mentioned in this manual belong to other organizations related. Shenzhen Hongdian Technologies Corporation does not own the rights of other trademarks and logos.

  • Page 4: About This Document

    About This Document Purpose H8922 LTE Router is designed and manufactured by Hongdian, it based on 3G/LTE cellular network technology, industrial class quality. With its embedded cellular module, it widely used in multiple case like ATM connection, remote office security connection, data collection.

  • Page 5: Command Conventions

    H8922 4G Router Content Conventions Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a potentially hazardous situation, which if not avoided, could result in equipment damage, data loss, performance degradation, or unexpected results.

  • Page 6: Keyboard Operations

    H8922 4G Router GUI Conventions Convention Description Boldface Buttons, menus, parameters, tabs, window, and dialog titles are in boldface. For example, click OK. > Multi-level menus are in boldface and separated by the ">" signs. For example, choose File > Create > Folder.

  • Page 7: Table Of Contents

    2.1 Hardware ............................... 2-4 2.1.1 Appearance & Size ..........................2-4 2.1.2 Accessories ............................2-7 2.2 Structure ................................ 2-8 3 Installation of H8922 LTE Router ................... 3-9 3.1 Unpacking ..............................3-9 3.2 How to install ..............................3-9 3.2.1 SIM/UIM card install ........................... 3-9 3.2.2 Ethernet cable connection ........................
  • Page 8 H8922 4G Router 5.3.6 Wake up configuration ........................5-26 5.3.7 DTU configuration (DTU version) ....................5-29 5.3.8 GPS configuration (GPS version) ...................... 5-31 5.4 Security ............................... 5-32 5.4.1 Overview ............................5-32 5.4.2 configuration ............................5-32 5.5 Forward configuration ..........................5-38 5.5.1 Overview ............................
  • Page 9 H8922 4G Router Content 7.1.4 Antenna Connection ..........................7-2 7.2 Dial Online Problem............................7-3 7.2.1 Dial discontinue ........................... 7-3 7.2.2 No Signal ............................. 7-3 7.2.3 Cannot find SIM/UIM card ........................7-3 7.2.4 Poor Signal ............................7-4 7.2.5 Compress Protocol not match ......................7-4 7.3 VPN Problem ..............................
  • Page 10 H8922 4G Router Table Content Table 2-1 H8922 LTE Router size ........................2-5 Table 2-2 H8922 LTE Router accessories ......................2-7 Table 4-1 LED instruction ........................... 4-1 Table 5-1 LAN Parameter instruction ......................... 5-3 Table 5-2 WAN connection type parameter instruction ..................5-4 Table 5-3 “Modem”...
  • Page 11 H8922 4G Router Content Table 5-28 Clock Parameter instruction ......................5-56 Table 5-29 Account parameter instruction ......................5-58 Table 5-30 Network Test Parameter instruction ....................5-59 Table 5-31 Base information Parameter instruction ..................5-67 Table 5-32 LAN Parameter instruction ......................5-68 Table 5-33 WAN Parameter instruction ......................
  • Page 13 Figure 1-1 Network structure ..........................1-2 Figure 2-1 H8922 LTE Router Appearance ......................2-4 Figure 2-2 H8922 LTE Router Figure ........................ 2-6 Figure 2-3 H8922 LTE Router bottom view ....................... 2-7 Figure 2-1 Front pannel ............................2-8 Figure 2-2 Back pannel ............................2-8 Figure 3-1 Pop out SIM slot ..........................
  • Page 14 H8922 4G Router Figure 5-17 M2M configuration ........................5-23 Figure 5-18 Timing configuration ........................5-24 Figure 5-19 To add timing task ......................... 5-25 Figure 5-20 Wake up configuration ........................5-27 Figure 5-21 DTU configuration ........................5-29 Figure 5-22 GPS configuration ......................... 5-31 Figure 5-23 IP Filter tab ...........................
  • Page 15 H8922 4G Router Figure 5-55 Factory setting page ........................5-64 Figure 5-56 Patch operation ..........................5-65 Figure 5-57 reboot ............................5-66 Figure 5-58 Base Information tab ........................5-67 Figure 5-59 “LAN” info ........................... 5-67 Figure 5-60 Static IP WAN status ........................5-68 Figure 5-61 DHCP WAN status ........................

  • Page 17: Product Introduce

    SIM, single module dual SIM, dual module dual SIM mode. The unique feature of H8922 LTE Router is network online & backup among WAN, WLAN, 3G/LTE network. This feature makes H8922 could maximum the network availability, reduce the possibility of network failure, to avoid the loss caused by network error.

  • Page 18: Product Positioning

    H8922 LTE Router widely used in Telecon, economic, advertisement, traffic, environment protection business area. For example, in economic area, H8922 LTE Router connect server by IPSec & GRE to ensure data security, and dual module online or dual module switch online ensured network availability.

  • Page 19: Specification

    H8922 4G Router 1 Product Introduce  Local & remote firmware update  Local & remote log check  Supports DNS proxy and Dynamic DNS (DDNS)  Supports timing operation  Supports LED status indication Available cellular network  LTE 800/900/1800/2100/2600MHz...

  • Page 20: Product Structure

    2 Product structure H8922 4G Router Product structure About this chapter Chapter Content 2.1 Hardware H8922 LTE Router hardware. 2.2 Structure Structure of H8922 LTE Router. 2.1 Hardware 2.1.1 Appearance & Size Appearance Figure 2-1 H8922 LTE Router Appearance 2 -4 (2012-09-14)
  • Page 21 Router 1×10/100Mb WAN interface 1× RS-232 console port(RJ45) 2× SMA-K antenna interface 2× SMA-K antenna interface (Wi-Fi, optional) 2× Standard SIM/R-UIM interface 1× Standard DC power interface H8922 LTE Router appearance as Figure 2-2, Figure 2-3 shows (2012-09-14) 2 -5...
  • Page 22 2 Product structure H8922 4G Router Figure 2-2 H8922 LTE Router Figure 2 -6 (2012-09-14)

  • Page 23: Accessories

    H8922 4G Router 2 Product structure Figure 2-3 H8922 LTE Router bottom view 2.1.2 Accessories Table 2-2 H8922 LTE Router accessories Accessories name Number Note H8922 LTE Router 1 pcs CD-ROM 1 pcs Optional 3G/LTE antenna 1 or 2 pcs...

  • Page 24: Structure

    2 Product structure H8922 4G Router 2.2 Structure Figure 2-1 Front pannel SIM1 SIM2 Figure 2-2 Back pannel ANT1 WPS CONSOLE RESET POWER ANT2 2 -8 (2012-09-14)

  • Page 25: Installation Of H8922 Lte Router

    Power supply needs of H8922 LTE Router. 3.4 Review Review 3.1 Unpacking After received the box of H8922, please unpack it and check if all accessories complete. Please check Table 2-2 as reference. 3.2 How to install 3.2.1 SIM/UIM card install H8922 LTE Router support dual SIM/UIM carad, so you may need insert dual SIM before config it.

  • Page 26: Ethernet Cable Connection

    3.2.3 Serial port connection. When you connect H8922 LTE Router to serial port on lattop or ther deivec. To do this you need a serial port ot RJ45 cbale, this cable is optional. One end connect to computer serial...

  • Page 27: Power Supply

    Step 1 Check antenna connection. Step 2 Check SIM/UIM card installation, confirm SIM/UIM card is available. Step 3 Power on H8922 LTE Router, the LEFT SIM slot is SIM 1, take it as a example:  After connect power 14s, router RUN solid light, means router system works ok.

  • Page 29: Before Config

    The meaning of LED status. 4.2 Local config How to local config H8922 LTE Router. 4.1 LED Status There are LED on front panel of H8922 LTE Router, they show how H8922 LTE Router works. Table 4-1 LED instruction LED name Status Solid light: system normal ...

  • Page 30: Local Config

    Figure 4-1 Local Area Connection Step 2 Obtain a IP address automatically, or follow below instruction. H8922 Router default enabled DHCP server. If it has been disabled, DHCP cannot be use. Step 3 Change or add a IP 192.168.8.* on your computer...
  • Page 31 H8922 4G Router 4 Before config Figure 4-2 Connection properties Figure 4-3 Internet protocol (TCP/IP) (2012-09-14) 4 -3...
  • Page 32 IP address: 192.168.8.* (*indicates any integral between 2 to 254) Subnet mask: 255.255.255.0 Default gateway: 192.168.8.1 Remember: H8922 Router LAN port factory default parameter: IP address: 192.168.8.1; Subnet mask: 255.255.255.0 H8922 Router factory default login parameter: Management interface login IP address: 192.168.8.1...
  • Page 33 Login password: admin  Advanced configuration If you don’t want to interrupt local PC LAN communication and configure H8922 Router when the former network configuration exists, it is required add route (IP). The configuration operation is shown as below: Click the “Advanced…”button to enter the interface as below: Figure 4-4 Advanced TCP/IP Settings Click the “Add (A)”button under the “IP address (R)”, and fill in the IP address that you...
  • Page 34 Internet through original local network configuration. If Internet is accessed through original local network, the default gateway setting does not need to be modified; if H8922 Router is used, you need to modify the default gateway and configure it as H8922 Router’s default LAN IP address 192.168.8.1.
  • Page 35 Default Gateway ..: 192.168.8.1 Step 2 Connectivity check After the configuration is completed, you can check the connectivity between it and Galaxy H8922 3G Router by ping command. Key-in ping command in system command line: Figure 4-6 Connectivity check By now, it means that the configuration computer has been connected to the router.

  • Page 37: Router Config

    5.8 Status Router working status. 5.1 Overview H8922 LTE Router adopt WEB GUI to cofig, all parameter can be modified by this GUI, and it is easy to understand. 5.2 Basic config Through this chapter, you could achieve basic function: visit internet 5.2.1 Login WEB GUI...

  • Page 38: Network Config

    Network connection config, including LAN, WAN, cellular network, Wi-Fi(optional), parameter switch, DHCP setting. LAN setting used to manage local area network PC which connect to H8922, make them could visit internet and the network segment connectivity normal. Step 1 Login H8922 WEB GUI Step 2 Single click “Network >...
  • Page 39 IP to your PC to insure that. ---END Wired connect to Internet by static IP, DHCP or PPPoE Step 1 Login H8922 WEB GUI Step 2 Single click “network > WAN” Version (2012-09-14)
  • Page 40 ---END Modem H8922 Router core function, connect Internet by cellular modem, H8922 Router support single modem single SIM, single modem dual SIM, dual modem dual SIM, those three working type provide internet connection to customers. Usually 3G network bandwidth is 1～5Mbps, 3.5G up to 20Mbps and LTE up to 100Mbps...
  • Page 41 H8922 4G Router 5 Router config Figure 5-4 Modem window Step 3 Operation:  Single click “add”, window shows like below Figure 5-5 Modem page Input suiable parameter Version (2012-09-14) 5 -5...
  • Page 42 5 Router config H8922 4G Router Table 5-3 “Modem” Parameter instruction Parameter Details Operation Auto-dialup current modem, if all Enable  Auto-dialup modem auto-dialup disabled, router will Disable  not auto-dialup If your router has dual cellular module Module type...
  • Page 43 H8922 4G Router 5 Router config Parameter Details Operation Disable  Password Authentication Protocol Negotiation  Disable  MS-CHAP MS-CHAP Negotiation  MicrosoftChallenge-Handshake Authentication Protocol Based on MPPE Disable  MS2-CHAP MS-CHAP second version Negotiation  Disable  PPP Extensible Authentication Protocol Negotiation ...
  • Page 44 5 Router config H8922 4G Router Parameter Details Operation Set the local IP address when PPP Local IP A.B.C.D, dialing, need ISP support Example: 10.10.10.1 Set the remote IP address when PPP Remote IP A.B.C.D, dialing, need ISP support Example: 10.10.10.254 nomppe.
  • Page 45 H8922 4G Router 5 Router config Figure 5-6 Single module single SIM/dual module dual SIM Figure 5-7 Single module dual SIM Version (2012-09-14) 5 -9...
  • Page 46 5 Router config H8922 4G Router Figure 5-8 Advanced setting Single click “save” icon to finish. 5 -10 Version (2012-09-14)
  • Page 47 2 online it connect VPN server, they cannot connect at same time because conflict, by this function you could easily switch when network failure. Step 1 Login H8922 WEB GUI Step 2 Single click “Network > parameter select”. Figure 5-9 parameter select Step 3 Add, modify, del, enable and disable the parameter select rule ...
  • Page 48 5 Router config H8922 4G Router Figure 5-10 add rule Table 5-4 Parameter instruction Parameter Details Operation Enable  Status For enabled rule: Only one rule is Disable  running at one time, when it check failed, next rule start running.

  • Page 49: Connection Type

    But Link backup function may conflict with parameter select function , if you set both, final running result may not as you presume. ---END Connection type Step 1 Login H8922 WEB GUI Step 2 Single click “Network > Connection type”. Figure 5-11 Connection type window Version (2012-09-14)

  • Page 50: Link Backup

    There are hot backup and cold backup, hot backup means the backup link will always connected, so switch time is less, but cost extra flow fee.. Step 1 Login H8922 WEB GUI Step 2 Single click “network > Link Backup”.
  • Page 51 H8922 4G Router 5 Router config Figure 5-12 Link Backup Table 5-6 Link Backup Parameter Parameter Details Operation Enable  Status Disable  Backup Mode Hot: main and backup link both connected. DropDownList Cold: backup link only connected when cold ...

  • Page 52: Application Program Configuration

    There is fake link (can get IP after dialing, but cannot link to destination address). Usually LCP is used to avoid this. Besids LCP, H8922 4G router can use another more reliable checking way ICMP which check the link by PING. When abnormal link is checked, the preset action will be executed to recover the link and systems quickly.
  • Page 53 H8922 4G Router 5 Router config Figure 5-13 ICMP Check tab Step 3 “Add”, “Modify”, “Delete”, “Enable” “Disable” the function of “ICMP Check”.  Figure 5-14 ICMP adding page Configure the ICMP check parameter. Version (2012-09-14) 5 -17...
  • Page 54 5 Router config H8922 4G Router Table 5-7 ICMP check rules Parameter instruction Parameter Details Operation ICMP check To enable or disable ICMP check Button service rules, multiple rules can be used  Enable simultaneously, and one specific rule ...

  • Page 55: Ddns Configuration

    ---END 5.3.2 DDNS configuration Network of SIM/UIM shall be a public address so that router can be visited for a DDNS. Step 1 Log on WEB GUI of H8922 4G Router. Step 2 Click “Applications” > “DDNS” Version (2012-09-14) 5 -19...
  • Page 56 5 Router config H8922 4G Router Figure 5-15 DDNS configuration Step 3 Comfigure DDNS parameter. Table 5-8 DDNS Parameter instruction Parameter Details Operation DDNS Service Set whether enable DDNS Button service function  Enable  Disable Basic Config Service Provider...

  • Page 57: Snmp Configuration (Optional)

    SNMP （Simple Network Management Protocol） can monitor routers remotely and get to know the status of routers (to support VPN status check, MIB of our company shall be used). Step 1 Log on WEB GUI of H8922 4G Router. Step 2 Click “Applications > SNMP” to open the “SNMP” tab.

  • Page 58: M2M Configuration

    ---END 5.3.4 M2M configuration H8922 4G Router has embedded a WMMP (Wireless Machine-to-Machine Protocol) protocol to realize communication with M2M (Machine-to-Machine) platform which can remotely monitor and manage the routers and its network, e.g visit the router, patch upgrading, firmware upgrading, parameter configuration, monitor the network strenghth, time delay, flow.
  • Page 59 H8922 4G Router 5 Router config Step 1 Log on WEB GUI of H8922 4G Router. Step 2 Click “Applications > M2M” to open M2M configuration tab. Figure 5-17 M2M configuration Step 3 Configure M2M parameter . Parameter instruction is shown.

  • Page 60: Timing Configuration

    This application is to control the online time of the router to better manage network and save 3G/4G flow. H8922 can add several online period as per the user’s requirement (e.g. hours of some day). in addition, this application can support to begin some tasks at a time point (e.g redial or reboot at 00:00).
  • Page 61 H8922 4G Router 5 Router config Figure 5-19 To add timing task Step 4 Configure timing task parameter . Table 5-11 Timing task parameter instruction Parameter Details Operation Status To enable or disable a timing options task. Some task shall be ...

  • Page 62: Wake Up Configuration

    For “NPT” configuration ---END 5.3.6 Wake up configuration 3G/4G fee is mostly based on flow. H8922 4G router can get on/off line on demand. It supports on/offline or reboot triggered by voice, SMS or data. It supports max 10 cellphone Nos.
  • Page 63 H8922 4G Router 5 Router config Figure 5-20 Wake up configuration Step 3 Configure “wake up” parameter . After finish “basic setting” parameter, click “save” to save it in the flash memory. Table 5-12 Wake up Parameter instruction Parameter Details...
  • Page 64 5 Router config H8922 4G Router Parameter Details Operation  modem-up  modem2-down  modem2-up  reboot Basic setting Wake up method To configure actions triggered, it DropDownList options supports phone and data. If choose  phone/date phone, pls be sure that the SIM card ...

  • Page 65: Dtu Configuration (Dtu Version)

     It’s OK for either SIM of the two SIMs of H8922 4G Router to open SMS or voice function, no matter which slot to be installed. “Data” will trigger only actions: modem-up/modem2-up/modem-all-up ...
  • Page 66 5 Router config H8922 4G Router Step 3 Configure “DTU” parameter. Table 5-13 DTU Parameter instruction Parameter Details Operation Enable/Disable DTU service DTU Service Visit the router on web Work Mode Connection mode Select from DropDownList  Server: 3G router act as TCP/UDP server ...

  • Page 67: Gps Configuration (Gps Version)

    5.3.8 GPS configuration (GPS version) GPS is to transfer GPS data the device gets from satellite. It uses UDP protocol. Step 1 Log on WEB GUI of H8922 4G Router. Step 2 Click “Applications > GPS” to open “GPS” tab.

  • Page 68: Security

    5.4.1 Overview “Security” will control where the data can pass through by analyzing IP address and port of ICMP, TCP/IP package from the destination end or source end. H8922 4G Router supports IP filter, domain filter and MAC filter. 5.4.2 configuration...
  • Page 69 H8922 4G Router 5 Router config Step 3 Click “Add” to add a new IP filter rule and configure IP filter parameter. There are two types of IP filter: “Basic” and “Expand”. To add a rule. Figure 5-24 IP filter “Basic” type...
  • Page 70 5 Router config H8922 4G Router Figure 5-25 IP Filter “Expand” type Table 5-15 IP filter parameter instruction Parameter Details Operation To select an IP filter type, “Basic” or Select “Basic” or “Expand”. Type “Expand”.  Basic: standard IP filter, not for port.

  • Page 71: Domain Filter

    Domain filter support black list and white list. It is used to firbid PCs in LAN from visit someb websites or allow them to visit specific webistes. Step 1 Log on WEB GUI of H8922 4G Router. Step 2 Click “Secutiry > Domain Filter” to open “Domain Filter” tab.
  • Page 72 5 Router config H8922 4G Router Figure 5-26 Domain filter tab Black list: websites in the blacklist cannot be visited. Click “black list” to forbid visiting  the websites in the list.  White lis: only the websites in the whitelist can be visited, while other websites cannot be visited.

  • Page 73: Mac Filter

    H8922 4G Router 5 Router config MAC Filter Step 1 Log on WEB GUI of H8922 4G Router. Step 2 Click “Secutiry > MAC Filter” to open “MAC Filter” tab. Figure 5-28 MAC Filter tab Table 5-17 MAC Filter explanation...

  • Page 74: Forward Configuration

    Both: both Input and forward. Step 4 Single click “save” icon to finish. ---END 5.5 Forward configuration 5.5.1 Overview Forward function of H8922 4G Router includes NAT, Routing, dynamic routing (RIP, OSPF) (optioanal) and QoS (optional). 5 -38 Version (2012-09-14)

  • Page 75: Nat

    5.5.2 NAT NAT configuration rule NAT stands for Network Address Translation, DMZ for Demilitarized Zone. Step 1 Log on WEB GUI of H8922 4G Router. Step 2 Click “Forward > NAT” to open “NAT” tab. Figure 5-30 NAT tab Step 3 Click “Add” to add a new NAT rule.
  • Page 76 Step 5 Single click “save” icon to finish. ---END MASQ rule configuration MASQ is MASQUREADE Step 1 Log on WEB GUI of H8922 4G Router. Step 2 Click “Forward > NAT” to open “NAT” tab. Step 3 Click “Add” and choose “MASQ” 5 -40...

  • Page 77: Routing

    NAT is “0.0.0.0, and “Chain” is “srcnat”. It represents the source address of all packages sent from NAT internal address will be converted into interface address of router. ---END 5.5.3 Routing Step 1 Log on WEB GUI of H8922 4G Router. Step 2 Click “Forward > Routing” to open “Routing” tab. Version (2012-09-14) 5 -41...
  • Page 78 5 Router config H8922 4G Router Figure 5-33 Routing tab Step 3 Click “Add” to add a new static routing rule. Figure 5-34 Static Routing configuration 5 -42 Version (2012-09-14)
  • Page 79 H8922 4G Router 5 Router config Figure 5-35 Policy routing configuration Step 4 Configure routing parameter. Table 5-21 Routing Parameter instruction Parameter Details Operation Basic settings To select “static route” or “policy Route type Select in DropDownList route”. When select “static route” for “Route Type”...

  • Page 80: Vpn Configuration

    5.6.2 VPDN configuration VPDN stands for Virtual Private Dial-up Networks. Now VPDN supports L2TP and PPTP Step 1 Log on WEB GUI of H8922 4G Router. See “5.2.1 Login WEB GUI” Step 2 Click “VPN > VPDN” to open “VPDN” tab.
  • Page 81 H8922 4G Router 5 Router config Figure 5-36 VPDN configuration Step 3 Click “Add” to add a new VPDN rule. Figure 5-37 VPDN rule configuration Step 4 Configure VPDN rule parameter . Table 5-22 VPDN rule parameter instruction Parameter Details Operation Click “Enable”...

  • Page 82: Tunnel Configuration

    ---END 5.6.3 Tunnel configuration Tunnel supports GRE and IPIP. Step 1 Log on WEB GUI of H8922 4G Router. Step 2 Click “VPN > Tunnel” to open “Tunnel” tab. Step 3 Click “Add” to add a new tunnel. 5 -46...
  • Page 83 H8922 4G Router 5 Router config Figure 5-39 Tunnel configuration Step 4 Configure Tunnel rule parameter . Table 5-23 Tunnel rule parameter instruction Parameter Details Operation Click “Enable”. IP Tunnel To enable or disable IP tunnel Service service. Basic Settings...

  • Page 84: Ipsec Configuration

    Step 5 Single click “save” icon to finish. ---END 5.6.4 IPSec configuration Step 1 Log on WEB GUI of H8922 4G Router. Step 2 Click “VPN > IPSec” to open “IPSec” tab. Figure 5-40 IPSec tab Step 3 Click “Add” to add a new IPSec rule.
  • Page 85 H8922 4G Router 5 Router config Figure 5-41 IPSec phase 1 configuration Table 5-24 IPSec Phase 1 Parameter instruction Parameter Details Operation Basic Settings Select “Phase 1” Select To select which phase of IPSec, phase 1, phase 1 or phase IPSec...
  • Page 86 5 Router config H8922 4G Router Parameter Details Operation Authentication To select authentication Select from DropDownList, presently only “PSK” supported Pre Share Key To set pre share key Max 24 letters. Self Identify To set the self ID of IPSec To input the ID, need to match the ID of other side.
  • Page 87 H8922 4G Router 5 Router config Figure 5-42 IPSec phase 2 configuration Table 5-25 IPSec Parameter instruction Parameter Details Operation Basic Settings Select “Phase 2” Select To select which phase of IPSec, phase 1, phase 1 or phase IPSec Policy Name Name of phase 2, mainly to To input the name of phase 2.
  • Page 88 5 Router config H8922 4G Router Parameter Details Operation To open or close PFS Select from DropDownList Lifetime IPSec SA key life time Value area: 120～86400 Unit: second Transport Mode Supports tunnel, transport and Select from DropDownList auto. No need to set for “transport”...

  • Page 89: System Configuration

    “System” can let you know the status of router, firmware upgrading and other maintenance 5.7.2 Local Log Step 1 Log on WEB GUI of H8922 4G Router. Step 2 Click “System > Local Log” to open “Local Log” tab. Version (2012-09-14)

  • Page 90: Remote Log

    Kernel: kernel log of router, usually for R&D engineers. To see “local log”, “remote log” must be enabled. ---END 5.7.3 Remote Log Step 1 Log on WEB GUI of H8922 4G Router. Step 2 Click “System > Remote Log” to open “Local Log” tab. 5 -54 Version (2012-09-14)

  • Page 91: Clock

    A software tool Syslog is use to receive remote log in server. Syslog can be downloaded at website of Hongdian www.hongdian.com. ---END 5.7.4 Clock Step 1 Log on WEB GUI of H8922 4G Router. Step 2 Click “System > Clock” to open “Clock” tab. Version (2012-09-14) 5 -55...
  • Page 92 5 Router config H8922 4G Router Figure 5-46 “NPT” Time Synch. Figure 5-47 Manual Time Synch. Type Step 3 Set “clock” parameter . Table 5-28 Clock Parameter instruction Parameter Details Operation To click “Enable” or Status To enable to disable Time “Disable”.

  • Page 93: Account

    5.7.5 Account “Accout” is to change username/password, change web port and forbide other users to visitingthe router. Step 1 Log on WEB GUI of H8922 4G Router. Step 2 Click “System > Account” to open “Account” tab. Version (2012-09-14) 5 -57...
  • Page 94 5 Router config H8922 4G Router Figure 5-48 Account tab Step 3 Set account parameter . Table 5-29 Account parameter instruction Parameter Details Operation Select from DropDownList Account Type Visit the router on web Account Level Level of account to login router Select from DropDownList ...

  • Page 95: Network Test

    5.7.6 Network Test Nework Test This function includes Ping function and Trace router function. Step 1 Log on WEB GUI of H8922 4G Router. Step 2 Click “System > Network Test” to open “Network Test” tab. Figure 5-49 Network Test Tab Step 3 Input IP address or domain to be tested in “Destination”, click “Ping, to check whether the...

  • Page 96: Files

    5.7.7 Files Firmware Setting H8922 4G Router supports upgrade firmware locally Step 1 Log on WEB GUI of H8922 4G Router. Step 2 Click “System > Files” to open “Files” tab. Figure 5-50 Files tab If “reset” is selected, all paremeters will be reset to factory setting.
  • Page 97 H8922 4G Router 5 Router config CFE mode upgarding If upgrading file is larger than 6MB, CFE mode upgrading shall be used to upgrade. Step 1 Add an IP address 192.168.1. Figure 5-51 Add an IP address Step 2 Press the RESET/DEF interface. Do not release it. Hold it, meanwhile power on router, till 30 seconds,and connection to PC is built properly.

  • Page 98: Backup Setting

    Upgrading will need 4-6 miunites, if RUN light is on, upgrading is OK. You can also PING br0 address on your PC ( eg. ping 192.168.8.1 –t). if Ping ok, upgrading is OK. ---END Backup setting H8922 4G Router supports to backup and recover configuration file. 5 -62 Version (2012-09-14)

  • Page 99: Factory Setting

    8 digits for key. Factory setting H8922 4G Router has function to resume factory configuration. Users can set the configuration to factory mode, and also can set the current configuration into default configutation and generate a default factory configuration file in router. To resume this default factory setting, users can click “Load”...
  • Page 100 Figure 5-55 Factory setting page  Save: to save the current setting as default factory configuration setting.  Load: to resume default factory setting. Patch operation function H8922 4G Router support to view and delete patch. 5 -64 Version (2012-09-14)
  • Page 101 H8922 4G Router 5 Router config Figure 5-56 Patch operation  View: to view current patches.  Delete: to delete patch. reboot click “reboot” to restart the router. Version (2012-09-14) 5 -65...

  • Page 102: Status

    Figure 5-57 reboot 5.8 Status 5.8.1 Overview Status provides the basic info, network status info, router info of H8922 router. 5.8.2 Base Information Step 1 Log on WEB GUI of H8922 4G Router. Step 2 Click “Status > Base information” to open “Base Information” tab.

  • Page 103: Lan

    Router hardware version info version Software OS and application software info. version 5.8.3 LAN Step 1 Log on WEB GUI of H8922 4G Router. Step 2 Click “Status > LAN” to open “LAN” tab. Figure 5-59 “LAN” info Version (2012-09-14) 5 -67...

  • Page 104: Wan

    MAC address To shown the MAC address of the router. 5.8.4 WAN Step 1 Log on WEB GUI of H8922 4G Router. Step 2 Click “Status > WAN” to open “WAN” tab. There are three types of WAN status: static IP/DHCP/PPPOE.
  • Page 105 H8922 4G Router 5 Router config Figure 5-61 DHCP WAN status Figure 5-62 PPPoE WAN status Status Local IP Remote IP Table 5-33 WAN Parameter instruction Parameter Details Operation WAN status To show the current WAN is used or not...

  • Page 106: Modem

    To show the router IP distributed by PPPoE Remote IP To show IP of PPPoE server 5.8.5 Modem Step 1 Log on WEB GUI of H8922 4G Router. Step 2 Click “Status > Modem” to open “Modem” tab Figure 5-63 Modem Status page 5 -70...

  • Page 107: Routing Table

    To show which DNS router is using SIM Status Status of current SIM 5.8.6 Routing Table Step 1 Log on WEB GUI of H8922 4G Router. Step 2 Click “Status > Routing Table” to open “Routing Table” tab. Figure 5-64 Routing table page Version (2012-09-14)

  • Page 108: Reset Button Function

    5 Router config H8922 4G Router Table 5-35 Routing table Parameter instruction Parameter Details Operation Static route Network IP address the router can reach Subnet Mask IP network the router can reach. It is used together with “Network”. Gateway Next hop IP address which the router will reach interface Interface from router to gateway.

  • Page 109: Typical Application

    6.2 Awake function Typical case H8922 LTE Router support wake up function, means router will not auto-dial after power on, but dial triggered by data or call or SMS. Then router auto offline by idle or timeout. This funciotn could save your data traffic fee.
  • Page 110 6 Typical application H8922 4G Router Figure 6-1 Wake up/trigger setting example Effect By this setting, after router power on, if there are data trigger or you could call/SMS SIM1 or SIM2 number from 8618888888888 to tigger corresponding SIM online.ed modem will dial online, After 3600s, router will offline.

  • Page 111: Parameter Select

    6 Typical application 6.3 Parameter select Typical case H8922 Router provide parameter select function, when working modem disconnect or works abnormal, router will switch to another SIM swiftly according to the rule you set. And ensure the network availability. Parameter Select Let us check an example Please set the “Parameter select”...
  • Page 112 6 Typical application H8922 4G Router Figure 6-3 parameter select setting 1 文档版本 V1.0.1(2012-09-14) 6 -4...

  • Page 113: Vpn

    VPN, virtual private network, a technology based on Internet, now H8922 LTE Router supports L2TP/PPTP/GRE/IPIP/IPSec of VPN. L2TP used to build a virtual private network, after H8922 router connect to company NAS server, PC under H8922 could visit company network like visiting the local area network.
  • Page 114 H8922 4G Router Figure 6-5 Build IPSec PC1 connect H8922 then build IPSEC link by VPN function of H8922 with company router. I assume using IPSec tunnel mode, H8922 end local network 192.168.86.1/24, company server end 192.168.99.1/24, by IPSEC, two LAN could communicate.
  • Page 115 Company router server should have same setting but with a reverse identity and subnet setting of H8922 Router. Result After setting H8922 Router and company router parameter, they can connect each other by IPSEC, and ping peer subnet, you could check status by click “view” button. 文档版本 V1.0.1(2012-09-14)

  • Page 116: Timing Task

    6.5 Timing Task Typical Application H8922 Router support timing task, by setting timming task, at cretain time, router will operate reboot, online command. Etc. Easier the customer operation. I assume set the router online at certain time and keep a moment, then reboot every 24 hours. You could set like below.
  • Page 117 H8922 4G Router Figure 6-11 router online Figure 6-12 router off line Figure 6-13 router reboot 文档版本 V1.0.1(2012-09-14) 6 -9...

  • Page 119: Faq

    7 FAQ About this chapter Chapter Content 7.1 Hardware failure Possible hardware failure during using H8922 Router and how to handle them. Possible problem during dialing and how to handle them 7.2 Dial online problem 7.3 VPN Possible problem when connecting VPN 7.4 WEB config problem...

  • Page 120: Sim Slot

    7 FAQ H8922 4G Router 7.1.2 SIM Slot Phenomenon Cannot insert SIM card Possible Reason  SIM slot damaged  SIM card wrong direction. Solution  SIM slot damaged, please contact us to repair.  Check the SIM card direction, please make sure the SIM goldfinger is up.

  • Page 121: Dial Online Problem

    H8922 4G Router 7 FAQ 7.2 Dial Online Problem 7.2.1 Dial discontinue Phenomenon H8922 Router discontinue during dialing, dial failure Possible Reason  SIM card network type do not match  SIM charges owed  Power supply do not match ...

  • Page 122: Poor Signal

    Contact Telecom Operator to confirm signal problem  Change to high-gain antenna 7.2.5 Compress Protocol not match Phenomenon H8922 Router dial failure, log shows compress protocol not match Possible Reason Modem compress protocol do not match with server end Solution Change compress protocol setting 7.3 VPN Problem...

  • Page 123: Vpn Cannot Communicate

    H8922 4G Router 7 FAQ Solution  Make sure Modem is online  Set the correct port to VPDN  VPDN parameter wrong.  Check VPDN peer server 7.3.2 VPN cannot communicate Phenomenon VPN already connect, but cannot communicate Possible Reason ...

  • Page 124: Backup Setting Problem

    7 FAQ H8922 4G Router Possible Reason  Auto reboot during updating H8922 Router  Power supply problem  Wrong firmware  Power off during updating router Solution  Check setting, disable the function which may cause reboot  Change to a suitable power supply ...

  • Page 125: Update Failure In Web Gui

    H8922 4G Router 7 FAQ Possible Reason  Power supply do not match  Firmware version or format do not match  Power off during updating process Solution  If power supply do not match, please change then update again ...
