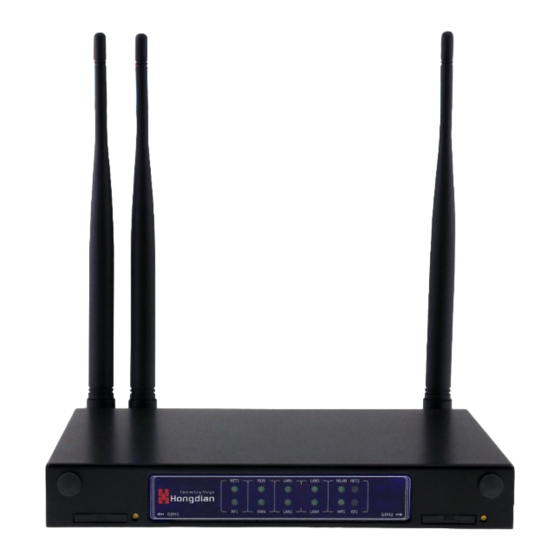

Shenzhen Hongdian Technologies H8922 User Manual

3g/4g router
Hide thumbs Also See for H8922:
Table of Contents

Advertisement

Quick Links

Download this manual
www.hongdian.com
User Manual
H8922 3G/4G Router

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H8922 and is the answer not in the manual?

Questions and answers

Related Manuals for Shenzhen Hongdian Technologies H8922

Summary of Contents for Shenzhen Hongdian Technologies H8922

  • Page 1 User Manual H8922 3G/4G Router...
  • Page 2 H8922 3G/4G Router User Manual We Hongdian provide full support to customers, contact us freely if any questions. Shenzhen Hongdian Technologies Corporation F14-16,Headquarter Economic Center Building, Zhonghaixin Science&Tech Address Park, Bulan Road, Longgang District, Shenzhen http://www.hongdian.com Website +86-0755-88864288-4 Technical Support...
  • Page 3 Foreword Overview H8922 4G router is designed and manufactured by Hongdian, it based on 4G cellular network technology, in- dustrial class quality. With its embedded cellular module, it has been widely used in finance, transportation, telecom, electricity, security system and other industries. This document introduced how to use H8922 and its function features.
  • Page 4 Configuration ter. 5 Router Configuration H8922 4G Router functional configuration is introduced in the chapter. Several typical application modes of H8922 4G Router is introduced in the 6 Typical Application chapter. 7 FAQ/Exception han- The causes and handling methods for common faults of H8922 4G Router dling during usage are introduced in the chapter.
  • Page 5 H8922 3G/4G Router User Manual Convention Description selected or no item is selected. Optional items are grouped in braces and separated by vertical ars. A minimum of { x | y | ... } * one item or a maximum of all items can be selected.

  • Page 6: Table Of Contents

    2.1 Hardware............................4 2.1.1 Appearance & Size ........................4 2.1.2 Accessories ..........................5 2.2 Structure ............................6 3 Installation of H8922 4G Router .................. 7 About this chapter..........................7 3.1 Unpacking ............................7 3.2 How to install ..........................7 3.2.1 SIM/UIM card install ....................... 7 3.2.2 Ethernet cable connection .......................
  • Page 7 H8922 3G/4G Router User Manual 5.2.2 WAN ........................... 24 5.2.3 Modem ..........................27 5.2.4 WLAN..........................33 5.2.5 Parameter select (Recommend to Single module dual SIM version) ..........36 5.2.6 Network type ........................39 5.2.7 Link Backup .......................... 40 5.2.8 DHCP Service........................43 5.3 Application Setting ........................
  • Page 8 H8922 3G/4G Router User Manual 5.7.3 Clock ..........................111 5.7.4 Account ..........................113 5.7.5 Network Test ........................115 5.7.6 Files ..........................116 5.8 Status ............................120 Overview ........................... 120 5.8.1 Base Information ........................ 120 5.8.2 LAN........................... 121 5.8.3 WAN ..........................122 5.8.4 Modem ..........................
  • Page 9 H8922 3G/4G Router User Manual 7.4.2 Backup setting problem ....................... 146 7.4.3 Updating patch failure ......................146 7.4.4 CFE Updating failure......................146 7.4.5 Update failure in WEB GUI ....................147 7.4.6 Forget Router Password....................... 147 Doc. Version 1.0...

  • Page 10: Overview

    Wi-Fi bandwidth. Plus, H8922 4G router support three modes: single module single SIM, single module dual SIM, dual module dual SIM mode. The unique feature of H8922 4G router is network online & backup among WAN, WLAN, 3G/4G network. This feature makes H8922 could maximum the network availability, reduce the possi- bility of network failure, to avoid the loss caused by network error.

  • Page 11: Function & Features

    H8922 3G/4G Router User Manual Figure 1-1 Network structure 1.2 Function & Features Function ⚫ Dual module/WAN/Wi-Fi multiple network mode backup ⚫ VPN support, GRE over IPSec, IPsec over PPTP/L2TP ⚫ WAN port support PPPoE, static IP, DHCP client ⚫...
  • Page 12 H8922 3G/4G Router User Manual Power supply ⚫ Voltage: +5V ~+36VDC ⚫ Dual module Idle: 204mA@12V DC ⚫ Dual module communication: 330mA@12V DC Others ⚫ Dimension: 194mm x 105mm x 25mm (not including antenna) ⚫ Weight: Approx. 540g ⚫ Operation temperature: -30~+75℃...

  • Page 13: Product Structure

    H8922 3G/4G Router User Manual Product Structure About this chapter Chapter Content 2.1 Hardware H8922 4G router hardware. 2.2 Structure Structure of H8922 4G router. 2.1 Hardware 2.1.1 Appearance & Size Appearance Figure 2-1 H8922 4G router appearance Doc. Version 1.0...

  • Page 14: Accessories

    1× SMA-K Wi-Fi antenna interface ⚫ 2× Standard SIM/R-UIM interface ⚫ 1× Standard DC power interface H8922 4G router appearance as Figure 2-2, shows Figure 2-2 H8922 4G router views 2.1.2 Accessories Table 2-2 H8922 4G router accessories Accessories name...

  • Page 15: Structure

    H8922 3G/4G Router User Manual Accessories name Number Note CD-ROM 1 pcs Optional 3G/4G antenna 2 pcs Wi-Fi antenna 1 pcs Optional RJ45 cable 1 pcs Mounting 1 pair Optional Certificate and warranty card 1 pcs +12V power adapter 1 pcs 2.2 Structure...

  • Page 16: Installation Of H8922 4G Router

    Power supply needs of H8922 4G router. 3.4 Review Review. 3.1 Unpacking After received the box of H8922, please unpack it and check if all accessories complete. Please check Table 2-2 as reference. 3.2 How to install 3.2.1 SIM/UIM card install H8922 4G router support dual SIM/UIM card, so you may need insert dual SIM before config it.

  • Page 17: Ethernet Cable Connection

    Use Ethernet port directly connect H8922 4G router and computer, or transferred by a switch. Single equipment direct connection Use Ethernet cable with RJ-45 type to directly connect RJ45 port of H8922 4G Router, as shown below. Figure 3-3 Single Equipment Direct Connection...

  • Page 18: Power Supply

    Step 1 Check antenna connection. Step 2 Check SIM/UIM card installation to confirm SIM/UIM card is available. Step 3 Power on H8922 4G router, the left SIM slot is SIM 1, take it as a example: ⚫ After connect power 14s, router RUN solid light, means router system works ok.
  • Page 19 H8922 3G/4G Router User Manual ⚫ After connect power 45s, NET solid light means 3G/4G connected, if blinking slowly, means 2G/2.5G con- nected. Doc. Version 1.0...

  • Page 20: Preparation Before Configuration

    How to local config H8922 4G router. 4.3 Basic config Basic config & function. 4.1 LED Status There are LED on front panel of H8922 4G router, they show how H8922 4G router works. Table 4-1 LED instruction LED name Status Solid light: system normal ⚫...
  • Page 21 ⚫ Ethernet cable connect to H8922 4G router For details on the Ethernet connection, see "3.2.2 Ethernet Cable Connection." H8922 4G Router local connec- tion configuration includes the specified IP mode and DHCP automatic IP acquisition mode. The following two configuration modes are described in detail.
  • Page 22 H8922 3G/4G Router User Manual Figure 4-2 Local Area Connection Status Step 3 Click “Properties” in the window of”Local Area Connection Status” to open the window of “Local Area Connection Properties”. Figure 4-3 Internet Protocol (TCP/IP) There are two configuration methods for the latter configuration, the regular method configuration and the advanced configuration.
  • Page 23 IP address: 192.168.8.* (*indicates any integral between 2 to 254) Subnet mask: 255.255.255.0 Default gateway: 192.168.8.1 Remember: H8922 4G Router LAN port factory default parameter: IP address: 192.168.8.1 Subnet mask: 255.255.255.0 H8922 4G Router factory default login parameter: Management interface login IP address: 192.168.8.1...
  • Page 24 H8922 3G/4G Router User Manual In the original network environment configuration (steps 1 to 3), you do not want to inter- rupt the local PC to continue LAN communication, and you can consider adding advanced configuration when configuring the Router.
  • Page 25 IP (Internet Protocol) address to the terminal (or PC) connected to it according to preset parameters. The H8922 4G Router's built-in DHCP service is turned on at the factory. The DHCP service is enabled before the function is configured.
  • Page 26 H8922 3G/4G Router User Manual Figure 4-8 Properties of local connection 2 Step 3 In "This connection uses the following items (O):", select "Internet Protocol (TCP/IP)" and double-click to enter the "Internet (TCP/IP) Properties" window, as shown in Figure 4-10.
  • Page 27 H8922 3G/4G Router User Manual Step 4 If the Internet Protocol (TCP/IP) attribute is as shown in Figure 4-8, no change is required. If the Internet Protocol (TCP/IP) attribute is not as shown in Figure 4-10, select "Automati- cally obtain an IP address" in "General".
  • Page 28 H8922 3G/4G Router User Manual Figure 4-11 The execution result of "ipconfig" of Specifying the IP address Figure 4-12 The execution result of "ipconfig" in DHPC automatically obtaining IP mode. Step 8 Enter the following command in the command line window to confirm whether the connec- tivity is normal Ping 192.168.8.1...
  • Page 29 H8922 3G/4G Router User Manual Figure 4-13 Connectivity verification results ---END Doc. Version 1.0...

  • Page 30: The Configuration Of Router

    Overview H8922 4G Router can be configured by WEB mode, which is easy to operate and intuitive. After the local con- nection configuration of the PC and the H8922 4G Routers is completed according to the "Local Area Connection Configuration", you can start Internet Explorer or other browsers on the PC and log in to the H8922 4G Routers...

  • Page 31: Logging In To The Web Configuration Page

    Step 2 To log in as Local, just enter "Username", "Password" and then click "Login" to log in to the WEB configuration page of H8922 4G Router. Step 3 To log in as Radius, you need to select "Radius Authentication", then enter the radius username and password, and click "Login"...

  • Page 32: Network Settings

    Step 1 Log in to the WEB configuration interface of the H8922 4G Router. For details, see “5.2.1 Logging In to the WEB Configuration page”.

  • Page 33: Wan

    The WAN is mainly used to connect to the Internet through Ethernet. The connection modes are static IP, DHCP, and PPPoE. Step 1 Log in to the WEB configuration page of the H8922 4G Router. For details, see “5.2.1 Logging In to the WEB Configuration page”. Step 2 Single click “network > WAN”.
  • Page 34 H8922 3G/4G Router User Manual Figure 5-4 The page of WAN Step 3 Configure the connection type of the WAN port The parameter description is shown in Table 5-2. Table 5-2 The instruction of WAN connection type parameter Parameter Details...
  • Page 35 H8922 3G/4G Router User Manual Parameter Details Operation IP". input specifications. example: 192.168.10.1/24 “Connection Type” select “DHCP” get IP address from DHCP Select DHCP “Connection Type” select “PPPoE” The unique identifier of an PPPoE is not configurable. interface. It is used when...

  • Page 36: Modem

    H8922 3G/4G Router User Manual 5.2.3 Modem Mobile network is one of the core functions of H8922 4G Router. H8922 4G Router supports single-mode single- card dialing and single-mode dual-card backup dialing. It provides high-speed wireless broadband access for users. Internet access speeds of 3G can usually reach 1 to 5 Mbps, 3.5G networks can reach be up to 20 Mbps, and LTE can be up to nearly 100 Mbps.
  • Page 37 H8922 3G/4G Router User Manual Figure 5-6 The page of Modem(single-mode dual-card) Add the "Modem" parameter. Table 5-3 describes the parameters of the modem. Table 5-3 The instruction of the parameters of the modem Parameter Details Operation Enable the current modem parameter...
  • Page 38 H8922 3G/4G Router User Manual Parameter Details Operation /Password network is used to access different a maximum length of 64 bytes, which are private network services to isolate dif- both present or empty at the same time. ferent private networks in the case of private network services.
  • Page 39 H8922 3G/4G Router User Manual Parameter Details Operation Enter the Tcpping packet sending interval. Ithe default is 10 (seconds). It is not recommended to configure the advanced Click to display the advanced settings. advanced parameters of PPP dialup. It is...
  • Page 40 H8922 3G/4G Router User Manual Parameter Details Operation More Disable ⚫ Enable PPP dialing log, default value is Debug Negotiation ⚫ enable, in order to check more info about dialing, suggest no changing Disable ⚫ Auto get peer DNS when PPP dialing.
  • Page 41 H8922 3G/4G Router User Manual Figure 5-7 The page of Modem (Single module single SIM) Click “Save” to complete the parameter configuration for Modem.. ⚫ Modify As shown in Figure 5-5, determine a parameter configuration record and click Modify to modify the parameter record.

  • Page 42: Wlan

    ---END 5.2.4 WLAN H8922 4G Router provides two functions of WLAN AP and Station client. Through the AP function, H8922 4G Router can provide wireless LAN hotspots. Through the Station client function, H8922 4G Router can be con- nected to other AP device,The lower device of the H8922 4G Router can access the external network through the connected AP device.
  • Page 43 H8922 3G/4G Router User Manual Figure 5-9 The page of Station mode configuration Figure 5-10 The Scanning page when selecting a station Step 3 Configure parameters related to WLAN. The parameter description is shown in Table 5-4. Table 5-4 The instruction of WLAN parameter...
  • Page 44 H8922 3G/4G Router User Manual Parameter Details Operation General WORD type, maximum 32 bytes, SSID The identity of the WLAN server. please refer to "Parameter Specification Ta- ble" for input specifications. WLAN work mode, support ap/station Wireless Dropdown List Mode ⚫...

  • Page 45: Parameter Select (Recommend To Single Module Dual Sim Version)

    When the working mode select station , H8922 4G Router will automatically match according to the selected AP and the corre- sponding encryption algorithm (to keep consistent with AP encryption); shared key update interval is required to fill in the con- nections of AP key and interval.
  • Page 46 H8922 3G/4G Router User Manual For details, see “5.2.1 Logging In to the WEB Configuration page”. Step 2 Single click “Network > parameter select”. Open the page of “Parameter Select” , as shown in Figure 5-11. Figure 5-11 The page of “Parameter select”...
  • Page 47 H8922 3G/4G Router User Manual Add a "parameter select" rule. Table 5-5 The instruction of Parameter Parameter Details Operation Enable ⚫ Enable the current rule. All enabled rules have only Status Disable ⚫ one rule running at a time, and the associated inter- faces in all disabled rules are disabled.

  • Page 48: Network Type

    Click “Refresh” to refresh the current page. To ensure that the user controls the uplink and downlink of the router, the H8922 4G Routers provide multiple functions for the modem/modem2, such as parameter select, link backup, ICMP detection, task management, and trigger settings.The task man- agement is to perform the action on the modem/modem2 and keep the state after the action is executed, and the parameter select, the link backup, and the ICMP detection all perform the action on the modem/modem2 but do not maintain the state.

  • Page 49: Link Backup

    The link ensures the connectivity and stability of the commu- nication link of the lower computer, thus ensuring that the data service of the user is not affected. H8922 4G Router supports both cold and hot backup modes.
  • Page 50 H8922 3G/4G Router User Manual Step 2 Click “Network>Link Backup”. Open the page of Link Backup , as shown in Figure 5-14. Figure 5-14 The page of “Link Backup” Step 3 Click “Add” to open the page for adding the “Link Backup” rule, as shown in Figure 5-15.
  • Page 51 H8922 3G/4G Router User Manual Parameter Details Operation Value area: 0-9 ⚫ Rule Name Link Backup rule name identification Note: 0 can act as chain link or backup link, 1-9 only can act as backup link 1-9 can take the priority according to the number, the...

  • Page 52: Dhcp Service

    The Dynamic Host Configuration Protocol (DHCP) is a network protocol for a local area network. After the DHCP function is enabled, the lower device can automatically obtain the dynamic IP. Step 1 Log in to the WEB configuration page of the H8922 4G Router. For details, see “5.2.1 Logging In to the WEB Configuration Page”.
  • Page 53 H8922 3G/4G Router User Manual Table 5-8 lists the DHCP server settings parameters Parameter Details Operation Enable ⚫ DHCP Server Enable or Disable DHCP feature Disable ⚫ Basic Settings(DHCP is not recommended configure in the case of no special network requirement) Dropdown List ⚫...

  • Page 54: Application Setting

    The ICMP link detection is mainly used to detect the wireless link at the beginning of the design. The H8922 4G Routers support the detection of tunnel links such as VPNs, support multi-rule simultaneous detection, and support up to 10 ICMP detection rules.
  • Page 55 H8922 3G/4G Router User Manual Step 3 "Add," "Edit," "Delete," "Enable," and "Disable" operations for "ICMP Detection." Click “Add”. The Add page of ICMP Detection is displayed, as shown in Figure 5-18. Figure 5-18 The Add page of ICMP Detection Configure parameters for the ICMP detection service.
  • Page 56 H8922 3G/4G Router User Manual Parameter Details Operation Destination A backup destination address of ICMP check, if “destina- WORD type, max 64 backup tion address” cannot be linked by ICMP check, the “desti- bytes nation backup” address will be checked, if still cannot...

  • Page 57: Ddns Configuration

    Step 1 Log in to the H8922 4G Router WEB configuration page. For details, see “5.2.1 Logging In to the WEB Configuration Page”.

  • Page 58: Snmp Configuration

    SNMP(Simple Network Management Protocol)can monitor routers remotely and get to know the status of rout- ers (Support interface status check, like VPN, modem etc. MIB of our company shall be used). Step 1 Log in to the H8922 4G Router WEB configuration page. For details, see “5.2.1 Logging In to the WEB Configuration Page”.
  • Page 59 H8922 3G/4G Router User Manual Figure 5-20 The configuration page of “SNMP”(the V2 version configuration page above, the following figure is the V3 version configuration page) Doc. Version 1.0...
  • Page 60 H8922 3G/4G Router User Manual Step 3 Configure SNMP parameter. Table 5-11 The instruction of SNMP Parameter Parameter Details Operation SNMP service To enable or disable SNMP service Options: Enable ⚫ Disable ⚫ Basic Config SNMP version setting, support for SNMPV2c...

  • Page 61: M2M Configuration

    Trap: One of the five data types of the SNMP protocol, which refers to the trap message reported by the managed device, indicat- ing that the device is faulty or changed. H8922 4G Router reports the type and content of the trap including: modem connection status and which interface, which SIM card dial, VPDN/TUNNEL/IPSec interface connection and disconnection.
  • Page 62 H8922 3G/4G Router User Manual Figure 5-21 The page of “M2M” configuration Step 3 Configure M2M parameter. Parameter instruction is shown in Table 5-13. Table 5-12 The instruction of M2M Parameter Parameter Details Operation To enable or disable M2M function. This func-...

  • Page 63: Schedule Configuration

    This application is to control the online time of the router to better manage network and save 3G/4G flow. H8922 can add several online periods as per the user’s requirement (e.g. hours of some day). in addition, this application can support to begin some tasks at a time point (e.g. redial or reboot at 00:00). Supports up to 10 task rules.
  • Page 64 H8922 3G/4G Router User Manual Figure 5-23 Task management rule settings page Step 4 Configure task management rule parameters. Table 5-13 Timing task parameter instruction Parameter Details Operation Enable timing rules. Multiple rules can be run at the Status options same time, or one rule can be disabled.
  • Page 65 H8922 3G/4G Router User Manual Parameter Details Operation Maxium 64 bytes The command is a background operation com- Action WORD type. Maxium 64 digits mand, which is usually not recommended. If you need to configure it, please contact our technical staff.

  • Page 66: Sms Settings

    H8922 3G/4G Router User Manual 5.3.6 SMS Settings H8922 4G Router SMS settings can enable the device SMS function. The mobile phone can use the SMS com- mand to the device for information query, command configuration, and device restart. This feature is intended for users who are not comfortable with the device and who need to operate the device.

  • Page 67: Radius Settings

    H8922 3G/4G Router User Manual 5.3.7 Radius settings Step 1 Log in to the H8922 4G Router WEB configuration page. For details, see “5.2.1 Logging In to the WEB Configuration Page”. Step 2 Click “Applications > Radius” to open the page of “Radius” .As shown in Figure 5-26.

  • Page 68: Security Configuration

    5.4 Security Configuration Overview Security settings refer to the firewall function of the router and the prevention of network attacks.H8922 4G Router supports five security settings: IP filter, domain filter and MAC address filter, Remote Access and network attacks.The user compares the IP address/port, MAC address, and domain name of the incoming router packet...
  • Page 69 H8922 3G/4G Router User Manual Step 3 Click “Add” to add a new IP filter rule and configure IP filter parameter. There are two types of IP filter: “Input” and “Forward”, as show in Figure 5-28 and Figure 5-29. Figure 5-27 The configuration of “Input” type of IP filter Figure 5-28 The configuration of “Forward”...
  • Page 70 H8922 3G/4G Router User Manual Table 5-16 The instruction of IP filter parameter Parameter Details Operation Select a filter type, you can choose according Type Dropdown List options to their needs, "Input" or "Forward" Input ⚫ Input: whether to allow access to the router Forward ⚫...

  • Page 71: Domain Filter

    Domain filter support black list and white list. It is used to forbid PCs in LAN from visit some websites or allows them to visit specific websites. Step 1 Log in to the H8922 4G Router WEB configuration page. For details, see “5.2.1 Logging In to the WEB Configuration Page”.

  • Page 72: Mac Filter

    MAC filter also supports black and white lists, which are usually used to control host access to routers. In addi- tion to this function, the H8922 4G Routers can also restrict the external network access rights of specific MAC hosts, or only allow hosts with specific MAC addresses to access the external network.
  • Page 73 H8922 3G/4G Router User Manual Figure 5-31 The configuration page of MAC Filter Table 5-18 MAC Filter explanation Parameter Details Operation Input configuration Blacklist: rules in blacklist cannot visit router, other ⚫ To activate MAC in- Input Filter MACs can visit router.

  • Page 74: Remote Access

    Step 1 Log in to the H8922 4G Router WEB configuration page. For details, see “5.2.1 Logging In to the WEB Configuration Page”.
  • Page 75 H8922 3G/4G Router User Manual Figure 5-33 The page of “Remote Access” Step 3 Click "Mod" to open or close the 80 (HTTP), 23 (CLI), 5123 (SSH), 443 (HTTPS) ports of dif- ferent interfaces. See below: Figure 5-34 The editing page to open Ports...
  • Page 76 H8922 3G/4G Router User Manual Table 5-20 Description of port open configuration parameters Parameter Details Operation The interface that needs to be configured for the port. Interface No action required The default is not to choose. The SSH port can be chosen to open or close .

  • Page 77: Anti-Attack

    The device provides a function of prohibiting port scanning, which enables the device to reduce illegal port scanning. Step 1 Log in to the H8922 4G Router WEB configuration page. For details, see “5.2.1 Logging In to the WEB Configuration Page”.

  • Page 78: Forward Configuration

    H8922 3G/4G Router User Manual 5.5 Forward configuration Overview Forward function of H8922 4G router includes NAT, Routing, dynamic routing (RIP, OSPF,BGP) (optional) and QoS . 5.5.1 NAT The configuration of DNAT rule The DNAT is a destination address replacement and is used to replace the destination address inside the exter- nal network access router with the address set by the user.
  • Page 79 H8922 3G/4G Router User Manual Figure 5-38 The configuration page of DNAT rule Step 3 Configure parameters for the DNAT rule. Table 5-23 DNAT Parameter instruction Parameter Details Operation Basic Settings The destination address transla- Protocol Select from dropdown List: tion is performed for which proto- ⚫...
  • Page 80 H8922 3G/4G Router User Manual Parameter Details Operation Mapping address Internal IP address Format:A.B.C.D e.g. 192.168.8.1 Mapping port The port of Internal IP address Value area :1~65535 Step 4 Single click “save” to finish the configuration. When a port is configured in the DNAT rule, the protocol selects "all" to select two protocols "tcp" and "udp";...
  • Page 81 MASQ is also MASQUREADE, address masquerading, which converts the source IP address of all packets for- warded by the router into the IP address set by the user. The H8922 routers support the conversion of the source IP address of a packet to an interface address of the router.
  • Page 82 H8922 3G/4G Router User Manual Figure 5-40 The configuration page of MASQ Step 2 Configure the parameters of MASQ rule. Table 5-25 The instruction of parameters of MASQ rule Parameter Details Operation Select the IP of an interface as the communica-...

  • Page 83: Routing Configuration

    H8922 3G/4G Router User Manual Figure 5-41 The configuration page of DMZ Step 2 Configure the parameters of DMZ rule. Table 5-26 The instruction of parameters of DMZ rule. Parameter Details Operation Select from Dropdown Interface Select the IP of an interface as the communication List: address between the router LAN and the outside.
  • Page 84 H8922 3G/4G Router User Manual Figure 5-42 The configuration page of “Routing” Step 2 Click “Add” to add a new static route, configuration page. See below: Figure 5-43 The configuration page of Static Routing Figure 5-44 The configuration page of Policy Routing...
  • Page 85 H8922 3G/4G Router User Manual Table 5-27 The instruction of parameters of Routing Parameter Details Operation Basic Setting Dropdown List ⚫ To select “Static Route” or “Pol- Routing Type icy Route” When Routing Type is “Static Route” Set the destination IP address...

  • Page 86: Qos

    When the network is overloaded or con- gested, QoS to ensure that critical traffic is not delayed or dropped, while ensuring the efficient operation of the network, our H8922 4G Router supports custom QoS services. Step 1 Click “Forward > Qos”.
  • Page 87 H8922 3G/4G Router User Manual Figure 5-46 The configuration page of QoS Step 4 Configure QoS parameters. See below: Table 5-28 QoS parameter instruction Parameter Details Option Rule Name QoS rule name The max to 12 characters Only set when adds a new rule and the fol-...

  • Page 88: Dynamic Routing (Optional)

    H8922 4G Router supports RIP v2 protocol. For more complex environments, generally do not use the RIP protocol.
  • Page 89 H8922 3G/4G Router User Manual Figure 5-47 The configuration of RIP Table 5-29 RIP Parameter Instruction Parameter Details Operation RIP Service Enable or disable RIP Service Click the button to select. Enable ⚫ Disable ⚫ Whether to redistribute direct Redistribute Connected Click the button to select.
  • Page 90 OSPF (Open Shortest Path First) protocol is one of the (Interior Gateway Protocol), the most widely used IGP, for a single AS (autonomous system) in the routing decisions for large networks. OSPF business can be based whether the user needs to be configured at the factory H8922 4G Router. Step 6 Click “Forward > OSPF”.
  • Page 91 H8922 3G/4G Router User Manual Step 7 Open the configuration page of “OSPF” . See below: Figure 5-49 The configuration page of OSPF Table 5-31 OSPF parameter instruction Parameter Details Operation OSPF Service Enable or disable OSPF Service Click the button to select Enable ⚫...
  • Page 92 H8922 3G/4G Router User Manual Figure 5-50 The configuration of OSPF route Step 9 Configure OSPF route parameter instruction. See below: Table 5-32 OSPF route parameter instruction Parameter Details Option When Add Type is “Network”, Set the network address as ospf sending...
  • Page 93 H8922 3G/4G Router User Manual Step 10 Single click “save” to finish OSPF route setting. OSPF is a link-state (Link-state) routing protocol, commonly used for the same routing domain. Here, the routing domain is an autonomous system, which refers to the routers can switch routing information through a unified network switching or routing...
  • Page 94 H8922 3G/4G Router User Manual BGP configuration Border Gateway Protocol (BGP) is a routing protocol for an autonomous system running on TCP. BGP is the only protocol used to handle networks like the size of the Internet, and the only protocol that can properly handle multiple connections between unrelated routing domains.
  • Page 95 H8922 3G/4G Router User Manual Figure 5-52 The configuration page of BGP Step 15 Configure the rule parameters of the route mode. See below:BGP rule parameter instruc- tion Parameter Details Option When "Notification Type" selects "Network" Set a network segment as the notification...

  • Page 96: Vpn Configuration

    5.6 VPN configuration Overview VPN (Virtual Private Network) is a kind of secure local area network based on the Internet. Currently, the H8922 4G Routers not only support the separate use of the five VPN protocols L2TP/PPTP/GRE/IPIP/IPSEC/OpenVPN, but also support VPN service is set up on the VPN, that is, VPN OVER VPN, such as GRE over IPSec, IPSec over PPTP/L2TP/GRE/IPIP.
  • Page 97 H8922 3G/4G Router User Manual Point to Point Tunneling Protocol (PPTP) is a network technology that supports multi-protocol virtual private networks. It is also a Layer 2 protocol. Through this protocol, remote users can securely access the corporate network through Windows mainstream operating systems and other systems equipped with peer-to-peer pro- tocols, and can dial into the local ISP to securely connect to the corporate network through the Internet.
  • Page 98 H8922 3G/4G Router User Manual Step 3 Configure VPDN rule parameter. See below: Table 5-34 VPDN rule parameter instruction Parameter Details Operation VPDN service To enable or disable the VPDN rule single button: Enable ⚫ Disable ⚫ Basic Settings Cannot be modified after...
  • Page 99 H8922 3G/4G Router User Manual Parameter Details Operation Disable ⚫ Address/Control Whether compress IP address Negotiation ⚫ Compression Disable ⚫ Protocol Field Whether compress Whether compress IP ad- Negotiation ⚫ Compression dress Disable ⚫ VJ TCP/IP Header Whether allow TCP/IP to communicate by Negotiation ⚫...

  • Page 100: Tunnel Configuration

    Cisco, basically support the agreement. This agreement enables multiple network distribution possible. Step 1 Log in to the H8922 4G Router configuration page. For details on how to log in to the device, see 5.2.1 “Logging In to the WEB Configuration page”.
  • Page 101 H8922 3G/4G Router User Manual Figure 5-56 Tunnel configuration Table 5-35 Tunnel rule parameter instruction Parameter Details Operation IP Tunnel Service To enable or disable IP tunnel service Button selection: Enable ⚫ Disable ⚫ Basic Settings Name of the tunnel, cannot be modified after...

  • Page 102: Ipsec Configuration

    Internet. The IPSec in the H8922 and H8922 4G Routers uses the common phase1 to negotiate with most IPSec servers. The H8922 4G Routers also support IPSec through other interfaces (such as pulling them through the modem), eliminating the need for manual operation by the user.
  • Page 103 H8922 3G/4G Router User Manual Figure 5-57 The page of IPSec Step 3 Click “Add” to add a new IPSec rule. There are 3 phases for IPSec configuration: Phase 1 parameter Figure 5-58 IPSec phase 1 configuration Doc. Version 1.0...
  • Page 104 H8922 3G/4G Router User Manual Table 5-36 The instruction of parameters of IPSec Phase 1 Parameter Details Operation Basic Settings Set the phase type of IPSec, including the Select Select “Phase 1” first phase, the second phase, and the third phase.
  • Page 105 H8922 3G/4G Router User Manual Parameter Details Operation Configured here as the key length for the Group Name Select from Dropdown List first phase of IKE negotiation. group768 ⚫ group1024 ⚫ group1536 ⚫ group2048 ⚫ group3072 ⚫ Grouo4096 ⚫ To enable DPD service,The DPD peer de-...
  • Page 106 H8922 3G/4G Router User Manual Figure 5-59 The configuration page of IPSec phase 2 See below parameters instruction of the second phase of the IPSec rule. Table 5-37 The parameters of the second phase of the IPSec rule Parameter Details...
  • Page 107 H8922 3G/4G Router User Manual Parameter Details Operation The second stage of hash algorithm Hash Select from Dropdown List selection ⚫ sha1 ⚫ Sha2_256 ⚫ Used when perfect forward encryp- Group Name Select from Dropdown List tion is enabled, here configured as the group768 ⚫...
  • Page 108 H8922 3G/4G Router User Manual The protocol code of the local protocol port and the remote protocol port must be the same, indicating that one protocol is encrypted. When the local protocol port and the remote protocol port are configured, IPSec encrypts the protocol and port, and other communications are not encrypted.

  • Page 109: Open Vpn Configuration

    H8922 3G/4G Router User Manual Parameter Details Operation phase configuration. Match Phase2 To select a matching name of “phase2” Select from Dropdown List Select the policy name for the sec- ond phase configuration. Destination IP Fill in the IP or domain name of the IP or domain name of the IPSec peer server.
  • Page 110 H8922 3G/4G Router User Manual Figure 5-61 The configuration page of OpenVPN Step 2 Set the parameters of Open VPN. See below: Table 5-39 The instruction of the parameters of OpenVPN Parameter Detail Operation OPENVPN Enable OPENVPN Service. Click button options:...
  • Page 111 H8922 3G/4G Router User Manual Parameter Detail Operation Work Mode Supports two working modes: Dropdown list options: ⚫ Client mode: client type mode client ⚫ multi ⚫ ⚫ Multi mode: peer to peer working mode (peer is non-server) Select the required working mode from dropdown list.
  • Page 112 H8922 3G/4G Router User Manual Parameter Detail Operation Encrypt Data encryption method Dropdown list options: NONE ⚫ ⚫ SHA1 ⚫ SHA224 ⚫ SHA256 ⚫ SHA384 ⚫ SHA512 ⚫ Specifies the file path for the client CA certificate WORD type，max 32 bytes.

  • Page 113: Dmvpn Configuration

    H8922 3G/4G Router User Manual 5.6.5 DMVPN Configuration Dynamic Multipoint VPN, dynamic multipoint VPN. DMVPN is a MGRE+NHRP+IPSEC solution that is a simple, dynamic, and scalable way. DMVPN supports spoke dynamic addresses, adding new spokes, without changing the hub configuration. The spoke to spoke dynamic generation tunnel is triggered by traffic and is encrypted using IPSec.
  • Page 114 H8922 3G/4G Router User Manual Figure 5-63 The configuration page of “DMVPN” Step 4 Configure DMVPN rule parameters. See below: Table 5-40 The instruction of the parameters of DMVPN Parameter Detail Operation Button selection: DMVPN Service DMVPN service switch Enable ⚫...
  • Page 115 H8922 3G/4G Router User Manual Parameter Detail Operation IP address of the public network. It Format:A.B.C.D can also be the IP address of differ- ent intranets.。 The virtual IP address of the local Local Virtual IP Enter it manually. tunnel.
  • Page 116 H8922 3G/4G Router User Manual Parameter Detail Operation Configure the IPSEC local ID to indi- You can fill in the IPSec local ID. It must be Self Identify cate the identity of the local end. If the same as the peer ID preset by the IPSec not configured, the IP address is peer server.

  • Page 117: Eoip Configuration

    H8922 3G/4G Router User Manual Parameter Detail Operation selected in the drop-down list. Enter it manually. Nhrp Cisco Se- The NHRP next hop routing resolu- Maximum support input of 64 characters. crets tion protocol is used to solve point- to-multipoint environmental data communication problems.

  • Page 118: System Management Configuration

    5.7 System Management Configuration Overview H8922 4G Router system management function is mainly to carry out some daily maintenance operations on the system. For example, through the log to analyze the operation of the system, management of user account information, network testing, and upgrade of system files.

  • Page 119: Remote Log

    The remote log is mainly used to connect to the remote log server. The router can upload the local log to the remote log server. The configuration steps are as follows: Step 1 Log in to the WEB configuration page of the H8922 4G Router. For details ,please see “5.2.1 Logging In to the WEB Configuration Page”.

  • Page 120: Clock

    ---END 5.7.3 Clock H8922 4G Router supports NTP (Network Time Protocol) network protocol timing. When the NTP network is paired, the system time of the router can be ensured to correspond to the actual time. The functions such as task management can be executed at the correct time. Specific steps are as follows.
  • Page 121 H8922 3G/4G Router User Manual Step 2 Click “System > Clock” to open the page of “Clock”. See below: Figure 5-68 “NTP” Time Synch. Figure 5-69 Manually configure Time Sync Type Step 3 Configure parameters for system time. The parameter description is shown in Table 5-46.

  • Page 122: Account

    WEB and block other users from accessing the route. Step 1 Log in to the WEB configuration page of the H8922 4G Router. For details ,please see “5.2.1 Logging In to the WEB Configuration Page”.
  • Page 123 H8922 3G/4G Router User Manual Figure 5-70 The page of Account Step 3 Configure parameters of account. The parameter description is shown in Table 5-47. Table 5-44 The instruction of Account parameter Parameter Details Operation Select from Dropdown List Account Type...

  • Page 124: Network Test

    The network test includes the commonly used Ping function and Traceroute function. The specific steps are as follows: Step 1 Log in to the WEB configuration page of the H8922 4G Router. For details ,please see “5.2.1 Logging In to the WEB Configuration Page”.

  • Page 125: Files

    Firmware Setting The H8922 supports upgrading the system files on the local network. Before upgrading, please make sure that you have obtained the target file of the system update and have saved the update files on the computer on the LAN.
  • Page 126 H8922 3G/4G Router User Manual Figure 5-72 The page of Files Step 2 Click Browse, select the upgrade file locally, and click Upgrade to start the upgrade. If "Re- store Default" is selected, the configuration of the router will be restored to the factory settings after the patch or program is upgraded;...
  • Page 127 H8922 3G/4G Router User Manual Figure 5-73 Add an IP address Step 2 Press the RESET interface. Do not release it. Hold it, meanwhile power on router(After power-on, keep pressing the “RESET”button for 2 to 5 seconds or more and then release the “RESET”button...
  • Page 128 You can also PING br0 address on your PC (ping 192.168.8.1 –t). if Ping ok, upgrading is OK. ---END Backup setting The H8922 series routers support backup and recovery of configuration files. See below: ⚫ Click “Browse”to view the configuration file that needs to be imported locally, and click “Import” to com- plete the import of the file.

  • Page 129: Status

    H8922 3G/4G Router User Manual The routers of the H8922 series support backup and recovery of BGP configuration files, as shown in Figure 5- ⚫ Click “Browse” to view the BGP configuration file that needs to be imported locally. Click “Import” to complete the import of the file.

  • Page 130: Lan

    Not available 5.8.2 LAN By viewing the "LAN Status" information of the H8922 4G Router, you can learn the basic information of the "LAN Status" of the H8922 4G Router. The specific operation method is as follows. Step 1 Log in to the WEB configuration page of the H8922 4G Router.

  • Page 131: Wan

    ---END 5.8.3 WAN By viewing the "WAN Status" information of the H8922 4G Router, you can learn the basic information of the "LAN Status" of the H8922 4G Router. The specific operation method is as follows. Step 1 Log in to the WEB configuration page of the H8922 4G Router.
  • Page 132 H8922 3G/4G Router User Manual Figure 5-81 WAN status in static IP form Figure 5-82 WAN status in DHCP form Figure 5-83 WAN status in PPPoE form Doc. Version 1.0...

  • Page 133: Modem

    It is also conducive to analysis and problem solving of abnormal situations. Step 1 Log in to the WEB configuration page of the H8922 4G Router. For details ,please see “5.2.1 Logging In to the WEB Configuration Page”.
  • Page 134 The name of the Modem rule that is currently dialed by the mobile Modem Select Not available network. The online duration of the H8922 4G Router after dialing the line is Up Time Not available displayed. H89224G Router connection status with the wireless network. Con-...

  • Page 135: Wlan

    Step 1 Log in to the WEB configuration page of the H8922 4G Router. For details ,please see “5.2.1 Logging In to the WEB Configuration Page”. Step 2 Click “Status > WLAN”. The H8922 4G Routers have WLAN and station modes. See below: Doc. Version 1.0...
  • Page 136 H8922 3G/4G Router User Manual Figure 5-85 Status page in ap mode Figure 5-86 Status page in station mode Doc. Version 1.0...
  • Page 137 H8922 3G/4G Router User Manual Table 5-50 The instruction of Parameter in ap mode Parameter Details Operation Basic information Work Mode The working mode of the WLAN. Not available SSID Representation of ap. Not available AP Isolation The isolation status of the WLAN client device.

  • Page 138: Routing Table

    H8922 3G/4G Router User Manual 5.8.6 Routing Table By querying the status of the routing table, you can learn the routing information of the H8922 4G Router. Step 1 Log in to the WEB configuration page of the H8922 4G Router.

  • Page 139: Traffic Statistics

    H8922 3G/4G Router User Manual 5.8.7 Traffic Statistics By querying the status of the routing table, you can learn the traffic statistics of the H8922 4G Routers. Step 1 Log in to the WEB configuration page of the H8922 4G Router.

  • Page 140: Reset Button Function

    H8922 3G/4G Router User Manual Figure 5-89 The page of LAN Traffic Statistic Table 5-53 The instruction of Traffic Statistic Parameter Details Operation The traffic usage information of the interface is displayed in Flow chart Not available real time through the picture. The speed of uploading and downloading can be seen through the picture, the red line in- dicates uploading, and the blue line indicates download。...

  • Page 141: Typical Application

    For example, the shopping mall POS card needs a stable network to ensure that if the wired network used by the POS fails, the H8922 4G Router can quickly switch to the wireless network to ensure the normal operation of the POS card card service.

  • Page 142: Application Result

    H8922 3G/4G Router User Manual Figure 6-1 Main link (wan) configuration Figure 6-2 Backup link (modem) configuration Application result After all the parameters are configured, the default route of the router goes to the eth0 (WAN) interface of the primary link. If the router can ping the IP address of 202.170.138.60, the router will always work on the primary link.

  • Page 143: Parameter Select Function

    For example, when the working L2TP link fails to work properly for some reason, it can switch to the standby PPTP or IPSec link. The H8922 4G Routers switch multiple links according to the configured parameter switching rules to ensure the reliability of network communication.
  • Page 144 H8922 3G/4G Router User Manual Figure 6-5 Interface configuration Figure 6-6 The configuration of parameter select 1 Doc. Version 1.0...
  • Page 145 H8922 3G/4G Router User Manual Figure 6-7 The configuration of parameter select 2 When the working L2TP link is disconnected from the server for some reason, the router performs the param- eter "check icmp" in the parameter switch, and pings the configured destination IP to detect whether the router is disconnected from the network operator.

  • Page 146: Vpn

    Figure 6-9 Establishing IPSec communication PC1 establishes an IPSec link with the company's router through the VPN function of H8922 and uses tunnel mode communication. The LAN address on the H8922 side is 192.168.86.1/24, and the LAN address on the router side of the company is 192.168.99.1/24.
  • Page 147 H8922 3G/4G Router User Manual Figure 6-10 IPSec Phase 1 Figure 6-11 IPSec Phase 2 Doc. Version 1.0...
  • Page 148 Application result After configuring the parameters of the H8922 4G Router, and the company router, the two negotiate and establish an IPSec connection, as shown in Figure 6-13. At this point, the LANs in the two places can access the remote LAN as if they were accessing the local area network.

  • Page 149: Schedule

    6.5 Schedule Scene introduction H8922 4G Router support timing task, by setting timing task, at certain time, router will operate reboot, online command. Etc. Easier the customer operation. I assume set the router online at certain time and keep a moment, then reboot every 24 hours.

  • Page 150: Faq/Exception Handling

    H8922 3G/4G Router User Manual FAQ/Exception handling About this chapter Chapter Content Possible hardware failure during using H8922 4G Router and 7.1 Hardware failure how to handle them 7.2 Dial online problem Possible problem during dialing and how to handle them 7.3 VPN...

  • Page 151: Ethernet Connection

    Please check antenna type, there are 3G/4G and WIFI, do not mix them 7.2 Dial Online Problem 7.2.1 Dial discontinue Phenomenon H8922 4G Router discontinue during dialing, dial failure Possible Reason ⚫ SIM card network type do not match Doc. Version 1.0...

  • Page 152: No Signal

    Recharge SIM card ⚫ Change to suitable power supply ⚫ Change Modem setting, please check related chapter 7.2.2 No Signal Phenomenon H8922 4G Router modem status show no signal Possible Reason ⚫ Antenna connect wrong ⚫ Modem cannot online ⚫...

  • Page 153: Compress Protocol Not Match

    Contact Telecom Operator to confirm signal problem ⚫ Change to high-gain antenna 7.2.5 Compress Protocol not match Phenomenon H8922 4G Router dial failure, log shows compress protocol not match Possible Reason Modem compress protocol do not match with server end Solution Change compress protocol setting 7.3 VPN Problem...

  • Page 154: Router Can Communicate But Subnet Cannot

    Wrong local route table, set right route table 7.4 WEB config problem 7.4.1 Updating firmware failure Phenomenon Updating firmware failure Possible Reason ⚫ Auto reboot during updating H8922 4G Router ⚫ Power supply problem ⚫ Wrong firmware ⚫ Power off during updating router Solution ⚫...
  • Page 155 H8922 3G/4G Router User Manual 7.4.2 Backup setting problem Phenomenon Router import backup setting failure Possible Reason ⚫ Backup setting file format wrong ⚫ No reboot after backup setting Solution ⚫ Choose a right file to import ⚫ Must reboot after import setting, then parameters available 7.4.3 Updating patch failure...
  • Page 156 H8922 3G/4G Router User Manual 7.4.5 Update failure in WEB GUI Phenomenon Updating by WEB GUI, failed and cannot visit WEB GUI again Possible Reason Firmware oversize cause updating failure Solution Using CFE mode to update again, and router will restore to factory mode. If after CFE updating, still cannot visit WEB GUI, please contact us for repairing 7.4.6 Forget Router Password...
