www.hongdian.com
User Manual

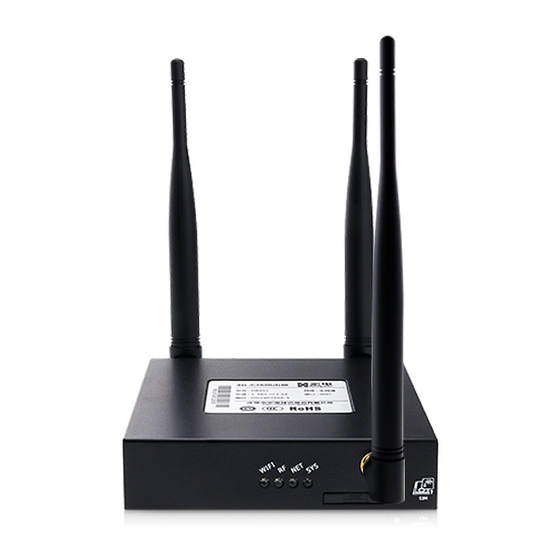

H8951-NA Cellular Wi-Fi Router

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H8951-NA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Shenzhen Hongdian Technologies H8951-NA

Summary of Contents for Shenzhen Hongdian Technologies H8951-NA

  • Page 1 User Manual H8951-NA Cellular Wi-Fi Router...
  • Page 2 Hongdian Technologies Corporation. Trademarks and Permissions and DTU are the trademarks and logos of Shenzhen Hongdian Technologies Corporation. Other trademarks and logos mentioned in this manual belong to other organizations related. Shenzhen Hongdian Technologies Corporation does not own the rights of other trademarks and logos.
  • Page 3 Cellular Wi-Fi Router User Manual Introduction Summary H8951-NA Cellular Wi-Fi Router is a data communication terminal on mobile communication network which independently researched and developed by Hongdian Corporation. The product is based on 3G/4G wireless communication technology. It uses high performance 32-bit embedded operating system and has a full industrial design. It can provide high performance 3G/4G communication speed by accessing the global 3G/4G network via the embedded 4G module.
  • Page 4 Cellular Wi-Fi Router User Manual Brief Introduction of Contents The usage of H8951-NA Cellular Wi-Fi Router is described in the document. Section Contents 1 Product Introduction H8951-NA Cellular Wi-Fi Router and its functional characteristics, product orientation are introduced in the chapter.
  • Page 5 Cellular Wi-Fi Router User Manual Convention Description Italic Command arguments are in italics. Items (keywords or arguments) in brackets [ ] are optional. { x | y | ... } Optional items are grouped in braces and separated by vertical bars.
  • Page 6 The manual was firstly released aiming at the release of H8951-NA Router. V1.1 2017-10-1 Manual update to doc V1.1; H8951-NA hardware version update to V30 from V21. V1.2 2020-2-21 Manual update to Doc V1.2 Hardware version from V30 to V50A...

  • Page 7: Table Of Contents

    Cellular Wi-Fi Router User Manual Contents Introduction ..........................3 Summary ................................. 3 Product Version ............................... 3 Readers ................................3 Brief Introduction of Contents .......................... 4 Conventions ..............................4 Modifying Records ............................6 Contents ............................7 Table Contents .......................... 11 Figure Contents ......................... 13 1 Product Introduction ........................
  • Page 8 Cellular Wi-Fi Router User Manual 4 Before config .......................... 13 About This Chapter ............................13 4.1 LED Status ..............................13 4.2 Local Connection Configuration ........................ 14 4.3 Basic configuration ........................... 19 4.3.1 Login WEB GUI ..........................19 5 Router Configuration ......................21 About this chapter ............................
  • Page 9 Cellular Wi-Fi Router User Manual 5.7.1 Overview............................92 5.7.2 Local Log ............................92 5.7.3 Remote Log ............................. 93 5.7.4 Clock ............................... 94 5.7.5 Account............................95 5.7.6 Network Test ..........................97 5.7.7 Files ..............................98 5.8 Status..............................104 5.8.1 Overview............................104 5.8.2 Base Information ...........................
  • Page 10 Cellular Wi-Fi Router User Manual 7.4.2 Backup setting problem ......................... 125 7.4.3 Updating patch failure ........................125 7.4.4 CFE Updating failure ........................125 7.4.5 Update failure in WEB GUI......................126 7.4.6 Forget Router Password ........................ 126 Doc. Version 1.2...
  • Page 11 Cellular Wi-Fi Router User Manual Table Contents Table 2-1H8951-NA Cellular Wi-Fi Router size ....................6 Table 2-2H8951-NA Cellular Wi-Fi Router accessories..................7 Table 4-1 LED instruction ..........................13 Table 5-1 LAN Parameter instruction ......................22 Table 5-2 WAN connection type parameter instruction .................. 23 Table 5-3 Modem Parameter instruction ......................
  • Page 12 Cellular Wi-Fi Router User Manual Table 5-27 OSPF route parameter instruction ....................77 Table 5-28 VPDN rule parameter instruction ....................79 Table 5-29 Tunnel rule parameter instruction ....................81 Table 5-30 IPSec Phase 1 Parameter instruction ..................... 84 Table 5-31 IPSec Parameter instruction ......................86 Table 5-32 IPSec Parameter instruction ......................
  • Page 13 Cellular Wi-Fi Router User Manual Figure Contents Figure 1-1 Schematic Diagram of Application for Financial Industry ..............2 Figure 1-2 Schematic Diagram of Application for Logistics Cabinet Industry ............2 Figure 2-1H8951-NA Cellular Wi-Fi Router Appearance ..................6 Figure 2-2H8951-NA Cellular Wi-Fi Router Figure ..................... 7 Figure 2-3 Front panel ............................
  • Page 14 Cellular Wi-Fi Router User Manual Figure 5-14 DHCP ............................42 Figure 5-15 ICMP Check tab ........................... 44 Figure 5-16 ICMP adding page ........................45 Figure 5-17 DDNS configuration ........................47 Figure 5-18 SNMP configuration........................49 Figure 5-19 M2M configuration........................51 Figure 5-20 Timing configuration........................
  • Page 15 Cellular Wi-Fi Router User Manual Figure 5-51 Local Log tab ..........................92 Figure 5-52 Remote Log tab ........................... 93 Figure 5-53 “NTP” Time Synch........................94 Figure 5-54 Manual Time Synch. Type ......................94 Figure 5-55 Account tab ..........................96 Figure 5-56 Network Test Tab ........................

  • Page 16: Brief Introduction Of Contents

    (WLAN) as high as 150Mbps. The most dominant feature of H8951-NA Cellular Wi-Fi Router is that it can support simultaneous online and backup switchover among various networks such as WAN, WLAN and 3G/4G. The backup in various networks can guarantee and maintain communication links to the greatest extent so as to avoid business loss caused by communication outage.

  • Page 17: Product Orientation

    The M2M platform is able to realize the statistics of 3G/4G wireless network information and status in the place where H8951-NA Cellular Wi-Fi Router is used as well as the remote upgrade and configuration management for H8951-NA Cellular Wi-Fi Router.

  • Page 18: Functions And Features

    H8951-NA1 3G/4G Router User Manual 1.3 Functions and Features Function Modem/WAN/Wi-Fi multiple network mode backup  VPN support, GRE over IPSec, IPsec over PPTP/L2TP  WAN port support PPPoE, static IP, DHCP client   LCP/ICMP/flow/heartbeat check, ensure network usability SNMP network management, NTP support ...

  • Page 19: Function Comparison Table

    Related humidity: <95% (non-condensing) Guarantee: one year  length of 3G/4G antenna cable：＞20cm  1.5 Function comparison table The H8951-NA router is compared with other model routers of Hongdian as shown in table below. Function H8922S V12 H8922 V30 H8951-NA...

  • Page 20: Product Structure

    EN61000-4-2,level 4 EN61000-4-3,level 3 Industry&Applic EN61000-4-4,level 4 ations EN61000-4-6,level 3 EN61000-4-8,>level 4 CISPR 22,CLASS B CISPR 22,CLASS B Product Structure About this chapter Chapter Content 2.1 Hardware H8951-NA Cellular Wi-Fi Router hardware. 2.2 Structure Structure of H8951-NA Cellular Wi-Fi Router .

  • Page 21: Hardware

    Table 2-1 H8951-NA Cellular Wi-Fi Router size Model Dimension (mm) Interface H8951-NA Cellular 100×98×23 1×10/100Mb LAN interface Wi-Fi Router 1×10/100Mb WAN/LAN interface 2× SMA antenna interface 1× Standard SIM/R-UIM interface 1× Standard DC power interface H8951-NA Cellular Wi-Fi Router appearance as the figure shown below.

  • Page 22: Accessories

    Router CD-ROM 1 pcs Optional 3G antenna 1 or 2 pcs According to module number inside RJ45 cable 1 pcs Mounting 1 pair Optional 1 pcs Certificate and warranty card 2.2 Structure The H8951-NA interface panels are as shown below.
  • Page 23 H8951-NA1 3G/4G Router User Manual Figure 2-3 Front panel Figure 2-4 Back panel...

  • Page 24: Router Installation

    Table 2-2. The packing materials shall be properly kept for future use. 3.2 Installation and Wiring 3.2.1 Install SIM/UIM card H8951-NA Cellular Wi-Fi Router support single SIM/UIM card, so you may need insert single SIM before config it.

  • Page 25: Ethernet Cable Connection

    Figure 3-1 Pop out SIM slot ---End 3.2.2 Ethernet cable connection Use Ethernet port directly connect H8951-NA Cellular Wi-Fi Router and computer, or transferred by a switch. Single equipment direct connection Use Ethernet cable with RJ-45 type connector to directly connect any of four exchange interfaces of Cellular Wi-Fi Router with the relevant computer as shown below.

  • Page 26: Power Supply

    Manual Figure 3-2 Multiple Equipment Connection 3.3 Power Supply In order to get high reliability, H8951-NA Cellular Wi-Fi Router adapt wide voltage input: 5-36VDC, support hot plug and complex application environment. 3.4 Installation Inspection Before installation and power-on, the SIM card shall be pressed to inspect whether it is properly inserted.
  • Page 27 H8951-NA1 3G/4G Router User Manual Step 3 Provide power supply for H8951-NA Cellular Wi-Fi Router. The following content is about the router dialing of the SIM card. After providing power supply, it means that the power supply for the router is normal in ...

  • Page 28: Before Config

    How to local config H8951-NA Cellular Wi-Fi Router . 4.3 Basic config Basic config & function. 4.1 LED Status There are LED on front panel of H8951-NA Cellular Wi-Fi Router , they show how H8951-NA Cellular Wi-Fi Router works. Table 4-1 LED instruction LED name...

  • Page 29: Local Connection Configuration

    Figure 4-1 Local Area Connection Step 2 Obtain a IP address automatically, or follow below instruction. H8951-NA Cellular Wi-Fi Router default enabled DHCP server. If it has been disabled, DHCP cannot be use. Step 3 Change or add a IP 192.168.8.* on your computer.
  • Page 30 H8951-NA1 3G/4G Router User Manual Figure 4-2 Connection properties Figure 4-3 Internet protocol (TCP/IP)
  • Page 31 IP address: 192.168.8.* (*indicates any integral between 2 to 254) Subnet mask: 255.255.255.0 Default gateway: 192.168.8.1 Remember: H8951-NA Cellular Wi-Fi Router LAN port factory default parameter: IP address: 192.168.8.1 Subnet mask: 255.255.255.0 H8951-NA Cellular Wi-Fi Router factory default login parameter: Management interface login IP address: 192.168.8.1...
  • Page 32 H8951-NA1 3G/4G Router User Manual Advanced configuration  If you don’t want to interrupt local PC LAN communication and configure H8951-NA Cellular Wi-Fi Router when the former network configuration exists, it is required add route (IP). The configuration operation is shown as below: Click the “Advanced…”...
  • Page 33 H8951-NA Cellular Wi-Fi Router is used, you need to modify the default gateway and configure it as H8951-NA Cellular Wi-Fi Router’s default LAN IP address 192.168.8.1.

  • Page 34: Basic Configuration

    H8951-NA1 3G/4G Router User Manual Figure 4-6 Connectivity check By now, it means that the configuration computer has been connected to the router. You can carry out configuration operation on it. ---END 4.3 Basic configuration Through this chapter, you could achieve basic function: visit internet. 4.3.1 Login WEB GUI Step 1 Run a Internet Explorer and visit “http://192.168.8.1/”, to enter identity page.
  • Page 35 H8951-NA1 3G/4G Router User Manual Figure 4-7 User identity page Step 2 User should use default user name and password when log in for the first time: Step 3 User name: admin Step 4 Password: admin ---EN...

  • Page 36: Router Configuration

    5.8 Status Router working status 5.1 Overview H8951-NA Cellular Wi-Fi Router adopts WEB GUI to configure, all parameter can be modified by this GUI, and it is easy to understand. 5.2 Network configuration Network connection configuration, including LAN, WAN, cellular network, Wi-Fi(optional),...

  • Page 37: Lan

    H8951-NA1 3G/4G Router User Manual 5.2.1 LAN LAN setting used to manage local area network PC which connect to H8951-NA, make them could visit internet and the network segment connectivity normal. Step 1 Login H8951-NA WEB GUI. Step 2 Single click “Network > LAN”.

  • Page 38: Wan

    IP to your PC to insure that. ---END 5.2.2 WAN Wired connect to Internet by static IP, DHCP or PPPoE. Step 1 Login H8951-NA WEB GUI. Step 2 Single click “network > WAN”. Figure 5-2 WAN window Step 3 WAN connection type.
  • Page 39 H8951-NA1 3G/4G Router User Manual Parameter Details Operation get IP address from Select DHCP DHCP ”Connection Type” select ”PPPoE” Service Name Configure PPPoE WORD type, up to 64 characters, service name, which is not blank, please refer to usually used for parameters regulation format identification and judgment between...
  • Page 40 H8951-NA1 3G/4G Router User Manual Parameter Details Operation Compress (need match server end, default disable) Disable  Compression Negotiate which compress control Negotiation  Control Protocol protocol used on PPP link Disable  Whether compress IP address Address/Control Negotiation  Compression Disable ...

  • Page 41: Modem

    5.2.3 Modem H8951-NA Cellular Wi-Fi Router core function, connect Internet by cellular modem, H8951-NA Cellular Wi-Fi Router support single modem single SIM, those three working type provide internet connection to customers. Usually 3G network bandwidth is 1~5Mbps, 3.5G up to 20Mbps and LTE up to 100Mbps.
  • Page 42 H8951-NA1 3G/4G Router User Manual Figure 5-4 Modem page Input suitable parameter. Table 5-3 Modem Parameter instruction Parameter Details Operation Auto-dialup current modem, if all Enable   Auto-dialup modem auto-dialup disabled, router Disable  will not auto-dialup Interface Name Interface name, to identify this WORD type, up to interface...
  • Page 43 H8951-NA1 3G/4G Router User Manual Parameter Details Operation EVDO: auto  evdo  cdma  LTE, HSPA+ module force 3G means 3G auto, AUTO means 2.5G/3G/4G auto Advance Setting PPP process advanced parameter, do Single click to show not suggest to modify the setting. If advanced setting necessary, contact us for support Authentication (need match server end, default auto-negotiation)
  • Page 44 H8951-NA1 3G/4G Router User Manual Parameter Details Operation is enable, in order to check more info Negotiation  about dialing, suggest no changing Disable  Peer’s DNS Auto get peer DNS when PPP dialing. Negotiation  DNS is necessary if want visit domain name.
  • Page 45 H8951-NA1 3G/4G Router User Manual Figure 5-5 Modem Dialup...
  • Page 46 H8951-NA1 3G/4G Router User Manual Figure 5-6 Advanced setting Single click “save” icon to finish. Grey icon means enabled. ---END...

  • Page 47: Wlan

    AP function, H8951-NA Cellular Wi-Fi Router can provide wireless LAN hotspots; through Station client function, it allows H8951-NA Cellular Wi-Fi Router access to other AP devices, such H8951-NA Cellular Wi-Fi Router downlink machine can access the Internet via the AP connection; Repeater functionality can be other AP WLAN signal amplification device, to achieve WLAN signal repeater, so the clients far away from the AP WLAN can access the AP.
  • Page 48 H8951-NA1 3G/4G Router User Manual Figure 5-8 Station mode configure interface Figure 5-9 Station scan signal interface Step 4 “WLAN” configure parameter instruction, parameter instruction as Table 5-4. Table 5-4 WLAN parameter instruction Parameter Details Operation Dropdown List WLAN Enable or disable WLAN Status feature Enable...
  • Page 49 H8951-NA1 3G/4G Router User Manual Parameter Details Operation WLAN work mode, support  Wireless Dropdown List ap/station Mode  station  Network WLAN network mode, Dropdown List Mode different network models are n represents the network rate  quite different transmission rates, default bgn mixed 150Mbps ...
  • Page 50 H8951-NA1 3G/4G Router User Manual Parameter Details Operation dhcp ： get IP address from when address when it is connected  Wireless to AP DHCP Mode is static：manually set IP address  station) Manual input IP(when The router get an IP in Wireless correspondence with AP when Format：A.B.C.D/Mask...

  • Page 51: Parameter Select

    H8951-NA1 3G/4G Router User Manual When the working mode select station or repeater, H8951-NA Router will automatically match according to the selected AP and the corresponding encryption algorithm (to keep consistent with AP encryption); shared key update interval is required to fill in the connections of AP key and interval.
  • Page 52 H8951-NA1 3G/4G Router User Manual Figure 5-11 Add rule Table 5-5 Parameter instruction Parameter Details Operation Enable  Status For enabled rule: Only one rule is Disable  running at one time, when it checks failed, next rule start running For disabled rule: all related interface also disabled Basic settings...

  • Page 53: Network Type

    But Link backup function may conflict with parameter select function, if you set both, final running result may not as you presume. ---END 5.2.6 Network type Step 1 Login H8951-NA WEB GUI. Step 2 Single click “Network > Network type”. Figure 5-12 Connection type window...

  • Page 54: Link Backup

    Please note, when using this feature need to other operation: The default route in Forward>>Route need to be delete. The Masq of each link need to be added in Forward>>NAT>>MASQ. Step 1 Login H8951-NA WEB GUI. Step 2 Single click “network > Link Backup”.
  • Page 55 H8951-NA1 3G/4G Router User Manual Figure 5-13 Link Backup Table 5-7 Link Backup Parameter Parameter Details Operation Enable  Status Enable or Disable Link Backup feature Disable  Value area: 0-9  Rule Name Link Backup rule name identification Note: 0 can act as chain link or backup link, 1-9 only can act as backup link 1-9 can take the priority according to the...

  • Page 56: Dhcp Service

    Step 3 Single click “save” icon. ---END 5.2.8 DHCP Service DHCP(Dynamic Host Configuration Protocol) is a LAN network protocol, enable the DHCP function, a function automatically can obtain the dynamic IP. Step 1 Login H8951-NA WEB GUI. Step 2 Single click “Network > DHCP Server”.
  • Page 57 H8951-NA1 3G/4G Router User Manual Figure 5-14 DHCP Step 3 Configure DHCP parameter. Step 4 DHCP parameter instructions are as Table 5-8. Table 5-8 DHCP Parameter Parameter Details Operation Enable  DHCP Enable or Disable DHCP feature Disable  Server Basic Settings(DHCP is not recommended configure in the case of no special network requirement) Dropdown List...
  • Page 58 H8951-NA1 3G/4G Router User Manual Parameter Details Operation Example：192.168.8.2 End IP When IP pool select custom Manual input configuration, configure the DHCP Format：A.B.C.D/Mask pool end IP address Example：192.168.8.254 Dropdown List  Gateway DHCP client access gateway IP Type source, divided into default, br0, Default value：default eth0, custom four categories, associated interface, the interface IP...

  • Page 59: Application Program Configuration

    There is fake link (can get IP after dialing, but cannot link to destination address). Usually LCP is used to avoid this. Besides LCP, H8951-NA Cellular Wi-Fi Router can use another more reliable checking way ICMP which check the link by PING. When abnormal link is checked, the preset action will be executed to recover the link and systems quickly.
  • Page 60 H8951-NA1 3G/4G Router User Manual Figure 5-16 ICMP adding page Configure the ICMP check parameter. Table 5-9 ICMP check rules Parameter instruction Parameter Details Operation Button ICMP check To enable or disable ICMP check service rules, multiple rules can be used Enable ...
  • Page 61 H8951-NA1 3G/4G Router User Manual Parameter Details Operation recognize ICMP check fails Value area ：1~65535 Retry Check time interval and max check times/normal failure times when link is OK, if Unit: second/time interval check failure times reaches the max times, then “timeout action ” will be executed, e.g.

  • Page 62: Ddns Configuration

    5.3.2 DDNS configuration Network of SIM/UIM shall be a public address so that router can be visited for a DDNS. Step 1 Log-on WEB GUI of H8951-NA Cellular Wi-Fi Router. Step 2 Click “Applications” > “DDNS”. Figure 5-17 DDNS configuration Step 3 Configure DDNS parameter.
  • Page 63 H8951-NA1 3G/4G Router User Manual Parameter Details Operation selected, “Server IP or Domain” will be configured. Default is standard DDNS protocol. for customized protocol, please contact our engineer Server Port Set the port number of Value area: 1~65535 the DDNS server provided If empty, it means 80 port by the service provider.

  • Page 64: Snmp Configuration

    (Support interface status check, like VPN, modem etc. MIB of our company shall be used). Step 1 Log-on WEB GUI of H8951-NA Cellular Wi-Fi Router. Step 2 Click “Applications >SNMP” to open the “SNMP” tab.

  • Page 65: M2M Configuration

    MIB for SNMP can be downloaded from our website, if necessary, please contact our technical engineers. ---END 5.3.4 M2M configuration H8951-NA Cellular Wi-Fi Router has embedded a WMMP (Wireless Machine-to-Machine Protocol) protocol to realize communication with M2M (Machine-to-Machine) platform which can remotely monitor and manage the routers and its network, e.g. visit the router, patch upgrading, firmware upgrading, parameter configuration, monitor the network strength, time delay, flow.
  • Page 66 H8951-NA1 3G/4G Router User Manual Figure 5-19 M2M configuration Step 3 Configure M2M parameter. Parameter instruction is shown. Table 5-12 M2M Parameter instruction Parameter Details Operation M2M service To enable or disable M2M function. Button This function shall be used with our Enable ...

  • Page 67: Timing Configuration

    This application is to control the online time of the router to better manage network and save 3G/4G flow. H8951-NA can add several online periods as per the user’s requirement (e.g. hours of some day). in addition, this application can support to begin some tasks at a time point (e.g.
  • Page 68 H8951-NA1 3G/4G Router User Manual Figure 5-21 To add timing task Step 4 Configure timing task parameter. Table 5-13 Timing task parameter instruction Parameter Details Operation Status To enable or disable a options timing task. Some task shall Enable  be enabled together with Disable ...
  • Page 69 H8951-NA1 3G/4G Router User Manual Parameter Details Operation period. Modem will be offline (no dialing) for other time Schedule This is Linux shell WORD type. Max 64 digits command. Usually suggested not to use it. In case of need, please contact our technical engineers Set time...

  • Page 70: Wake Up Configuration

    Manual 5.3.6 Wake up configuration 3G/4G fee is mostly based on flow. H8951-NA Cellular Wi-Fi Router can get on/off line on demand. It supports on/offline or reboot triggered by voice, SMS or data. It supports max 10 cell phone Nos.
  • Page 71 H8951-NA1 3G/4G Router User Manual Parameter Details Operation Add phone Number WORD type. Max 32 digits. Phone Phone No to trigger the router Number action. One phone No for one action of one modem. Triggered action includes  Task type Dropdown List options modem-up, modem-down,...

  • Page 72: Security

    One phone number be set for actions of different modems, but cannot be set as different actions of one modem. It’s OK for either SIM of the two SIMs of H8951-NA Cellular Wi-Fi Router to open SMS or voice function, no matter which slot to be installed.
  • Page 73 H8951-NA1 3G/4G Router User Manual Figure 5-23 IP Filter tab Step 3 In the forwarding filtering rules. Black List：The default allows packet forwarding, in line with the list of "discarded" rules  packet cannot be forwarded through the router. White List：The default refuses packet forwarding, in line with the list of "accept" rules ...
  • Page 74 H8951-NA1 3G/4G Router User Manual Figure 5-25 IP Filter “Forward” type Table 5-15 IP filter parameter instruction Parameter Details Operation Type Dropdown List options Select a filter type, you can choose according to their needs, "Input" or "Forward" Input: whether to allow access to the router Forward: whether to allow the router forwarding...
  • Page 75 Domain filter support black list and white list. It is used to forbid PCs in LAN from visit some websites or allows them to visit specific websites. Step 1 Log-on WEB GUI of H8951-NA Cellular Wi-Fi Router. Step 2 Click “Security> Domain Filter” to open “Domain Filter” tab.
  • Page 76 E.g. www.google.com, the keyword is “google”. Accept.  Default action Actions to filter the Drop  keyword Step 4 Single click “Save” to finish configuring a rule. ---END MAC Filter Step 1 Log-on WEB GUI of H8951-NA Cellular Wi-Fi Router.
  • Page 77 H8951-NA1 3G/4G Router User Manual Step 2 Click “Security> MAC Filter” to open “MAC Filter” tab. Figure 5-28 MAC Filter tab Table 5-17 MAC Filter explanation Paramet Details Operation Input configuration Blacklist: rules in blacklist cannot visit router,  Action To activate MAC other MACs can visit router.

  • Page 78: Forward Configuration

    Both: both Input and forward.  Step 4 Single click “save” icon to finish. ---END 5.5 Forward configuration 5.5.1 Overview Forward function of H8951-NA Cellular Wi-Fi Router includes NAT, Routing, dynamic routing (RIP, OSPF) (optional) and QoS (optional).

  • Page 79: Nat

    Step 1 Log-on WEB GUI of H8951-NA Cellular Wi-Fi Router. Step 2 Click “Forward > NAT” to open “NAT” tab. Figure 5-30 NAT tab...
